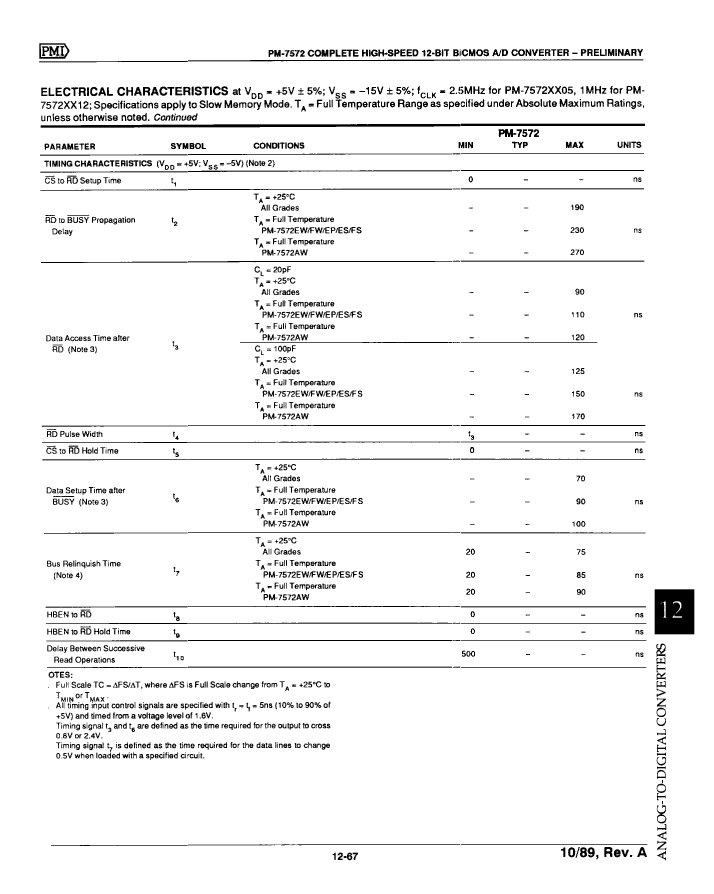

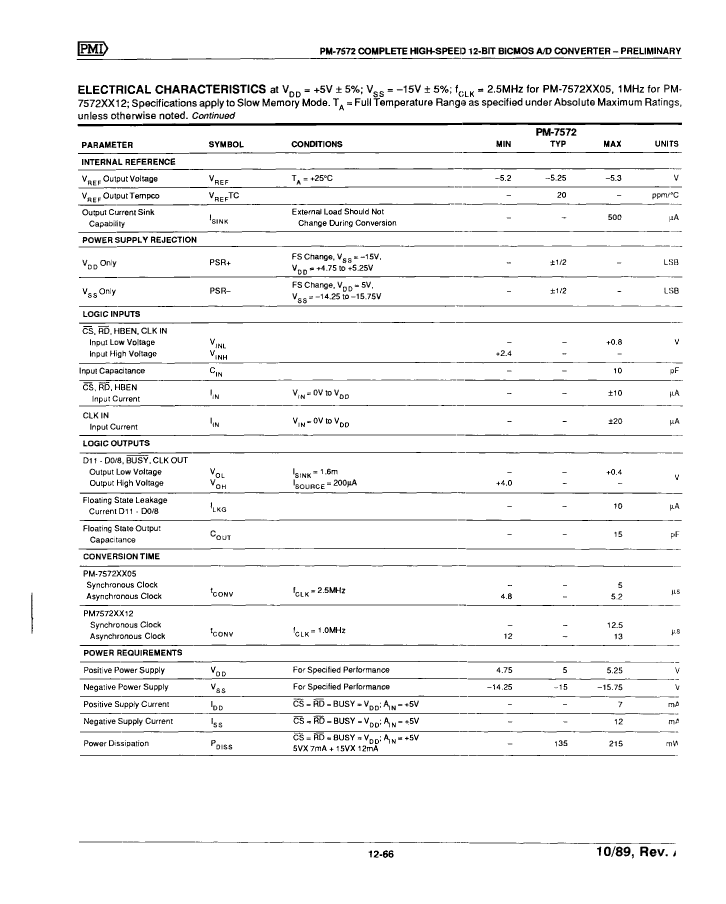

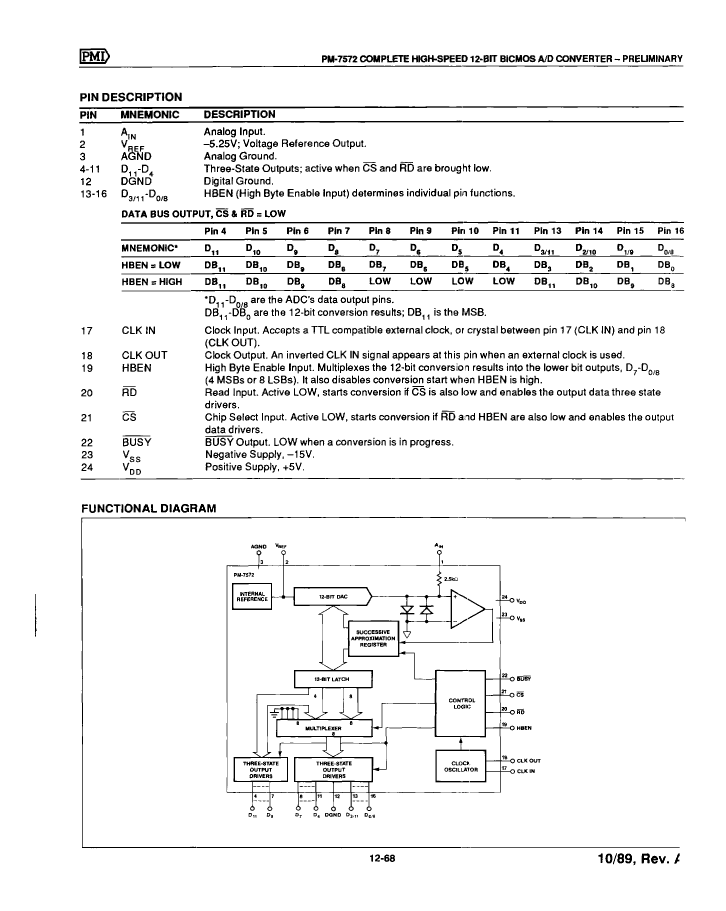

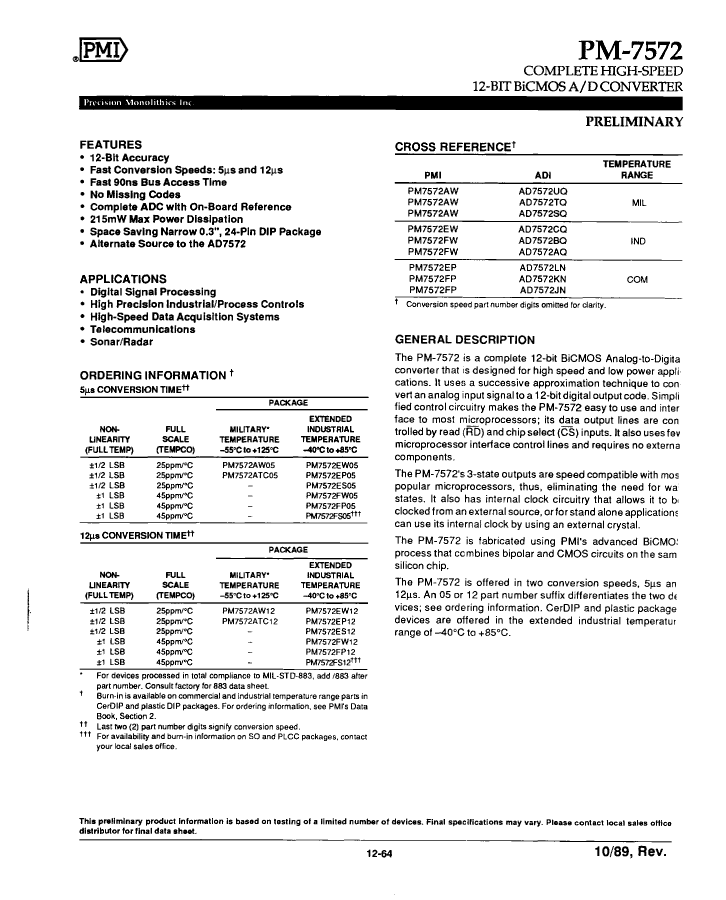

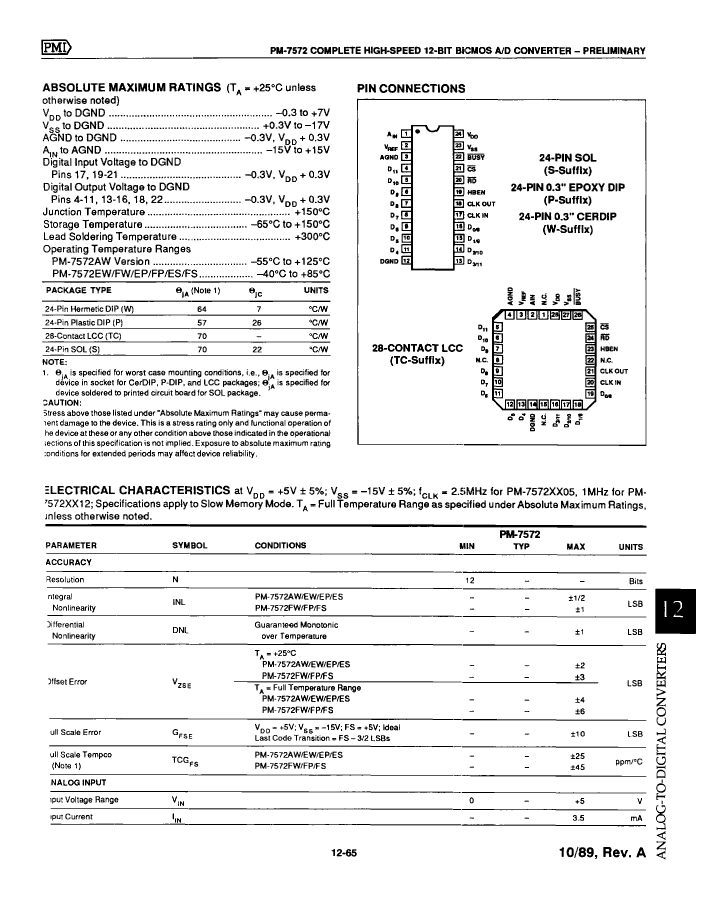

PM7572EP12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> PM7572EP12

PM7572EP12: DescriptionSUCCESSIVE APPROXIMATION ADC, ACCESS, PDIP24; CategoryAnalog mixed-signal IC converter; File Size412KB，11 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

PM7572EP12 Overview

SUCCESSIVE APPROXIMATION ADC, ACCESS, PDIP24

PM7572EP12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	compliant
Maximum analog input voltage	15 V
Minimum analog input voltage	-15 V
Maximum conversion time	13 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
length	30.45 mm
Maximum linear error (EL)	0.012%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.33 mm
Maximum slew rate	12 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

PM7572EP12 Related Products

	PM7572EP12	PM7572ATC05	PM7572EP05	PM7572FW12	PM7572FP05	PM7572ES12	PM7572EW12
Description	SUCCESSIVE APPROXIMATION ADC, ACCESS, PDIP24	SUCCESSIVE APPROXIMATION ADC, ACCESS, PQCC28	SUCCESSIVE APPROXIMATION ADC, ACCESS, PDIP24	SUCCESSIVE APPROXIMATION ADC, ACCESS, CDIP24	SUCCESSIVE APPROXIMATION ADC, ACCESS, PDIP24	SUCCESSIVE APPROXIMATION ADC, ACCESS, PDSO24	SUCCESSIVE APPROXIMATION ADC, ACCESS, CDIP24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP,	LCC-28	0.300 INCH, PLASTIC, DIP-24	0.300 INCH, CERDIP-24	0.300 INCH, PLASTIC, DIP-24	SOP,	DIP,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum analog input voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V
Minimum analog input voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Maximum conversion time	13 µs	5.2 µs	5.2 µs	13 µs	5.2 µs	13 µs	13 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T24	S-CQCC-N28	R-PDIP-T24	R-GDIP-T24	R-PDIP-T24	R-PDSO-G24	R-GDIP-T24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.012%	0.012%	0.012%	0.024%	0.024%	0.012%	0.012%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1
Number of terminals	24	28	24	24	24	24	24
Maximum operating temperature	85 °C	125 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCN	DIP	DIP	DIP	SOP	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.33 mm	2.54 mm	5.33 mm	5.08 mm	5.33 mm	2.65 mm	5.08 mm
Maximum slew rate	12 mA	12 mA	12 mA	12 mA	12 mA	12 mA	12 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	11.43 mm	7.62 mm	7.62 mm	7.62 mm	7.5 mm	7.62 mm
Maker	ADI	-	-	ADI	ADI	ADI	ADI
Parts packaging code	DIP	-	DIP	DIP	DIP	-	DIP
Contacts	24	-	24	24	24	-	24
length	30.45 mm	11.43 mm	30.45 mm	-	30.45 mm	15.4 mm	-
