KPT-2012NW: DescriptionSingle Color LED, Pure Orange, Diffused White, 1.3mm, 2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size88KB，1 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

KPT-2012NW Overview

Single Color LED, Pure Orange, Diffused White, 1.3mm, 2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2

KPT-2012NW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
color	PURE ORANGE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	DIFFUSED WHITE
Nominal luminous intensity	12.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.75 mm
method of packing	TAPE AND REEL
peak wavelength	607 nm
shape	RECTANGULAR
size	1.3 mm
surface mount	YES
Terminal pitch	2.35 mm
perspective	120 deg

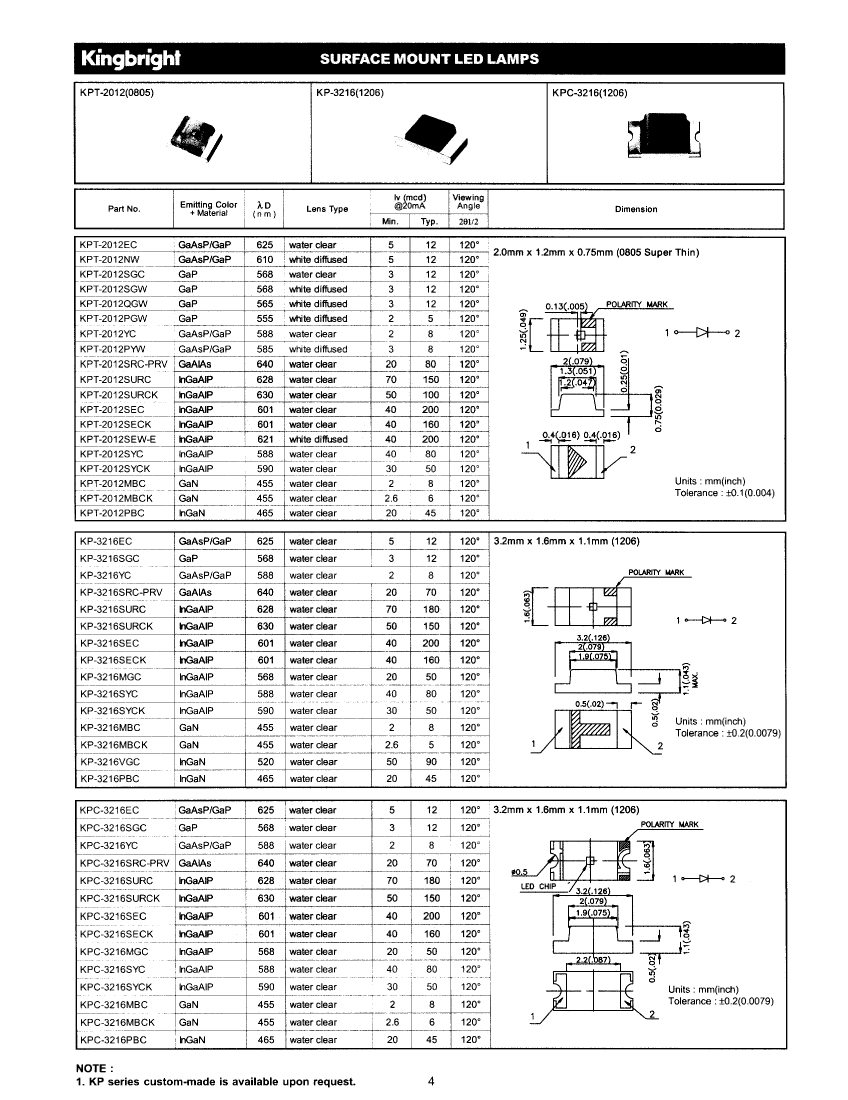

Preview

Download Datasheet

View All

KPT-2012NW Related Products

	KPT-2012NW	KPT-2012MBCK	KPT-2012SGW	1N5913B	KPC-3216MBCK	KP-3216MBCK	KPT-2012PYW	KPT-2012QGW	KPT-2012SEW-E	KPT-2012PGW
Description	Single Color LED, Pure Orange, Diffused White, 1.3mm, 2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	Single Color LED, Blue, Water Clear, 1.3mm, 2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	Single Color LED, Super Bright Green, Diffused White, 1.3mm, 2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	DO-13 PACKAGE-GLASS TO METAL HERMETICALLY SEALED	Single Color LED, Blue, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, 1206	Single Color LED, Blue, Water Clear, 2mm, 3.20 X 1.60 MM, 1.1 MM HEIGHT, 1206	Single Color LED, Pure Yellow, Diffused White, 1.3mm, 2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	Single Color LED, Green, Diffused White, 1.3mm, 2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	Single Color LED, Hyper Orange, Diffused White, 1.3mm, 2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	Single Color LED, Pure Green, Diffused White, 1.3mm, 2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Kingbright	-	-	-	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright
package instruction	2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	-	3.20 X 1.60 MM, 1.10 MM HEIGHT, 1206	3.20 X 1.60 MM, 1.1 MM HEIGHT, 1206	2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2	2 X 1.2 MM, 0.75 MM HEIGHT, 0805, SUPER THIN PACKAGE-2
Reach Compliance Code	compliant	compliant	compliant	-	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	PURE ORANGE	BLUE	SUPER BRIGHT GREEN	-	BLUE	BLUE	PURE YELLOW	GREEN	HYPER ORANGE	PURE GREEN
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A	0.025 A	-	0.03 A	0.03 A	0.03 A	0.025 A	0.04 A	0.025 A
Lens type	DIFFUSED WHITE	WATER CLEAR	DIFFUSED WHITE	-	WATER CLEAR	WATER CLEAR	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED WHITE	DIFFUSED WHITE
Nominal luminous intensity	12.0 mcd	6.0 mcd	12.0 mcd	-	6.0 mcd	5.0 mcd	8.0 mcd	12.0 mcd	200.0 mcd	5.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	-	1	1	1	1	1	1
Number of terminals	2	2	2	-	2	2	2	2	2	2
Maximum operating temperature	85 °C	80 °C	85 °C	-	80 °C	80 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.75 mm	0.75 mm	0.75 mm	-	1.1 mm	1.1 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	-	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	607 nm	430 nm	565 nm	-	430 nm	430 nm	583 nm	560 nm	630 nm	555 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.3 mm	1.3 mm	1.3 mm	-	2 mm	2 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm
surface mount	YES	YES	YES	-	YES	YES	YES	YES	YES	YES
Terminal pitch	2.35 mm	2.35 mm	2.35 mm	-	3.75 mm	3.75 mm	2.35 mm	2.35 mm	2.35 mm	2.35 mm
perspective	120 deg	120 deg	120 deg	-	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
