BL20SMD30SM datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BL20SMD30SM

Preview

BL20SMD30SM: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size150KB，1 Pages; ManufacturerFischer Elektronik; Environmental Compliance

Download Datasheet Parametric Compare View All

BL20SMD30SM Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal

BL20SMD30SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fischer Elektronik
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	BL
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	30

Preview

Download Datasheet

View All

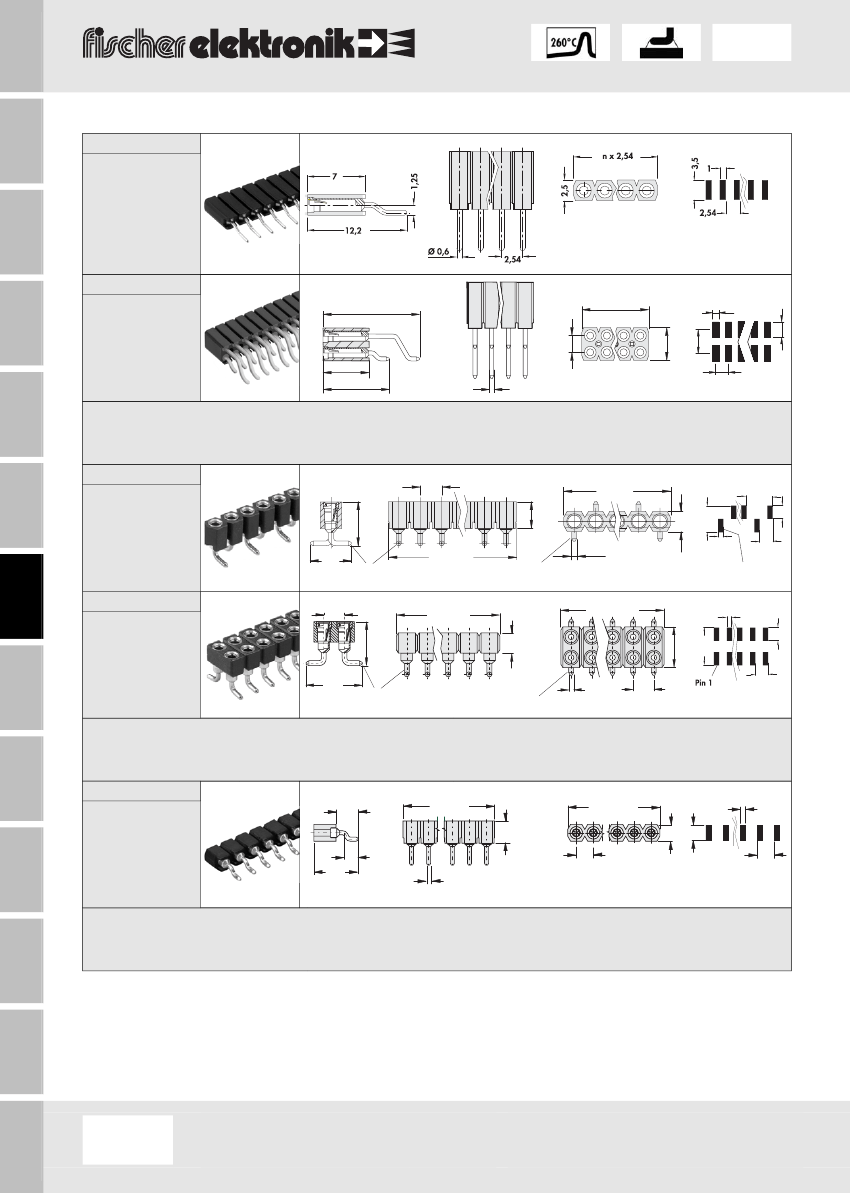

A

High-precision female headers in SMD mounting

for

0.635 mm and up to 0.85 mm Ø

2.54

B

art. no.

C

BL 17 SMD ...

art. no.

14,7

n/2 x 2,54

1

3

2,54

7

5

4,6

2,54

Ø 0,6

D

BL 20 SMD ...

10,1

E

please indicate:

... no. of contacts

one row 2-20

two rows 4-40

2,54

... packing (option)

SM =bar magazine

n x 2,54

3,3

5,2

5,4

2,5

F

4,6

5,08

n x 2,54

Pin 1

Ø 0,6

1

2,54

Pin 1

G

MK 22 SMD ...

art. no.

2,54

n x 2,54

5,4

2,5

n/2 x 2,54

1

7,5

5

H

MK 222 SMD ...

please indicate:

6,9

2,54

Pin 1

Ø 0,6

2,45

I

... no. of contacts

one row 4-20

two rows 4-40

... packing (option)

B SM =pick and place pad and bar magazine

art. no.

3,3

n x 2,54

3,3

n/2 x 2,54

2,5

1

2,2

K

MK 24 SMD ...

please indicate:

1,9

6,6

2,54

Ø

0,6

... no. of contacts

one row 2-20

L

contact shell surface:

tin-plated;

contact spring:

gold-plated

No capilliary action when soldering due to protected contact insert.

M

... packing (option) - additions:

BL 17 SMD ... SM: 5-20 contacts; BL 20 SMD ... SM: 10-40 contacts

For further informations please see "for automatic assembly" following this series!

Technical data

Male headers 2.54 solder

Male headers 2.54 SMD

Fem. head. 2.54 solder, put through

N

G 47

➔

G

75 - 80

8

37 - 42

29

Female headers 1.27 SMD

Female headers 2.00 SMD

Female headers 2.54 press-fit

➔

G 74

G 64

G 53

2,7

2,8

art. no.

BL20SMD30SM Related Products

	BL20SMD30SM	MK222SMD36BSM	MK22SMD4BSM	BL17SMD9SM	BL20SMD40SM	MK222SMD6BSM	BL20SMD38	MK222SMD38	BL17SMD6SM
Description	Board Connector, 30 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal	Board Connector, 36 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Board Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Board Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal	Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Board Connector, 38 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal	Board Connector, 38 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal	Board Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	GOLD	NOT SPECIFIED	NOT SPECIFIED	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	1	1	2	2	2	2	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	5.08 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	30	36	4	9	40	6	38	38	6
Maker	Fischer Elektronik	Fischer Elektronik	Fischer Elektronik	Fischer Elektronik	Fischer Elektronik	-	-	-	-
Contact completed and terminated	GOLD	Gold (Au)	-	-	GOLD	Gold (Au)	GOLD	Gold (Au)	GOLD
JESD-609 code	e4	e4	-	-	e4	e4	e4	e4	e4
Manufacturer's serial number	BL	-	MK	BL	BL	-	BL	-	BL
