DFNS15-BRZFREQXB50: DescriptionHCMOS/TTL Output Clock Oscillator, 1.8MHz Min, 50MHz Max; CategoryPassive components oscillator; File Size91KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFNS15-BRZFREQXB50 Overview

HCMOS/TTL Output Clock Oscillator, 1.8MHz Min, 50MHz Max

DFNS15-BRZFREQXB50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Reach Compliance Code	unknown
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	DFNS15-B
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	1.8 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	5 TTL, 15 PF
physical size	5mm x 3.2mm x 1.3mm
longest rise time	5 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

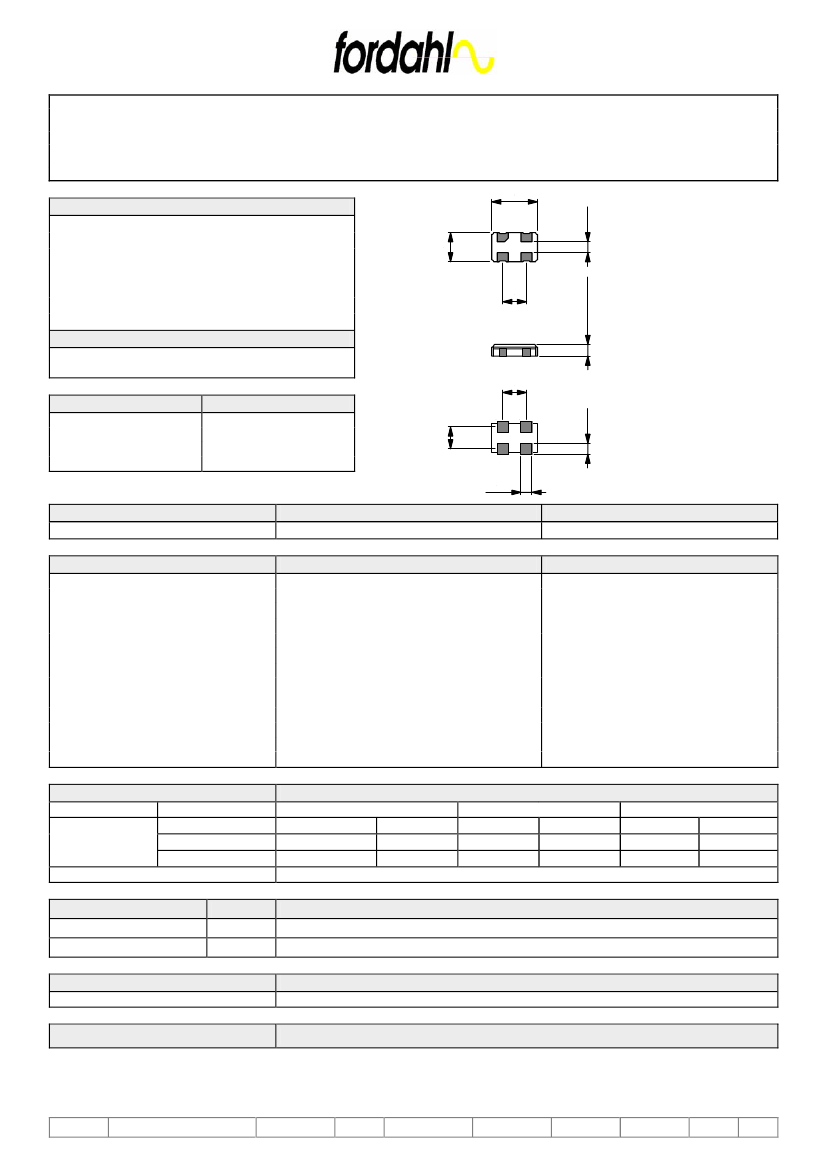

FREQUENCY CONTROL PRODUCTS

SURFACE MOUNT CLOCK OSCILLATOR

DFN S15-B/ BL

1.2

3.2±0.2

2.54

FEATURES

1.8 to 50 MHz

Standard ceramic package

HCMOS/TTL compatible output

APPLICATIONS

Clocking/Datacomms /PCMCIA

5.0±0.2

NC/Enable

GND

Output

Vcc

1

2

3

4

2.4

3

1.2

Function

DFN S15

1.3 MAX

PC board footprint

1

1.2

2

TYPE

Frequency Range

ELECTRICAL SPECIFICATIONS

supply voltage

supply current (no load)

output load

duty cycle

rise/fall times

high/low levels

start up

≤

25 MHz

≤

50 MHz

≤

25 MHz

DFN S15-B

1.8 to 50 MHz

DFN S15-BL

1.8 to 50 MHz

5 V ± 10 %

≤

20 mA

≤

30 mA

HCMOS 15 pF or 5 TTL

40/60...60/40 % @ 50% level or 1.4 V

10 to 90 %

≤

5 ns

≥

4.5 V/

≤

0.5 V

≤

10 ms @ 4.75 V

3.3 V ± 10 %

≤

15 mA

≤

20 mA

HCMOS 15 pF or 10 LSTTL

40/60...60/40 % @ 50% level

10 to 90 %

≤

5 ns

≥

2.7 V/

≤

0.4 V

≤

10 ms @ 3.00 V

FREQUENCY STABILITY

types

all types

remarks

temperature range

0 to 70°C

-10 to 70°C

-40 to 85°C

stability [ ppm ] and temperature code

stability

code

stability

code

stability

code

XB25

XB50

XB100

≤

± 25

≤

± 50

≤

± 100

XI25

XI50

XI100

≤

± 25

≤

± 50

≤

± 100

XE50

XE75

XE100

≤

± 50

≤

± 75

≤

± 100

stability includes calibration at 25°C, temperature, ageing, Vcc and load changes 1

st

yr.

OPTIONS

tight symmetry

tri-state output on pin 1

CODE

R

Z

45/55...55/45 %

high or open = enable, low = high Z

ORDERING CODE

Example

type + option code + frequency + stability/temperature code

DFN S15-BLRZ 50.000 MHz XB25

IMPORTANT NOTE

THIS PRODUCT IS DESIGNED FOR VOLUME APPLICATIONS ONLY

TYPE

DFN S15-B & BL

REVISION

00

CHECKED

NE

DATE

03.09.2003

PAGE

18
