CHR3663-QEG
RoHS COMPLIANT

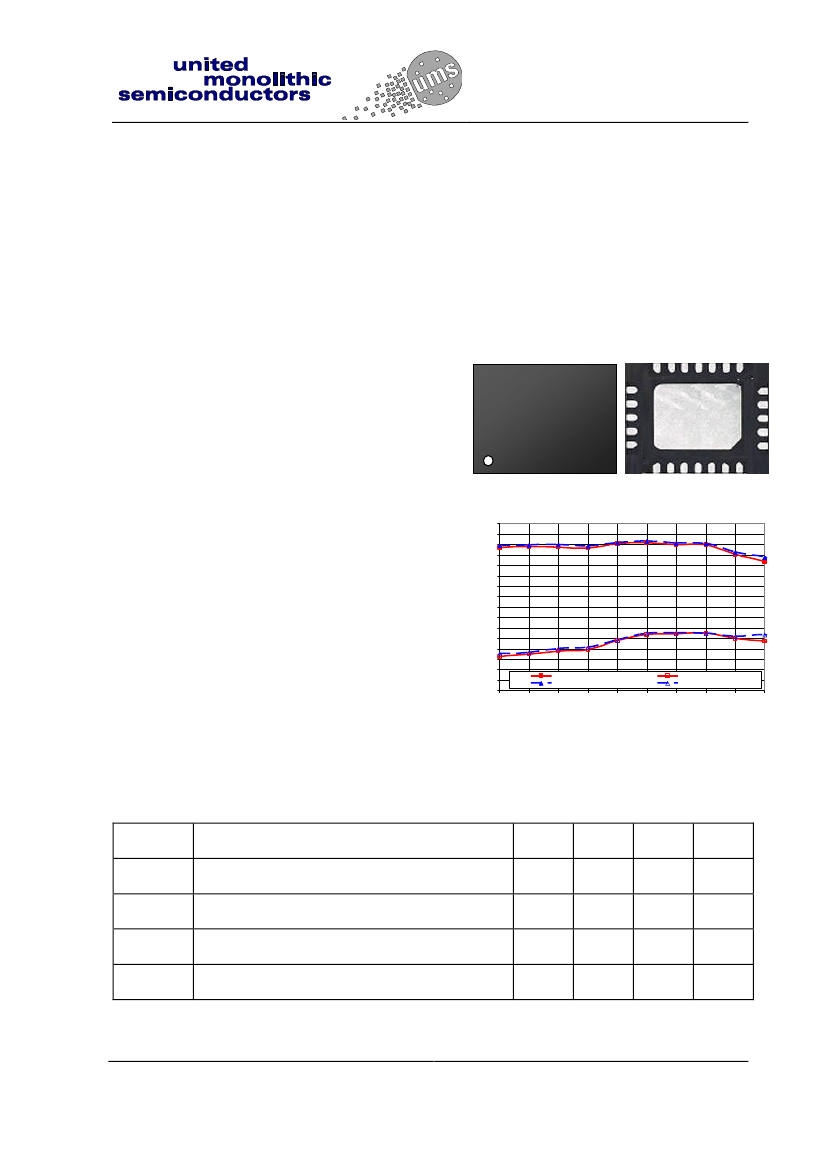

17-24GHz Integrated Down Converter
GaAs Monolithic Microwave IC in SMD package
Description
The CHR3663-QEG is a multifunction part,
which integrates a balanced cold FET mixer,
a multiplier by two, and a RF LNA including
gain control.
It is designed for a wide range of
applications,
typically
commercial
communication systems and ISM.
The circuit is manufactured with a robust
high volume pHEMT process, 0.25µm gate
length.
It is available in lead-free SMD package.
Conversion Gain (dB)
UMS
R3663
YYWW
16
14
12
10
8
6
4
2
0
-2
-4
-6
-8
-10
-12
-14
-16
17
18
19
20
21
22
23
24
25
26
RF Frequency (GHz)
Gcmax_SUP@2GHz
Gcmax_INF@2GHz
Gcmin_SUP@2GHz
Gcmin_INF@2GHz
Main Features
■
Broadband RF performance 17-24GHz
■
11dB conversion gain
■
15dBc Image Rejection
■
3
dBm Input IP3
■
15dB Gain control
■
24LQFN4x5
■
MSL1
Main Characteristics
Tamb = +25°C, Vd = 4.5V
Symbol
F
RF
F
LO
F
IF
G
c
Parameter
RF frequency range
LO frequency range
IF frequency range
Conversion gain
Min
17.0
7.0
DC
11
Typ
Max
24.0
14.0
3.5
Unit
GHz
GHz
GHz
dB
ESD Protections: Electrostatic discharge sensitive device observe handling precautions!
Ref. :DSCHR3663-QEG1192 - 11 Jul 11
1/18
Specifications subject to change without notice
United Monolithic Semiconductors S.A.S.
Route Départementale 128 - BP46 - 91401 Orsay Cedex France
Tel.: +33 (0) 1 69 33 03 08 - Fax: +33 (0) 1 69 33 03 09
CHR3663-QEG
Electrical Characteristics
Tamb = +25°C, VD = VDL = 4.5V
Symbol
F
RF
F
LO
F
IF
G
c
G
NF
Im_rej
P
LO
IIP3
2LO/RF
VD, VDL
Id
VGL
GC2, GC3
VGM
Parameter
RF frequency range
LO frequency range
IF frequency range
17–24GHz Down Converter
Min
17.0
7.0
DC
8.5
Typ
Max
24.0
14.0
3.5
Unit
GHz
GHz
GHz
dB
dB
Conversion gain@ min. attenuation (1)
Gain control range
Noise Figure@ min. attenuation, for
IF>0.1GHz
Image rejection (1)
LO Input power
Input IP3@ min. att.
2LO leakage at RF port @ max. gain
DC drain voltage
Drain current
LNA DC gate voltage
Gain control DC voltage
Mixer DC gate voltage
11.0
15
3.5
15
0
4.5
dB
dBc
dBm
dBm
dBm
V
mA
V
0
3
-40
4.5
380
-0.4
-2.0
-0.7
+0,6
V
V
These values are representative of onboard measurements as defined on the drawing at
paragraph “Evaluation mother board”.
(1) An external combiner 90° is required on I / Q.
Note: Id not affected by GC2, GC3.
Ref. : DSCHR3663-QEG1192 - 11 Jul 11
2/18
Specifications subject to change without notice
Route Départementale 128, BP46 - 91401 ORSAY Cedex - FRANCE
Tel.: +33 (0) 1 69 33 03 08 - Fax: +33 (0) 1 69 33 03 09
17–24GHz Down Converter
Absolute Maximum Ratings
(1)
Tamb = +25°C
Symbol
Vd
Id
VGL,VGM
GC1, 2
P_RF
P_LO
Tch
Ta
Parameter
Maximum drain bias voltage
Maximum drain bias current
LNA, mixer DC gate voltage
Gain control voltage
Maximum peak input power overdrive
Maximum LO input power
Maximum channel temperature
Operating temperature range
CHR3663-QEG
Values
5
450
-2.0 to +0.4
-2.5 to + 0.8
10
10
175
-40 to +85
Unit
V
mA
V
V
dBm
dBm
°C
°C
Tstg
Storage temperature range
-55 to +125
°C
(1) Operation of this device above anyone of these paramaters may cause permanent
damage.
Ref. : DSCHR3663-QEG1192 - 11 Jul 11
3/18
Specifications subject to change without notice
Route Départementale 128, BP46 - 91401 ORSAY Cedex - FRANCE
Tel.: +33 (0) 1 69 33 03 08 - Fax: +33 (0) 1 69 33 03 09
CHR3663-QEG

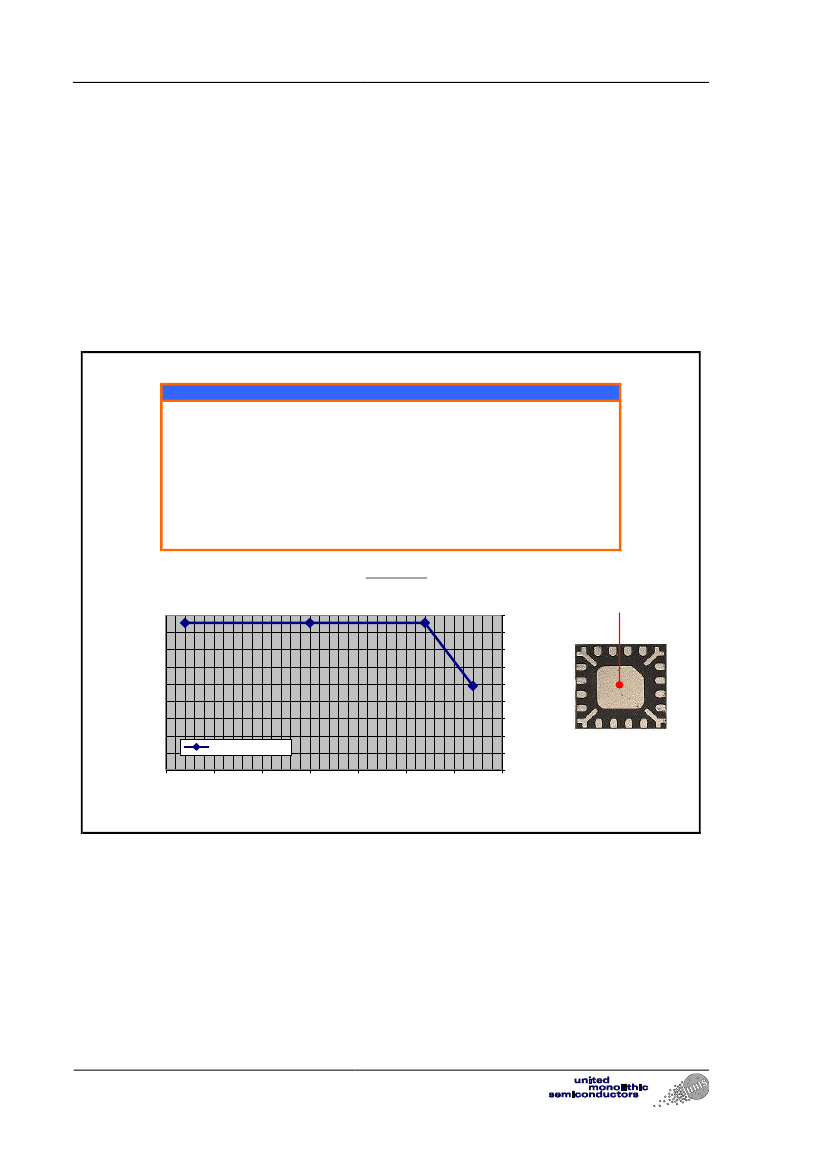

Device thermal performances
17–24GHz Down Converter
All the figures given in this section are obtained assuming that the QFN device is cooled
down only by conduction through the package thermal pad (no convection mode
considered).
The temperature is monitored at the package back-side interface (Tcase) as shown below.
The system maximum temperature must be adjusted in order to guarantee that Tcase
remains below than the maximum value specified in the next table. So, the system PCB must
be designed to comply with this requirement.
A derating must be applied on the dissipated power if the Tcase temperature can not be
maintained below than the maximum temperature specified in order to guarantee the nominal
device life time (MTTF) (see the curve Pdiss. Max).
DEVICE THERMAL SPECIFICATION : CHR3663-QEG
Recommanded max. junction temperature (Tj max)
:
143
Junction temperature absolute maximum rating
:
175
Max. continuous dissipated power @ Tcase=
85 °C :
1,71
(1)
=> Pdiss derating above Tcase =
85 °C :
29
(2)
Junction-Case thermal resistance (Rth J-C)
:
<34
(3)
Min. package back side operating temperature
:
-40
(3)
Max. package back side operating temperature
:
85
Min. storage temperature
:
-55
Max. storage temperature
:
125
(1) Derating at junction temperature constant = Tj max
(2) Rth J-C is calculated for a worst case where the
hotter junction
of the MMIC is considered.
°C
°C
W
mW/°C
°C/W
°C
°C
°C
°C
(3) Tcase=Package back side temperature measured under the die-attach-pad (see the drawing below).
1,8
1,6
1,4
Pdiss. Max. (W)
Tcase
1,2
1
0,8
0,6
0,4
Pdiss. Max. (W)
0,2
0
-50
-25
0
25
50
75
100
125
Tcase (°C)
Example of QFN 16L 3x3
back-side view, temperature
reference point (Tcase) location.
5.6
Ref. : DSCHR3663-QEG1192 - 11 Jul 11
4/18
Specifications subject to change without notice
Route Départementale 128, BP46 - 91401 ORSAY Cedex - FRANCE
Tel.: +33 (0) 1 69 33 03 08 - Fax: +33 (0) 1 69 33 03 09
17–24GHz Down Converter
Typical Measured Performances
CHR3663-QEG
Tamb = +25°C, VD = VDL = 4.5V, VGL = -0.4V, VGM = -0.7V, P_LO = 0dBm
These values are representative of onboard measurements (on connector access planes) as
defined on the drawing 97625 page 16. The board losses are estimated from 1.5 to 2.0dB in
the frequency range.
16
14
12
10
8
Conversion Gain (dB)
6
4
2
0
-2
-4
-6
-8
-10
-12
-14
-16
17
18
19
20
21
22
23
24
25
26
RF Frequency (GHz)
Gcmax_SUP@2GHz
Gcmax_SUP@3,5GHz
Gcmin_SUP@2GHz
Gcmin_SUP@3,5GHZ
Figure 1: Conversion Gain in Supradyne Mode versus Frequency
F_RF = 2xF_LO+F_IF, F_IF = 2.0 & 3.5GHz, GC2 = GC3 = -1.5 & 0.5V
16
14
12
10
8
Conversion Gain (dB)
6
4
2
0
-2
-4
-6
-8
-10
-12
-14
-16
17
18
19
20
21
22
23
24
25
26
RF Frequency (GHz)
Gcmax_INF@2GHz
Gcmax_INF@3,5GHz
Gcmin_INF@2GHz
Gcmin_INF@3,5GHz
Figure 2: Conversion Gain in Infradyne Mode versus Frequency
F_RF = 2xF_LO-F_IF, F_IF = 2.0 & 3.5GHz, GC2 = GC3 = -1.5 & 0.5V
Ref. : DSCHR3663-QEG1192 - 11 Jul 11
5/18
Specifications subject to change without notice
Route Départementale 128, BP46 - 91401 ORSAY Cedex - FRANCE
Tel.: +33 (0) 1 69 33 03 08 - Fax: +33 (0) 1 69 33 03 09
