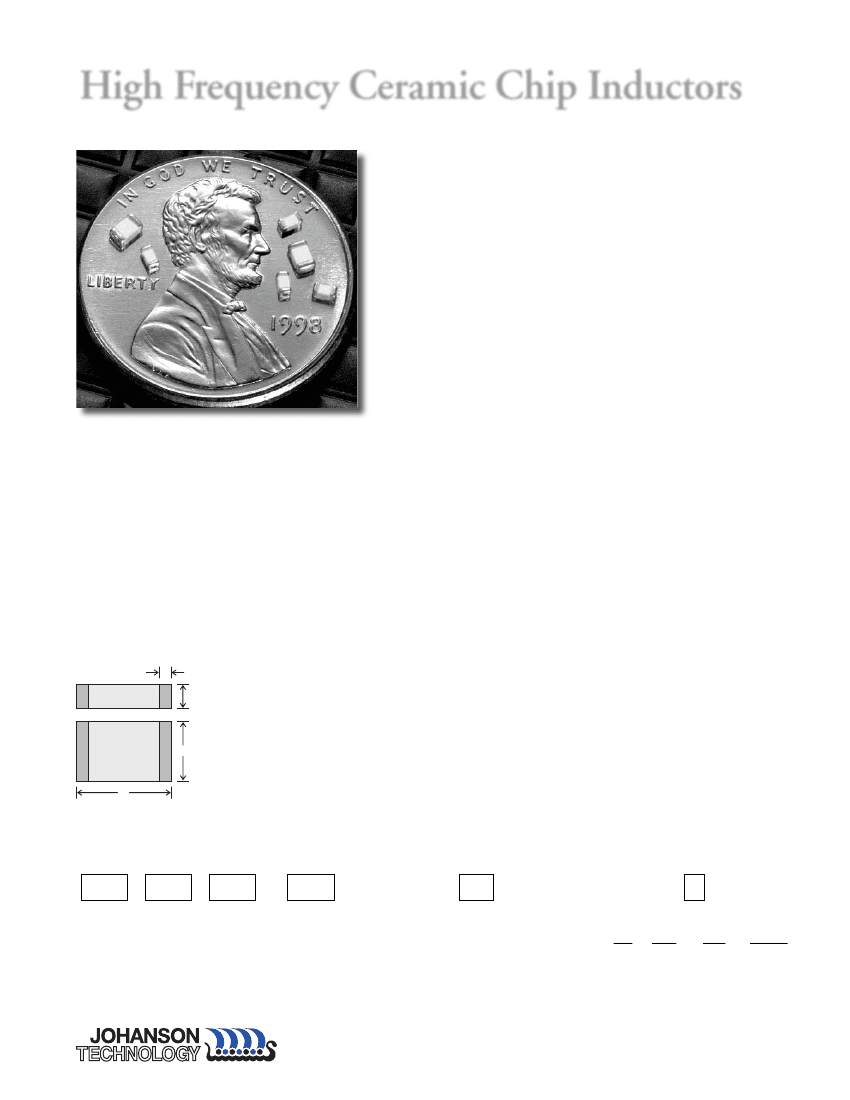

High Frequency Ceramic Chip Inductors
High frequency multi-layer chip inductors feature a monolithic
body made of low loss ceramic and high conductivity metal
electrodes to achieve optimal high frequency performance.
These RF chip inductors are compact in size (0201 - 0805) and
feature tin plated nickel barrier terminations and tape and reel
packaging which makes them ideal for small size/high volume
wireless applications.
APPLICATIONS
• CELL/PCS RF Modules
• Broadband Components
• RF Transceivers
• Wireless LAN
• RFID
• Custom Applications
PRODUCT RANGE SUMMARY
EIA
SIZE (mm)
0201 (0603)
0402 (1005)
0603 (1608)
0805 (2012)
SIZE CODE
L-05
L-07
L-14
L-15
L RANGE
1.0 - 33 nH
1.0 - 120 nH
1.0 - 220 nH
1.5 - 680 nH
Q FACTOR (Min.)
4 (100 MHz)
8 (100 MHz)
12 (100 MHz)
8 (100 MHz)
SRF (Typ.)
>21 GHz (1.0 nH)
>21 GHz (1.0 nH)
>23 GHz (1.0 nH)
>21 GHz (1.5 nH)
TEMPERATURE
-40°C to + 100°C
-40°C to + 100°C
-40°C to + 100°C
-40°C to + 100°C
MECHANICAL CHARACTERISTICS
E/B
T
0201
(0603)
Inches
mm
0402
(1005)
Inches
mm
.040 ±.004” (1.00 ±.10)
.020 ±.004” (0.50 ±.10)
.020 ±.004” (0.50 ±.10)
.009 ±.004” (0.23 ±.10)
0603
(1608)
Inches
mm
.063 ±.006” (1.60 ±.15)
.031 ±.006” (0.80 ±.15)
.031 ±.006” (0.80 ±.15)
.012 ±.008” (0.30 ±.20)
0805
(2012)
Inches
mm
.079 ±.008” (2.00 ±.20)
.047 ±.008” (1.20 ±.20)
.033 ±.008” (0.85 ±.20)
.020 ±.012” (0.50 ±.30)
W
L
Length
Width
Thickness
End Band
.023 ±.0015” (0.6 ±0.04)
.012 ±.0013” (0.3 ±0.03)
.012 ±.0013” (0.3 ±0.03)
.006 ±.002” (0.15 ±0.05)
HOW TO ORDER
L-
DEVICE
Inductor
07
SIZE
05 = 0201
07 = 0402
14 = 0603
15 = 0805
C
TYPE
Ceramic
10N
VALUE
See Table
S = ± 0.3 nH
K = ± 10%
J = ± 5%
J
TOLERANCE
for values 1.0 to 5.6 nH
for values 3.9 nH and above
for values 6.8 nH and above
Size
0201
0402
0603
0805
Code
T
T
E
E
T
TAPE & REEL CODE
Tape
Paper
Paper
Embossed
Embossed
Reel Qty
15,000
10,000
4,000
4,000
“High Frequency Ceramic Solutions”!
0201 INDUCTANCE RANGE / ELECTRICAL CHARACTERISTICS
Inductance Range:
1.0 - 33 nH
Quality Factor: 4 (100 MHz)
SRF >21 GHz (1.0 nH)
Please contact the factory for detailed 0201 performance specifications
0402 INDUCTANCE RANGE / ELECTRICAL CHARACTERISTICS
Part Number
L-07C1N0S-_
L-07C1N2S-_
L-07C1N5S-_
L-07C1N8S-_
L-07C2N2S-_
L-07C2N7S-_
L-07C3N3_-_
L-07C3N9_-_
L-07C4N7_-_
L-07C5N6_-_
L-07C6N8_-_
L-07C8N2_-_
L-07C10N_-_
L-07C12N_-_
L-07C15N_-_
L-07C18N_-_
L-07C22N_-_
L-07C27N_-_
L-07C33N_-_
L-07C39N_-_
L-07C47N_-_
L-07C56N_-_
L-07C68N_-_
L-07C82N_-_
L-07CR10_-_
Inductance
1.0 nH
1.2 nH
1.5 nH
1.8 nH
2.2 nH
2.7 nH
3.3 nH
3.9 nH
4.7 nH
5.6 nH
6.8 nH
8.2 nH
10.0 nH
12.0 nH
15.0 nH
18.0 nH
22.0 nH
27.0 nH
33.0 nH
39.0 nH
47.0 nH
56.0 nH
68.0 nH
82.0 nH
100 nH
Tolerance
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH ±10%
± 0.3 nH ±10%
± 0.3 nH ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
Q (Min.)
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
L/Q Freq.
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
Typical SRF
>15000 MHz
>15000 MHz
>15000 MHz
14000 MHz
12000 MHz
9500 MHz
8500 MHz
7000 MHz
6000 MHz
5400 MHz
5000 MHz
4600 MHz
3700 MHz
3200 MHz
3100 MHz
2900 MHz
2100 MHz
1900 MHz
1600 MHz
1400 MHz
1200 MHz
1100 MHz
1000 MHz
900 MHz
850 MHz
DC Resistance Max
0.12
Ω
0.12
Ω
0.13
Ω
0.14
Ω
0.16
Ω
0.17
Ω
0.19
Ω
0.22
Ω
0.24
Ω
0.27
Ω
0.32
Ω
0.40
Ω
0.45
Ω
0.50
Ω
0.60
Ω
0.65
Ω
0.80
Ω
0.90
Ω
1.00
Ω
1.20
Ω
1.30
Ω
2.00
Ω
2.20
Ω
2.50
Ω
2.50
Ω
Rated Current
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
250 mA
250 mA
250 mA
250 mA
250 mA
200 mA
200 mA
200 mA
200 mA
150 mA
150 mA
150 mA
100 mA
100 mA
100 mA
0603 INDUCTANCE RANGE / ELECTRICAL CHARACTERISTICS
Part Number
L-14C1N0S-_
L-14C1N2S-_
L-14C1N5S-_
L-14C1N8S-_
L-14C2N2S-_
L-14C2N7S-_
L-14C3N3_-_
L-14C3N9_-_
L-14C4N7_-_
L-14C5N6_-_
L-14C6N8_-_
L-14C8N2_-_
L-14C10N_-_
L-14C12N_-_
L-14C15N_-_
L-14C18N_-_
L-14C22N_-_
L-14C27N_-_
L-14C33N_-_
L-14C39N_-_
L-14C47N_-_
L-14C56N_-_
L-14C68N_-_
L-14C82N_-_
L-14CR10_-_
L-14CR12_-_
L-14CR15_-_
L-14CR18_-_
L-14CR22_-_
Inductance
1.0 nH
1.2 nH
1.5 nH
1.8 nH
2.2 nH
2.7 nH
3.3 nH
3.9 nH
4.7 nH
5.6 nH
6.8 nH
8.2 nH
10.0 nH
12.0 nH
15.0 nH
18.0 nH
22.0 nH
27.0 nH
33.0 nH
39.0 nH
47.0 nH
56.0 nH
68.0 nH
82.0 nH
100 nH
120 nH
150 nH
180 nH
220 nH
Tolerance
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH ±10%
± 0.3 nH ±10%
± 0.3 nH ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
Q (Min.)
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
10
10
10
10
10
12
12
12
12
12
8
8
8
8
L/Q Freq.
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
50 MHz
50 MHz
50 MHz
50 MHz
Typical SRF
>17000 MHz
>17000 MHz
>17000 MHz
13000 MHz
12000 MHz
8600 MHz
6500 MHz
6300 MHz
5400 MHz
4600 MHz
4500 MHz
3800 MHz
3700 MHz
3200 MHz
2900 MHz
2100 MHz
2100 MHz
2000 MHz
1600 MHz
1500 MHz
1200 MHz
1100 MHz
1000 MHz
850 MHz
750 MHz
700 MHz
650 MHz
550 MHz
450 MHz
DC Resistance Max
0.10
Ω
0.10
Ω
0.10
Ω
0.10
Ω
0.15
Ω
0.15
Ω
0.20
Ω
0.20
Ω
0.20
Ω
0.25
Ω
0.30
Ω
0.33
Ω
0.35
Ω
0.40
Ω
0.45
Ω
0.50
Ω
0.55
Ω
0.60
Ω
0.65
Ω
0.70
Ω
0.90
Ω
1.00
Ω
1.10
Ω
1.20
Ω
1.20
Ω
1.30
Ω
1.40
Ω
1.50
Ω
1.70
Ω
Rated Current
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
2
www.johansontechnology.com
0805 INDUCTANCE RANGE / ELECTRICAL CHARACTERISTICS
Part Number
L-15C1N5S-_
L-15C1N8S-_
L-15C2N2S-_
L-15C2N7S-_
L-15C3N3_-_
L-15C3N9_-_
L-15C4N7_-_
L-15C5N6_-_
L-15C6N8_-_
L-15C8N2_-_
L-15C10N_-_
L-15C12N_-_
L-15C15N_-_
L-15C18N_-_
L-15C22N_-_
L-15C27N_-_
L-15C33N_-_
L-15C39N_-_
L-15C47N_-_
L-15C56N_-_
L-15C68N_-_
L-15C82N_-_
L-15CR10_-_
L-15CR12_-_
L-15CR15_-_
L-15CR18_-_
L-15CR22_-_
L-15CR27_-_
L-15CR33_-_
L-15CR39_-_
L-15CR47_-_
L-15CR56_-_
L-15CR68_-_
Inductance
1.5 nH
1.8 nH
2.2 nH
2.7 nH
3.3 nH
3.9 nH
4.7 nH
5.6 nH
6.8 nH
8.2 nH
10.0 nH
12.0 nH
15.0 nH
18.0 nH
22.0 nH
27.0 nH
33.0 nH
39.0 nH
47.0 nH
56.0 nH
68.0 nH
82.0 nH
100 nH
120 nH
150 nH
180 nH
220 nH
270 nH
330 nH
390 nH
470 nH
560 nH
680 nH
Tolerance
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH
± 0.3 nH ±10%
± 0.3 nH ±10%
± 0.3 nH ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
±5% ±10%
Q (Min.)
10
10
10
12
12
12
12
12
15
15
15
15
15
15
15
15
15
18
18
18
18
18
18
13
13
13
12
12
12
10
10
10
10
L/Q Freq.
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
100 MHz
50 MHz
50 MHz
50 MHz
50 MHz
50 MHz
50 MHz
50 MHz
50 MHz
50 MHz
50 MHz
Typical SRF
>6000 MHz
>6000 MHz
>6000 MHz
>6000 MHz
>6000 MHz
5600 MHz
5500 MHz
4700 MHz
3900 MHz
3200 MHz
3100 MHz
2800 MHz
2400 MHz
2100 MHz
2000 MHz
1800 MHz
1700 MHz
1400 MHz
1200 MHz
1000 MHz
900 MHz
900 MHz
700 MHz
600 MHz
500 MHz
430 MHz
400 MHz
340 MHz
320 MHz
270 MHz
250 MHz
230 MHz
180 MHz
DC Resistance Max
0.10
0.10
0.10
0.12
0.13
0.15
0.20
0.23
0.25
0.28
0.30
0.35
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.75
0.80
0.85
0.90
0.95
1.00
1.10
1.20
1.30
1.50
1.60
1.80
2.50
3.00
Rated Current
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
300 mA
PART NUMBER CROSS REFERENCE
JOHANSON
0402
L Range
L-07C1N2ST
1.0 - 47 nH
L-14C1N2ST
1.0 - 220 nH
L-15C1N5ST
1.5 - 470 nH
TOKO
LL1005-FH1N2S
1.0 - 100 nH
LL1608-FH1N2S
1.2 - 100 nH
LL2012-FH1N5S
1.5 - 680 nH
TAIYO YUDEN
HK10051N2S-T
1.0 - 120 nH
HK16081N2S-T
1.0 - 220 nH
HK21251N5S-T
1.5 - 470 nH
TDK
MLK1005S1N2ST
1.0 - 100 nH
MLG1608B1N2ST
1.0 - 100 nH
MURATA
LQG10A1N2S00T1
1.2 - 33 nH
LQG11A1N2S00T1
1.2 - 100 nH
BOURNS
Cl100505-1N2D
1.0 - 100 nH
Cl160808-1N2D
1.0 - 100 nH
Cl201210-1N5D
1.5 - 270 nH
0603
L Range
0805
L Range
Johanson Technology, Inc. reserves the right to make design and price changes without notice. All sales are subject
to the terms and conditions printed on the back side of our sales order acknowledgment forms including a limited
warranty and remedies for non-conforming goods or defective goods. We will be pleased to provide a copy of
these terms and conditions for your review.
www.johansontechnology.com
3

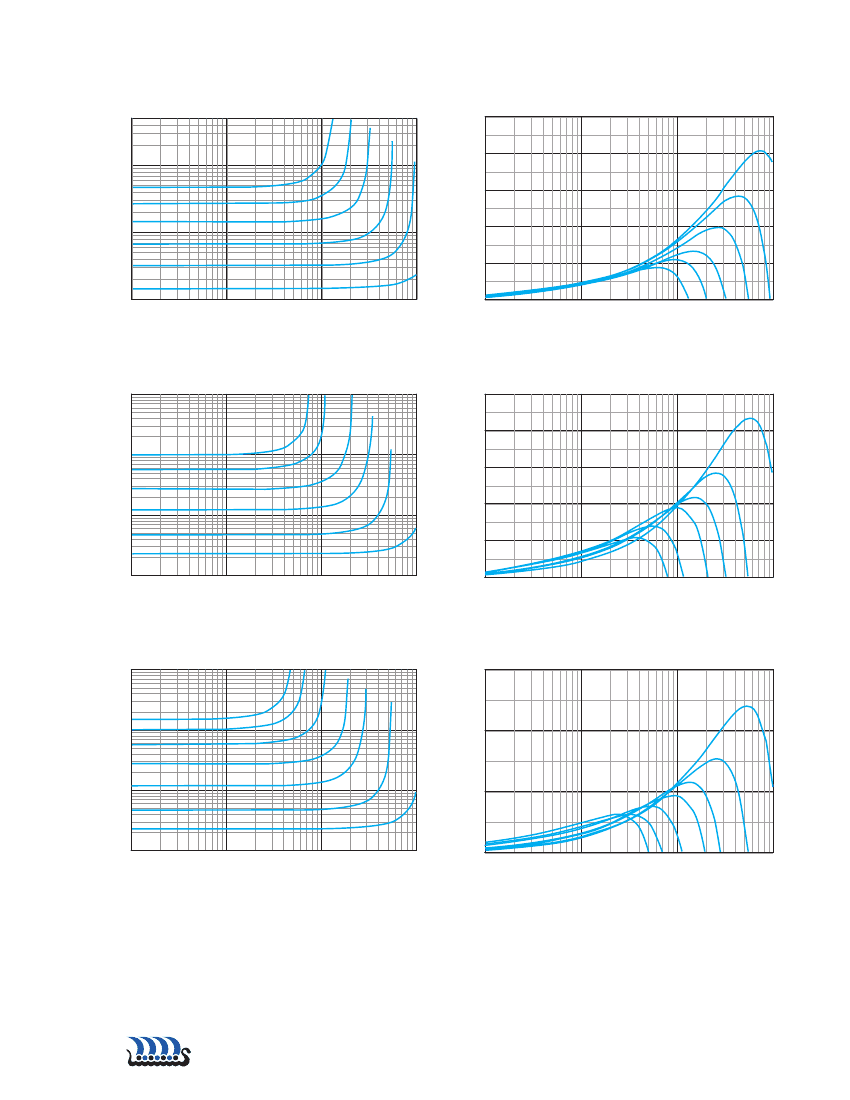

INDUCTANCE VS FREQUENCY: SIZE 0402
500
Q VS FREQUENCY: SIZE 0402
100
1N5
80
Inductance (nH)
100
47N
27N
15N
10
60
Q
3N3
6N8
15N
40
6N8
3N3
1N5
20
47N
0.1
Frequency (GHz)
1.0
10
27N
1.0
0.01
0
0.01
0.1
Frequency (GHz)
1.0
10
INDUCTANCE VS FREQUENCY: SIZE 0603
1000
Q VS FREQUENCY: SIZE 0603
100
2N2
80
Inductance (nH)
100
R10
56N
60
Q
12N
4N7
27N
12N
10
4N7
40
27N
56N
20
R10
0.1
Frequency (GHz)
1.0
10
2N2
1.0
0.01
0
0.01
0.1
Frequency (GHz)
1.0
10
INDUCTANCE VS FREQUENCY: SIZE 0805
1000
Q VS FREQUENCY: SIZE 0805
150
2N2
Inductance (nH)
R15
R10
56N
100
100
4N7
12N
27N
56N
R10
R15
0
0.01
12N
10
4N7
2N2
1.0
0.01
0.1
Frequency (GHz)
1.0
10
Q
50
27N
0.1
Frequency (GHz)
1.0
10
JOHANSON
TECHNOLOGY,
INC.
www.johansontechnology.com
• 931 VIA ALONDRA • CAMARILLO, CA 93012 • Tel 805.389.1166 Fax 805.389.1821
Data sheet MLI01 Rev.- © 2001 All rights reserved.
4
京公网安备 11010802033920号
EEWORLD
