IQD Frequency Products
Incorporating IQD FOQ GmbH
ISSUE 2; June 2012 - RoHS 2011/65/EU
Description
Oscillator Specification
Model:
IQMV-601

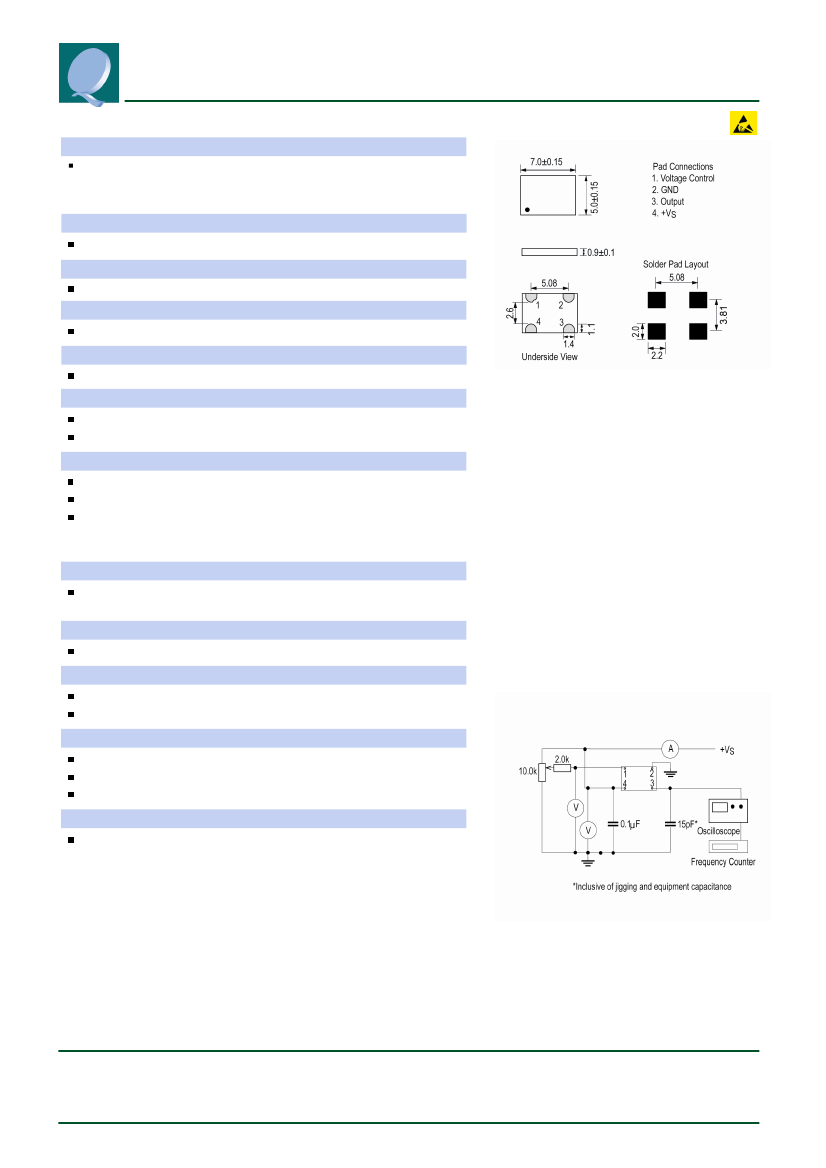

Outline (mm)
Voltage Controlled MEMS Oscillator with a low jitter CMOS output in
a plastic package
Factory programmable for a fast lead time
Frequency Range
Frequency
Supply Voltage
1.00 to 110.00MHz
Voltage
Output Compatibility & Load
2.8V ±10%
Output Compatibility
Frequency Stabilities
CMOS
Frequency Stability
Operating Temperature Ranges
±20ppm
-20 to 70°C
-40 to 85°C
Frequency Adjustment
Pulling
Linearity: 0.25% max, positive slope
Voltage Control (pad 1):
0V to +1.85V
Frequency @ 25°C is ref to VC=0.875V
Frequency Stability
±120ppm min
Frequency Stability: Inclusive of stability over the operating
temperature range, supply voltage variation and load variation
Output Control
Start-Up Time: 10ms max
Noise Parameter
Test Circuit
Phase Jitter (BW 900kHz to 7.5MHz) @ 75MHz: 0.6ps rms typical
RMS Period Jitter @ 75MHz: 4ps rms max
Environmental Parameters
Shock: based on MIL-STD-883F, Method 2002, 50000G
Storage Temperature Range: –65 to 150°C
Vibration: MIL-STD-883F, Method 2007, 70G
Manufacturing Details
MSL level 1
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: +49 (0)7264 9145-0
Printed on 19 Jun 12 12:48
France: +33 (0)5 34 50 91 18
USA: +1 (0) 408 455 2426
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 2
IQD Frequency Products
Incorporating IQD FOQ GmbH
Ordering Information (*minimum required)
Oscillator Specification
Model:
IQMV-601
Example:
40.00MHz IQMV-601
CMOS ±50ppm –20 to 70C 2.8V ±120ppm min
Frequency*
Model*
Output Compatiblity
Frequency Stability (over operating temperature range)*
Operating Temperature Range*
Supply Voltage
Pullability*
Packing Details
Pack Style:
Bulk
Pack Size
Pack Style:
Reel
Pack Size
Loose in bulk pack
100
Tape & reel in accordance with EIA-481-D
1,000
Alternative packing options available
Output Waveform
Electrical Specification - maximum limiting values 2.8V ±10%
Frequency Range
Temp Range
Stability
Pullability
Supply
Current
Rise & Fall
Duty Cycle
%
1.00 to 75.00MHz
75.00 to 110.00MHz
-20 to 70°C
-40 to 85°C
-20 to 70°C
-40 to 85°C
±20ppm
±25ppm
±20ppm
±25ppm
±120ppm min
±120ppm min
±120ppm min
±120ppm min
7.5mA
7.5mA
7.5mA
7.5mA
2ns
2ns
2ns
2ns
45/55%
45/55%
40/60%
40/60%
This document was correct at the time of printing; please contact your local sales office for the latest version
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: +49 (0)7264 9145-0
Printed on 19 Jun 12 12:48
France: +33 (0)5 34 50 91 18
USA: +1 (0) 408 455 2426
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 2 of 2
