TFML-129-01-S-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> TFML-129-01-S-D

TFML-129-01-S-D: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size490KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TFML-129-01-S-D Overview

Board Connector, 58 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,

TFML-129-01-S-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	TFML
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	58

Preview

Download Datasheet

View All

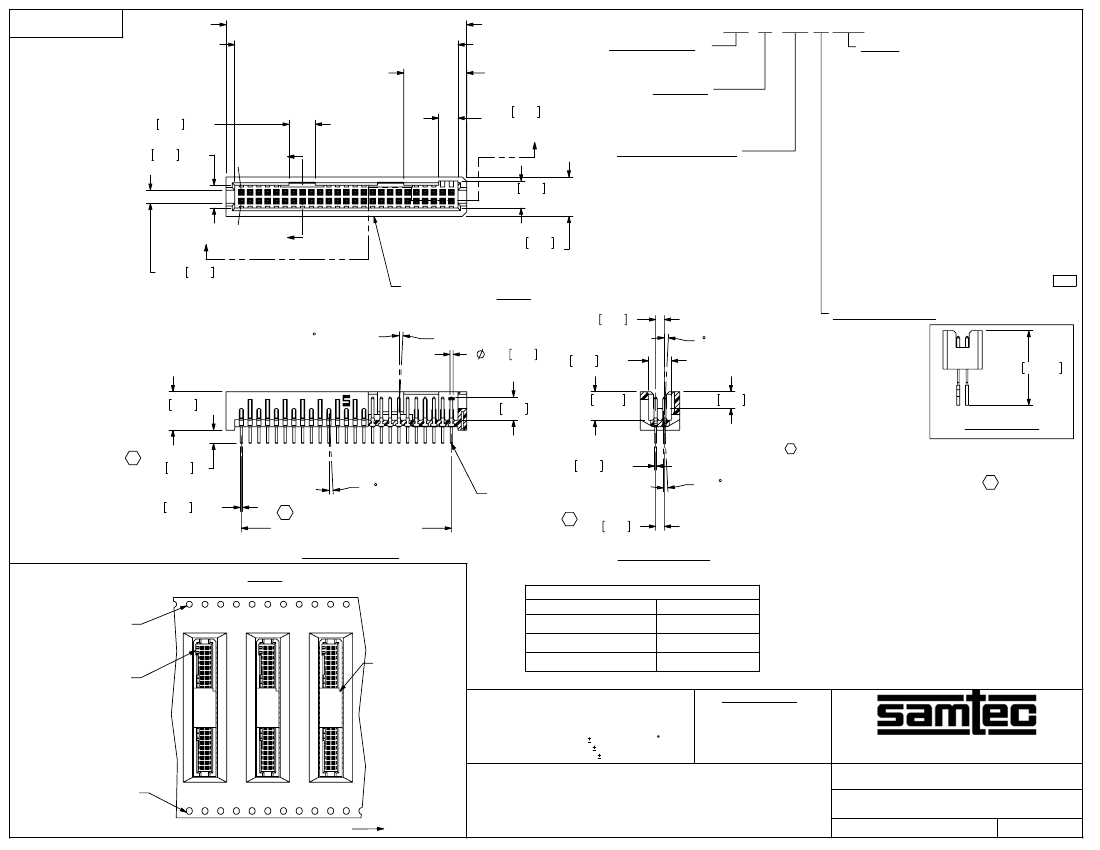

REVISION AQ

(No OF POS x .050[1.27]) + .125[3.18] REF

(No OF POS x .050[1.27]) + .025[0.64] REF

"A" REF (TYP)

(SEE NOTE 7 & TABLE 1)

.110 2.79 REF

(SEE NOTE 11)

TFML-1XX-XX-XXX-D-XXX

No OF POSITIONS

-05,-07,-10 THRU -50

(PER ROW)

LEAD STYLE

-01: THROUGH HOLE

(SEE FIG. 1)

-02: SURFACE MOUNT

(SEE FIG.3, SHT 2)

PLATING SPECIFICATION

OPTION

-A: ALIGNMENT PIN (USE TFML-XX-D-01-A)

(SEE FIG. 7, SHT 3)

-LC: LOCKING CLIP (USE LC-05-TM) SEE NOTE 12

(SEE FIG. 9, SHT 3, N/A ON -RA OPTION)

-P: PICK & PLACE PAD (USE PPP-04)

(AVAIL IN ALL POSITIONS, N/A

ON -RA OPTION, SEE FIG. 5, SHT 2)

-RA: RIGHT ANGLE (LEAD STYLE -01 ONLY)

(SEE FIG. 4, SHT 2)

-TR: TAPE & REEL

(SEE FIG. 2)(N/A ON -01 LEAD STYLE)

-SA: STAKED ALIGNMENT PIN (USE SM-A5)

(SEE FIG. 8, SHT 3)

-K: POLYAMIDE FILM (USE K-500-300)

(SEE FIG. 6, SHT 2) (N/A ON -RA)

-SN: SOLDER NAIL (USE TFML-XX-D-01-SN &

WT-27-01-T) (SEE FIG. 10, SHEET 4)

(AVAILABLE ON -02 LEAD STYLE ONLY)

-SN2: SOLDER NAIL FOR .093 BOARD

(USE TFML-XX-D-01-SN &

WT-27-02-T) (SEE FIG. 10, SHEET 4)

(AVAILABLE ON -02 LEAD STYLE ONLY)

(NOT AVAILABLE WITH -A, -LC, - RA, -SA)

ROW SPECIFICATION

-D: DOUBLE ROW

.150 3.81 REF

.130 3.30 REF

"B"

"A"

.155 3.94

REF

"A"

.075 1.91 REF

"B"

.225 5.72

REF

TFML-XX-D-01-X

-S: SELECTIVE (USE T-1R16-XX-S-X)

-L: LIGHT SELECTIVE (USE T-1R16-XX-L-X)

-F: FLASH GOLD (USE T-1R16-XX-F-X)

-P: GOLD FLASH PALLADIUM NICKEL

(USE T-1R16-XX-P-X)

-H: HEAVY GOLD (USE T-1R16-XX-H-X)

-FM: SELECTIVE FLASH GOLD, MATTE TIN TAIL

(USE T-1R16-XX-F-X)

-LM: SELECTIVE LIGHT GOLD, MATTE TIN TAIL

(USE T-1R16-XX-L-X)

-SM: SELECTIVE HEAVY GOLD, MATTE TIN TAIL

(USE T-1R16-XX-S-X)

-01: THROUGH HOLE

.050 1.27

2 MAX SWAY

(TYP)

.018 0.46

REF

FIG. 1

.130 3.30 REF

2 MAX TOE

(TYP)

.4270 10.846

.096 2.44 REF

.220 5.59

REF

.134 3.39 REF

.1635 4.153

REF

NOTES:

IN-PROCESS

.075 1.91

(SEE NOTE 9)

.014 0.36 REF

.010 0.25 REF

2 MAX SWAY

(TYP)

(No OF POS -1) x .050[1.27]

T-1R16-01-XXX-2

.050 1.27

SECTION "A"-"A"

-TR: TAPE & REEL OPTION

SECTION "B"-"B"

TABLE 1

NO OF POS.

"A"

.310

.360

.113

EVEN

ODD (EXCL. -05,-07 POS)

FIG. 2

ROUND HOLES

PAD NOTCH

PART NOTCH

-05,-07

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

REPRESENTS A CRITICAL DIMENSION.

2. COPLANARITY: POSITIONS -10 THRU -26: .004[0.10]

POSITIONS -27 THRU -50: .006[0.15].

3. MANUFACTURING IN-PROCESS DIMENSION

MAX TOE

DESIGNED TO ACHIEVE FINISHED ASSEMBLY.

(TYP)

4. MINIMUM PUSHOUT FORCE: 1.0 LB [4.4 N].

5. MAXIMUM ALLOWABLE BOW: .004 INCH/INCH

[0.10 MM/MM]AFTER ASSEMBLY.

6. MEASURED FROM BEND.

7. POSITIONS -05 AND -07 WILL ONLY HAVE ONE CLIP AT

DIMENSION SHOWN; POSITIONS -10 THROUGH -24

WILL HAVE ONLY ONE CLIP AT DIMENSION SHOWN;

POSITIONS -25 THROUGH -34 WILL HAVE TWO CLIPS AT

DIMENSION SHOWN; POSITIONS -35 THROUGH -50 WILL

HAVE THREE; CLIPS: TWO AT DIMENSION SHOWN & ONE

CENTERED ON INSULATOR.

8. NOTE DELETED.

9. .003[0.08] MAXIMUM TERMINAL BURR

10. .005[0.13] MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO PINS.

11. DIMENSION IS NOT APPLICABLE FOR -05 AND -07 POSITION.

12. DUE TO THE HIGH AMOUNT OF INSERTION FORCE

NEEDED, THE –LC OPTION IS NOT COMPATIBLE

WITH AUTO PLACEMENT. SAMTEC RECOMMENDS

MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH

THE –LC OPTION.

PROPRIETARY NOTE

.XX: .01

.XXX: .005

.XXXX: .0020

ANGLES

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 1.75:1

OBLONG HOLES

VECTRA E130i, COLOR: BLACK

CONTACT: PHOS BRONZE, THICKNESS: .018

.050 SHROUDED TERMINAL ASSEMBLY

TFML-1XX-XX-XXX-D-XXX

4/8/99

SHEET

USER DIRECTION OF UNREELING

c:\enterprisevault\DWG\MISC\MKTG\TFML-1XX-XX-XXX-D-XXX-MKT.SLDDRW

BY:

DEANP
