DFAS2-KHZ52MHZESM datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DFAS2-KHZ52MHZESM

DFAS2-KHZ52MHZESM: DescriptionHCMOS/TTL Output Clock Oscillator, 52MHz Nom, MINIATURE PACKAGE-4; CategoryPassive components oscillator; File Size54KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFAS2-KHZ52MHZESM Overview

HCMOS/TTL Output Clock Oscillator, 52MHz Nom, MINIATURE PACKAGE-4

DFAS2-KHZ52MHZESM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS
Objectid	1981734965
Reach Compliance Code	compliant
compound_id	68859668
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; SYMMETRY 45/55 POSSIBLE
Ageing	10 PPM/20 YEAR
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	3.5%
Installation features	SURFACE MOUNT
Nominal operating frequency	52 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	2 TTL, 15 pF
physical size	7.2mm x 5.3mm x 3.2mm
longest rise time	5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

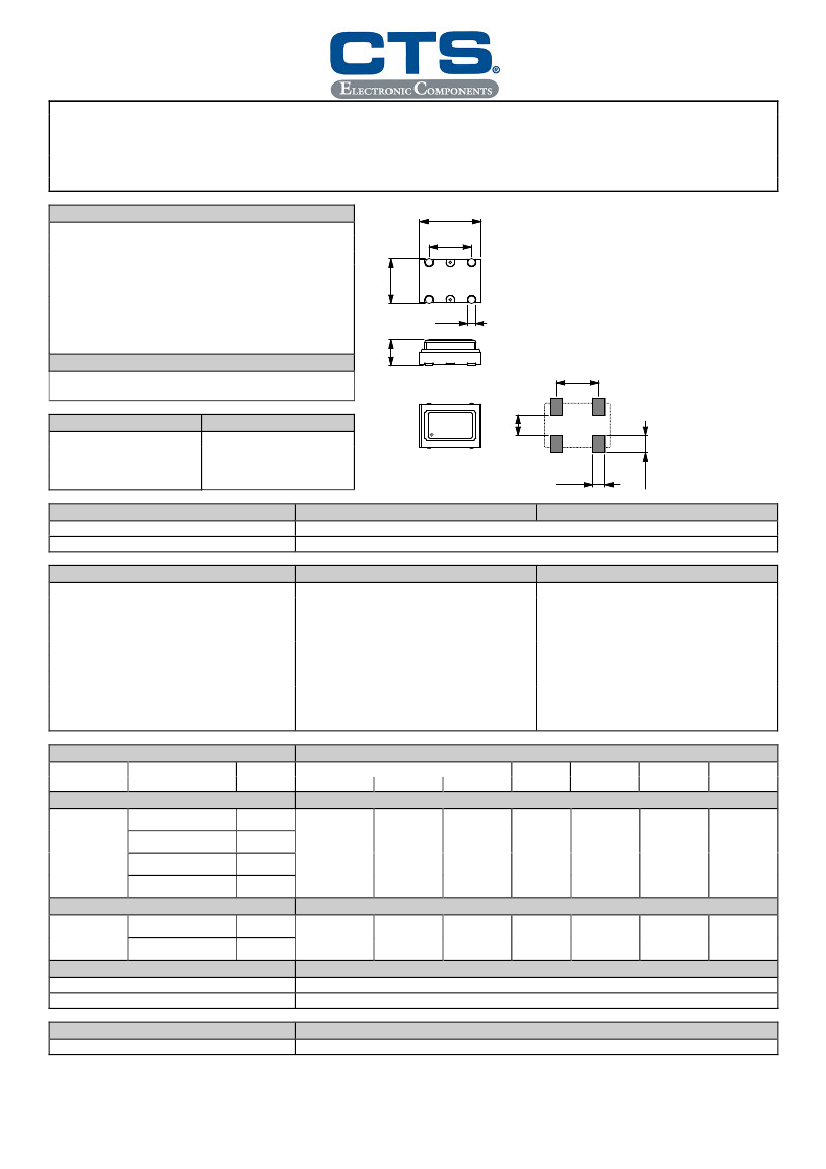

STRATUM III MINIATURE SURFACE MOUNT TCXO

DFA S2-KHZ (5 V) & DFA S2-LHZ (3.3 V)

KEY FEATURES

5 to 52 MHz

Stratum III compliant over -40 to 85° up to

20 Mhz

Sonet Minimum Clock compliant over

-40 to 85°C up to 52 MHz

APPLICATIONS

Stratum III & SMC

2.4

5.3±0.1

7.2±0.2

5.08

0.9

3.2±0.2

5.08

Function

E/D

GND

Output

Vcc

DFA S2

PC board footprint

1.4

TYPE

Frequency Range

Standard Frequencies

DFA S2-KHZ

5 to 20 MHz, (BSM & ESM up to 52 MHz)

12.8, 16.384, 19.44, 20, 34.368, 38.88 & 44.736 MHz

DFA S2-LHZ

ELECTRICAL SPECIFICATIONS

supply voltage

supply current ( no load)

5V ±5%

≤

20 mA

HCMOS 15 pF or 2 TTL

45/55...55/45 %

≤

5 ns

≥

4.5 V/

≤

0.5 V

≤

10 ms @ 4.75 V

high or open = enable, low = high Z

3.3 V ± 5 %

≤

10 mA

HCMOS 15 pF or 2 TTL

45/55...55/45 %

≤

5 ns

≥

2.8 V/

≤

0.3 V

≤

10 ms @ 3.15 V

high or open = enable, low = high Z

output load

duty cycle @ 50% level

rise/fall times (10 to 90 %)

high/low levels or output amplitude

start-up

tri-state control on pin 1

FREQUENCY STABILITY

type

temperature

range

model

code

stability versus:

temperature Vcc ± 5 %

ageing

detailed tolerances [ ppm ]

overall

stability

Telcordia GR-1244 CORE Stratum III or ITU-T G.813 option 1

≤

±3

over

15 years

≤

± 4.6

over

15 years

Holdover

stability

2.0

24 hrs

drift

calibration

@ 25°

0 to 50° AS3

all types

0 to 70° BS3

-20 to 70° CS3

-40 to 85° ES3

≤

± 0.28

≤

± 0.1

≤

± 0.37

≤

± 0.04

≤

± 0.8

Telcordia GR-253 CORE SMC or ITU-T G.813 option 2

all types

0 to 70° BSM

-40 to 85° ESM

≤

± 3.5

≤

± 0.3

≤

± 10

over

20 years

≤

± 20

over

20 years

≤

± 4.6

≤

± 0.5

≤

±1

DEFINITIONS

24 hours drift

24 hours holdover mode

GR-1244-CORE, GR-253-CORE or G.813

Over full temperature range and Vcc ± 0.5 %

ORDERING CODE

Example

type + option code + frequency + model code

DFA S2-LHZ 19.44 MHz BS3

Not all combinations of temperature ranges and stabilities are available. Please consult factory for details.

DFA_S2_SIII

These products and their specifications are subject to change without notice.

Fully compliant to RoHS Directive 2002/95/EC

16.04.2011 / PIK
