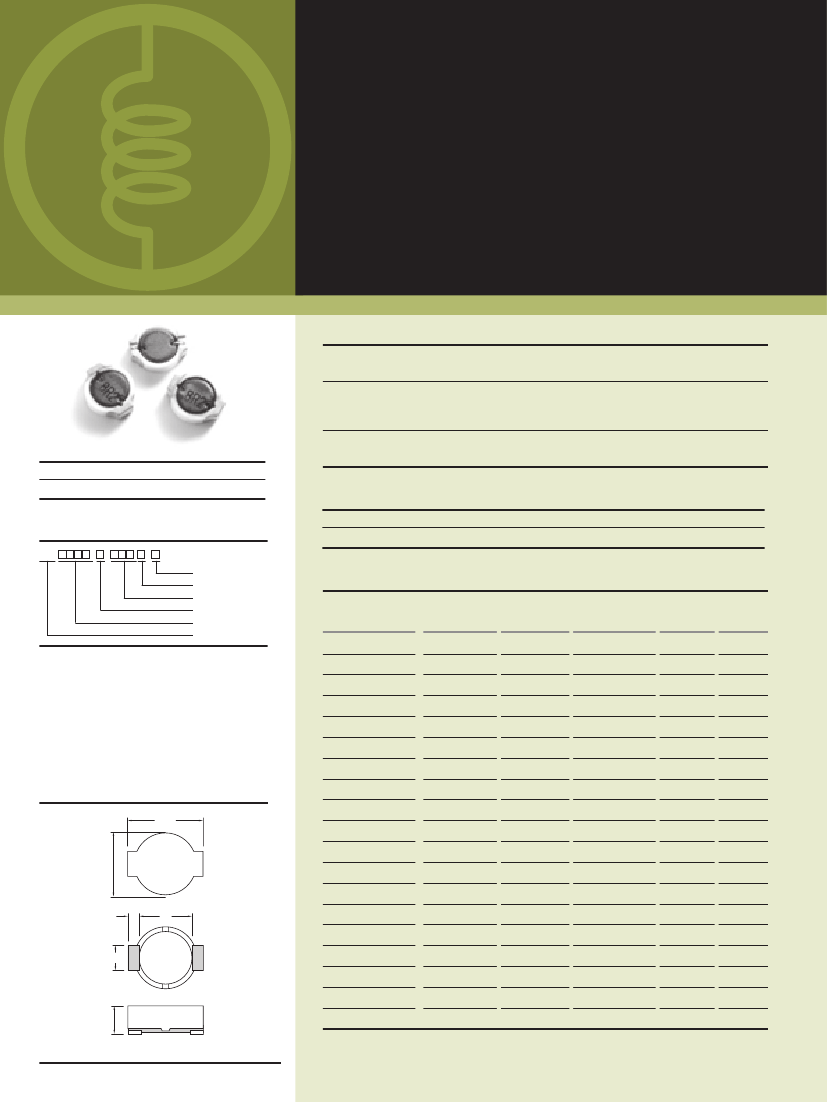

SMD Power Inductors
SSL0400 Series
This Series is designed for applications requiring high inductance, high current and an ultra-low pro-
file.
The SSL0400T measures only 2 mm high and has a footprint of just 5.3 x 6.5mm. But despite this
small size, it is available in versions that will handle up to 2.5 Amps. The series covers a wide range of
inductance values from 1µH to 1mH.
fEATURES
High energy storage and very low resistance.
Smallest size and high performance
The core is completely enclosed in a rugged ceramic case giving it a flat top that provides the opti-
mum surface for reliable pick and place operations.
AppLICATIonS
Notebook computers, Sep-up and step-down converters
Flash, memory programmers. etc...
pRodUCT IdEnTIfICATIon
SSL
-
-
International No.
Tolerance
Inductance
Packaging Style
Dimensions
Product Symbol
ELECTRICAL CHARACTERISTICS
pART no.
SSL0400T-1R0M-S
SSL0400T-1R5M-S
SSL0400T-2R2M-S
SSL0400T-3R3M-S
SSL0400T-4R7M-S
SSL0400T-6R8M-S
SSL0400T-100M-S
SSL0400T-150M-S
SSL0400T-220M-S
IndUCTAnCE *
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
ToLERAnCE
(±%)
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
dC RESISTAnCE
(Ω) Max.
0.05
0.06
0.07
0.12
0.15
0.20
0.30
0.40
0.54
0.74
1.1
1.6
2.3
3.5
5.7
8.2
10.8
17.2
22.6
I sat **
(A)
2.5
2.2
1.8
1.4
1.2
1.1
1.0
0.8
0.6
0.5
0.45
0.35
0.30
0.25
0.2
0.16
0.14
0.12
0.08
I rms ***
(A)
2.3
2.1
1.7
1.3
1.1
1.0
0.90
0.70
0.50
0.45
0.40
0.35
0.30
0.25
0.18
0.16
0.12
0.10
0.08
• Packaging: T : Tape and Reel
• Tolerance: M: ±20%
• Note: YAGEO will start to release SSL Series
inductors with lead-free terminals which
meet SONY SS-00259's criteria for lead-
free product in Q2 of 2004, and YAGEO
Internal No will be changed to “N” as
identification. Ex. SSL04LP-1R2M-N
SHApES And dImEnSIonS
6.50
+0
SSL0400T-330M-S
SSL0400T-470M-S
SSL0400T-680M-S
SSL0400T-101M-S
5.60
+0
0.8
4.8
SSL0400T-151M-S
SSL0400T-221M-S
2.00
SSL0400T-331M-S
SSL0400T-471M-S
SSL0400T-681M-S
2.00
+0
SSL0400T-102M-S
Dimensions : mm
* Inductance Tested at 100 KHz, 0.1 Vrms.
*** ∆T = 30°C Rise Typ at Irms
** Inductance Drop = 10% Typ. at Isat
Operating Temperature Range -40°C to +85°C
255
ELECTRICAL CHARACTERISTICS : LEAd-fREE & RoHS CompLIAnCE
TYPE
SSL0400T-1R0
SSL0400T-1R5
SSL0400T-2R2
SSL0400T-3R3
SSL0400T-4R7
SSL0400T-6R8
SSL0400T-100
SSL0400T-150
SSL0400T-220
SSL0400T-330
SSL0400T-470
SSL0400T-680
SSL0400T-101
SSL0400T-151
SSL0400T-221
SSL0400T-331
SSL0400T-471
SSL0400T-681
SSL0400T-102
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
-N
Inductance(µH)
1
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
T
est Freq(KHz)
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
0.1V 100KHz
RDC(Ω)Max
0.05
0.06
0.07
0.12
0.15
0.2
0.3
0.4
0.54
0.74
1.1
1.6
2.3
3.5
5.7
8.2
10.8
17.2
22.6
lsat(A)Max
2.5
2.2
1.8
1.4
1.2
1.1
1
0.8
0.6
0.5
0.45
0.35
0.3
0.25
0.2
0.16
0.14
0.12
0.08
Irms(A)
2.3
2.1
1.7
1.3
1.1
1
0.9
0.7
0.5
0.45
0.4
0.35
0.3
0.25
0.18
0.16
0.12
0.1
0.08
NOTE :
-tolerance K=±10% / =±15% / M=±20% / N=+40% -20%
1.Operating temperature range -40°C~85°C
2.Inductance drop = 10% typ. at lsat
3.∆T=40°C rise typ at Irms.
"-N"FOR COMPLETELY LEAD FREE TYPE(INCLUDING FERRITE BODY & SOLDER)
