86093487313H45ELF: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size145KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

86093487313H45ELF Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

86093487313H45ELF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8609
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

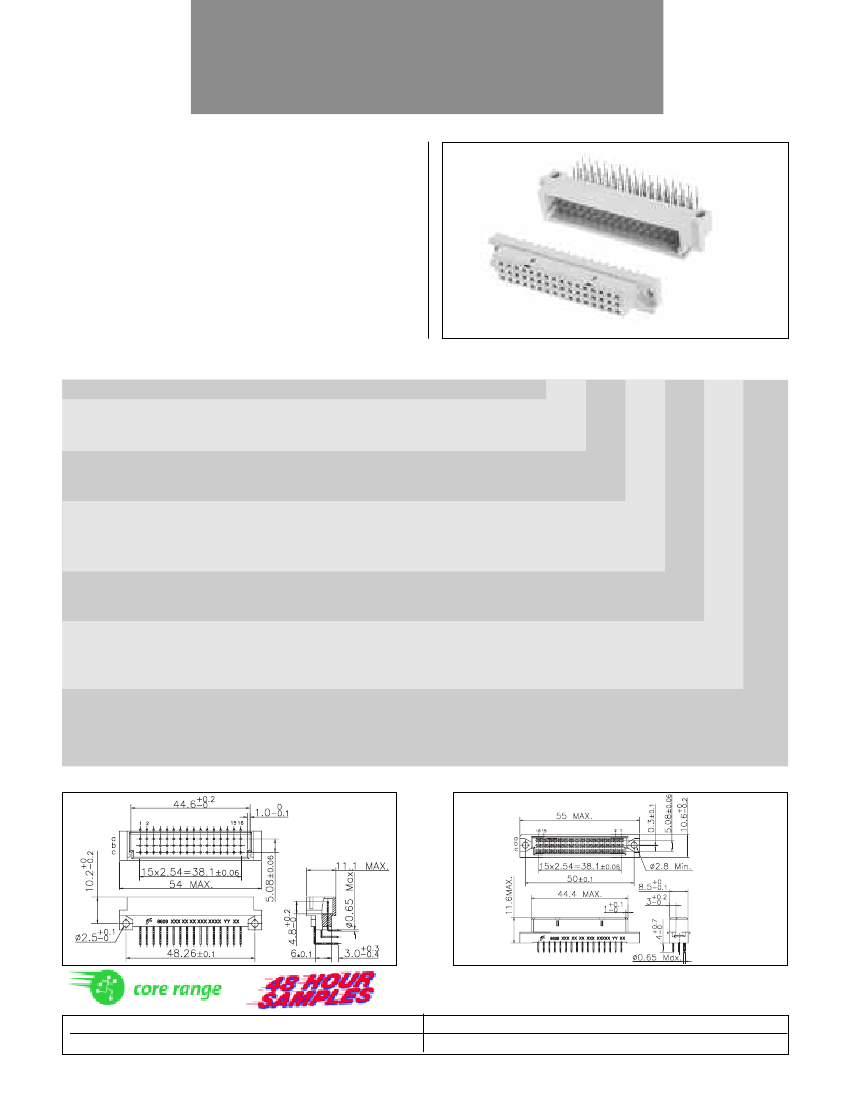

DIN 41612

PCB Signal solder to board

STYLE C/2 CONNECTORS

Solder to board

Header

: Right angle

Receptacle : Straight spill

Part number

Series

Rows fitted with contacts *

2 rows a & c

3 rows a, b & c

: 32 contacts

: 48 contacts

8609

348

432

348

73

13

7

55

ELF

☺

Type of insulator

3 rows Header insulator

3 rows Receptacle insulator

73

83

Termination *

Right angle spill for Header

Straight spill for Receptacle

Insulator (option)

Harpoon

Without harpoon

: 3 mm

: 4 mm

: 2.5 mm

13

14

24

H

7

Plating performance Class & Pitch *

DIN 41612 class III

: 2.54 mm

DIN 41612 class II

: 2.54 mm

DIN 41612 class I

: 2.54 mm

☺

45

55

65

ELF

000E

E1LF

000E1

Gender

Header (RoHS compatible)

Header (non RoHS compatible)

Receptacle (RoHS compatible)

Receptacle (non RoHS compatible)

* For other options, please consult your local FCI representative.

86093487313755ELF

86094327313755ELF

48 PIN Header right angle

32 PIN Header right angle

86093488314755E1LF

86094328314755E1LF

48 PIN Receptacle straight

32 PIN Receptacle straight

7
