Datasheet> All Categories > Passive components> Crystal/resonator> XT46C-32FREQ3

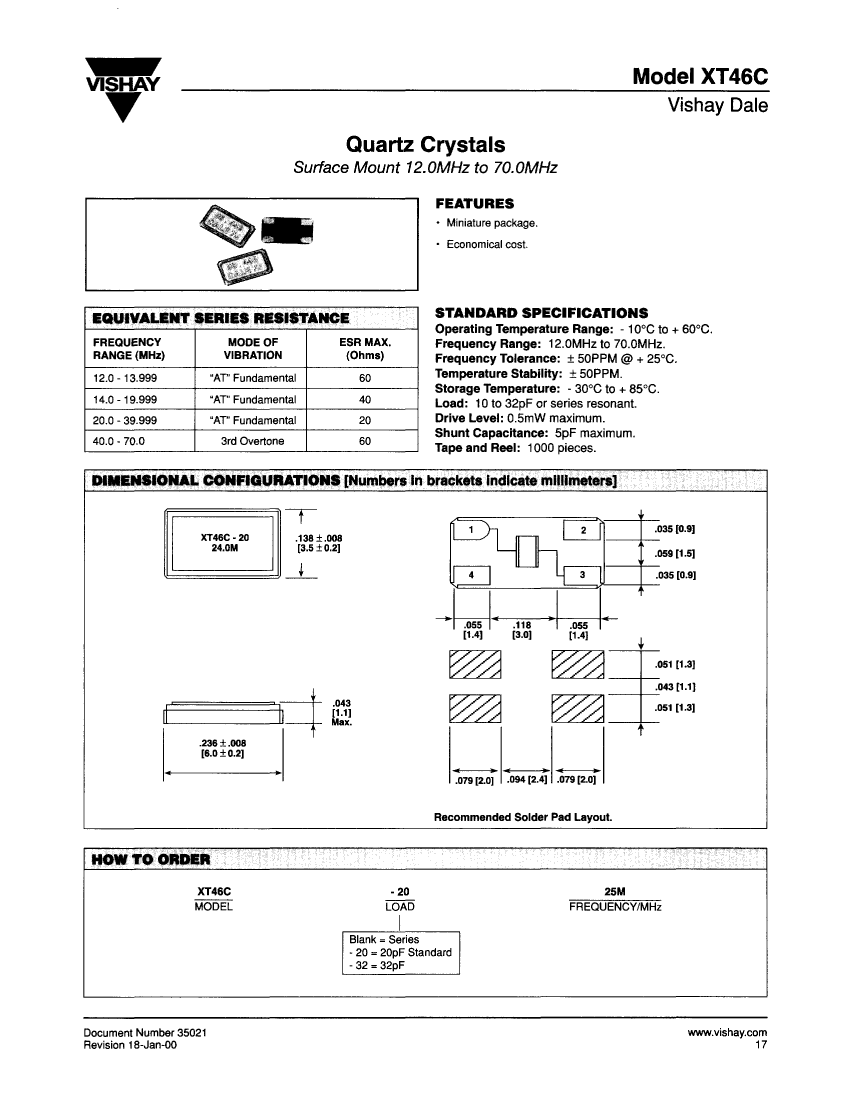

Preview

XT46C-32FREQ3: DescriptionQuartz Crystal, QUARTZ CRYSTAL RESONATOR, 20 MHz - 39.999 MHz, MINIATURE PACKAGE-4; CategoryPassive components Crystal/resonator; File Size55KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

XT46C-32FREQ3 Overview

Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 20 MHz - 39.999 MHz, MINIATURE PACKAGE-4

XT46C-32FREQ3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	32 pF
Manufacturer's serial number	XT46C
Installation features	SURFACE MOUNT
Maximum operating frequency	39.999 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)
Series resistance	20 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

XT46C-32FREQ3 Related Products

	XT46C-32FREQ3	XT46CFREQ1	XT46CFREQ4	XT46C-32FREQ1	XT46C-32FREQ4	XT46C-20FREQ3	XT46C-32FREQ2	XT46CFREQ2
Description	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 20 MHz - 39.999 MHz, MINIATURE PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 12 MHz - 13.999 MHz, MINIATURE PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 40 MHz - 70 MHz, MINIATURE PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 12 MHz - 13.999 MHz, MINIATURE PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 40 MHz - 70 MHz, MINIATURE PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 20 MHz - 39.999 MHz, MINIATURE PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 14 MHz - 19.999 MHz, MINIATURE PACKAGE-4	Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 14 MHz - 19.999 MHz, MINIATURE PACKAGE-4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - 3RD OVERTONE	PARALLEL - FUNDAMENTAL	PARALLEL - 3RD OVERTONE	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL
Drive level	500 µW	500 µW	500 µW	500 µW	500 µW	500 µW	500 µW	500 µW
frequency stability	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%
frequency tolerance	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	XT46C	XT46C	XT46C	XT46C	XT46C	XT46C	XT46C	XT46C
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	39.999 MHz	13.999 MHz	70 MHz	13.999 MHz	70 MHz	39.999 MHz	19.999 MHz	19.999 MHz
Minimum operating frequency	20 MHz	12 MHz	40 MHz	12 MHz	40 MHz	20 MHz	14 MHz	14 MHz
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
physical size	L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)	L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)	L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)	L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)	L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)	L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)	L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)	L6.0XB3.5XH1.1 (mm)/L0.236XB0.138XH0.043 (inch)
Series resistance	20 Ω	60 Ω	60 Ω	60 Ω	60 Ω	20 Ω	40 Ω	40 Ω
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Gold (Au)	GOLD	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	GOLD
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	-
Maker	Vishay	-	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
load capacitance	32 pF	-	-	32 pF	32 pF	20 pF	32 pF	-
