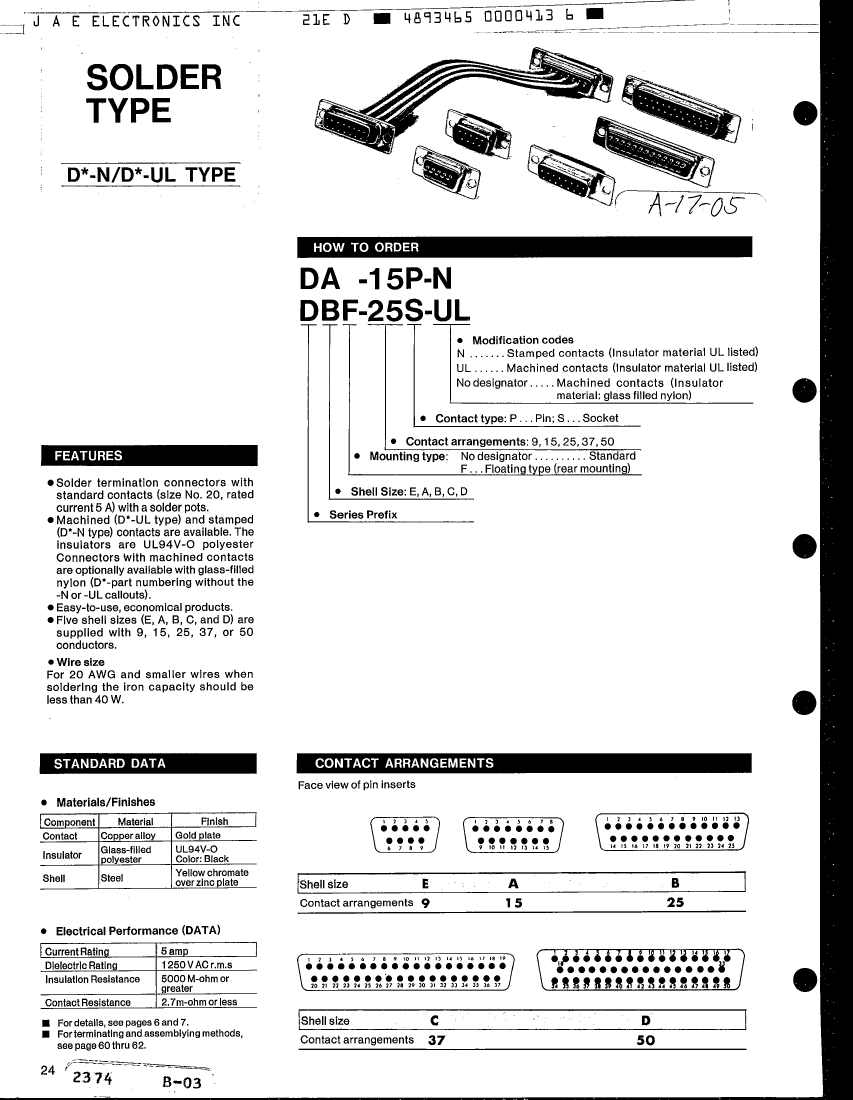

DB-25S-UL

Description
D Type Connector, 25 Contact(s), Female, Solder Lug Terminal, Hole .112-.124, Plug
CategoryThe connector    The connector
File Size465KB,5 Pages
ManufacturerJapan Aviation Electronics Industry Limited
Environmental Compliance
Download Datasheet Parametric View All

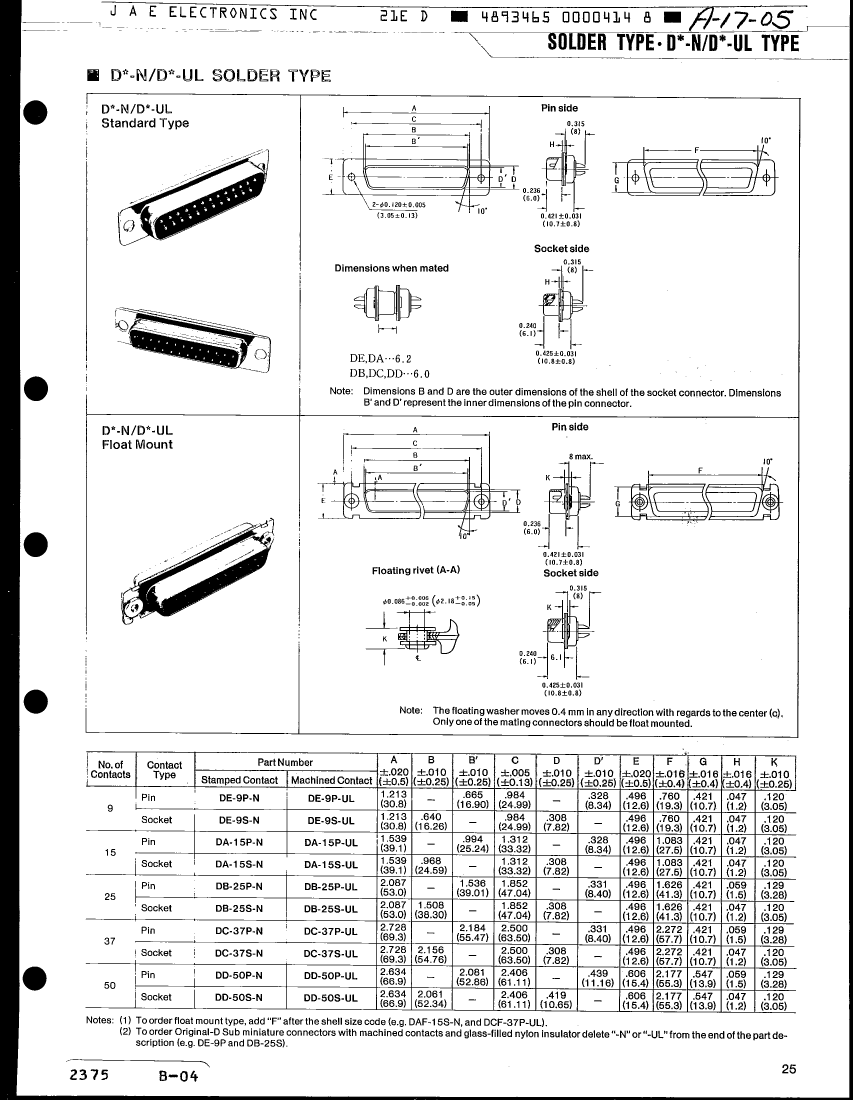

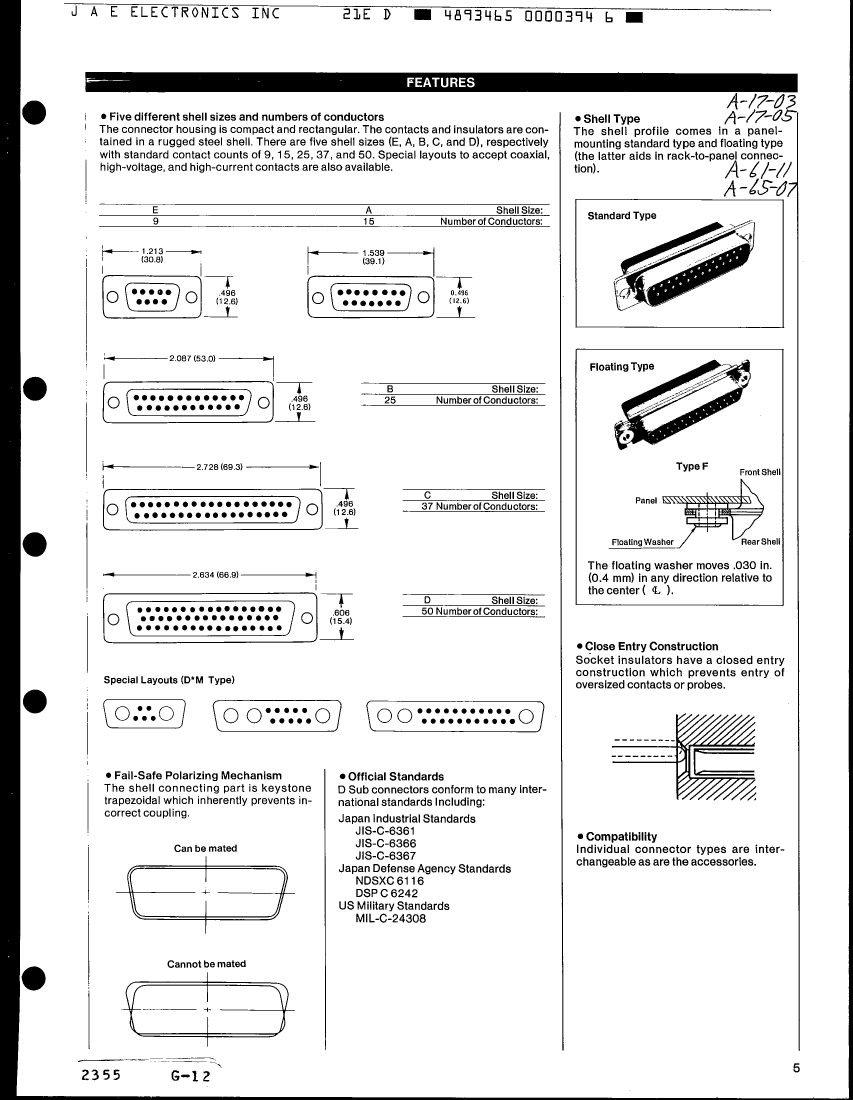

DB-25S-UL Overview

D Type Connector, 25 Contact(s), Female, Solder Lug Terminal, Hole .112-.124, Plug

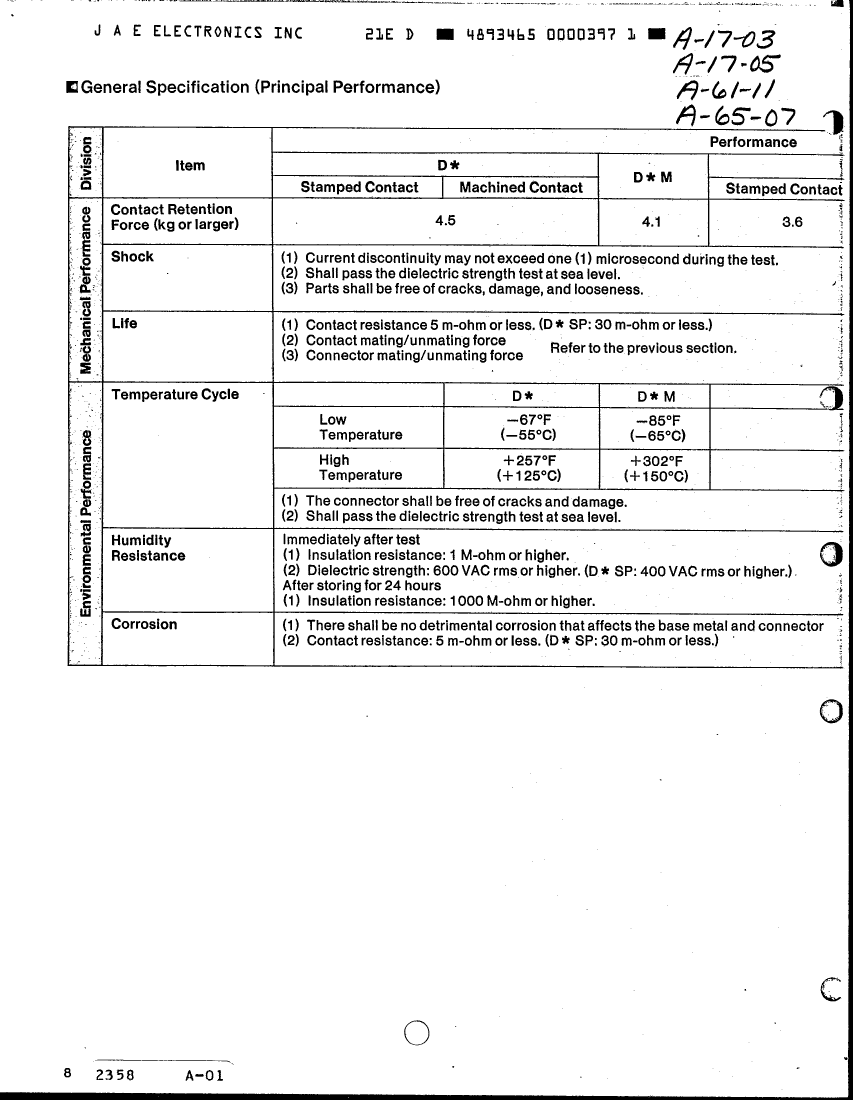

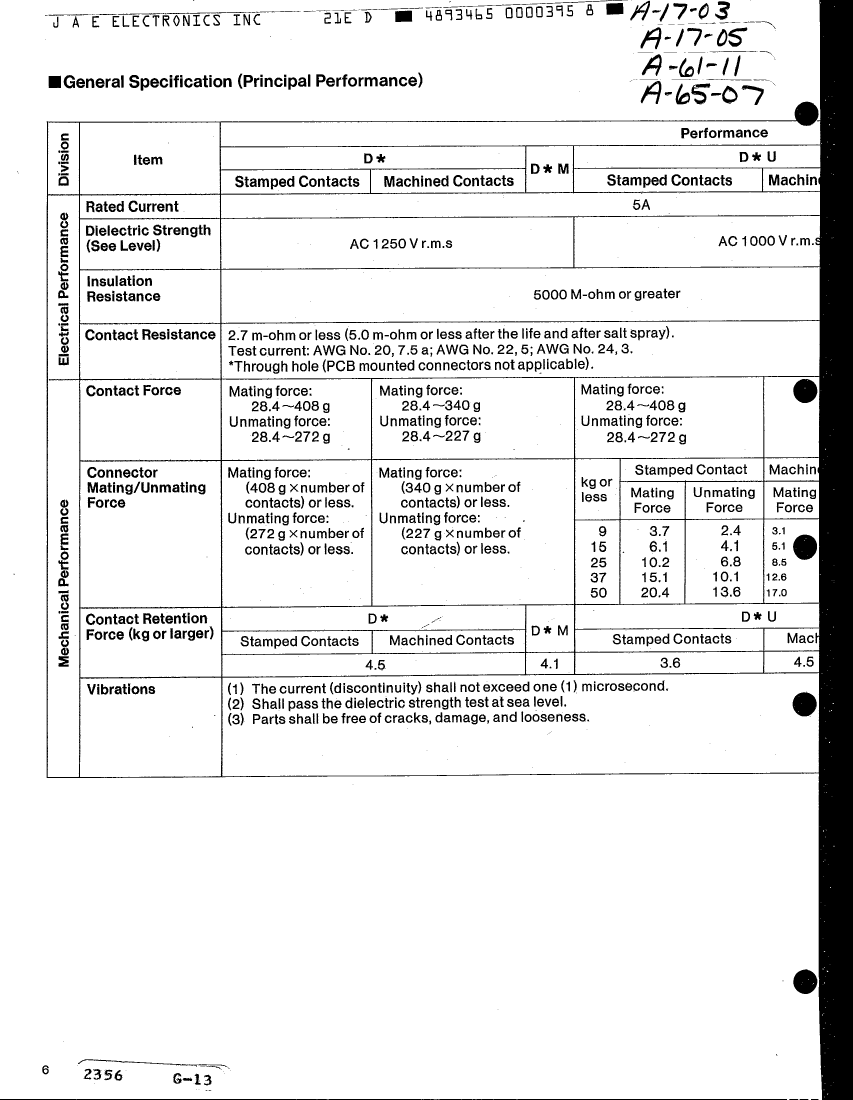

DB-25S-UL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerJapan Aviation Electronics Industry Limited
Reach Compliance Codeunknown
body width0.496 inch
subject depth0.185 inch
body length2.087 inch
Body/casing typePLUG
Contactor designPREASSEM CONN
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact resistance2.7 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1250VAC V
maximum insertion force3.336 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
MIL complianceYES
Manufacturer's serial numberDB
Installation option 1HOLE .112-.124
Installation typePANEL
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Rated current (signal)5 A
GuidelineUL
reliabilityMIL-C-24308
Shell surfaceYELLOW CHROMATE
Shell materialSTEEL
Terminal length0.13 inch
Termination typeSOLDER LUG
Total number of contacts25
Maximum wire diameter20 AWG
Minimum wire diameter20 AWG
Evacuation force-minimum value2.224 N
