Miniature Signal Relays
EC2/EE2 Series

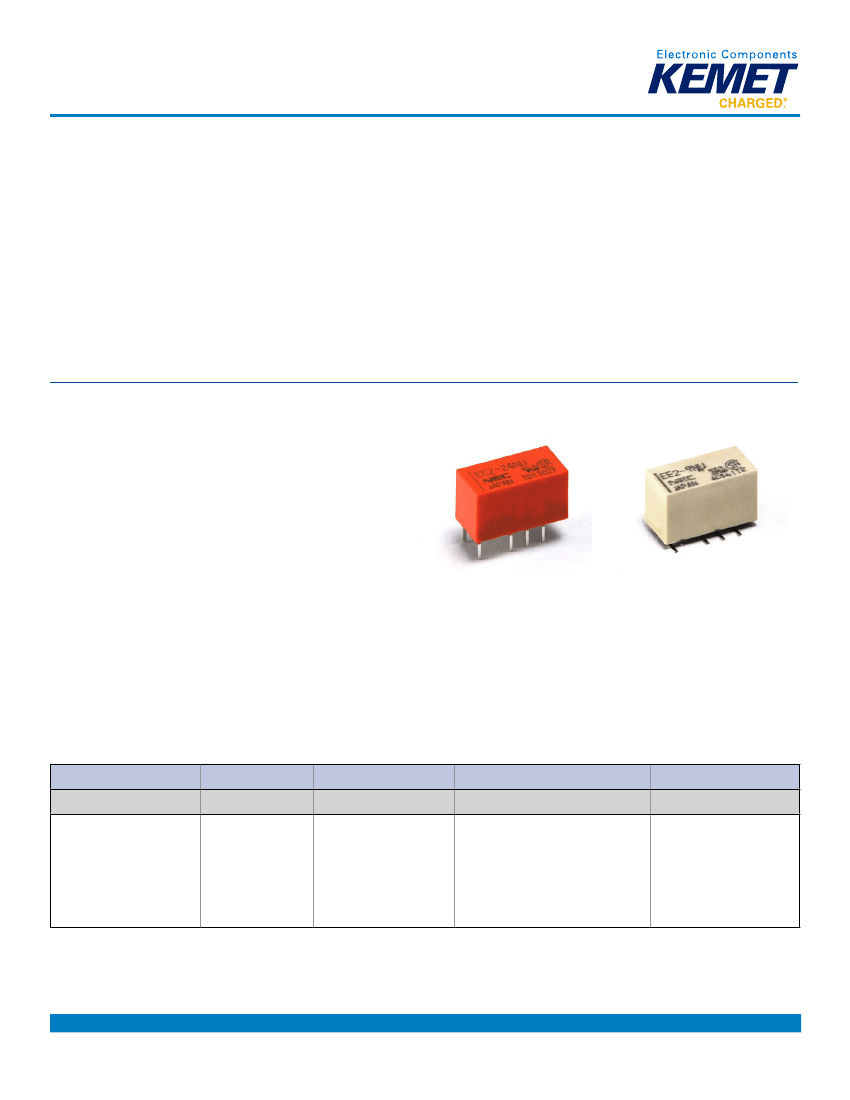

Overview
The KEMET EC2/EE2 miniature signal relays offer a compact
case size in a slim package. Minimal board space is consumed
with either a through-hole or surface mount configuration. These
relays are recognized by UL and CSA, while also being compliant
with Part 68 of the FCC’s 1,500 V surge capacity.
Applications
•
•
•
•
Electronic switching systems
PBX
Terminal equipment
Telephone systems
Benefits
•
•
•
•
•
•
•
Low power consumption (< 200 mW)
Compact and lightweight
Low magnetic interference
Tube or embossed tape and reel packaging
UL recognized (E73266) and CSA certified (LR46266)
Surface mount and through-hole options
High Insulation (ND) type conforms to TUV EN60950
supplementary insulation class standards
• High Breakdown Voltage (NKX) type can withstand 1.5 kVAC at
open contacts
Part Number System
EE2-
Series
EC2- = Through-hole mount
EE2- = Surface mount
3
Coil Voltage
3 = 3 VDC
4.5 = 4.5 VDC
5 = 5 VDC
9 = 9 VDC
12 = 12 VDC
24 = 24 VDC
S
Latch Type
Blank = Non-latch type
S = Single coil latch type
T = Double coil latch type
NU
Lead Type
NU = Standard
NJ = Trimmed
ND = High insulation
NUH = Minimum footprint
NUX = High solder joint reliability
NKX = High breakdown voltage and
high solder joint reliability
-L
Packaging
Blank = Tube
-L = Embossed tape on reel
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
R7002_EC2_EE2 • 8/29/2013
One world. One KEMET
1
Miniature Signal Relays – EC2/EE2 Series

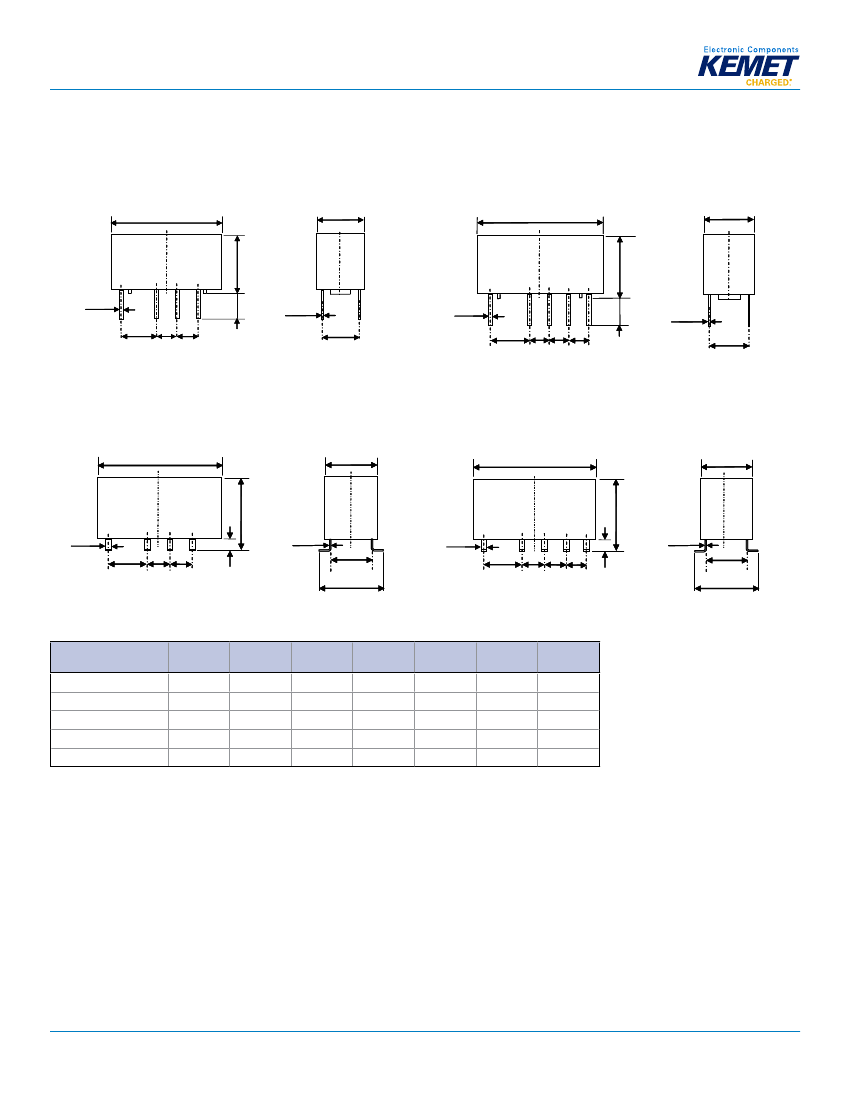

Dimensions – Millimeters
D Maximum
B Maximum
D Maximum
H Maximum
K
B Maximum
H Maximum
EC2 Series
Non-latch type and single coil latch type
0.5
K
0.25 Maximum
B
D Maximum
5.08 P
1
P
1
0.5
5.08 P
1
P
1
H Maximum
K
0.25
P
2
P
2
Double coil latch type
0.5
D Maximum
5.08 P
1
P
1
P
1
0.5
5.08 P
1
P
1
P
1
0.25B Maximum
P
2
H Maximum
K
0.25
P
2
EE2 Series
Non-latch type and single coil latch type
D Maximum
H Maximum
0.5
D Maximum
5.08 P
1
P
1
K
H Maximum
0.5
0.25
B Maximum
P
2
P
3
B Maximum
Double coil latch type
D Maximum
H Maximum
0.5
D Maximum
5.08 P
1
P
1
P
1
K
H Maximum
0.25
B Maximum
P
2
P
3
B Maximum
Series
D
5.08
EC2 (NU, ND)
P
1
P
1
15.0
15.0
15.0
15.0
15.0
K
H
9.4
9.4
10.0
10.0
10.35
0.25
B
EC2 (NJ)
EE2 (NU, ND)
EE2 (NUH)
EE2 (NUX, NKX)
General tolerance: ±0.2
7.5
7.5
7.5
7.5
7.5
P
2
P
3
P
1
2.54
2.54
2.54
2.54
2.54
P
2
0.5
5.08
5.08
5.08
5.08
5.08
P
3
K
5.08 P
1
P
1
3.2
1
P
—
—
9.5
7.5
9.0
2.8
1.0
1.0
1.35
0.25
K
P
2
P
3
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
R7002_EC2_EE2 • 8/29/2013
2
Miniature Signal Relays – EC2/EE2 Series

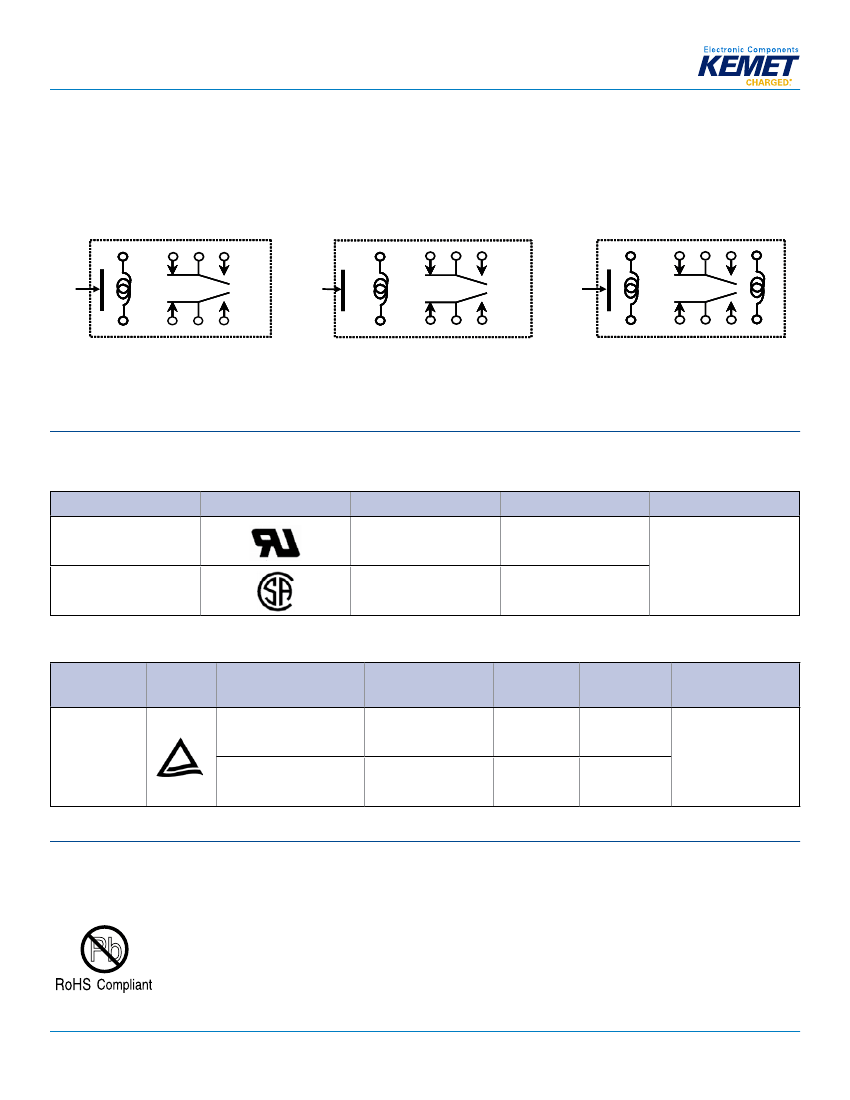

Pin Configurations
Bottom view
Non-latch type
(Non-energized position)
Single coil latch type
(Reset position)
1
Direction mark
+-
SR
- +
12
10
9
8
3
4
5
Direction mark
+
Double coil latch type
(Reset position)
1
Direction mark
+
3
4
5
1
3
4
5
6
+
-
-
-
12
10
9
8
12
Set coil
10
9
8
7
Reset coil
Part number
R: Coil polarity for Reset
Manufacturer
EA2-5NU
Safety Standards and Ratings
Part number
Certification Body
Mark
S: Coil polarity for Set
Manufacturer
File Number
Rating
30 VDC, 2 A (resistive)
110 VDC, 0.3 A (resistive)
125 VAC, 0.5 A (resistive)
UL Recognized
(UL508)
1
Country
JAPAN
Specification
0501F
Direction mark
UL
(pin No. 1 and 10)
CSA
1
EA2-5NU
of origin
E73266
UL, CSA marking
Spacing: UL114,
mark
Direction
UL478
(pin No. 1 and 10)
Certification
Body
Date code
0501F
Date code
CSA Certified
(CSA 22.2 #14)
JAPAN
LR46266
Country of origin
File Number
R 9750561
UL, CSA marking
Mark
Lead Type
Specification
TUV Certified
(IEC61810 / EN61810)
TUV Certified
(EN61810)
Class
Supplementary
insulation
Basic insulation
Rating
Creepage and clearance
of coil to contact is more
than 2 mm
(According to EN60950)
TUV
ND
(Non-latch and Single coil)
NU, NJ, NUH, NUX
(Non-latch and Single coil)
R 9751153
Environmental Compliance
All KEMET relays are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
R7002_EC2_EE2 • 8/29/2013
3
Miniature Signal Relays – EC2/EE2 Series
Table 1 – Ratings & Part Number Reference
Part Number
EC2-3(1)NU
EC2-4.5(1)NU
EC2-5(1)NU
EC2-9(1)NU
EC2-12(1)NU
EC2-24(1)NU
EC2-3(1)NJ
EC2-4.5(1)NJ
EC2-5(1)NJ
EC2-9(1)NJ
EC2-12(1)NJ
EC2-24(1)NJ
EC2-3(1)ND
1
EC2-4.5(1)ND
1
EC2-5(1)ND
1
EC2-9(1)ND
1
EC2-12(1)ND
1
EC2-24(1)ND
1
EE2-3(1)NU
EE2-4.5(1)NU
EE2-5(1)NU
EE2-9(1)NU
EE2-12(1)NU
EE2-24(1)NU
EE2-3(1)NU-L
EE2-4.5(1)NU-L
EE2-5(1)NU-L
EE2-9(1)NU-L
EE2-12(1)NU-L
EE2-24(1)NU-L
EE2-3(1)NUH
EE2-4.5(1)NUH
EE2-5(1)NUH
EE2-9(1)NUH
EE2-12(1)NUH
EE2-24(1)NUH
EE2-3(1)NUH-L
EE2-4.5(1)NUH-L
EE2-5(1)NUH-L
EE2-9(1)NUH-L
EE2-12(1)NUH-L
EE2-24(1)NUH-L
EE2-3(1)NUX
EE2-4.5(1)NUX
EE2-5(1)NUX
EE2-9(1)NUX
EE2-12(1)NUX
EE2-24(1)NUX
EE2-3(1)NUX-L
EE2-4.5(1)NUX-L
EE2-5(1)NUX-L
EE2-9(1)NUX-L
EE2-12(1)NUX-L
EE2-24(1)NUX-L
EE2-3(1)ND
1
EE2-4.5(1)ND
1
EE2-5(1)ND
1
EE2-9(1)ND
1
EE2-12(1)ND
1
EE2-24(1)ND
1
Nominal Coil Voltage
(VDC)
3
4.5
5
9
12
24
3
4.5
5
9
12
24
3
4.5
5
9
12
24
3
4.5
5
9
12
24
3
4.5
5
9
12
24
3
4.5
5
9
12
24
3
4.5
5
9
12
24
3
4.5
5
9
12
24
3
4.5
5
9
12
24
3
4.5
5
9
12
24
Lead Type
Radial
Radial
Radial
Radial
Radial
Radial
Trimmed Radial
Trimmed Radial
Trimmed Radial
Trimmed Radial
Trimmed Radial
Trimmed Radial
Radial, High insulation
Radial, High insulation
Radial, High insulation
Radial, High insulation
Radial, High insulation
Radial, High insulation
Surface mount
Surface mount
Surface mount
Surface mount
Surface mount
Surface mount
Surface mount
Surface mount
Surface mount
Surface mount
Surface mount
Surface mount
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, Minimum footprint
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High solder joint reliability
Surface mount, High insulation
Surface mount, High insulation
Surface mount, High insulation
Surface mount, High insulation
Surface mount, High insulation
Surface mount, High insulation
Packaging
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tube
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tube
Tube
Tube
Tube
Tube
Tube
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tube
Tube
Tube
Tube
Tube
Tube
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tube
Tube
Tube
Tube
Tube
Tube
(1) To complete KEMET part number, leave blank for Non-latch, insert S for Single coil, or T for Double coil. Designates latch type.
1
ND type only available as Non-latch and Single coil.
2
NKX type only available as Non-latch. Non-standard part, please contact KEMET to special order.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
R7002_EC2_EE2 • 8/29/2013
4
Roll Over for
Order Info.
Miniature Signal Relays – EC2/EE2 Series
Table 1 – Ratings & Part Number Reference cont’d
Part Number
EE2-3(1)ND-L
1
EE2-4.5(1)ND-L
1
EE2-5(1)ND-L
1
EE2-9(1)ND-L
1
EE2-12(1)ND-L
1
EE2-24(1)ND-L
1
EE2-3NKX
2
EE2-4.5NKX
2
EE2-12NKX
2
EE2-3NKX-L
2
EE2-4.5NKX-L
2
EE2-12NKX-L
2
Nominal Coil Voltage
(VDC)
3
4.5
5
9
12
24
3
4.5
12
3
4.5
12
Lead Type
Surface mount, High insulation
Surface mount, High insulation
Surface mount, High insulation
Surface mount, High insulation
Surface mount, High insulation
Surface mount, High insulation
Surface mount, High breakdown voltage, High solder joint reliability
Surface mount, High breakdown voltage, High solder joint reliability
Surface mount, High breakdown voltage, High solder joint reliability
Surface mount, High breakdown voltage, High solder joint reliability
Surface mount, High breakdown voltage, High solder joint reliability
Surface mount, High breakdown voltage, High solder joint reliability
Packaging
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tape on Reel
Tube
Tube
Tube
Tape on Reel
Tape on Reel
Tape on Reel
(1) To complete KEMET part number, leave blank for Non-latch, insert S for Single coil, or T for Double coil. Designates latch type.
1
ND type only available as Non-latch and Single coil.
2
NKX type only available as Non-latch. Non-standard part, please contact KEMET to special order.

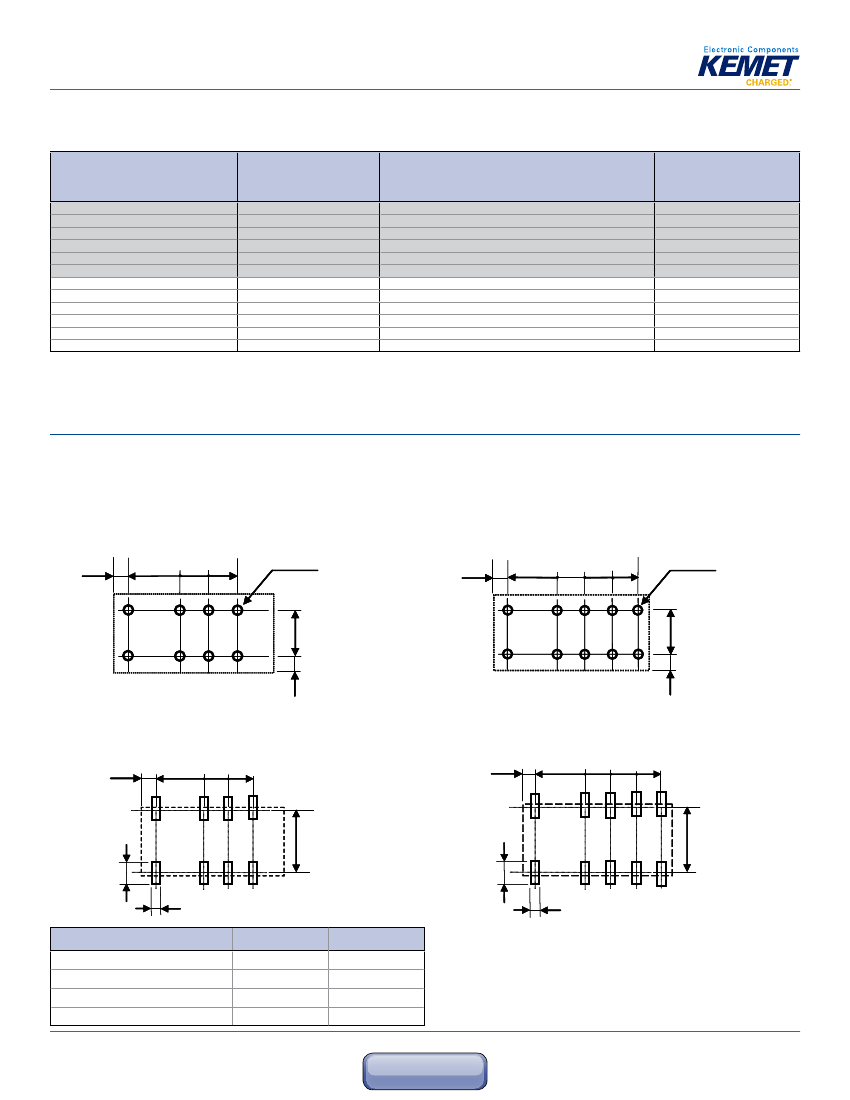

Land Pattern – Millimeters
EC2 Series (bottom view)
Non-latch type and single coil latch type
1.05
1.05
2.54 2.54
1.05 5.08 5.08 2.54 2.54 8 - ø 0.88 - ø 0.8
1.055.08
5.08
2.54 2.542.54 2.548 - ø 0.8 8 - ø 0.8
Double coil latch type
1.05
1.05
1.05 5.08 2.54 2.54 2.54 2.54 8 - ø 0.88 - ø 0.8
5.08 2.54 2.54
8
1.05
5.08
2.54
5.08 2.54 2.542.54 2.54 2.54 - ø 0.8 8 - ø 0.8
V
1.11
V
1.11
V
V
1.11
1.11
V
1.11
V
1.11
V
V
1.11
1.11
EE2 Series (top view)
Non-latch type and single coil latch type
1.05
1.05
1.05 5.08 2.54 2.54 2.54
5.08 2.54
1.05
5.08
5.08 2.54 2.54 2.54 2.54
Double coil latch type
1.05
1.05
5.08 2.54 2.54
1.05 5.08 2.54 2.54 2.54 2.54
5.08
1.05
2.54
5.08 2.54 2.542.54 2.54 2.54
X
X
X
X
1.11
1.11
1.11
1.11
V
V
V
V
X
X
X
X
1.11
1.11
1.11
1.11
V
V
V
V
Series
V
5.08
7.29
6.29
7.02
X
—
3.0
2.0
2.73
EC2
EE2 (NU, ND)
EE2 (NUH)
EE2 (NUX, NKX)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
R7002_EC2_EE2 • 8/29/2013
5
Roll Over for
Order Info.
京公网安备 11010802033920号
EEWORLD
