8656352067 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 8656352067

8656352067: DescriptionWire Terminal; CategoryThe connector Connector bracket; File Size120KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8656352067 Overview

Wire Terminal

8656352067 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Objectid	1749192369
Reach Compliance Code	unknown
ECCN code	EAR99
compound_id	71532175
Other features	MATING: GOLD, TERMINATION: TIN OVER NICKEL
Assembly name	CONTACT
Maximum number of cable entries	0.068 inch
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	MALE
Contact style	BLADE PIN
DIN compliance	NO
Finished thickness	15
IEC compliance	NO
MIL compliance	NO
Material	PHOSPHOR BRONZE
Installation method	STRAIGHT
Terminal type	CRIMP
Maximum wire diameter	20 AWG
Minimum wire diameter	24 AWG

Preview

Download Datasheet

View All

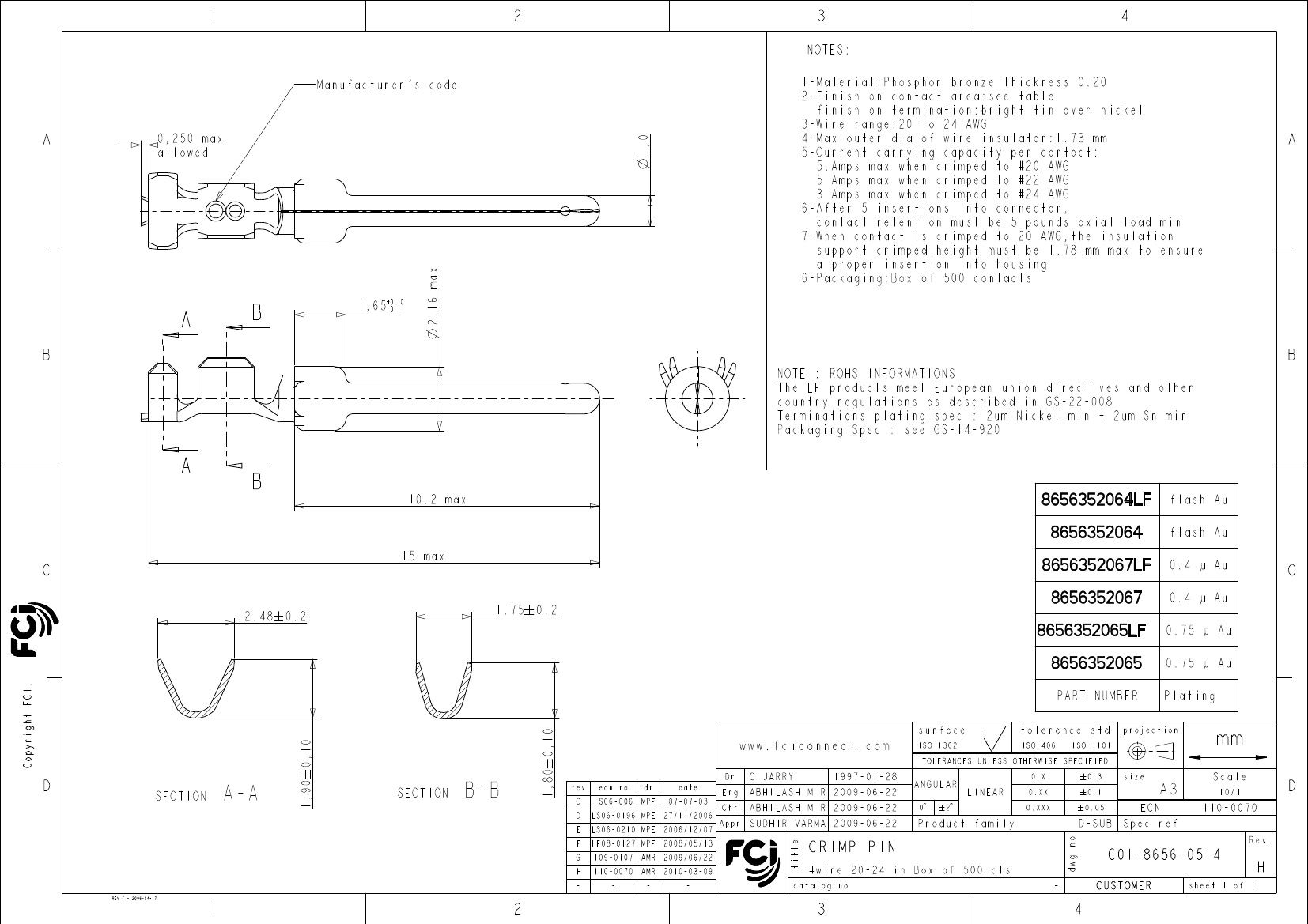

NOTES:

Manufacturer's code

1,65

+0,10

2.16 max

1,0

0,250 max

allowed

1-Material:Phosphor bronze thickness 0.20

2-Finish on contact area:see table

finish on termination:bright tin over nickel

3-Wire range:20 to 24 AWG

4-Max outer dia of wire insulator:1.73 mm

5-Current carrying capacity per contact:

5.Amps max when crimped to #20 AWG

5 Amps max when crimped to #22 AWG

3 Amps max when crimped to #24 AWG

6-After 5 insertions into connector,

contact retention must be 5 pounds axial load min

7-When contact is crimped to 20 AWG,the insulation

support crimped height must be 1.78 mm max to ensure

a proper insertion into housing

6-Packaging:Box of 500 contacts

NOTE : ROHS INFORMATIONS

The LF products meet European union directives and other

country regulations as described in GS-22-008

Terminations plating spec : 2um Nickel min + 2um Sn min

Packaging Spec : see GS-14-920

10.2 max

8656352064LF

8656352064

flash Au

0.4 µ Au

0.75 µ Au

Plating

2.48 0.2

15 max

8656352067LF

1.75 0.2

8656352067

8656352065LF

8656352065

PART NUMBER

1,80 0,10

surface

tolerance std

ISO 406

ISO 1101

projection

1,90 0,10

www.fciconnect.com

rev

ecn no

LS06-006

MPE

date

07-07-03

Eng

Chr

Appr

ISO 1302

Scale

10/1

TOLERANCES UNLESS OTHERWISE SPECIFIED

SECTION

A-A

SECTION

B-B

C JARRY

ABHILASH M R

SUDHIR VARMA

title

1997-01-28

2009-06-22

ANGULAR

0.X

0.3

0.1

0.05

size

LINEAR

0.XX

0.XXX

ECN

LS06-0196 MPE 27/11/2006

LS06-0210 MPE 2006/12/07

LF08-0127 MPE 2008/05/13

I09-0107

I10-0070

AMR 2009/06/22

AMR 2010-03-09

I10-0070

Rev.

Product family

dwg no

D-SUB Spec ref

CRIMP PIN

#wire 20-24 in Box of 500 cts

C01-8656-0514

CUSTOMER

sheet

1 of 1

catalog no

REV F - 2006-04-17

PDM: Rev:H

STATUS:

Released

Printed: Apr 24, 2010

8656352067 Related Products

	8656352067	8656352065
Description	Wire Terminal	Wire Terminal
Maker	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	MATING: GOLD, TERMINATION: TIN OVER NICKEL	MATING: GOLD, TERMINATION: TIN OVER NICKEL
Assembly name	CONTACT	CONTACT
Maximum number of cable entries	0.068 inch	0.068 inch
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
Contact point gender	MALE	MALE
Contact style	BLADE PIN	BLADE PIN
DIN compliance	NO	NO
Finished thickness	15	30
IEC compliance	NO	NO
MIL compliance	NO	NO
Material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Installation method	STRAIGHT	STRAIGHT
Terminal type	CRIMP	CRIMP
Maximum wire diameter	20 AWG	20 AWG
Minimum wire diameter	24 AWG	24 AWG
