LQR2810-0001: DescriptionAudio/RCA Connector, 8 Pole(s), Solid Lead Terminal, Plug,; CategoryThe connector The connector; File Size297KB，2 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

LQR2810-0001 Overview

Audio/RCA Connector, 8 Pole(s), Solid Lead Terminal, Plug,

LQR2810-0001 Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
Body/casing type	PLUG
Configuration	2X4 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	LQR2810
Installation type	BOARD
Number of poles	8
Number of ports	8
Options	GENERAL PURPOSE
Termination type	SOLID LEAD

Preview

Download Datasheet

View All

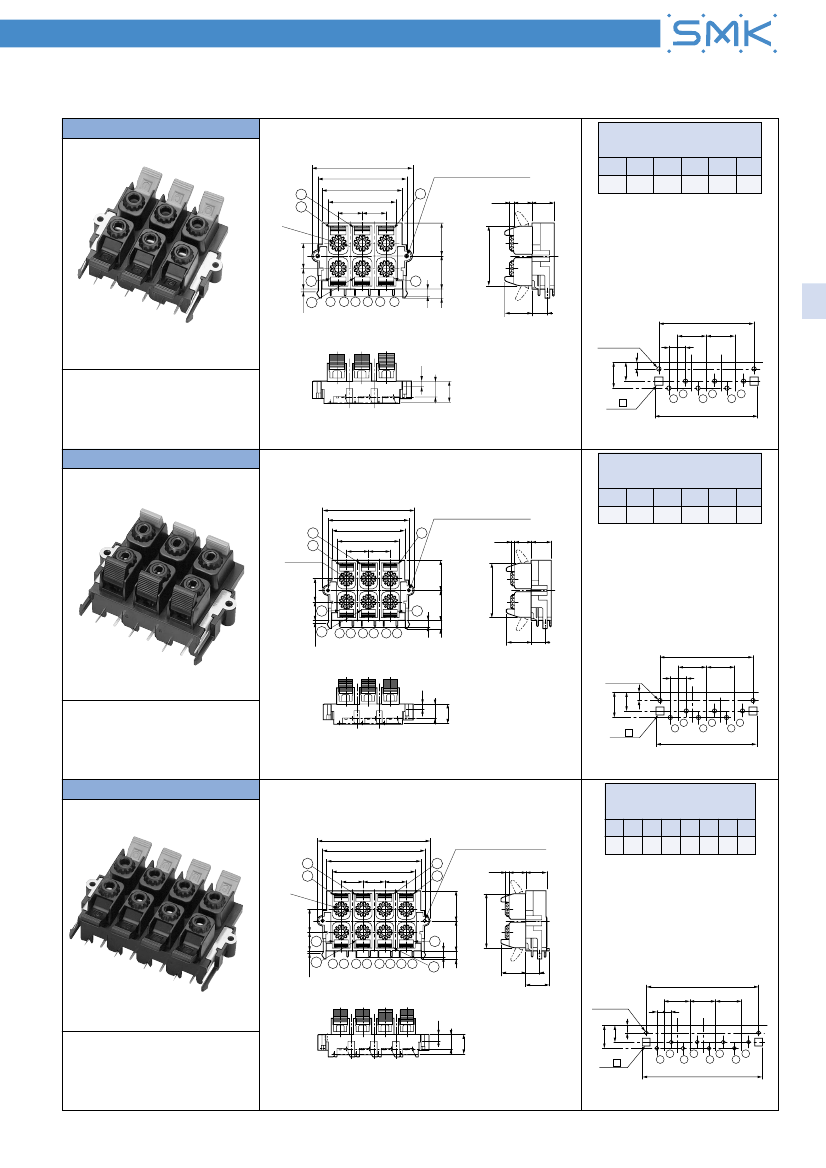

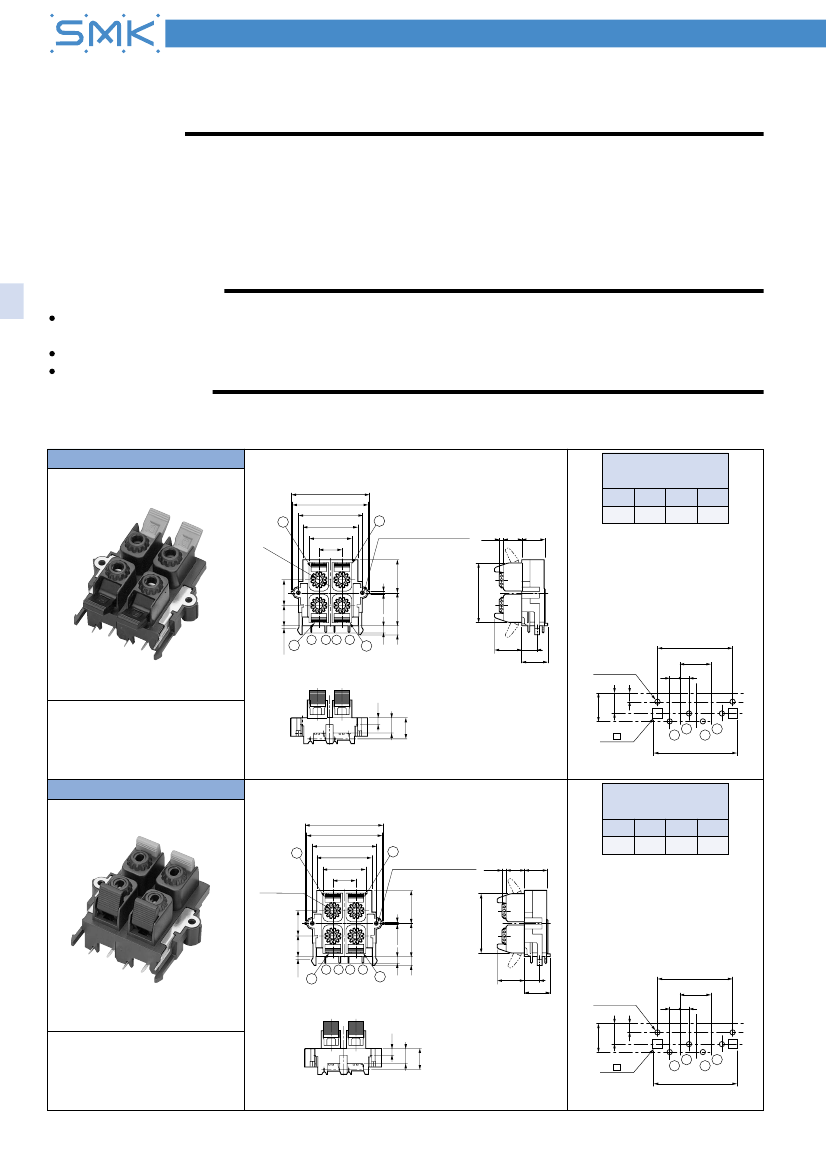

Banana Lever Terminal

Features

1. Banana plugs which have been renowned for high sound

quality can be connected.

2. 2 types of connections practical with these terminals,

conventional lead connection means and banana plugs,

provide users with a choice meeting their preference.

3. Grounding terminals located at both sides will help keep

high quality sound.

Specifications

TERMINALS

Contact Resistance

Knob Handing Force

Withstanding Voltage

30mΩ max.

(with AWG 20 soft copper cables)

11N max.

1200V AC for one minute

Applications

For connection of speakers.

LQR2411-0001G

45

44

37

32

25

14

Banana Tip

Arrangement

A

B

C

D

Red Red Black Black

2.5 10.5 13

A

4-ø

4

B

ø2.5 (Hole)

ø2.7 (Earth metal)

19

1.6 11.7 14.6

34

C

b ad c

4 2-1

5 19

(Recommended P.W.Board Dimension)

(The Pattern Side)

D

15.8 9

15

6-ø1.5

12.4

9

4

32.5

14

44

4

9

12.4

Right Angle (4P)

LQR2411-0003G

45

44

37

32

25

14

2- 4

b

a

36

d

c

Non Banana Tip

Arrangement

A

B

C

D

Red Red Black Black

A

4-2.5x3.5

(Oval)

1.6 11.7 14.6

B

ø2.5 (Hole)

2.5 10.5 13

ø2.7 (Earth metal)

19

34

C

b a d c

4 2-1

5 19

(Recommended P.W.Board Dimension)

(The Pattern Side)

D

15.8 9

15

6-ø1.5

12.4

9

4

32.5

14

4 4

4

9

12.4

Right Angle (4P)

2- 4

b

a

36

d

c

LQR2810-0001 Related Products

	LQR2810-0001	LQR2411-0003G	LQR2610-0001	LQR2610-0003	LQR2411-0001G
Description	Audio/RCA Connector, 8 Pole(s), Solid Lead Terminal, Plug,	Audio/RCA Connector, 4 Pole(s), Solid Lead Terminal, Plug,	Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Plug,	Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Plug,	Audio/RCA Connector, 4 Pole(s), Solid Lead Terminal, Plug,
Maker	SMK	SMK	SMK	SMK	SMK
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Configuration	2X4 HORIZONTAL	2X2 HORIZONTAL	2X3 HORIZONTAL	2X3 HORIZONTAL	2X2 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR
DIN compliance	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	LQR2810	LQR2411	LQR2610	LQR2610	LQR2411
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of poles	8	4	6	6	4
Number of ports	8	4	6	6	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD
