S30A888N1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> S30A888N1

S30A888N1: DescriptionDirectional Coupler, 815MHz Min, 960MHz Max, 0.25dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size229KB，1 Pages; ManufacturerAnaren; Websitehttp://www.anaren.com/

Download Datasheet Parametric Compare View All

S30A888N1 Overview

Directional Coupler, 815MHz Min, 960MHz Max, 0.25dB Insertion Loss-Max

S30A888N1 Parametric

Parameter Name	Attribute value
Maker	Anaren
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	50 dBm
Maximum insertion loss	0.25 dB
Maximum operating frequency	960 MHz
Minimum operating frequency	815 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.25

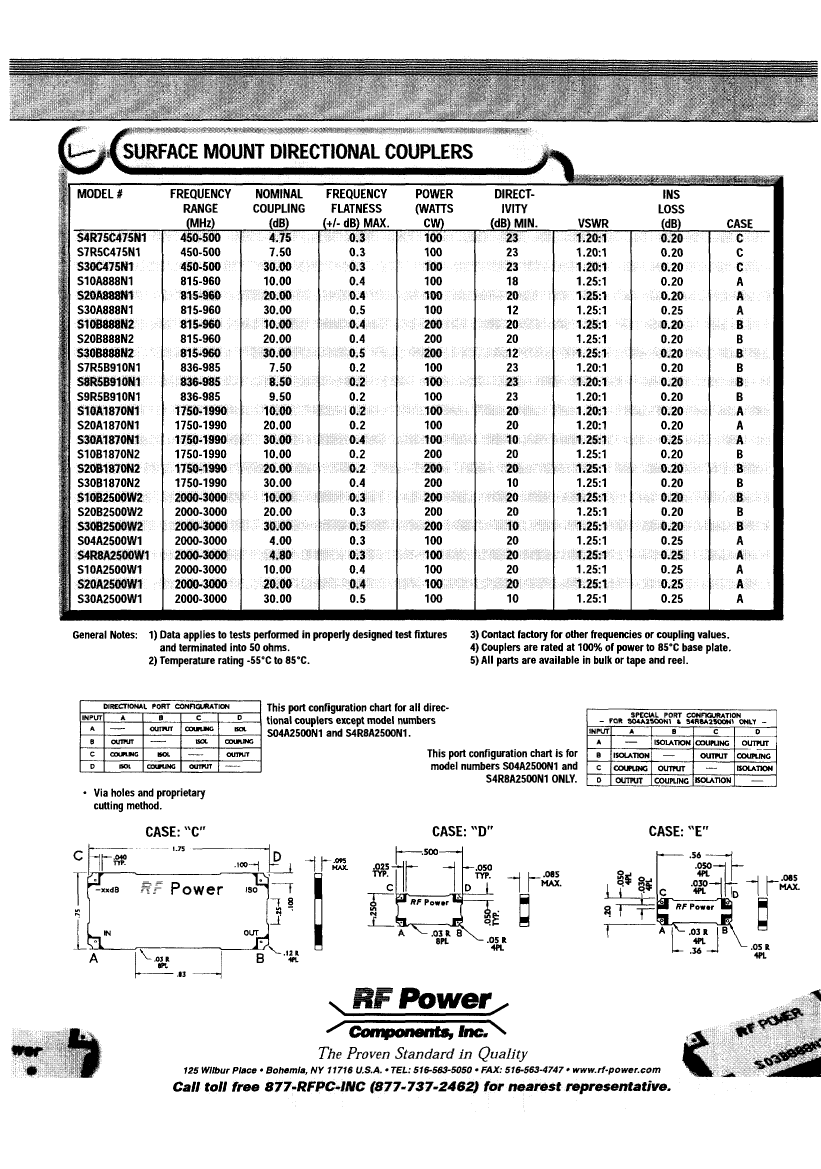

Preview

Download Datasheet

View All

S30A888N1 Related Products

	S30A888N1	S30B888N2	S30A2500W1	S7R5C475N1	S30C475N1	S4R8A2500W1	S8R5B910N1	S9R5B910N1	S10B12500W2	S20B12500W2
Description	Directional Coupler, 815MHz Min, 960MHz Max, 0.25dB Insertion Loss-Max	Directional Coupler, 815MHz Min, 960MHz Max, 0.2dB Insertion Loss-Max	Directional Coupler, 2000MHz Min, 3000MHz Max, 0.25dB Insertion Loss-Max	Directional Coupler, 450MHz Min, 500MHz Max, 0.2dB Insertion Loss-Max	Directional Coupler, 450MHz Min, 500MHz Max, 0.2dB Insertion Loss-Max	Directional Coupler, 2000MHz Min, 3000MHz Max, 0.25dB Insertion Loss-Max	Directional Coupler, 836MHz Min, 985MHz Max, 0.2dB Insertion Loss-Max	Directional Coupler, 836MHz Min, 985MHz Max, 0.2dB Insertion Loss-Max	Directional Coupler, 2000MHz Min, 3000MHz Max, 0.2dB Insertion Loss-Max	Directional Coupler, 2000MHz Min, 3000MHz Max, 0.2dB Insertion Loss-Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	50 dBm	53.01 dBm	50 dBm	50 dBm	50 dBm	50 dBm	50 dBm	50 dBm	53.01 dBm	53.01 dBm
Maximum insertion loss	0.25 dB	0.2 dB	0.25 dB	0.2 dB	0.2 dB	0.25 dB	0.2 dB	0.2 dB	0.2 dB	0.2 dB
Maximum operating frequency	960 MHz	960 MHz	3000 MHz	500 MHz	500 MHz	3000 MHz	985 MHz	985 MHz	3000 MHz	3000 MHz
Minimum operating frequency	815 MHz	815 MHz	2000 MHz	450 MHz	450 MHz	2000 MHz	836 MHz	836 MHz	2000 MHz	2000 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.25	1.25	1.25	1.2	1.2	1.25	1.2	1.2	1.25	1.25
Maker	Anaren	-	Anaren	Anaren	-	Anaren	Anaren	Anaren	Anaren	Anaren
