SM9566 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SM9566

SM9566: DescriptionWide Band Low Power Amplifier, 10MHz Min, 1000MHz Max, TO-8, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size43KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

SM9566 Overview

Wide Band Low Power Amplifier, 10MHz Min, 1000MHz Max, TO-8, 4 PIN

SM9566 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	TO-8, 4 PIN
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	24.5 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TM9566

Features

Low Noise Figure: <3 dB Typical

High Gain: +26 dBm Typical

Low +5 Volt Supply

Environmental Screening Available

Available as:

TM9566, 4 Pin TO-8 (T4)

TN9566, 4 Pin Surface Mount (SM3)

FP9566, 4 Pin Flatpack (FP4)

BX9566, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point........+26 dBm (Typ.)

Second Order Two Tone Intercept Point.........+21 dBm (Typ.)

Third Order Two Tone Intercept Point.............+12 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25

ºC

5 - 1100 MHz

+0.5

-35

<1.5:1

<1.75:1

<3.0

MIN/MAX

Ta = -55

ºC

to +85

ºC

10 - 1000 MHz

24.5 Min.

-0.5 Min.

-34 Max.

2.0:1 Max.

4.0 Max.

20 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 10 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power .... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

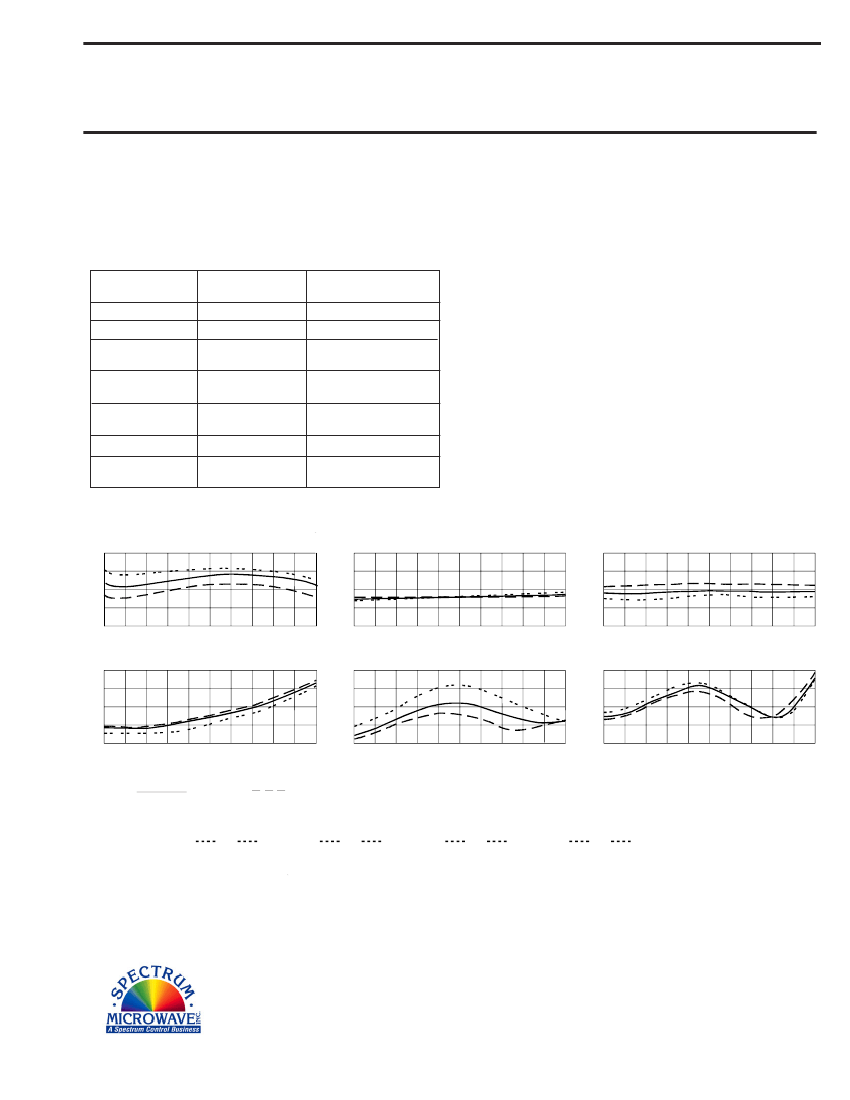

Typical Performance Data

Start 5 MHz

Stop 1100 MHz

Gain (dB)

- 15

- 30

- 45

- 60

Reverse Isolation (dB)

Start 5 MHz

Stop 1100 MHz

Start 5 MHz

Noise Figure (dB)

Stop 1100 MHz

- 1

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Ouput VSWR

Stop 1100 MHz

Start 5 MHz

Stop 1100 MHz

Start 5 MHz

Stop 1100 MHz

Legend

+ 25 ºC

Linear S-Parameters

FREQ.

S11

MHz

Mag.

Deg.

100

200

400

600

800

1000

1200

.03

.04

.07

.13

.19

.20

.14

.11

.15

-38

-30

-67

-83

-124

-169

138

-44

-144

+ 85 ºC - - - - - - -55 ºC

S21

Mag.

Deg.

Mag.

21.05

20.93

20.48

20.67

20.92

21.86

22.11

22.13

21.70

18.54

-0

-13

-26

-52

-105

-162

139

-2

.02

.01

.02

S12

Deg.

Mag.

-1

-11

-1

-25

.21

.22

.24

.29

.28

.17

.20

.44

S22

Deg.

-174

-175

-176

-180

165

139

126

177

143

========================================================================================

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

4/14/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
