HD404272FP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> HD404272FP

HD404272FP: DescriptionMicrocontroller, 4-Bit, MROM, HMCS400 CPU, 4.5MHz, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，49 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD404272FP Overview

Microcontroller, 4-Bit, MROM, HMCS400 CPU, 4.5MHz, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28

HD404272FP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP, SOP28,.45
Contacts	28
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	4
boundary scan	NO
CPU series	HMCS400
maximum clock frequency	4.5 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	18 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	1
Number of I/O lines	22
Number of serial I/Os	1
Number of terminals	28
Number of timers	2
On-chip data RAM width	4
On-chip program ROM width	10
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.45
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.5/6 V
Certification status	Not Qualified
RAM (bytes)	64
RAM (number of words)	128
rom(word)	2000
ROM programmability	MROM
Maximum seat height	3 mm
speed	4.5 MHz
Maximum slew rate	5.5 mA
Maximum supply voltage	6 V
Minimum supply voltage	3.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.4 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

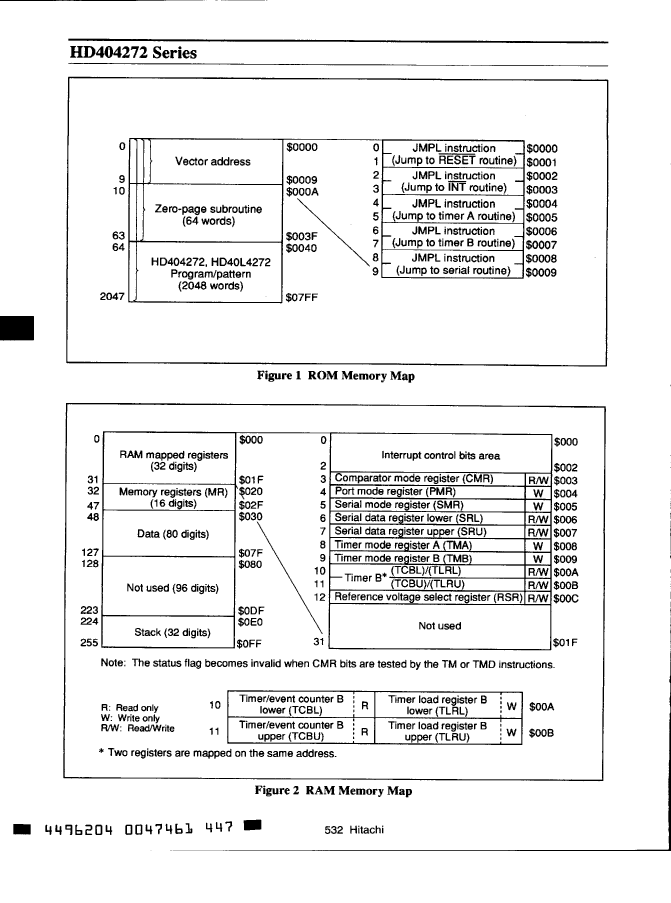

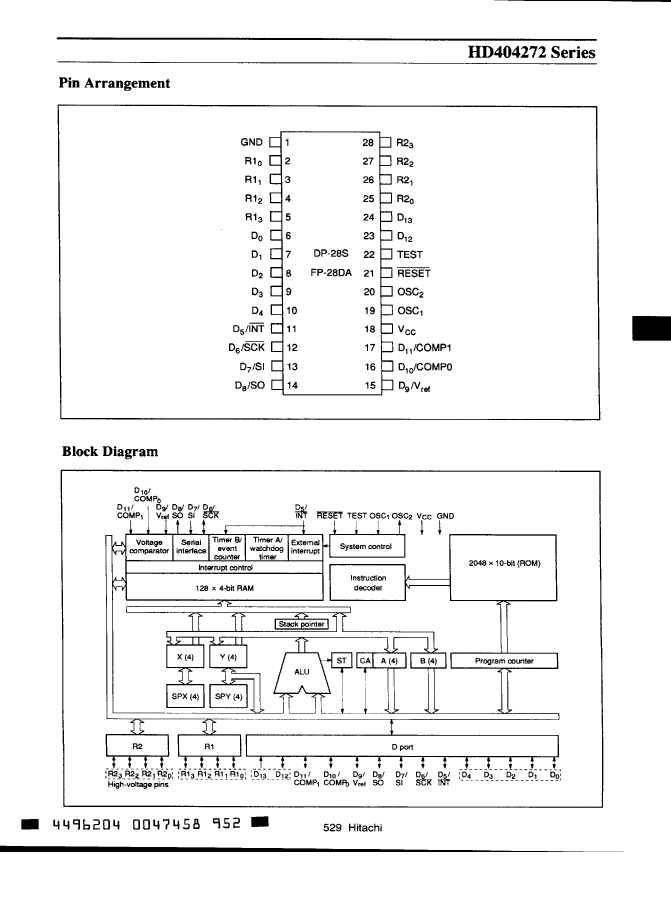

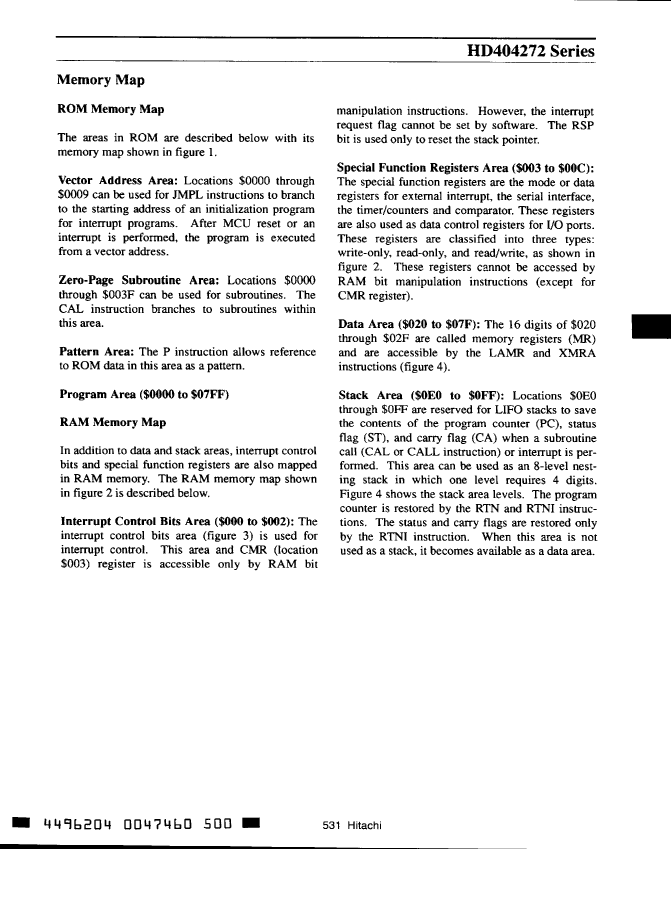

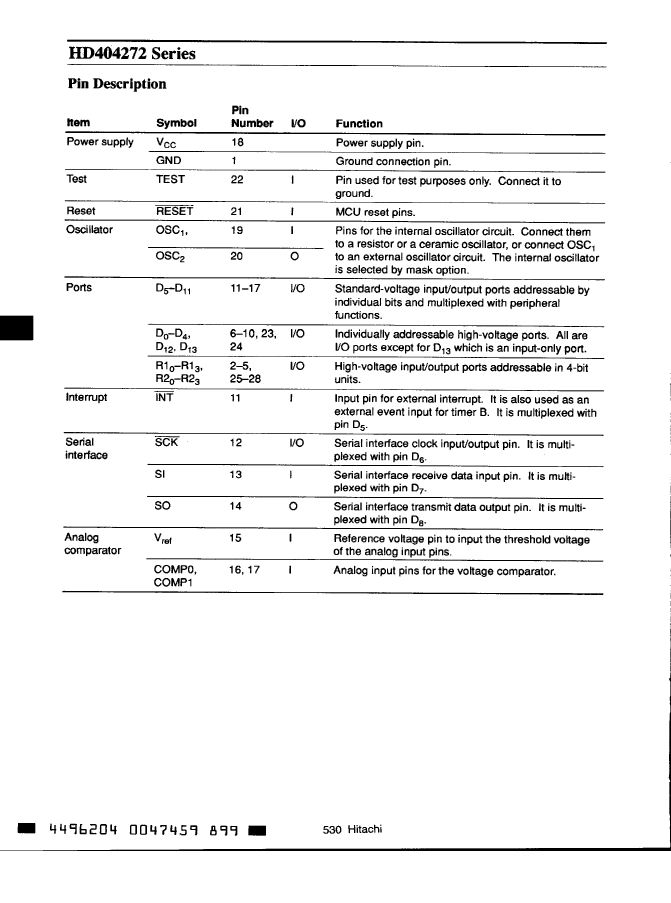

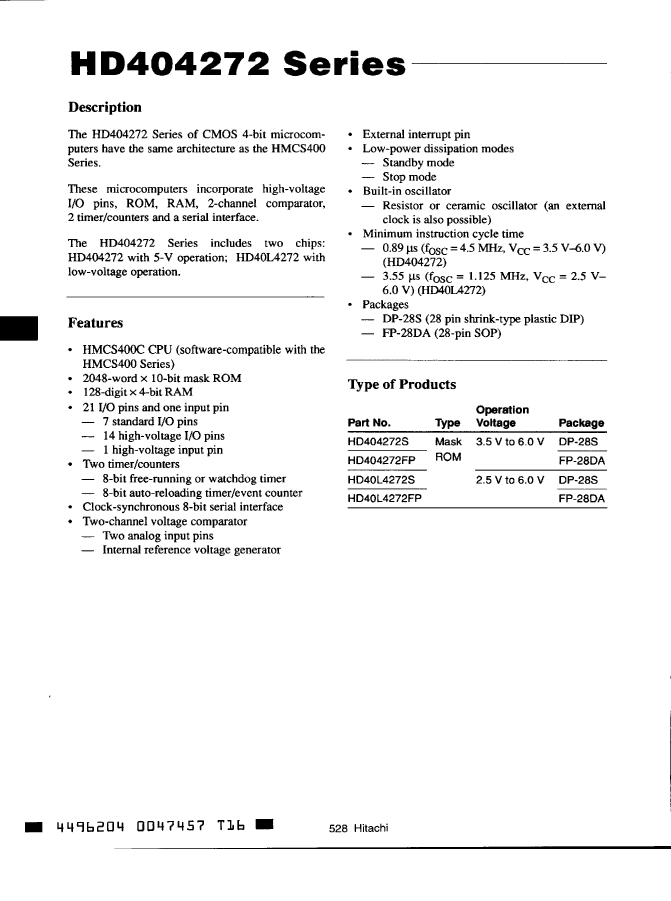

Preview

Download Datasheet

View All

HD404272FP Related Products

	HD404272FP	HD40L4272S	HD40L4272FP	HD404272S
Description	Microcontroller, 4-Bit, MROM, HMCS400 CPU, 4.5MHz, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28	Microcontroller, 4-Bit, MROM, HMCS400 CPU, 1.125MHz, CMOS, PDIP28, SHRINK, PLASTIC, DIP-28	Microcontroller, 4-Bit, MROM, HMCS400 CPU, 1.125MHz, CMOS, PDSO28, 0.450 INCH, PLASTIC, SOP-28	Microcontroller, 4-Bit, MROM, HMCS400 CPU, 4.5MHz, CMOS, PDIP28, SHRINK, PLASTIC, DIP-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	SOIC	DIP	SOIC	DIP
package instruction	SOP, SOP28,.45	SDIP, SDIP28,.4	SOP, SOP28,.45	SDIP, SDIP28,.4
Contacts	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO
bit size	4	4	4	4
boundary scan	NO	NO	NO	NO
CPU series	HMCS400	HMCS400	HMCS400	HMCS400
maximum clock frequency	4.5 MHz	1.125 MHz	1.125 MHz	4.5 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDSO-G28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0
length	18 mm	27.1 mm	18 mm	27.1 mm
low power mode	YES	YES	YES	YES
Number of external interrupt devices	1	1	1	1
Number of I/O lines	22	22	22	22
Number of serial I/Os	1	1	1	1
Number of terminals	28	28	28	28
Number of timers	2	2	2	2
On-chip data RAM width	4	4	4	4
On-chip program ROM width	10	10	10	10
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SDIP	SOP	SDIP
Encapsulate equivalent code	SOP28,.45	SDIP28,.4	SOP28,.45	SDIP28,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE, SHRINK PITCH	SMALL OUTLINE	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.5/6 V	3/5 V	3/5 V	3.5/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	64	64	64	64
RAM (number of words)	128	128	128	128
rom(word)	2000	2000	2000	2000
ROM programmability	MROM	MROM	MROM	MROM
Maximum seat height	3 mm	5.08 mm	3 mm	5.08 mm
speed	4.5 MHz	1.125 MHz	1.125 MHz	4.5 MHz
Maximum slew rate	5.5 mA	1.6 mA	1.6 mA	5.5 mA
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	3.5 V	2.5 V	2.5 V	3.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	1.778 mm	1.27 mm	1.778 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8.4 mm	10.16 mm	8.4 mm	10.16 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
