0805 Package Chip LED(1.0mm Height)
17-21UYC/S530-A3/TR8
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
17-21 SMD LED is much smaller than lead
frame type components, thus enable smaller board
size, higher packing density, reduced storage space
and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Chip
Part No.
Material
17-21UYC/S530-A3/TR8
AlGaInP
Brilliant Yellow
Water Clear
Emitted Color
Resin Color
Everlight Electronics Co., Ltd.
Device No:SZDSE-171-
http://www.everlight.com
Prepared date:7-Apr -2009
Rev.1
Page: 1 of 9
Prepared by: Huang yongxin
EVERLIGHT ELECTRONICS CO.,LTD.
17-21UYC/S530-A3/TR8

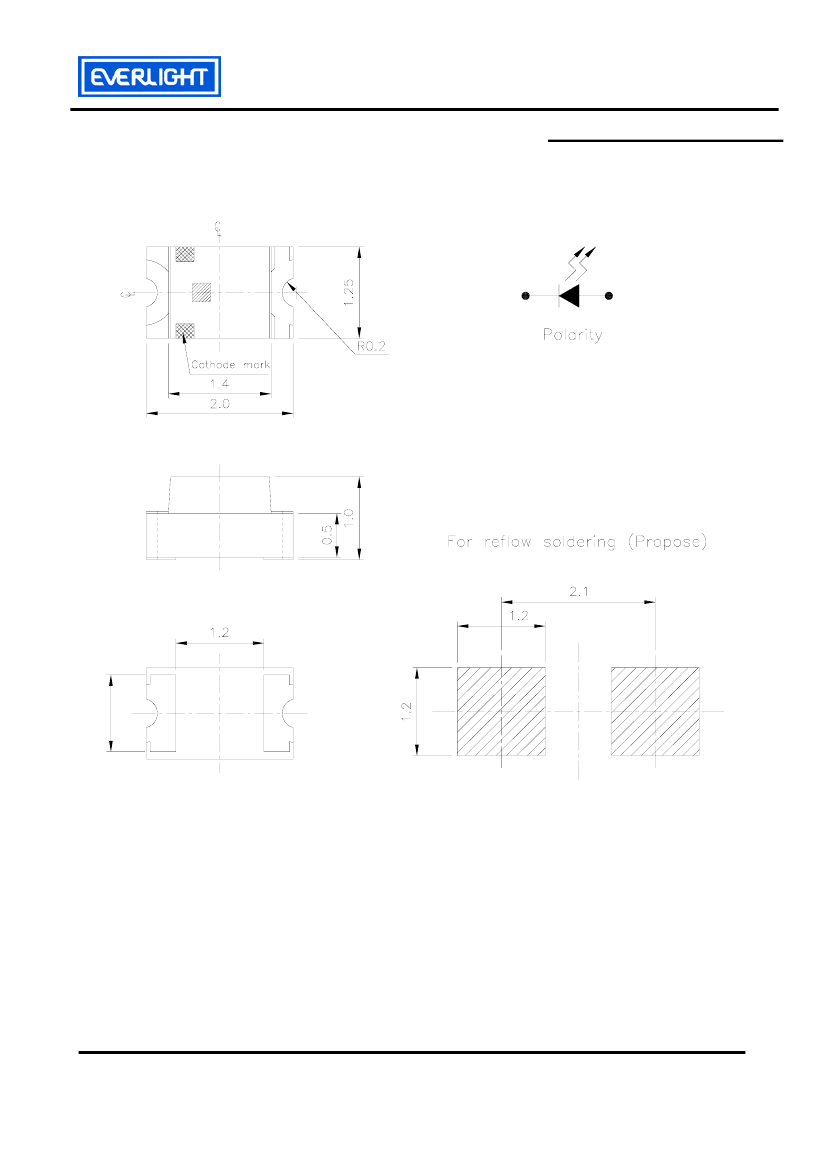

Package Outline Dimensions
-
+
Everlight Electronics Co., Ltd.
Device No:SZDSE-171-
1.05
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
http://www.everlight.com
Prepared date:7-Apr-2009
Rev. 1
Page: 2 of 9
Prepared by: Huang yongxin
EVERLIGHT ELECTRONICS CO.,LTD.
17-21UYC/S530-A3/TR8
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
ElectrostaticDischarge
(HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
P
d
ESD
Topr
Tstg
Tsol
Rating
5
25
60
60
2000
-40 ~ +85
-40~ +90
Reflow Soldering:260
℃
for 10 sec
Hand Soldering:350℃ for 3 sec
Unit
V
mA
mA
mW
V
℃
℃
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
I
V
2θ1/2
λ
p
λ
d
△λ
V
F
I
R
Min.
40
-----
-----
-----
-----
1.70
-----
Typ.
62
140
591
589
15
2.00
-----
Max.
-----
-----
-----
-----
-----
2.40
10
Unit
mcd
deg
nm
nm
nm
V
μA
Condition
I
F
=20mA
V
R
=5V
Everlight Electronics Co., Ltd.
Device No:SZDSE-171-
http://www.everlight.com
Prepared date:7-Apr-2009
Rev. 1
Page: 3 of 9
Prepared by: Huang yongxin
EVERLIGHT ELECTRONICS CO.,LTD.
17-21UYC/S530-A3/TR8

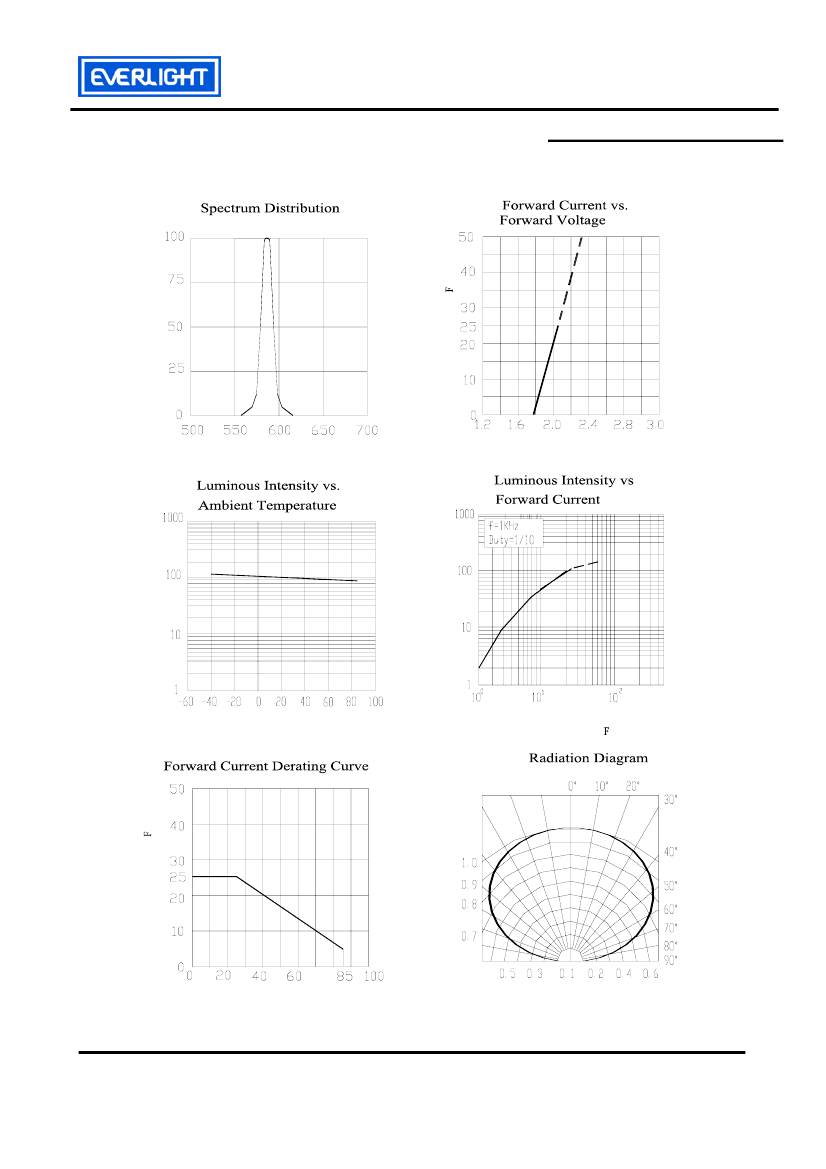

Typical Electro-Optical Characteristics Curves
Ta=25°C
Relative luminous intensity ( % )
I (mA)
Ta=25°C
Wavelength
λp(nm)
Forward Current
Forward Voltage V (V)
F
Ta=25°C
Relative luminous intensity ( % )
Relative luminous intensity ( %)
Ambient Temperature T (°C)
a
Forward Current I (mA)
Ta=25°C
Forward Current
I (mA)
Ambient Temperature T (°C)
a
Everlight Electronics Co., Ltd.
Device No:SZDSE-171-
http://www.everlight.com
Prepared date:7-Apr-2009
Rev. 1
Page: 4 of 9
Prepared by: Huang yongxin
EVERLIGHT ELECTRONICS CO.,LTD.
17-21UYC/S530-A3/TR8

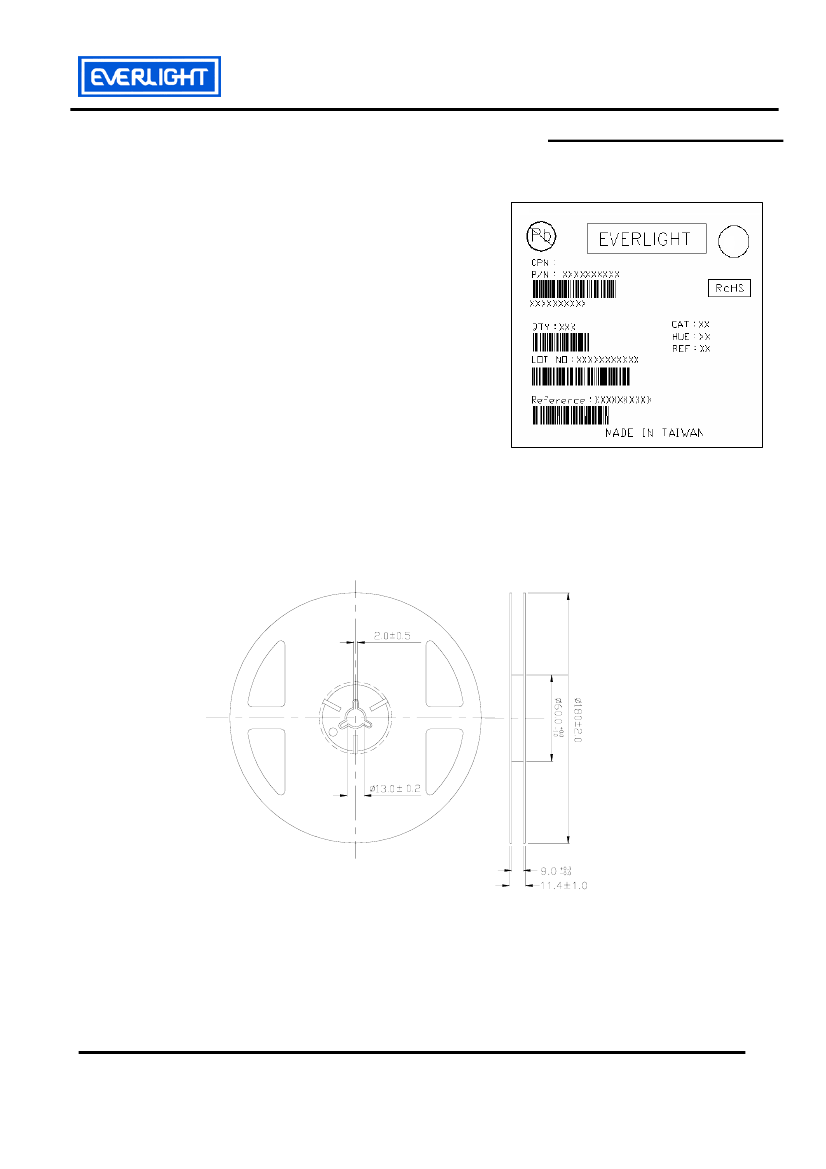

Label explanation
CAT: Luminous Intensity Rank
HUE: Dom. Wavelength Rank
REF: Forward Voltage Rank
Reel Dimensions
Note:
The tolerances unless mentioned is
±0.1mm
,Unit = mm
Everlight Electronics Co., Ltd.
Device No:SZDSE-171-
http://www.everlight.com
Prepared date:7-Apr-2009
Rev. 1
Page: 5 of 9
Prepared by: Huang yongxin
