SC3-200R-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> SC3-200R-G

SC3-200R-G: DescriptionFixed Resistor, 3W, 200ohm, 100V, 2% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP; CategoryPassive components The resistor; File Size348KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

SC3-200R-G Overview

Fixed Resistor, 3W, 200ohm, 100V, 2% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP

SC3-200R-G Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TT Electronics plc
Objectid	1889863796
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	33826502
JESD-609 code	e0
Manufacturer's serial number	SC3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	3 W
Rated temperature	70 °C
resistance	200 Ω
Resistor type	FIXED RESISTOR
size code	2512
surface mount	YES
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
Tolerance	2%
Operating Voltage	100 V

Preview

Download Datasheet

View All

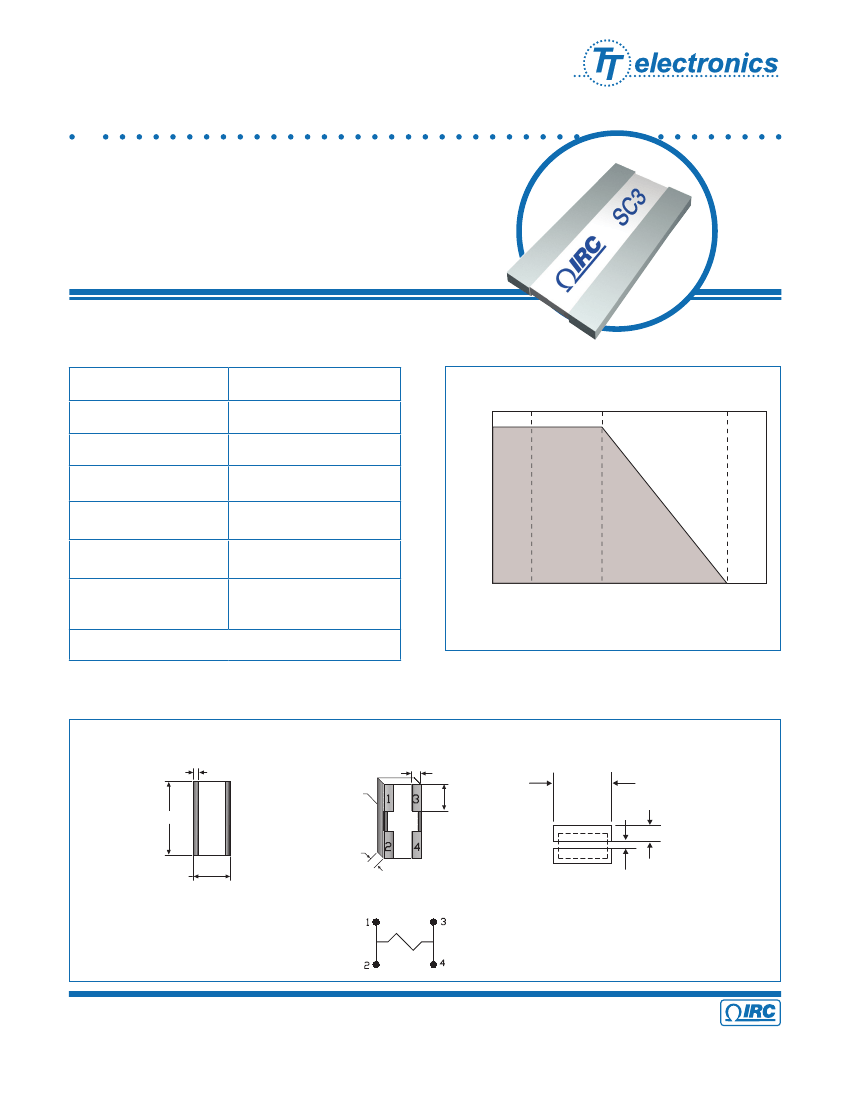

High Power Dissipation

SMT Chip Resistor

SC3 Series

•

Tolerances to ±1%

3 watt rating at 70°C

Resistance range from 1 to 100KΩ

Standard Sn/Pb and matte tin (Pb-free) terminations available

Electrical Data

Resistance Range

Resistance Tolerance

Temperature Coefficient

Power Dissipation

Maximum Voltage Rating

_____

(not to exceed

√

P X R )

Operating Temperature

Range

Termination

1Ω to 100KΩ

±1%, ±2%, ±5%

±100 ppm/°C

3.0 Watts* @70°C

100 Volts

-55°C to +150°C

Leach-resistant nickel barrier

under solder-plated wrap-

around

Power Derating Chart

100

% Of Rated Power

25°

70°

150°

Temperature in °C

*Note: With 1” square copper area as heat spreader.

Physical Data

TOP

0.020”±.005”

BOTTOM

(Board Side)

RECOMMENDED SOLDER

PAD LAYOUT

0.032” ±.005”

0.30”

.6mm

0.250” ± .005”

33R0

Plating

wrap-around

0.090” ±.005”

0.030” ±.005”

thickness

0.08”

(2.0mm)

0.125” ±.005”

SCHEMATIC

0.04”

(1mm)

General Note

IRC reserves the right to make changes in product specification without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

Advanced Film Division

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

A subsidiary of

TT electronics plc

SC3 Series Issue October 2008
