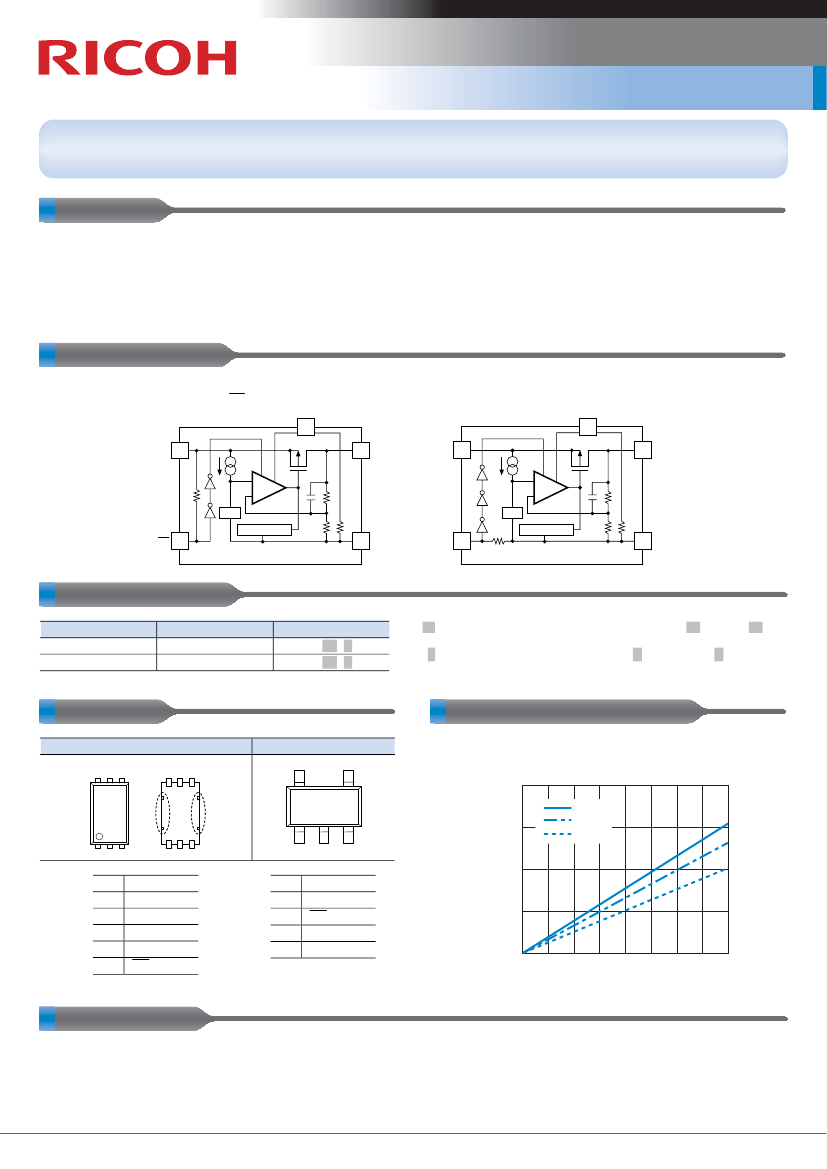

R1160x Series
Low Voltage 200mA LDO with ECO pin
The R1160x Series are CMOS-based LDO regulators with ECO pin featuring 200mA output. By inputting control signals from the ECO
pin, the mode of the regulator can be switched to low power mode or fast response mode, thus making both active and sleep modes
available for the system. The CE pin can switch the regulator into standby mode. This feature helps to extend the battery life.
FEATURES
•
Supply Current (I
SS1
) ·················Typ. 40μA (Fast mode, V
IN
=SET V
OUT
+1V)
•
Output Voltage Range (V
OUT
)··········0.8V to 3.3V (internally fixed)
•
Supply Current (I
SS2
) ·················Typ. 4.5μA (Low power mode, same as above, V
OUT
=2.8V)
•
Output Voltage Accuracy ················± 2% (Fast mode)
•
Standby Current (I
standby
) ···········Typ. 0.1μA (Same as above, in standby)
±
3% (Low power mode)
•
Dropout Voltage (V
DIF
) ··············Typ. 0.14V (Fast mode, I
OUT
=200mA, V
OUT
=2.8V)
•
Temp. coeff. of Output Voltage ·······Typ.
±
100ppm/°C
Typ. 0.14V (Low power mode, I
OUT
=200mA, V
OUT
=2.8V)
•
Line Regulation·······························Typ. 0.05%/V (Fast mode)
•
Ripple Rejection (RR)···············Typ. 70dB (Fast mode, f=1kHz)
•
Fold-back Protection Circuit ···········Current limit Typ. 50mA
•
Input Voltage Range (V
IN
) ·········1.4V to 6.0V
•
Packages ········································SON-6, SOT-23-5
BLOCK DIAGRAMS
R1160xxx1A
(
CE
pin "L" active)
ECO
R1160xxx1B
(CE pin "H" active)
ECO
V
DD
-
+
Vref
Current Limit
CE
V
OUT
V
DD
-
+
Vref
Current Limit
V
OUT
GND
CE
GND
SELECTION GUIDES
Package
SON-6
SOT-23-5
Quantity per Reel
Part No.
3,000 pcs
R1160D.xx.1.
∗
-TR-F
3,000 pcs
R1160N.xx.1.
∗
-TR-F
.xx.
: Specify the output voltage within the range 0.8V (.08.) to 3.3V (.33.)
in 0.1V steps.
.∗
: Select the polarity of the CE pin from (.A.) "L" active or (.B.) "H" active.
PACKAGES
SON-6
Top View
6
5
4
TYPICAL CHARACTERISTIC
SOT-23-5
5
4
4
5
6
R1160x261x
0.20
Bottom View
∗
Dropout Voltage vs. Output Current
(Fast Response Mode)
ECO=H
85°C
25°C
-40°C
Dropout Voltage V
DIF
(V)
0.15
0.10
0.05
0
1
2
3
3
2
1
1
2
3
1
2
3
4
5
6
V
DD
NC
V
OUT
ECO
GND
CE
or CE
1
2
3
4
5
V
DD
GND
CE
or CE
ECO
V
OUT
0
25
50
75 100 125 150 175 200
∗)
The tab suspension leads are substrate level (GND).
Output Current I
OUT
(mA)
APPLICATIONS
•
Power source for hand-held communication equipment, cameras, and VCRs
•
Very stable voltage reference
•
Power source for battery-powered equipment
No.EK-087-091101
CMOS LDO Regulator
