Reliable low cost construction utilizing molded plastic technique
results in inexpensive product
The plastic material has UL flammability classification 94V-0
Mechanical Data:
Polarity
Weight
Mounting Position
Reverse Voltage
Forward Current
: As marked on body
: 0.02 ounces, 0.38 grams
: Any
: 200 to 1000 Volts
: 1.5 Ampere
Maximum Ratings and Electrical Characteristics:
Rating at 25°C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristics
Max. Recurrent Peak Reverse Voltage
Max. RMS Voltage
Max. DC Blocking Voltage
Max. Average Forward
Rectified Current
Peak Forward Surge Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load
Max. Instantaneous Forward Voltage at 1.5A DC
Max. DC Reverse Current at
Rated DC Blocking Voltage at
I
2
t Rating for Fusing (t<8.3ms)
Typical Junction Capacitance per Element (Note 1)
Typical Thermal Resistance (Note 2)
Operating Temperature Range
Storage Temperature Range
T
j
= 25°C
T
j
= 125°C
at T
a
= 40°C
Symbol
V
rrm
V
rms
V
dc
I
(AV)
I
fsm
V
f
I
r
I
2
t
C
j
R
θJA
T
j
T
stg
DF1502
200
140
200
1.5
A
50
1.1
10
500
10.4
25
40
-55 to +150
-55 to +150
V
μA
A
2
s
pF
°C/W
°C
°C
DF1510
1000
700
1000
V
Unit
Notes:
1. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
2. Thermal resistance from junction to ambient mounted on P.C.B ,with 0.5"×0.5" (13mm×13mm) copper pads.
3. The typical data above is for reference only
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <1>
11/09/19
V1.0
Glass Passivated
Bridge Rectifier

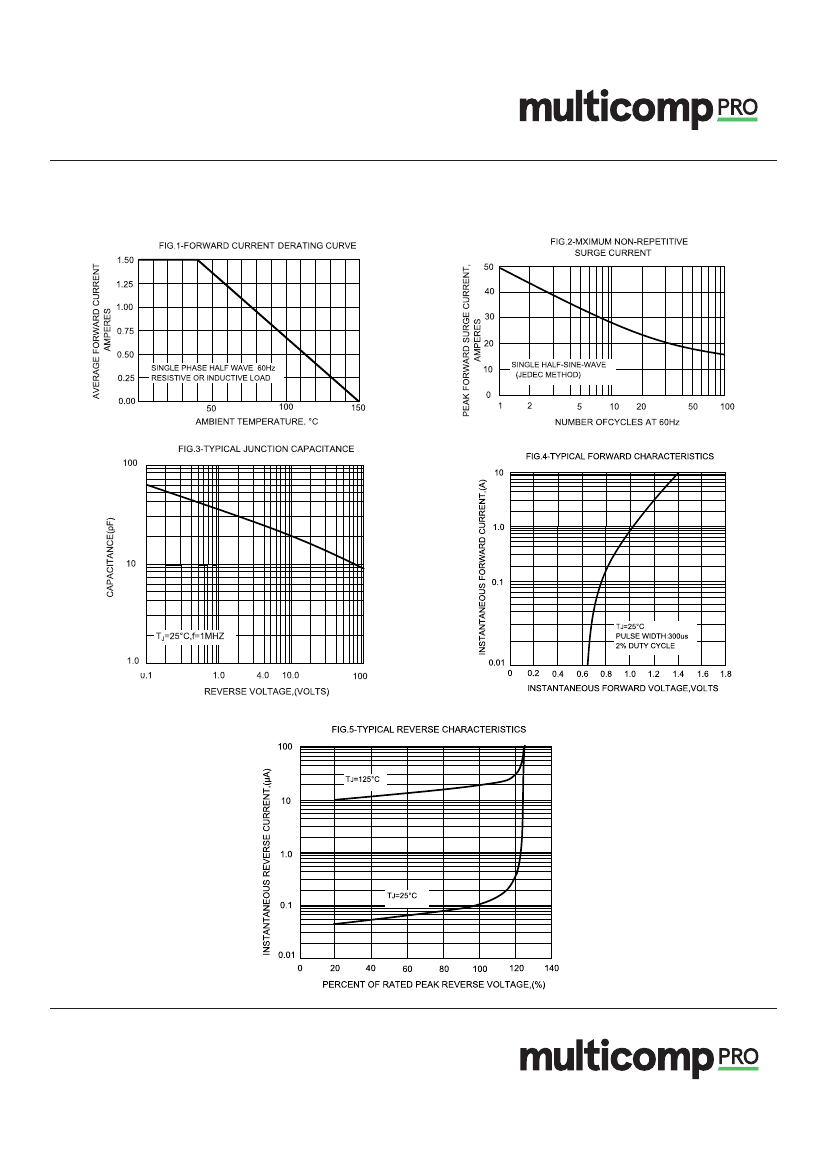

Ratings and Characteristic Curves
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Page <2>
11/09/19
V1.0
Glass Passivated
Bridge Rectifier
Dimensions:
Dimensions : Inches (Millimetres)
Part Number Table
Description
Glass Passivated Bridge Rectifier, 1.5A 200V
Glass Passivated Bridge Rectifier, 1.5A 1000V
Part Number
DF1502
DF1510
