D/MS3057-4A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> D/MS3057-4A

D/MS3057-4A: DescriptionConnector Accessory, Cable Clamp, ROHS COMPLIANT; CategoryThe connector Connector bracket; File Size5MB，18 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

D/MS3057-4A Overview

Connector Accessory, Cable Clamp, ROHS COMPLIANT

D/MS3057-4A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DDK
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-5015
Related military specifications	MIL-DTL-5015
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Military connector accessories name	CABLE CLAMP
Housing size	10SL, 12S

Preview

Download Datasheet

View All

MIL-DTL-5015 Style Circular Connectors

D/MS A/B Series

◆

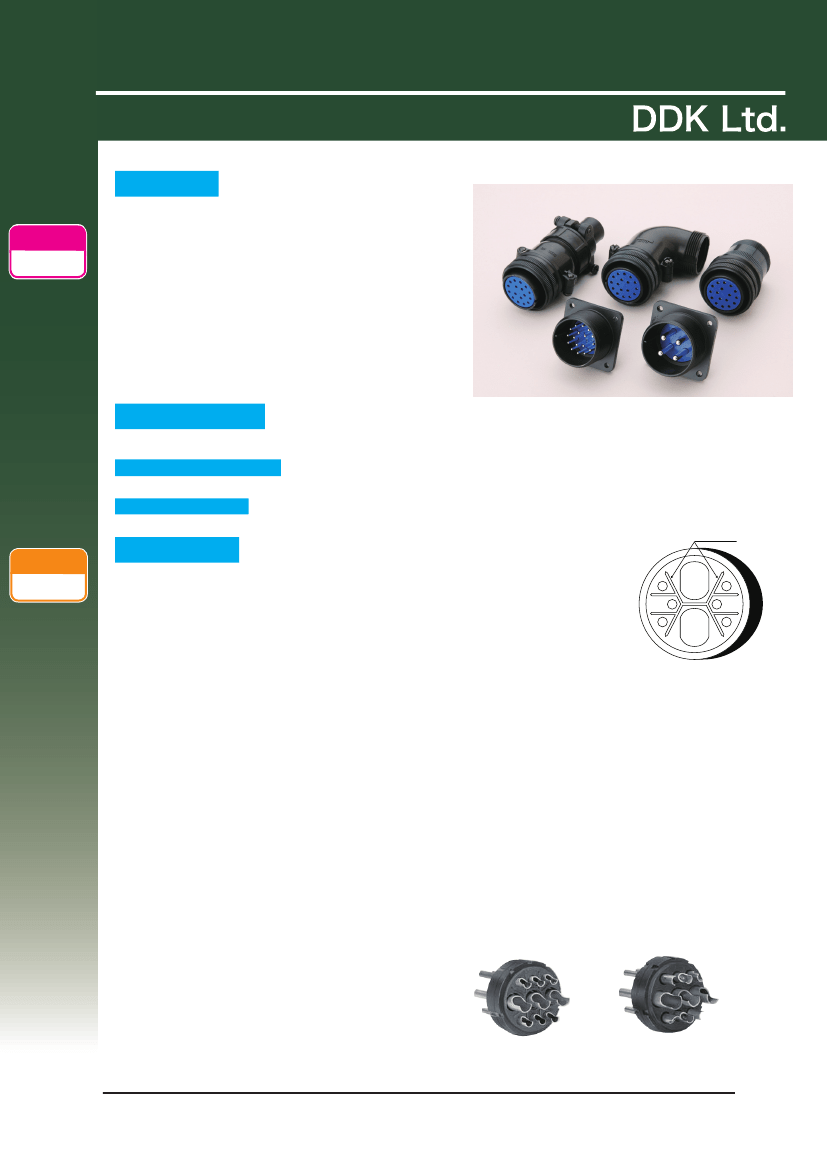

OUTLINE

D/MS A/B series is compatible with MIL-DTL-5015 and

Conforming

Standard

MIL-DTL-5015

a soldering termination connector.

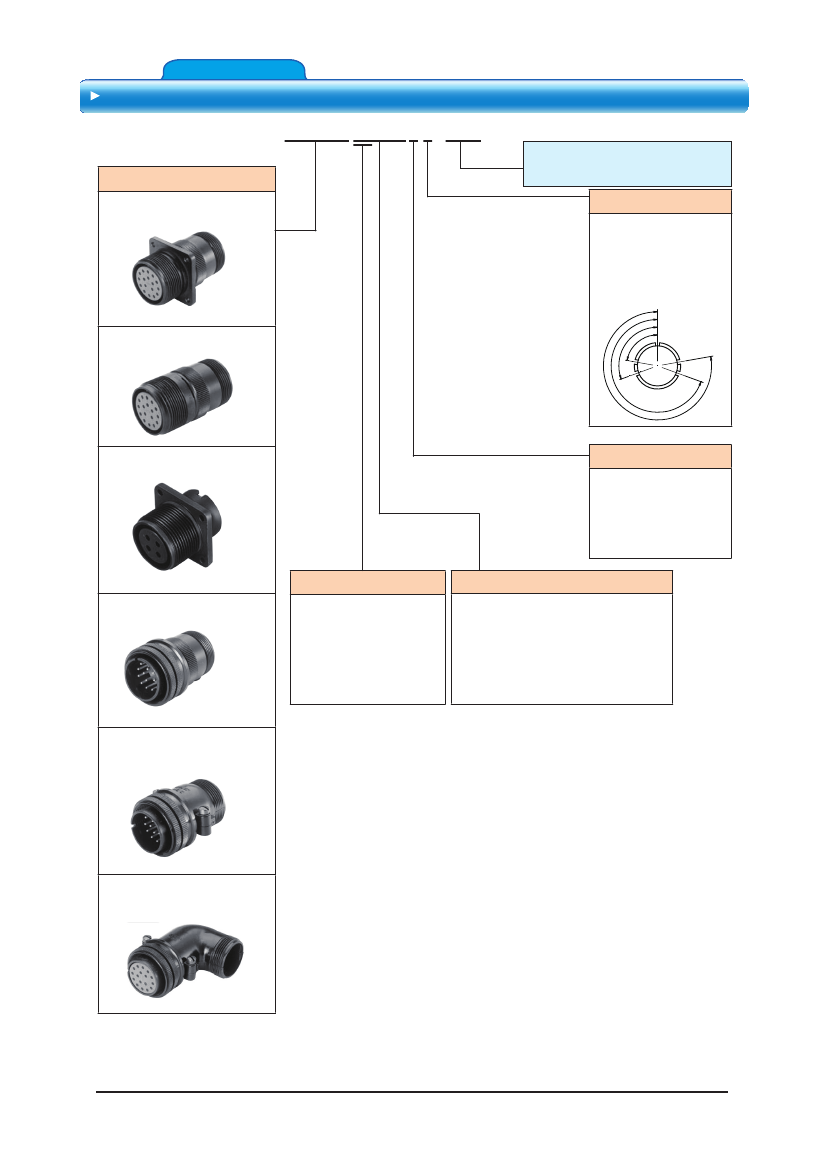

A various combination of the plugs, receptacles and

accessories is also available and can be used for cable-

to -cable usage and cable-to-panel usage.

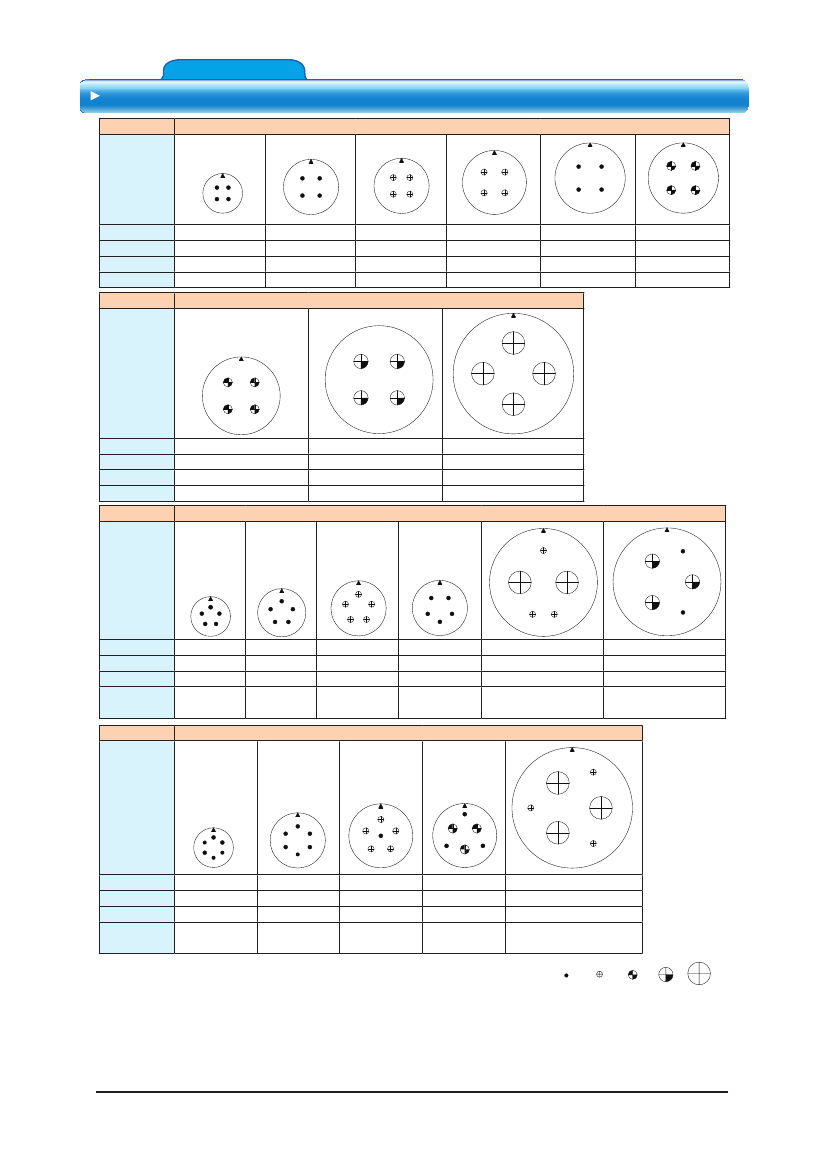

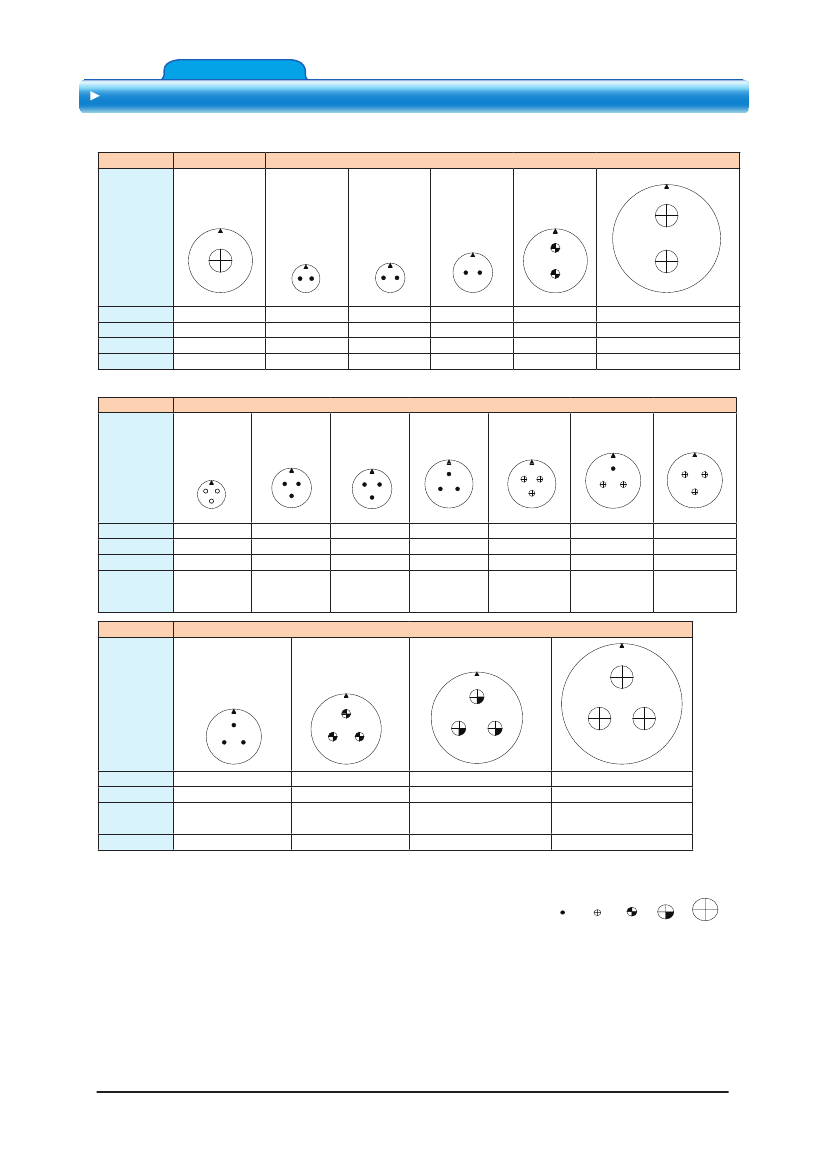

D/MS A/B series is provided with 12 kinds of shell sizes

from 10SL to 36, 5 kinds of contact size from #16 to #0

and 73 kinds of insert arrangements to accommodate a

wide variety of applications.

◆

APPLICATIONS

Aerospace, Machine Tool, Measurement Equipment, Communication Equipment and Other Industrial Equipment

MIL-DTL-5015 Class A and B

UL, C-UL Approved: File Number E72124

Lock Type

Threaded

Coupling

◆

SAFETY STANDARD

◆

CONFORMING STANDARD

◆

FEATURES

●The barriers are placed between each contact on the insert to extend the creepage

distance for the improvement of dielectric withstanding voltage characteristic.

●Each of the plug shells and the receptacle shells can apply to both of the pin insert

assemblies and the socket insert assemblies respectively excluding shell size 10SL.

●A combination of the sockets for input and pin for output is recommended since

D/MS A/B series is often used for high voltage equipment to prevent from any accidents.

Barrier

●The plug shell has a key way and the receptacle shell has a key. The key will be inserted into the

key way before the contacts are mated. The insert is rotated within the shell from standard key way

and 4 kinds of alternate insert positions, W, X, Y and Z are available to avoid cross–plugging

problem

in applications requiring the use of more than one connector of the same size and arrangement.

●The solder cups in the insert assembly face in same direction to solder cables easier.

●The surface of shells is coated with zinc plating and finished with trivalent chromium treatment(*) in

color black to conform to RoHS directives. (* : Cadmium plating and Olive Drab color is MIL- DTL-

5015

specification). The conventional DMS series in Olive Drab color is also available upon your request.

● With regard to the connectors which have more than 20 contacts the insertion and withdrawal force

is designed by slightly lower within the range of MIL specifications in order to mate and unmate by

hand easier.

DDK

◎ Specifications and/or dimensions in this catalog are subject to change without notice.

　Your checking the latest specifications with our drawings would be highly appreciated.

http://www.ddknet.co.jp

Other Manufacture's

130219

D/MS3057-4A Related Products

	D/MS3057-4A	D/MS3101A16-10P	D/MS3106A14S-2P	D/MS3106A14S-7S	D/MS3106A28-21P	D/MS3106A18-1P	D/MS3106A24-22S	D/MS3102A14S-2P	D/MS3106A22-14S	D/MS3057-6A
Description	Connector Accessory, Cable Clamp, ROHS COMPLIANT	MIL Series Connector, 3 Contact(s), Aluminum Alloy, Male, Clamp Terminal, Receptacle, ROHS COMPLIANT	MIL Series Connector, 4 Contact(s), Aluminum Alloy, Male, Clamp Terminal, Plug, ROHS COMPLIANT	MIL Series Connector, 3 Contact(s), Aluminum Alloy, Female, Clamp Terminal, Plug, ROHS COMPLIANT	MIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Clamp Terminal, Plug, ROHS COMPLIANT	MIL Series Connector, 10 Contact(s), Aluminum Alloy, Male, Clamp Terminal, Plug, ROHS COMPLIANT	MIL Series Connector, 4 Contact(s), Aluminum Alloy, Female, Clamp Terminal, Plug, ROHS COMPLIANT	MIL Series Connector, 4 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle, ROHS COMPLIANT	MIL Series Connector, 19 Contact(s), Aluminum Alloy, Female, Clamp Terminal, Plug, ROHS COMPLIANT	Connector Accessory, Cable Clamp, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Other features	STANDARD: MIL-DTL-5015	STANDARD: MIL-DTL-5015	STANDARD: MIL-DTL-5015	STANDARD: MIL-DTL-5015	STANDARD: MIL-DTL-5015	STANDARD: MIL-DTL-5015	STANDARD: MIL-DTL-5015	STANDARD: MIL-DTL-5015	STANDARD: MIL-DTL-5015	STANDARD: MIL-DTL-5015
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Housing size	10SL, 12S	16	14S	14S	28	18	24	14S	22	14S
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
Back shell type	-	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	-
Body/casing type	-	RECEPTACLE	PLUG	PLUG	PLUG	PLUG	PLUG	RECEPTACLE	PLUG	-
Connector type	-	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	-
Contact to complete cooperation	-	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	-
Contact completed and terminated	-	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	-
Contact point gender	-	MALE	MALE	FEMALE	MALE	MALE	FEMALE	MALE	FEMALE	-
Contact material	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-
Coupling type	-	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	-
empty shell	-	NO	NO	NO	NO	NO	NO	NO	NO	-
Filter function	-	NO	NO	NO	NO	NO	NO	NO	NO	-
JESD-609 code	-	e4	e4	e4	e4	e4	e4	e4	e4	-
Manufacturer's serial number	-	D/MS3101A	D/MS3106A	D/MS3106A	D/MS3106A	D/MS3106A	D/MS3106A	D/MS3102A	D/MS3106A	-
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-
Mixed contacts	-	NO	NO	NO	NO	NO	NO	NO	NO	-
Installation type	-	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	PANEL	CABLE	-
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Shell surface	-	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	-
Shell material	-	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	-
Termination type	-	CLAMP	CLAMP	CLAMP	CLAMP	CLAMP	CLAMP	SOLDER	CLAMP	-
Total number of contacts	-	3	4	3	37	10	4	4	19	-
