UPD72123GJ-5BG datasheet, PDF - EEWORLD Datasheet

UPD72123GJ-5BG: DescriptionGraphics Processor, CMOS, PQFP94, MINI, PLASTIC, FP-94; CategoryThe embedded processor and controller Microcontrollers and processors; File Size52KB，2 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

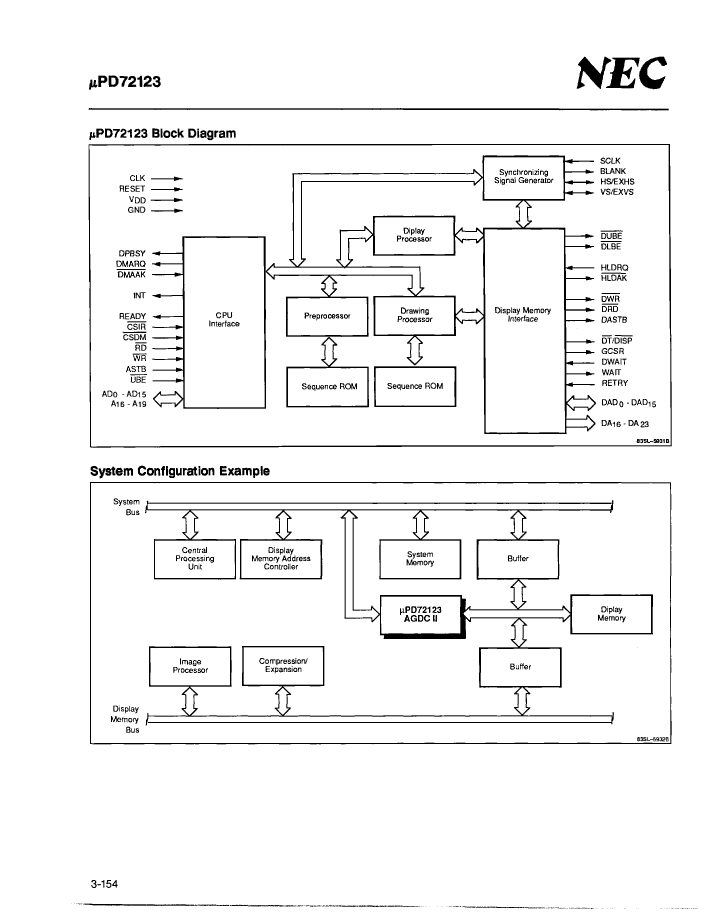

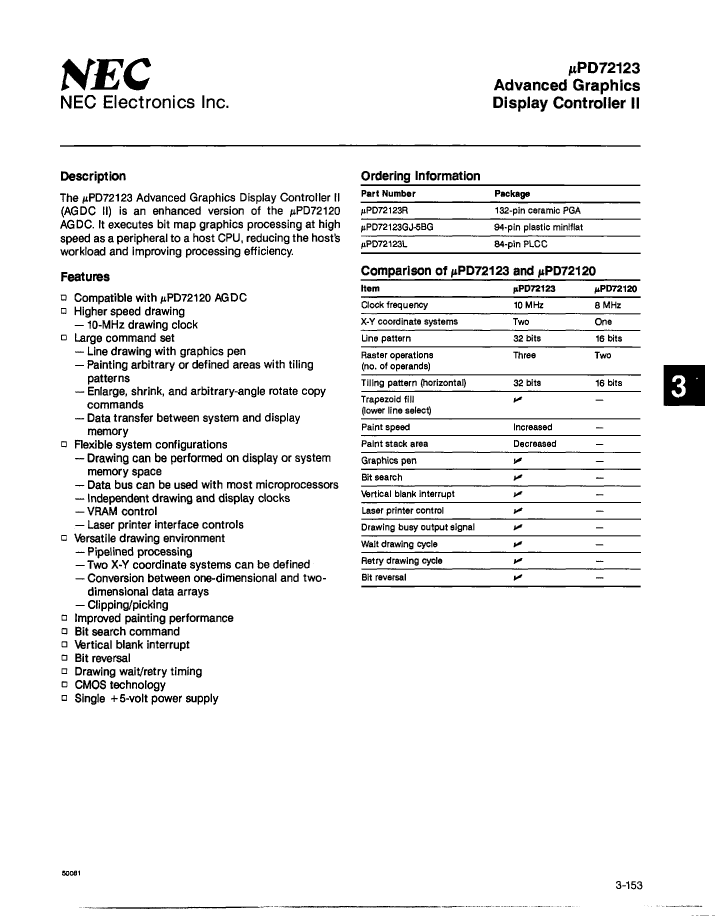

UPD72123GJ-5BG Overview

Graphics Processor, CMOS, PQFP94, MINI, PLASTIC, FP-94

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	MINI, PLASTIC, FP-94
Reach Compliance Code	unknown
External data bus width	16
JESD-30 code	S-PQFP-G94
length	20 mm
Number of terminals	94
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	4 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	20 mm
uPs/uCs/peripheral integrated circuit type	GRAPHICS PROCESSOR

	UPD72123GJ-5BG	UPD72123L	UPD72123R
Description	Graphics Processor, CMOS, PQFP94, MINI, PLASTIC, FP-94	Graphics Processor, CMOS, PQCC84, PLASTIC, LCC-84	Graphics Processor, CMOS, CPGA132, CERAMIC, PGA-132
Maker	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	MINI, PLASTIC, FP-94	PLASTIC, LCC-84	PGA,
Reach Compliance Code	unknown	unknown	unknown
External data bus width	16	16	16
JESD-30 code	S-PQFP-G94	S-PQCC-J84	S-CPGA-P132
length	20 mm	29.28 mm	35.56 mm
Number of terminals	94	84	132
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QFP	QCCJ	PGA
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	CHIP CARRIER	GRID ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4 mm	4.6 mm	4.57 mm
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Terminal form	GULL WING	J BEND	PIN/PEG
Terminal pitch	0.8 mm	1.27 mm	2.54 mm
Terminal location	QUAD	QUAD	PERPENDICULAR
width	20 mm	29.28 mm	35.56 mm
uPs/uCs/peripheral integrated circuit type	GRAPHICS PROCESSOR	GRAPHICS PROCESSOR	GRAPHICS PROCESSOR
