MAX6508UT41-T: DescriptionAnalog Circuit, 1 Func, BICMOS, PDSO6, SOT-23, 6 PIN; CategoryAnalog mixed-signal IC The signal circuit; File Size406KB，23 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

MAX6508UT41-T Overview

Analog Circuit, 1 Func, BICMOS, PDSO6, SOT-23, 6 PIN

MAX6508UT41-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOT-23
package instruction	LSSOP,
Contacts	6
Reach Compliance Code	compliant
Other features	PUSH-PULL OUTPUTS
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G6
JESD-609 code	e0
length	2.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	6
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.45 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	AUTOMOTIVE
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	1.625 mm

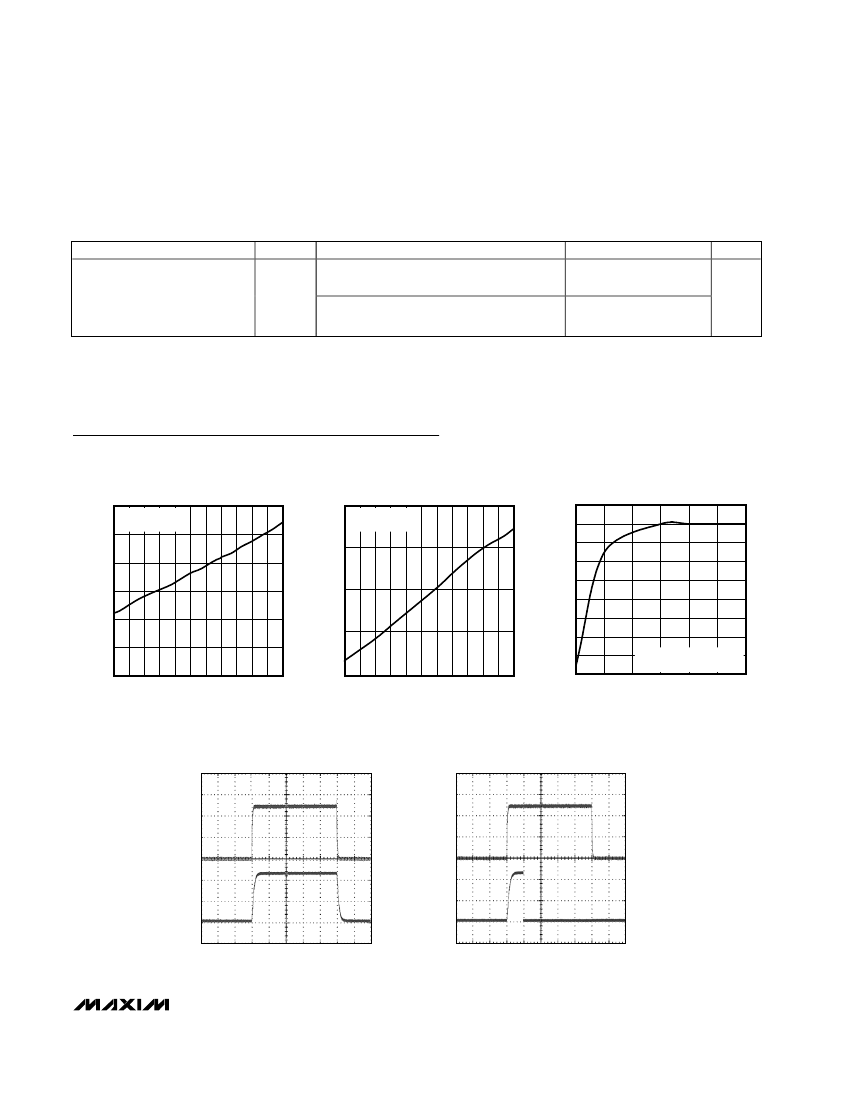

Preview

Download Datasheet

View All

19-1712; Rev 1; 4/00

Dual Trip SOT Temperature Switches

General Description

The MAX6505–MAX6508 temperature switches have dual

logic outputs that assert when the die temperature cross-

es their trip thresholds. Trip thresholds are factory pro-

grammed to convenient temperatures in 5°C increments.

The MAX6505/MAX6506 have an ALARM output that

asserts when the temperature is above the factory-pro-

grammed thresholds (available from -40°C to +125°C).

They also have a WARN output that asserts when the

temperature is several degrees below the ALARM thresh-

old. The difference between the ALARM and WARN

thresholds (∆T

) is pin selectable to +5°C, +10°C,

+20°C, or +30°C. The MAX6505’s logic outputs are open

drain, while the MAX6506’s logic outputs are push-pull.

The MAX6507 has open-drain outputs (OVER, OK), and

the MAX6508 has push-pull outputs (OVER,

OK),

each

with two factory-programmed threshold temperatures

(TOVER and TUNDER) in the wide range of -40°C to

+125°C. The overtemperature output asserts when the

temperature is above TOVER. When the temperature is in

the desired window (less than TOVER and greater than

TUNDER), OK (OK) asserts.

The MAX6505–MAX6508 are accurate to ±0.5°C (typ),

±5.5°C (max). Operating from a +2.5V to +5.5V supply,

these low-cost devices typically consume 30µA supply

current and require no external components for setting

trip points. The MAX6505–MAX6508 are available in a 6-

pin SOT23 package.

Features

±0.5°C (typ) Threshold Accuracy Over Full

Temperature Range

No External Components Required

Low Cost

30µA (typ) Supply Current

Factory-Programmed Thresholds from -40°C to

+125°C in 5°C Increments

Open-Drain Outputs (MAX6505/MAX6507),

Push-Pull Outputs (MAX6506/MAX6508)

Pin Selectable +2°C, +10°C Hysteresis

(MAX6507/MAX6508)

Pin Selectable +5°C, +10°C, +20°C, +30°C

ALARM

- T

WARN

(MAX6505/MAX6506)

SOT23-6 Package

MAX6505–MAX6508

Ordering Information

PART

MAX6505UT_

_ _ _-T*

MAX6506UT_

_ _ _-T*

MAX6507UT_

_ _ _-T**

MAX6508UT_

_ _ _-T**

TEMP. RANGE

-40°C to +125°C

PIN-

PACKAGE

6 SOT23-6

________________________Applications

µP Temperature Monitoring in High-Speed

Computers

Temperature Control

Temperature Alarms

Fan Control

*To complete the suffix information for the MAX6505/

MAX6506, add P or N for positive or negative trip tempera-

ture, and select an available trip point in degrees centigrade.

For example, the MAX6505UTP055-T describes a MAX6505 in

a SOT23-6 package with a +55°C threshold (Table 3). Contact

the factory for pricing and availability of temperature versions

(minimum order 10,000 pieces).

**To complete the suffix information for MAX6507/MAX6508,

see Table 4.

Selector Guide appears at end of data sheet.

Typical Operating Circuits appear at end of data sheet.

Pin Configurations

TOP VIEW

WARN

(WARN)

ALARM

(ALARM)

(OK)

OVER

(OVER)

GND

MAX6505

MAX6506

GND

MAX6507

MAX6508

N.C.

( ) ARE FOR MAX6506.

( ) ARE FOR MAX6508.

SOT23-6

________________________________________________________________

Maxim Integrated Products

For free samples and the latest literature, visit www.maxim-ic.com or phone 1-800-998-8800.

For small orders, phone 1-800-835-8769.
