L-934PJ/3ID: DescriptionSingle Color LED Array, High Efficiency Red, Diffused Red, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size158KB，6 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L-934PJ/3ID Overview

Single Color LED Array, High Efficiency Red, Diffused Red, T-1, 3mm,

L-934PJ/3ID Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	HIGH EFFICIENCY RED
Configuration	SEPARATE, 3 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED RED
Nominal luminous intensity	20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	3
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	17.3 mm
method of packing	BULK
peak wavelength	627 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

T-1 (3mm) TRI-LEVEL LED INDICATOR

L-934PJ/3ID

L-934PJ/3SRD

L-934PJ/3YD

L-934PJ/3GD

HIGH EFFICIENCY RED

SUPER BRIGHT RED

YELLOW

GREEN

Features

TRI-LEVEL DESIGN.

DIFFERENT COLOR COMBINATION AVAILABLE.

BLACK CASE ENHANCES CONTRAST RATIO.

HIGH RELIABILITY LIFE MEASURED IN YEARS.

Description

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Super Bright Red source color devices are made

with Gallium Aluminum Arsenide Red Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Green source color devices are made with Gallium

Phosphide GreenLight Emitting Diode.

RATING : 94V-0.

HOUSING MATERIAL: TYPE 66 NYLON.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: DSAD0581

APPROVED: J.LU

REV NO: V.1

CHECKED: Allen Liu

DATE: MAR/08/2003

DRAWN: L.ZHANG

PAGE: 1 OF 6

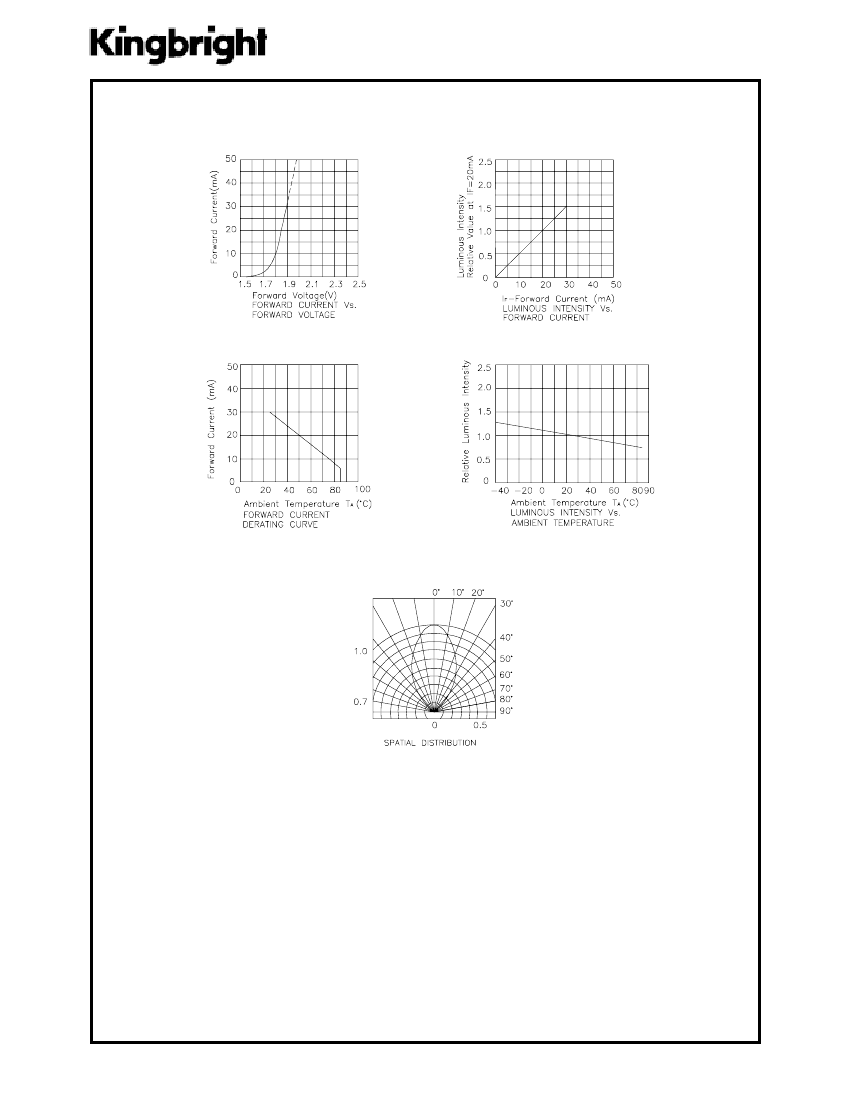

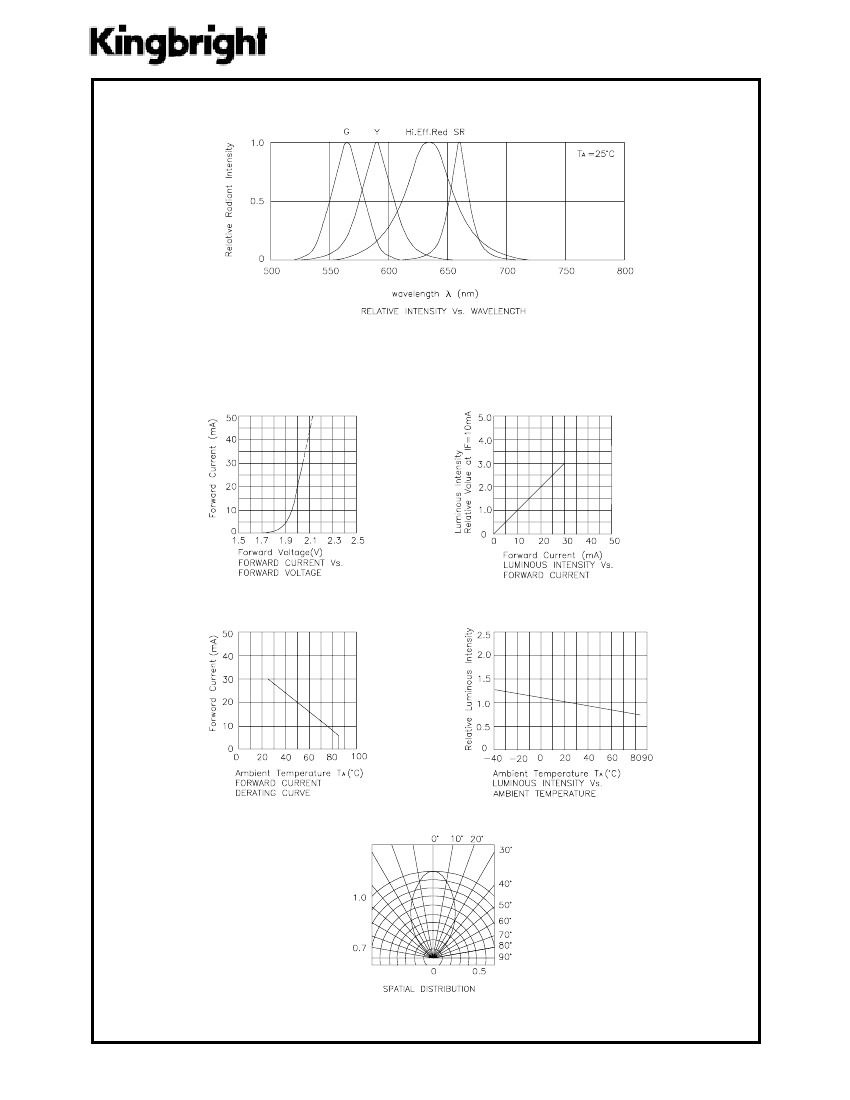

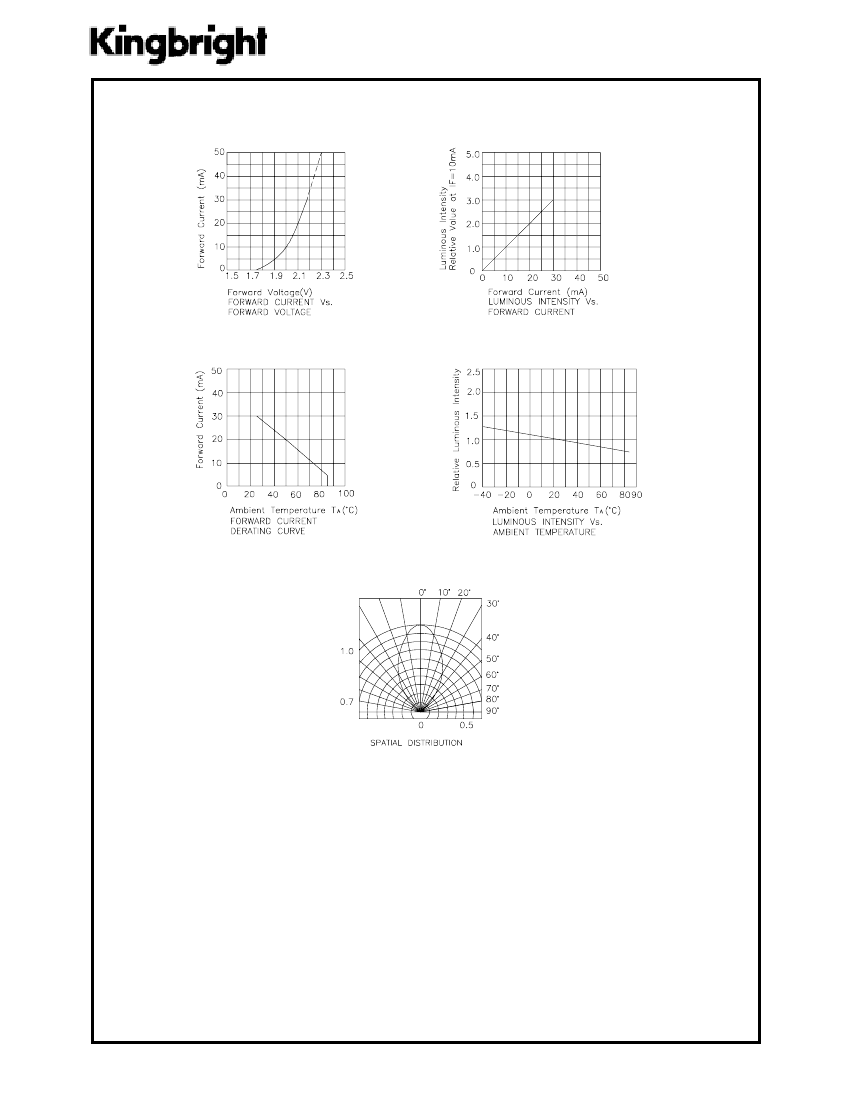

L-934PJ/3ID Related Products

	L-934PJ/3ID	L-934PJ/3GD	L-934PJ/3SRD	L-934PJ/3YD
Description	Single Color LED Array, High Efficiency Red, Diffused Red, T-1, 3mm,	Single Color LED Array, Green, Diffused, T-1, 3mm,	Single Color LED Array, Super Bright Red, Diffused Red, T-1, 3mm,	Single Color LED Array, Yellow, Diffused, T-1, 3mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Kingbright	Kingbright	Kingbright	Kingbright
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	HIGH EFFICIENCY RED	GREEN	SUPER BRIGHT RED	YELLOW
Configuration	SEPARATE, 3 ELEMENTS	SEPARATE, 3 ELEMENTS	SEPARATE, 3 ELEMENTS	SEPARATE, 3 ELEMENTS
Maximum forward current	0.03 A	0.025 A	0.03 A	0.03 A
Lens type	DIFFUSED RED	DIFFUSED	DIFFUSED RED	DIFFUSED
Nominal luminous intensity	20.0 mcd	20.0 mcd	300.0 mcd	15.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	3	3	3	3
Number of terminals	6	6	6	6
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	17.3 mm	17.3 mm	17.3 mm	17.3 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	627 nm	565 nm	660 nm	590 nm
shape	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg
