T-1 (3mm) RIGHT ANGLE LED INDICATORS
L-934EWP/1ID-0L
L-934EWP/1GD-0L
L-934EWP/1YD-0L
L-934EWP/1SRD-0L
HIGH EFFICIENCY RED
GREEN
YELLOW
SUPER BRIGHT RED
Features
!
PRE-TRIMMED
!
I.C.
Description
LEADS FOR PC MOUNTING.
The High Efficiency Red source color devices are made
with Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
COMPATIBLE.
CASE ENHANCES CONTRAST RATIO.
VIEWING ANGLE.
RELIABILITY LIFE MEASURED IN YEARS.
!
BLACK
!
WIDE
!
HIGH
!
HOUSING MATERIAL: PPA
!
PACKAGE:1000PCS/REEL
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: KDA0581
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/25/2001
DRAWN: Z.W.XIE
PAGE: 1 OF 6
Selection Guide
Par t No .
L-934EWP/ID-0L
L-934EWP/GD-0L
L-934EWP/YD-0L
L-934EWP/SRD-0L
Dic e
HIGH EFFICIENCY RED(GaAsP/GaP)
GREEN (GaP)
YELLOW (GaAsP/GaP)
SUPER BRIGHT RED (GaAlAs)
L en s Ty p e
RED DIFFUSED
GREEN DIFFUSED
YELLOW DIFFUSED
RED DIFFUSED
Iv (m c d )
@ 10 m A *20m A
Min .
8
8
5
*100
Ty p .
25
20
15
*300
V i ew i n g
An g l e
2θ1/2
60 °
60 °
60 °
60 °
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. * Luminous intensity with asterisk is measured at 20mA.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
Par am et er
D ev i c e
High Efficiency Red
Green
Yellow
Super Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Ty p .
627
565
590
660
625
568
588
640
45
30
35
20
15
15
20
45
2.0
2.2
2.1
1.85
2.5
2.5
2.5
2.5
10
Max .
Un it s
Tes t Co n d it io n s
λ
peak
Peak Wavelength
nm
IF=20mA
λ
D
Dominate Wavelength
nm
IF=20mA
∆λ
1/2
High Efficiency Red
en
Spectral Line Halfwidth Greow
Yell
Super Bright Red
Capacitance
High Efficiency Red
Green
Yellow
Super Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
All
nm
IF=20mA
C
pF
VF=0V;f=1MHz
V
F
I
R
Forward Voltage
V
IF=20mA
Reverse Current
uA
V R = 5V
Absolute Maximum Ratings at T
)
=25°C
°
P ar a m e t e r
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
H i g h E f f i c i en c y
R ed
105
30
160
5
Gr een
105
25
14 0
5
Yello w
10 5
30
140
5
-40
°
C To +85
°C
S u p er B r i g h t
R ed
100
30
15 5
5
Un it s
mW
mA
mA
V
SPEC NO: KDA0581
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/25/2001
DRAWN: Z.W.XIE
PAGE: 2 OF 6

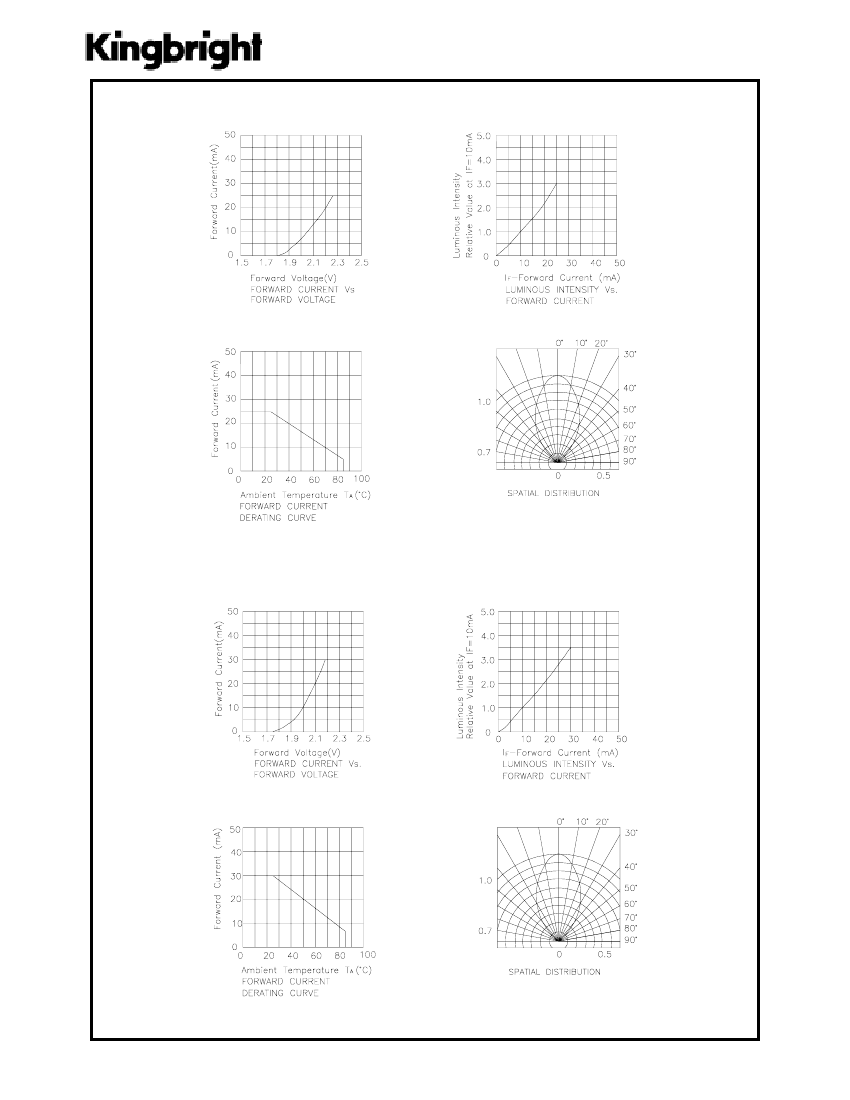

High Efficiency Red L-934EWP/1ID-0L
SPEC NO: KDA0581
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/25/2001
DRAWN: Z.W.XIE
PAGE: 3 OF 6

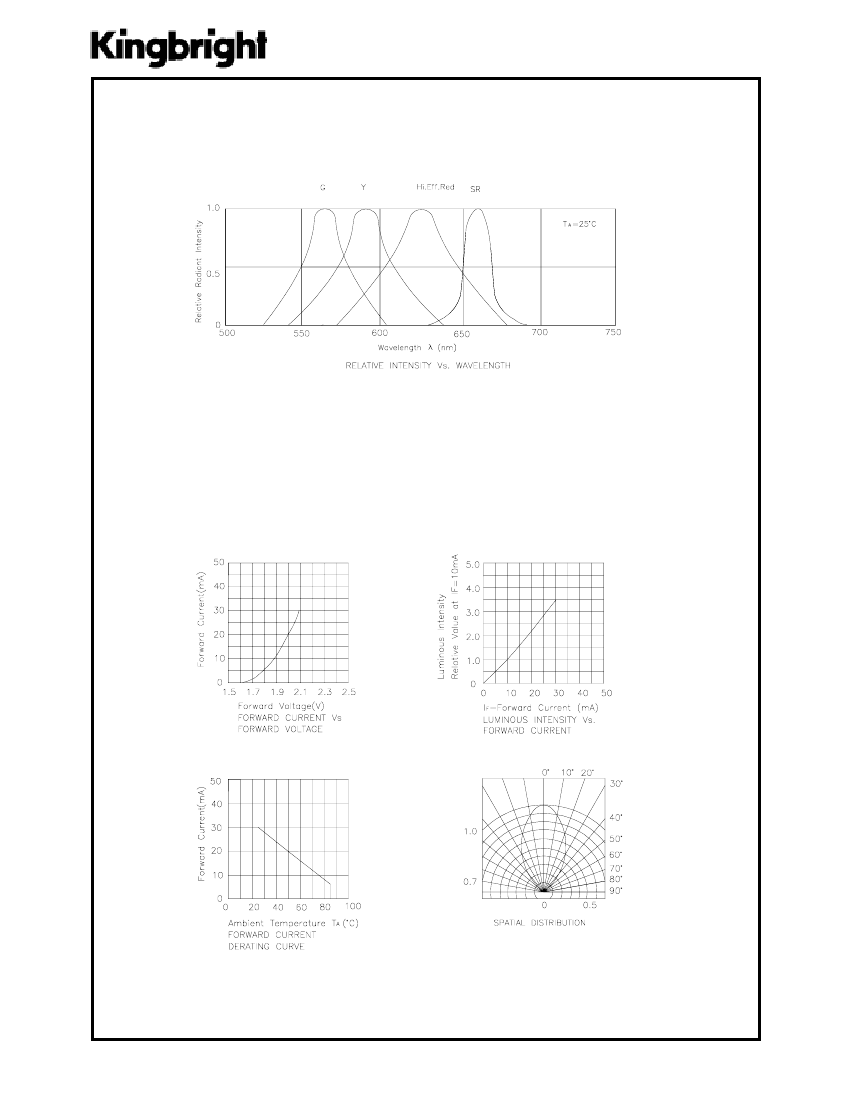

Green L-934EWP/1GD-0L
Yellow L-934EWP/1YD-0L
SPEC NO: KDA0581
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/25/2001
DRAWN: Z.W.XIE
PAGE: 4 OF 6

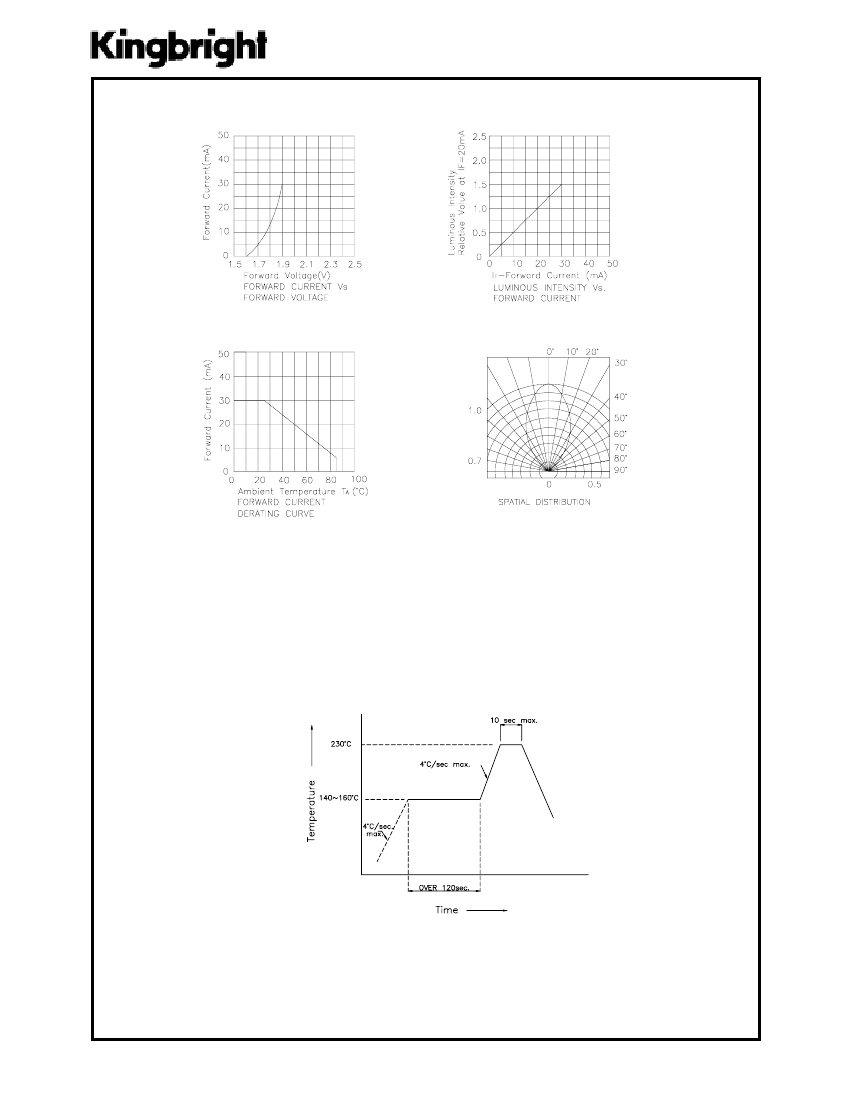

Super Bright Red L-934EWP/1SRD-0L
L-934EWP1XX-0L
SMT Reflow Soldering Instructions
Number of reflow process shall be less than 2 times and cooling
process to normal temperature is required between first and
second soldering process."
SPEC NO: KDA0581
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/25/2001
DRAWN: Z.W.XIE
PAGE: 5 OF 6
