BT145-500R datasheet, PDF - EEWORLD Datasheet

BT145-500R: DescriptionSilicon Controlled Rectifier, 16000mA I(T), 500V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size403KB，8 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

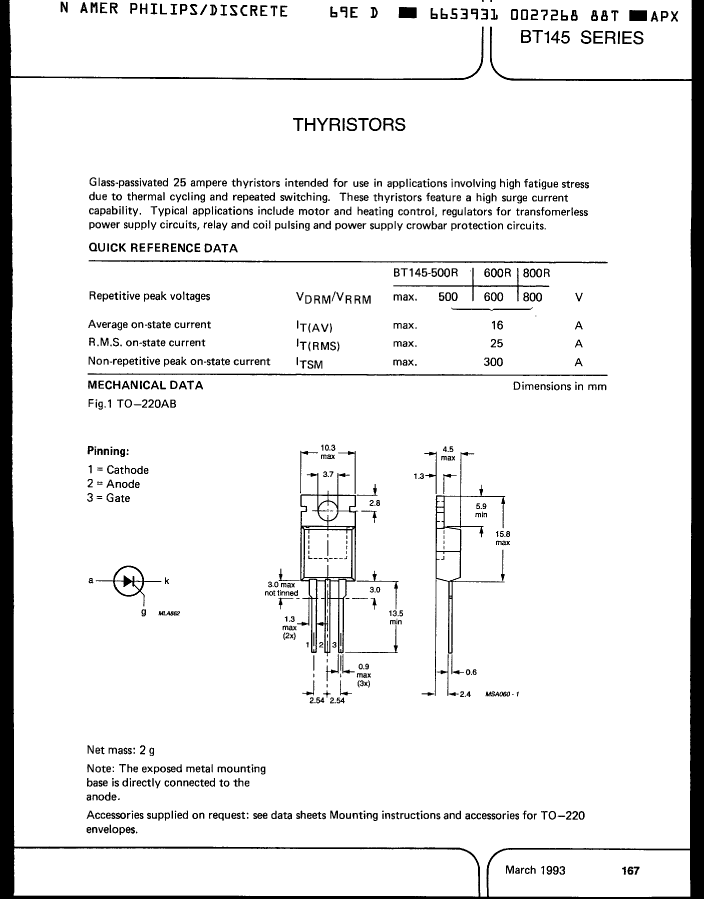

BT145-500R Overview

Silicon Controlled Rectifier, 16000mA I(T), 500V V(DRM),

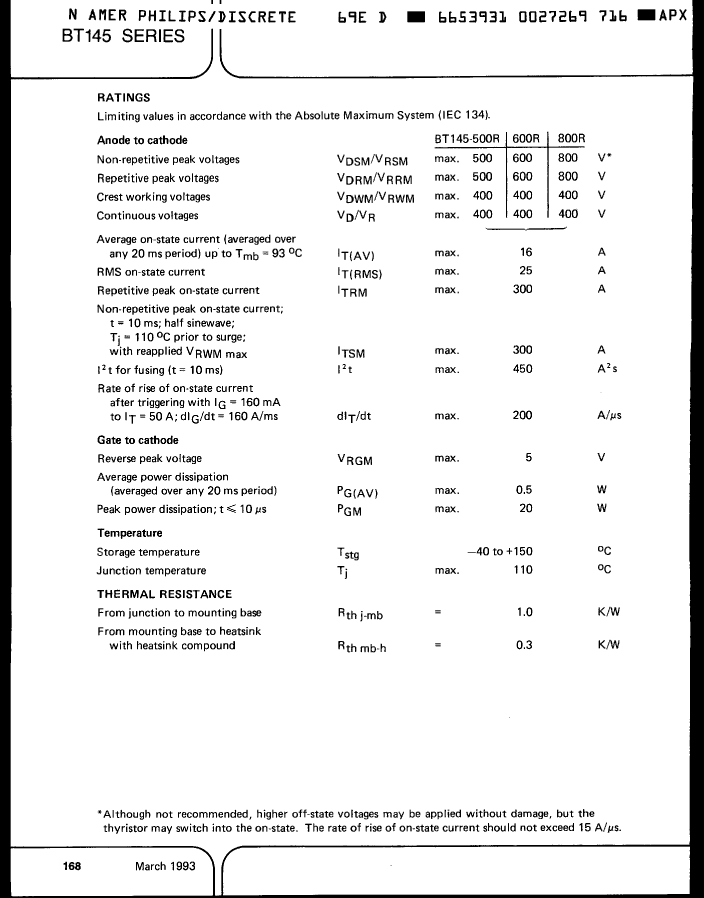

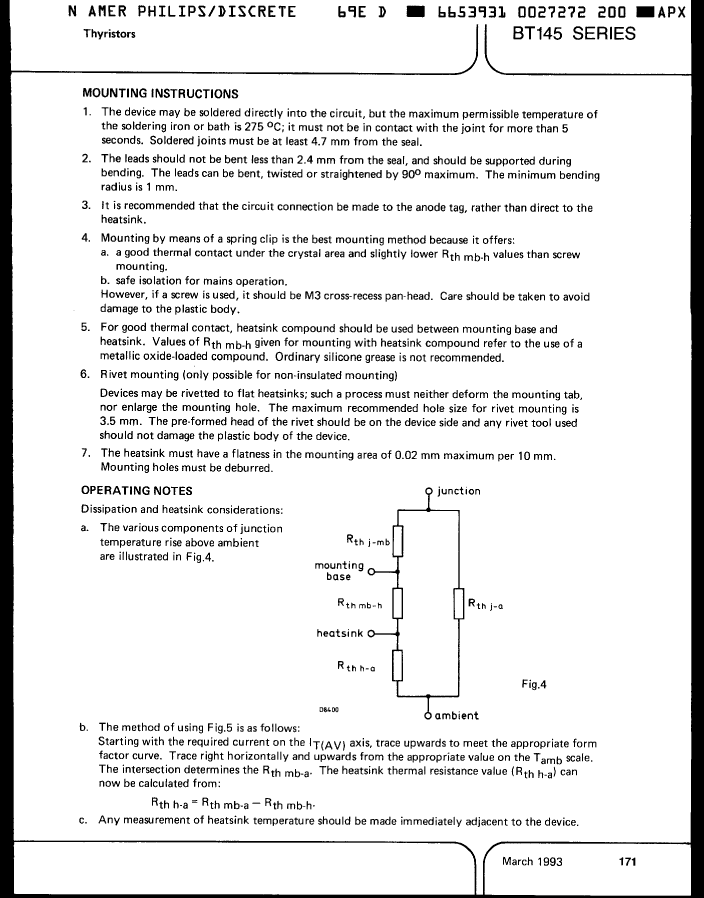

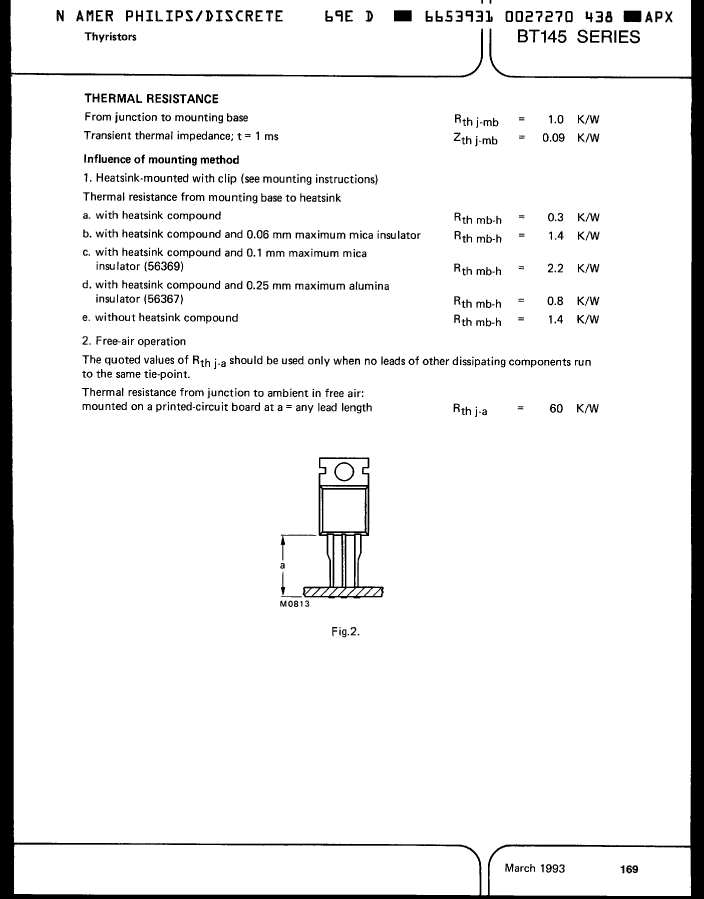

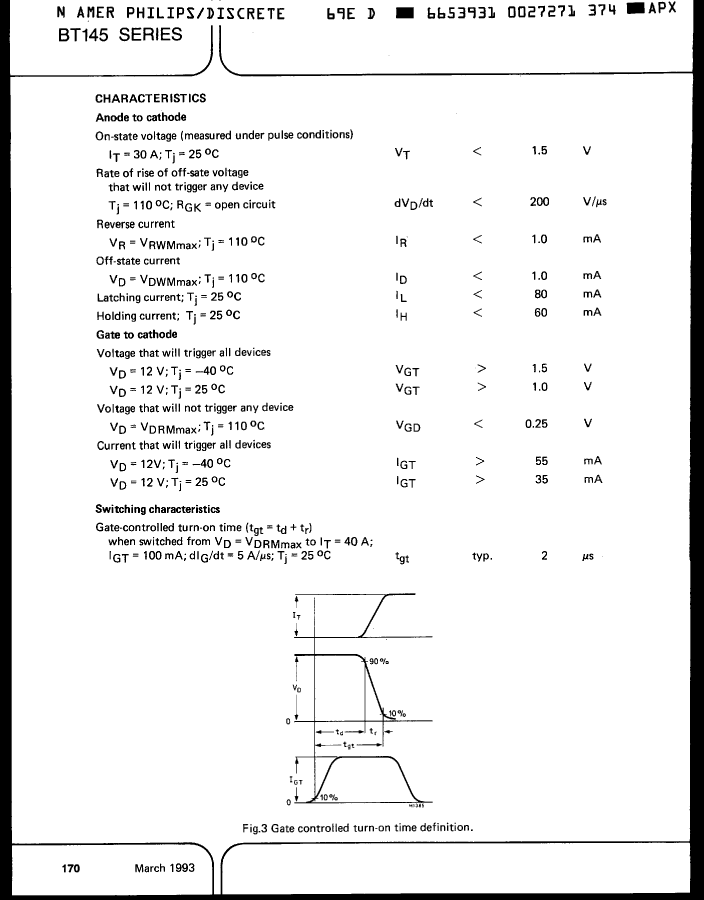

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	35 mA
Maximum DC gate trigger voltage	1 V
Maximum holding current	60 mA
JESD-609 code	e0
Maximum leakage current	1 mA
On-state non-repetitive peak current	300 A
Maximum on-state voltage	1.5 V
Maximum on-state current	16000 A
Maximum operating temperature	110 °C
Off-state repetitive peak voltage	500 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	SCR

	BT145-500R	BT145-800R	BT145-600R
Description	Silicon Controlled Rectifier, 16000mA I(T), 500V V(DRM),	Silicon Controlled Rectifier, 16000mA I(T), 800V V(DRM),	Silicon Controlled Rectifier, 16000mA I(T), 600V V(DRM),
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div
Reach Compliance Code	unknown	unknown	unknow
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us
Maximum DC gate trigger current	35 mA	35 mA	35 mA
Maximum DC gate trigger voltage	1 V	1 V	1 V
Maximum holding current	60 mA	60 mA	60 mA
JESD-609 code	e0	e0	e0
Maximum leakage current	1 mA	1 mA	1 mA
On-state non-repetitive peak current	300 A	300 A	300 A
Maximum on-state voltage	1.5 V	1.5 V	1.5 V
Maximum on-state current	16000 A	16000 A	16000 A
Maximum operating temperature	110 °C	110 °C	110 °C
Off-state repetitive peak voltage	500 V	800 V	600 V
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	SCR	SCR	SCR
