BT148W400R datasheet, PDF - EEWORLD Datasheet

BT148W400R: DescriptionSilicon Controlled Rectifier, 600mA I(T), 400V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size143KB，6 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

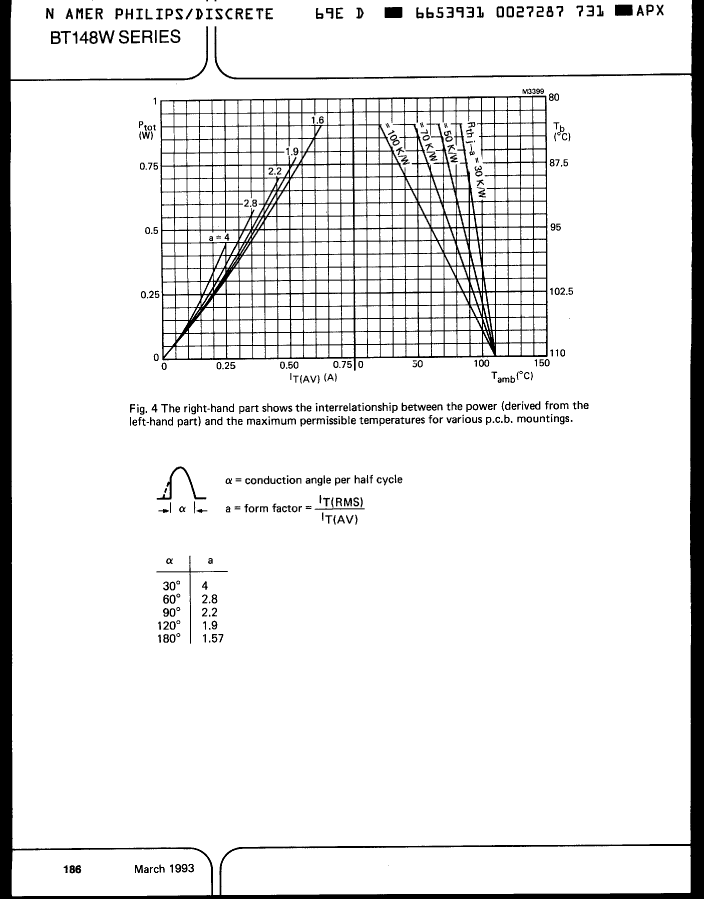

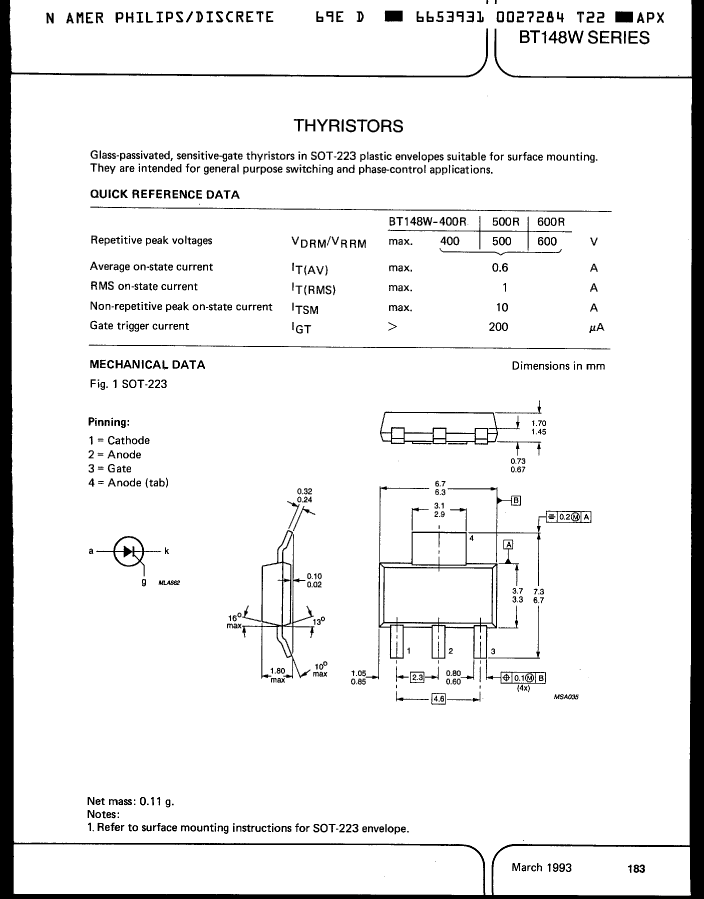

BT148W400R Overview

Silicon Controlled Rectifier, 600mA I(T), 400V V(DRM),

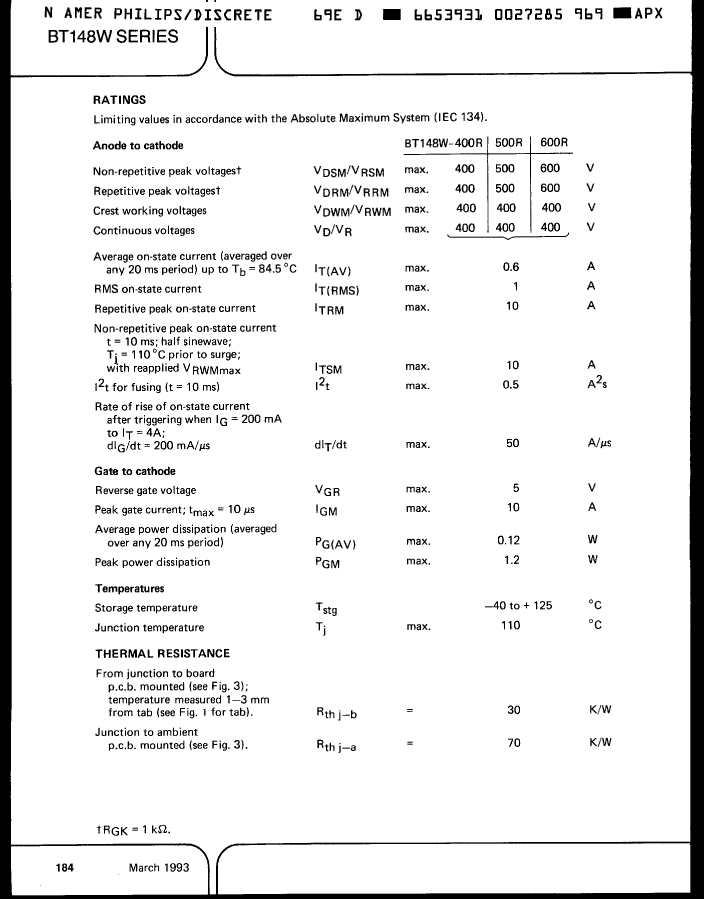

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown

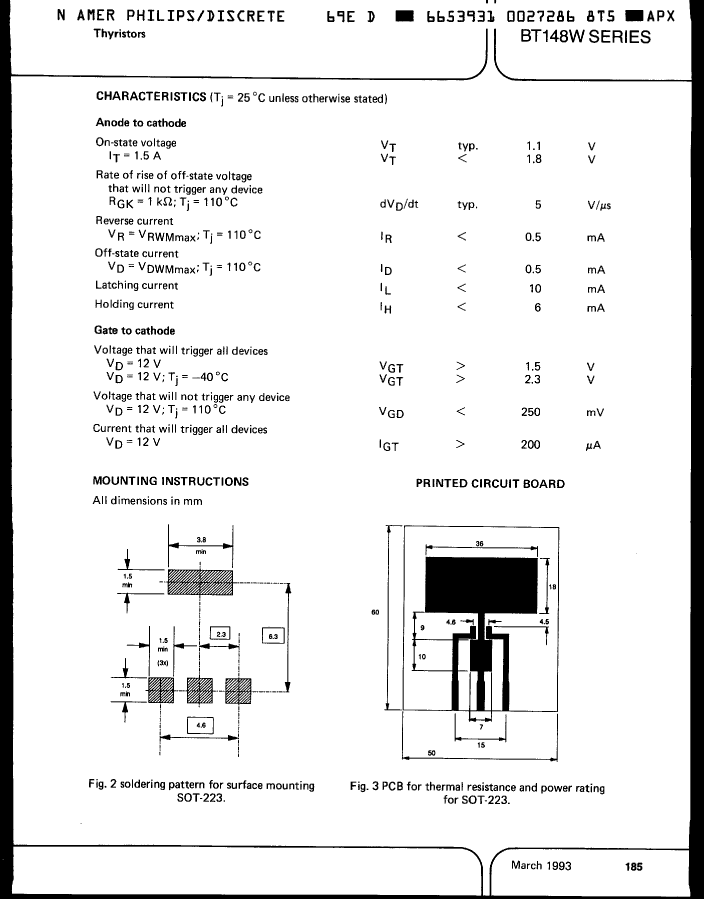

Critical rise rate of minimum off-state voltage	5 V/us
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	6 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA

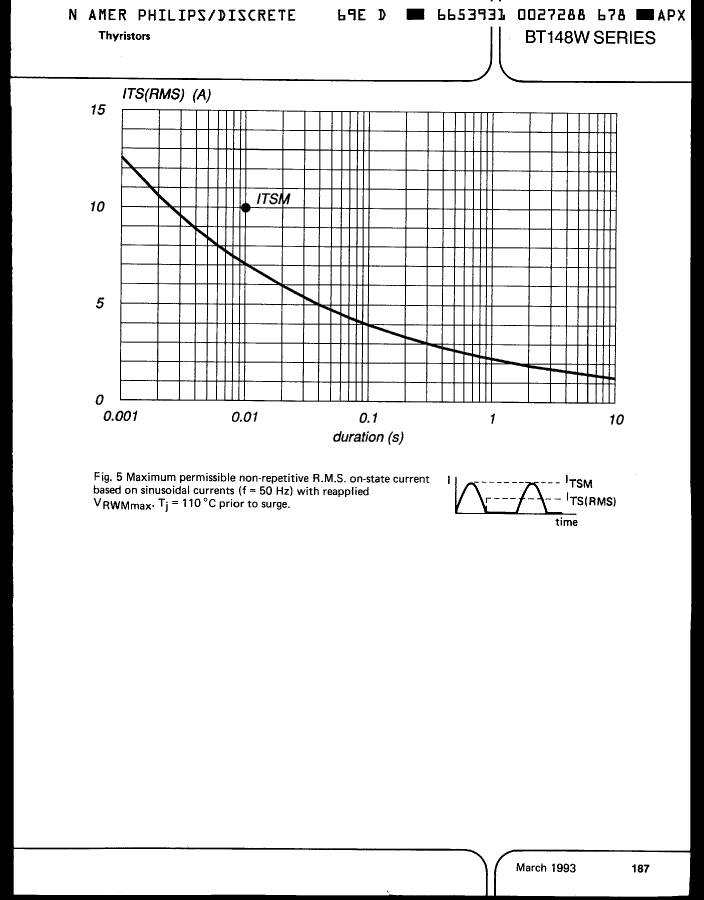

On-state non-repetitive peak current	10 A
Maximum on-state voltage	1.8 V
Maximum on-state current	600 A
Maximum operating temperature	110 °C
Off-state repetitive peak voltage	400 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	SCR

	BT148W400R	BT148W500R	BT148W600R
Description	Silicon Controlled Rectifier, 600mA I(T), 400V V(DRM),	Silicon Controlled Rectifier, 600mA I(T), 500V V(DRM),	Silicon Controlled Rectifier, 600mA I(T), 600V V(DRM),
Is it Rohs certified?	incompatible	incompatible	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknow
Critical rise rate of minimum off-state voltage	5 V/us	5 V/us	5 V/us
Maximum DC gate trigger current	0.2 mA	0.2 mA	0.2 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V
Maximum holding current	6 mA	6 mA	6 mA
JESD-609 code	e0	e0	e3
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA
On-state non-repetitive peak current	10 A	10 A	10 A
Maximum on-state voltage	1.8 V	1.8 V	1.8 V
Maximum on-state current	600 A	600 A	600 A
Maximum operating temperature	110 °C	110 °C	110 °C
Off-state repetitive peak voltage	400 V	500 V	600 V
surface mount	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)
Trigger device type	SCR	SCR	SCR
