BDX33AJ69Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BDX33AJ69Z

BDX33AJ69Z: DescriptionPower Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size75KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

BDX33AJ69Z Overview

Power Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN

BDX33AJ69Z Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	60 V
Configuration	DARLINGTON WITH BUILT-IN DIODE
Minimum DC current gain (hFE)	750
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

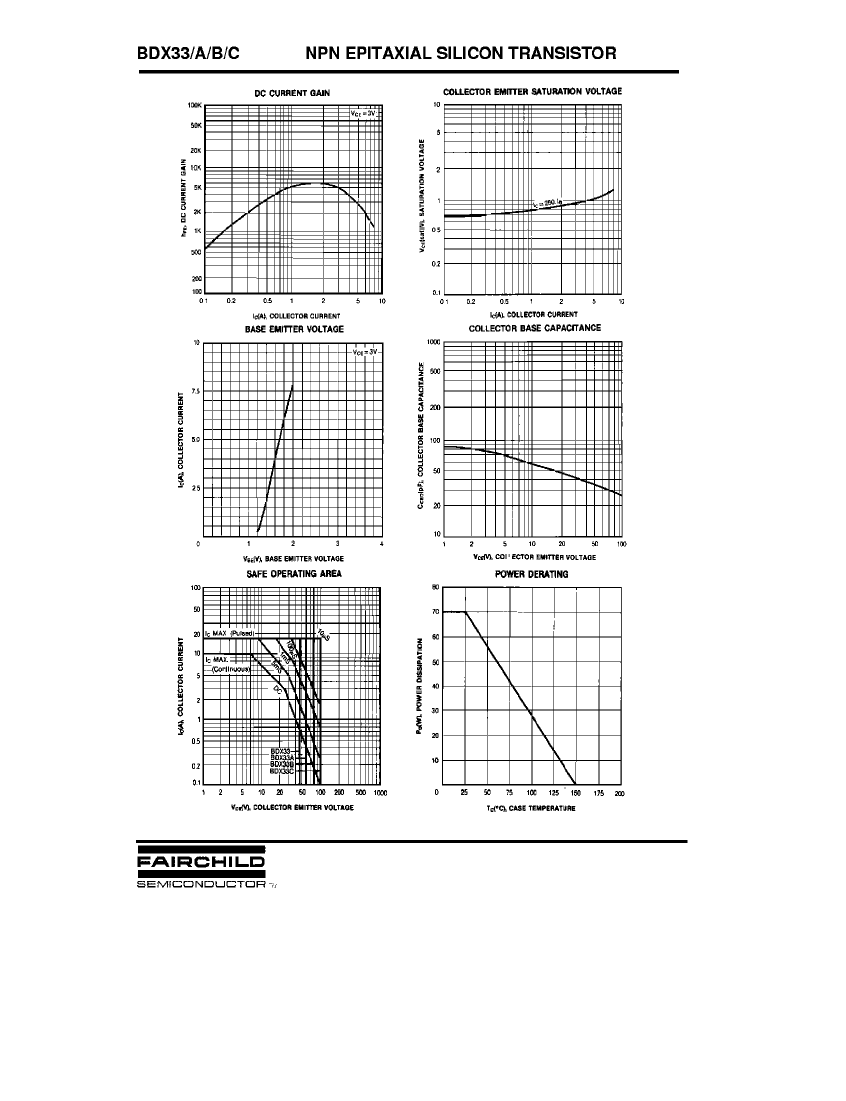

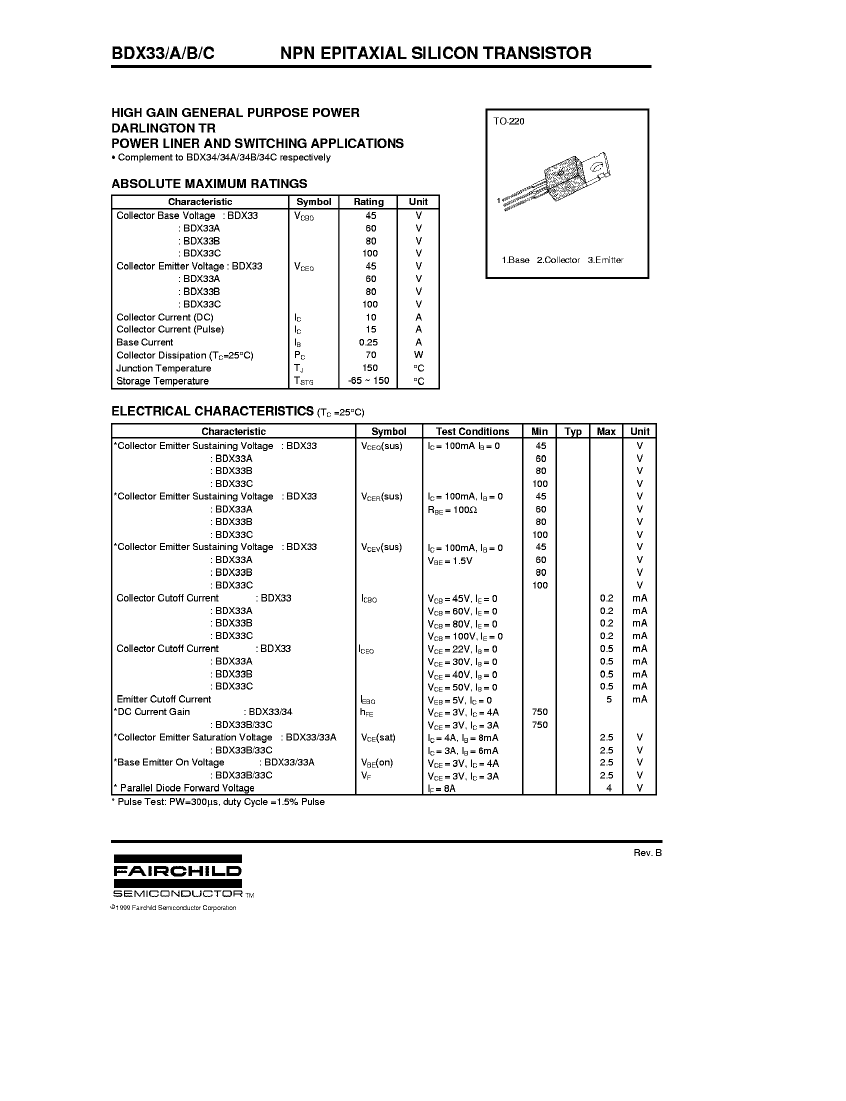

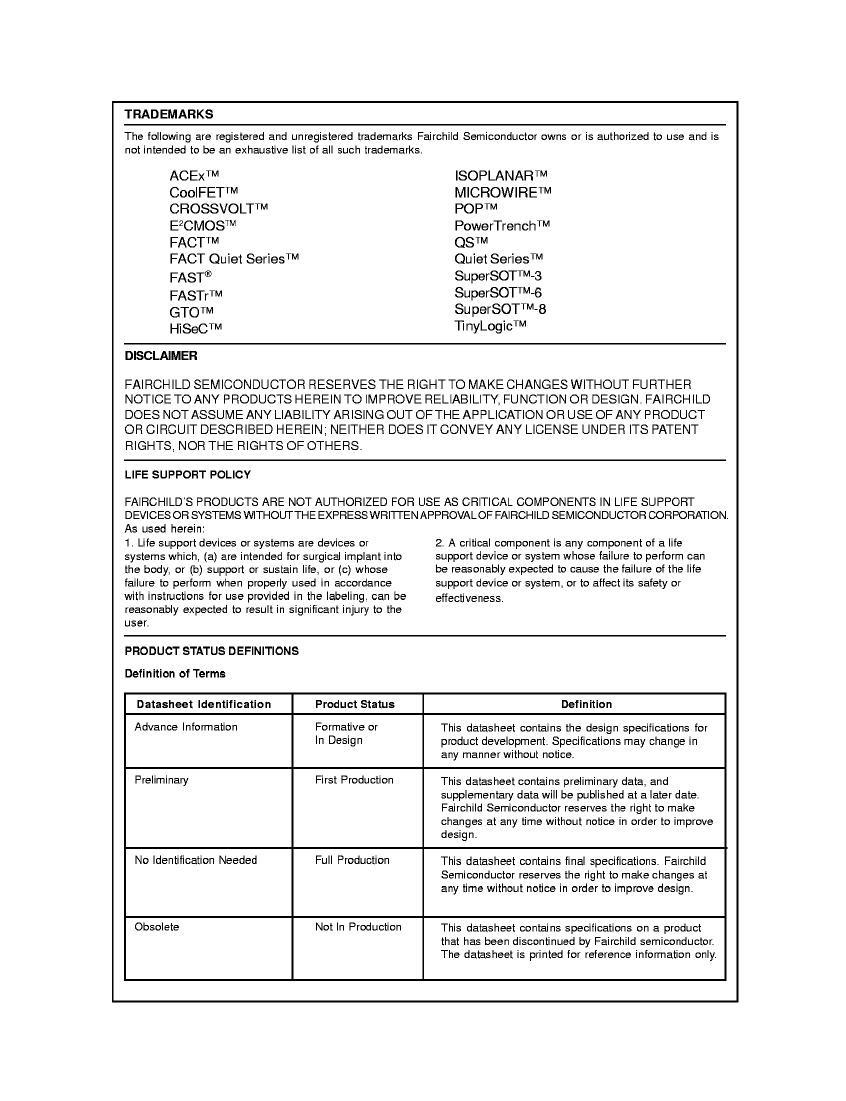

Preview

Download Datasheet

View All

BDX33AJ69Z Related Products

	BDX33AJ69Z	BDX33BJ69Z	BDX33CJ69Z	BDX33J69Z
Description	Power Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 10A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 10A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN	Power Bipolar Transistor, 10A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
Maker	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	SFM	SFM	SFM	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	10 A	10 A	10 A	10 A
Collector-emitter maximum voltage	60 V	80 V	100 V	45 V
Configuration	DARLINGTON WITH BUILT-IN DIODE	DARLINGTON WITH BUILT-IN DIODE	DARLINGTON WITH BUILT-IN DIODE	DARLINGTON WITH BUILT-IN DIODE
Minimum DC current gain (hFE)	750	750	750	750
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
