609-2222-130 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 609-2222-130

609-2222-130: DescriptionLED Panel Mount Indicators for 9mm Mounting Hole; CategoryLED optoelectronic/LED photoelectric; File Size508KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

609-2222-130 Overview

LED Panel Mount Indicators for 9mm Mounting Hole

609-2222-130 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DIALIGHT
Reach Compliance Code	compli
color	GREEN
Configuration	SINGLE
Maximum forward current	0.015 A
JESD-609 code	e0
Nominal luminous intensity	110.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	37.08 mm
method of packing	BULK
shape	ROUND
size	8.89 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

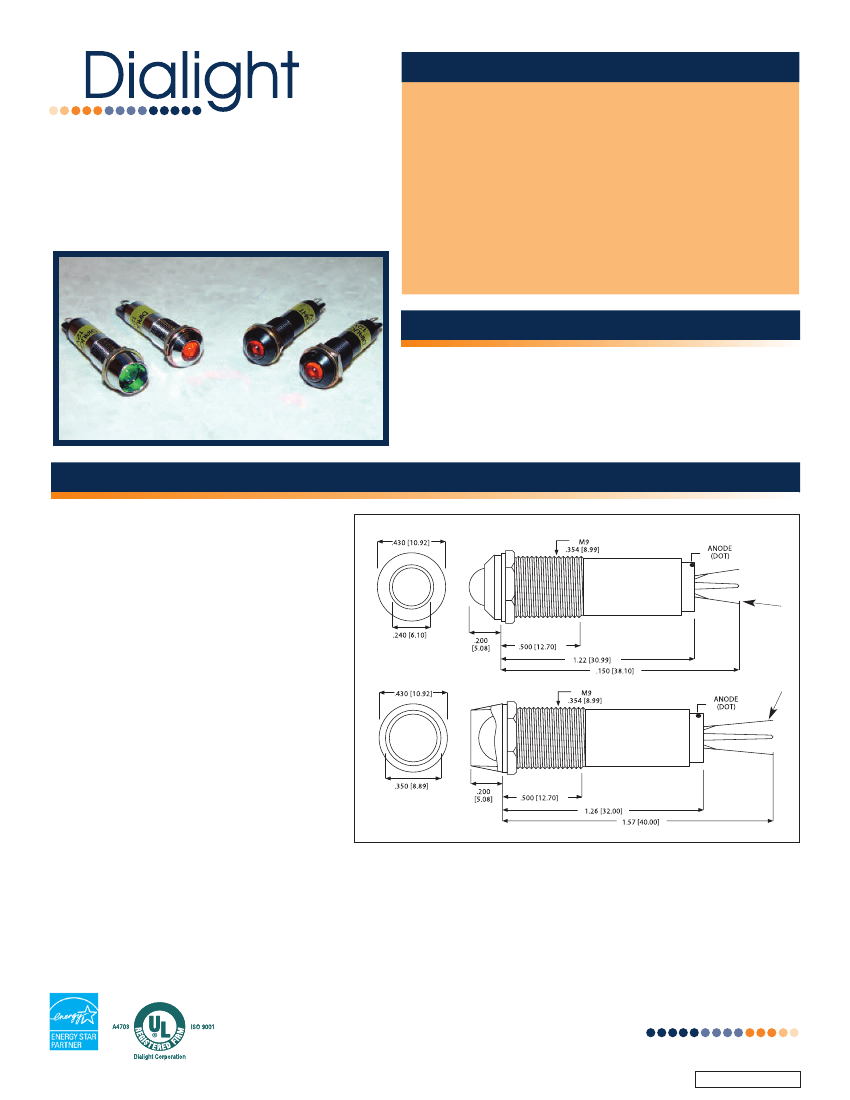

FEATURES / BENEFITS

Long Life - typically 100K hours

609 Series

LED Panel Mount Indicators

for 9mm Mounting Hole

Low power consumption - uses up to 90% less

energy than an incandescent indicator

No heat generated

Colors include red, green, and yellow

Front panel mounting

LED can be recessed or protrude from housing

APPLICATIONS

Dialight's 600 series of metric indicators are designed for a variety of

applications such as:

• Main and remote power indication

• Status Indication

• Maintenance and warning indication

• Instrumentation

...and many more!

SPECIFICATIONS

Voltage requirements: 6, 12 and 24 VDC

(no resistor required)

Electrical connection through solder

terminals

Mounting hole size: 0.366 inches [9.3 mm]

Maximum panel thickness: 0.295 inches

[7.5 mm]

Mounts with lock washer and nut

(0.362 lbs/ft or 5 Kg/cm torque recommended)

SOLDER TERMINALS

FIG. 1

FIG. 2

Operating Temperature : -25ºC to +85ºC

Storage Temperature: -25ºC to +100ºC

Housing Material: Chrome plated brass or

Black painted brass

Dimensions in inches [mm]

All measurements are typical

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

a Roxboro Group Company

MDEL609X001_B

609-2222-130 Related Products

	609-2222-130	609-1122-120	609-1122-130	609-1122-140	609-1222-120	609-1322-140	609-2122-140	609-2212-120
Description	LED Panel Mount Indicators for 9mm Mounting Hole	LED Panel Mount Indicators for 9mm Mounting Hole	LED Panel Mount Indicators for 9mm Mounting Hole	LED Panel Mount Indicators for 9mm Mounting Hole	LED Panel Mount Indicators for 9mm Mounting Hole	LED Panel Mount Indicators for 9mm Mounting Hole	LED Panel Mount Indicators for 9mm Mounting Hole	LED Panel Mount Indicators for 9mm Mounting Hole
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli
color	GREEN	RED	RED	RED	GREEN	YELLOW	RED	GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A	0.015 A
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Nominal luminous intensity	110.0 mcd	60.0 mcd	60.0 mcd	60.0 mcd	110.0 mcd	90.0 mcd	60.0 mcd	110.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	37.08 mm	36.07 mm	36.07 mm	36.07 mm	36.07 mm	36.07 mm	37.08 mm	37.08 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	8.89 mm	6.1 mm	6.1 mm	6.1 mm	6.1 mm	6.1 mm	8.89 mm	8.89 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	-	1	1	1	1	1	1
