SFCB1280-8R02R2: DescriptionGeneral Purpose Inductor, 2.2uH, 20%, 1 Element, SMD,; CategoryPassive components inductor; File Size33KB，1 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/

Download Datasheet Parametric Compare View All

SFCB1280-8R02R2 Overview

General Purpose Inductor, 2.2uH, 20%, 1 Element, SMD,

SFCB1280-8R02R2 Parametric

Parameter Name	Attribute value
Maker	SAMWHA
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.01 Ω
Nominal inductance(L)	2.2 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SFCB1280
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	8 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

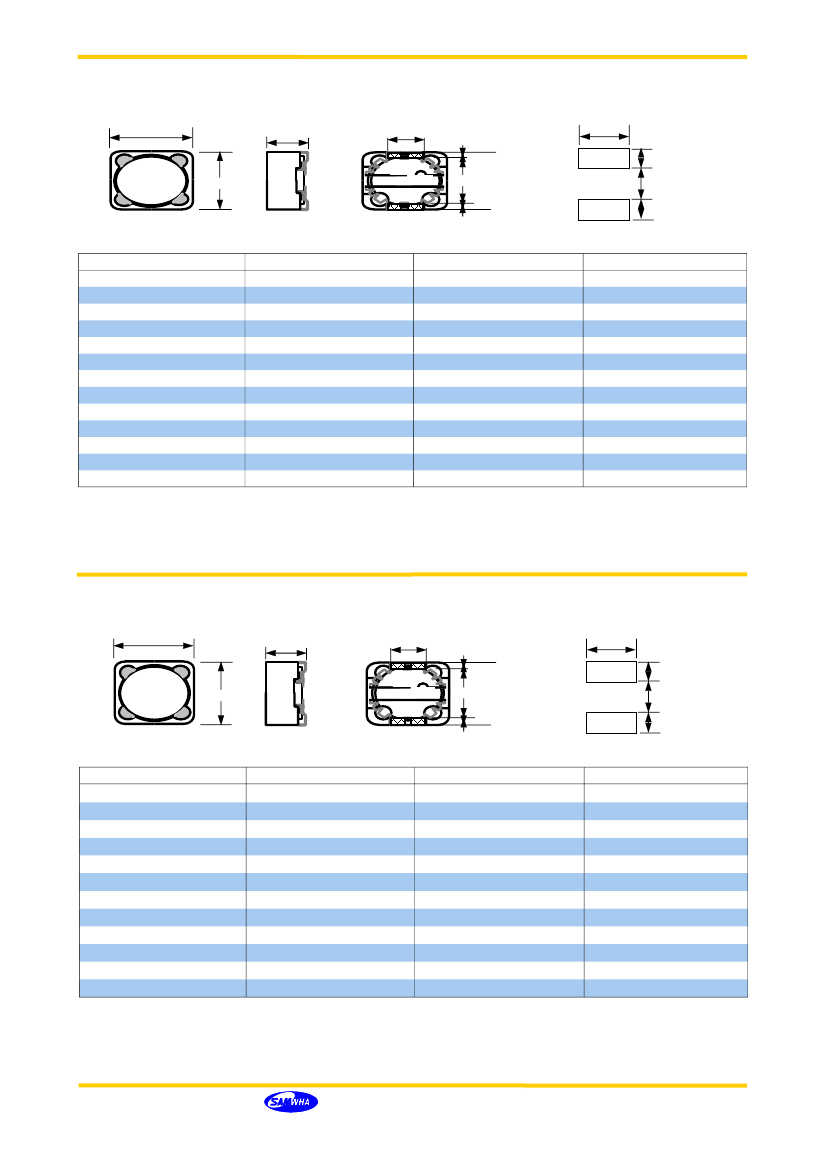

SFCB1260 SERIES

■

Dimensions & Recommended Land Pattern [Unit : mm]

12.0±0.3

6.0 MAX

5.0±0.2

2.0

5.4

Shielded Type

2.8

MARK

12.0±0.3

8.0±0.2

7.0

2.8

2.0

■

Electrical Characteristics

Part No.

SFCB1260-5R04R7

SFCB1260-4R0100

SFCB1260-3R3150

SFCB1260-2R8220

SFCB1260-2R1330

SFCB1260-1R8470

SFCB1260-1R7560

SFCB1260-1R5680

SFCB1260-1R4820

SFCB1260-1R3101

SFCB1260-R80221

SFCB1260-R78271

SFCB1260-R68331

Inductance (uH)

4.7uH

±20%

10.0uH

±20%

15.0uH

±20%

22.0uH

±20%

33.0uH

±20%

47.0uH

±20%

56.0uH

±20%

68.0uH

±20%

82.0uH

±20%

100uH

±20%

220uH

±20%

270uH

±20%

330uH

±20%

DC Resistance (Ω) Max

0.020

0.029

0.035

0.063

0.076

0.098

0.125

0.160

0.162

0.210

0.370

0.468

0.560

Rated Current (A) Max.

5.00

4.00

3.30

2.80

2.10

1.80

1.70

1.50

1.40

1.30

0.80

0.78

0.68

■

Testing Instrument :

1) Inductance : HP 4284A LCR METER

2) DC Resistance : HIOKI mΩ Hi-TESTER 3220

■

Tested at 100kHz, 0.25 Vrms.

■

Rated Current (A) : The current when the inductance becomes 20% lower than its nominal value or

temperature rise of coil becomes

△T=40 ℃.

(Ta=20

℃)

SFCB1280 SERIES

■

Dimensions & Recommended Land Pattern [Unit : mm]

12.0±0.2

8.0 MAX

5.0±0.2

2.0

5.4

Shielded Type

2.8

MARK

12.0±0.2

8.0±0.2

7.0

2.8

2.0

■

Electrical Characteristics

Part No.

SFCB1280-8R02R2

SFCB1280-7R53R3

SFCB1280-6R84R7

SFCB1280-5R4100

SFCB1280-4R8150

SFCB1280-3R6220

SFCB1280-3R0330

SFCB1280-2R5470

SFCB1280-2R1680

SFCB1280-1R7101

SFCB1280-1R2221

SFCB1280-R95331

Inductance (uH)

2.2uH

±20%

3.3uH

±20%

4.7uH

±20%

10.0uH

±20%

15.0uH

±20%

22.0uH

±20%

33.0uH

±20%

47.0uH

±20%

68.0uH

±20%

100uH

±20%

220uH

±20%

330uH

±20%

DC Resistance (Ω) Max

0.010

0.014

0.022

0.026

0.033

0.047

0.065

0.098

0.124

0.147

0.377

0.611

Rated Current (A) Max.

8.00

7.50

6.80

5.40

4.80

3.60

3.00

2.50

2.10

1.70

1.20

0.95

■

Testing Instrument :

1) Inductance : HP 4284A LCR METER

2) DC Resistance : HIOKI mΩ Hi-TESTER 3220

■

Tested at 100kHz, 0.25 Vrms.

■

Rated Current (A) : The current when the inductance becomes 20% lower than its nominal value or

temperature rise of coil becomes

△T=40 ℃.

(Ta=20

℃)

SAMWHA TECOM CO., LTD.

SFCB1280-8R02R2 Related Products

	SFCB1280-8R02R2	SFCB1280-3R0330	SFCB1280-5R4100	SFCB1280-2R1680	SFCB1280-R95331
Description	General Purpose Inductor, 2.2uH, 20%, 1 Element, SMD,	General Purpose Inductor, 33uH, 20%, 1 Element, SMD,	General Purpose Inductor, 10uH, 20%, 1 Element, SMD,	General Purpose Inductor, 68uH, 20%, 1 Element, SMD,	General Purpose Inductor, 330uH, 20%, 1 Element, SMD,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.01 Ω	0.065 Ω	0.026 Ω	0.124 Ω	0.611 Ω
Nominal inductance(L)	2.2 µH	33 µH	10 µH	68 µH	330 µH
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SFCB1280	SFCB1280	SFCB1280	SFCB1280	SFCB1280
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum rated current	8 A	3 A	5.4 A	2.1 A	0.95 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%
Maker	SAMWHA	-	-	SAMWHA	SAMWHA
