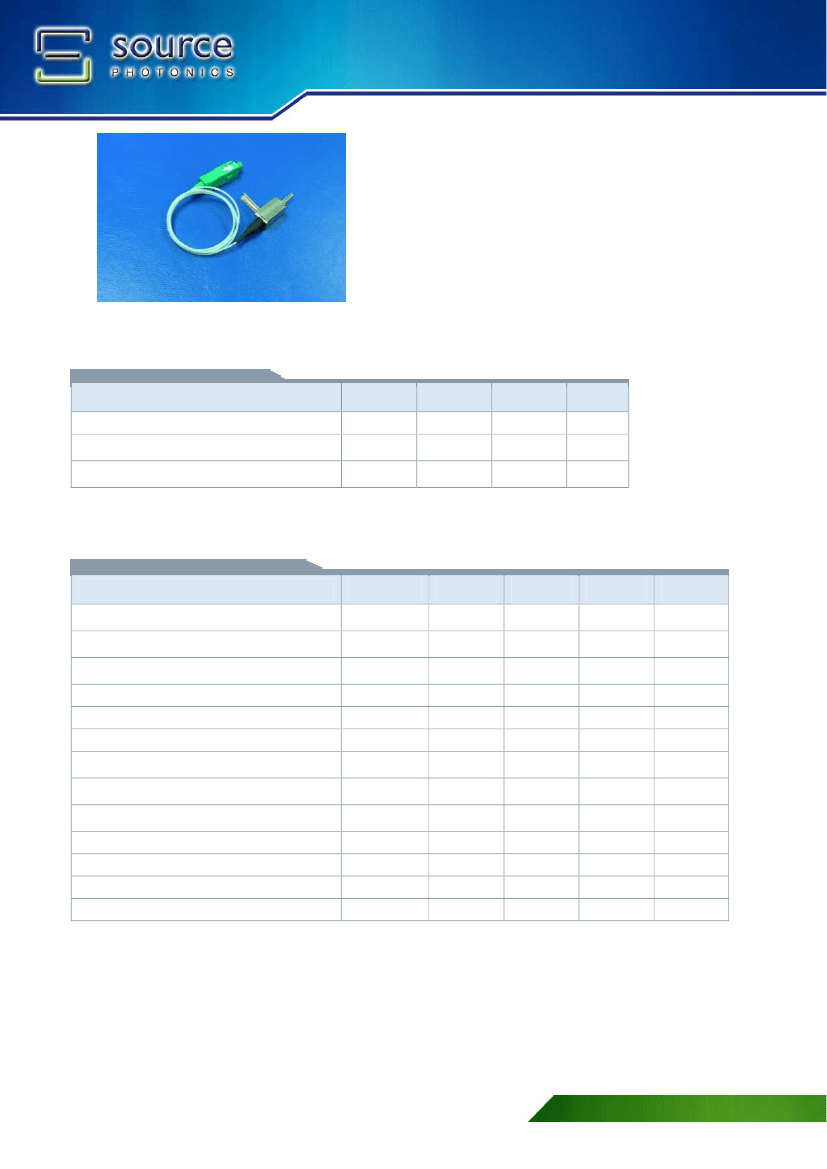

P/N: ODP-35-FP-HDX-SSCA-XX
1310nm Emitting (FP), 1550nm Receiving (Analog) ,
Bi-directional Diplexer Optical Module
Features
1310nm FP Laser Design, 1550nm Analog Receiver
High
Isolation
1GHz video Receiver Bandwidth
RoHS Compliant available
Application
Design for fiber optic networks
Absolute Maximum Ratings
Parameter
Operating Temperature (case)
Storage Temperature
LD Reverse Voltage
Min
0
-40
-
Typical
-
-
-
Max
70
100
2
Unit
°C
°C
V
Transmitter Characteristics (Note 1)
Parameter
Wavelength at 25°C
Spectral Width (-20dB)
Output Power at 25°C, Ith+20mA
Bias Current at P
o
Threshold Current
Monitor Current at P
o
Tracking Error
Forward Voltage
Rise/Fall Time
Monitor Dark Current
Monitor Diode Capacitance
Slope Efficiency at 25°C
Optical Crosstalk
Symbol
λ
Δλ
P
o
I
bias
I
th
I
pd
TE
V
F
T
r /
T
f
I
dk
C
pd
SE
CRT
Min.
1290
-
2
-
-
100
-2
-
-
-
-
0.1
-
Typ.
-
2
-
-
-
-
-
1.1
-
-
-
-
-
Max.
1330
5
-
75
30
900
2
1.5
0.3
0.1
20
-
-40
Unit
nm
nm
mW
mA
mA
μA
dB
V
ns
μA
pF
mW/mA
dB
(Note 1) All data are specified across the operating temperature range 0~70°C.
1
DS-6175 Rev 0.0 2010-07-02
P/N: ODP-35-FP-HDX-SSCA-XX
1310nm Emitting (FP), 1550nm Receiving (Analog) ,
Bi-directional Diplexer Optical Module
Analog Receiver Characteristics (Note 1)
Parameter
Detection Wavelength
Responsivity
Bandwidth (a)
Dark Current at V
r
=5V
Capacitance at V
r
=5V and 1MHz
Optical Return Loss @1550nm
Polarization Dependent Loss
DSO
DTB
(a) 0.5dB measurement.
Symbol
λ
R
BW
I
d
C
ORL
PDL
Min.
1550
0.85
1000
-
-
30
-
-
-
Typ.
-
-
-
2
0.6
40
-
-75
-80
Max.
1560
-
-
5
0.8
-
0.5
-70
-75
Unit
nm
mA/mW
MHz
nA
pF
dB
dB
dBc
dBc
(Note 1) All data are specified across the operating temperature range 0~70°C.

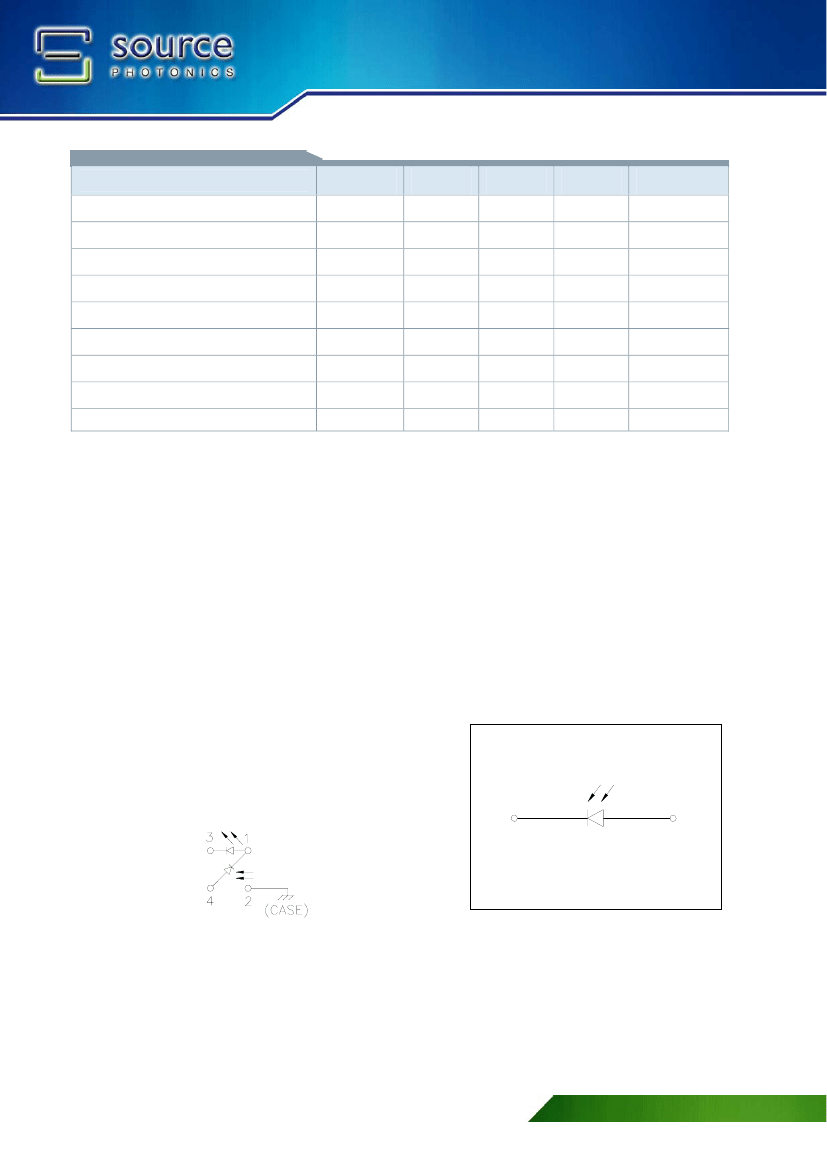

Pin Assignment
LD Pin Assignment
D Type
PD Pin Assignment
Pin 1 : Laser Anode and Monitor Diode Cathode
Pin 2 : Case Gnd
Pin 3 : Laser Cathode
Pin 4 : Monitor Diode Anode
PD- (1)
LD
PD+ (3)
PD
Functional Schematic
2
DS-6175 Rev 0.0 2010-07-02
P/N: ODP-35-FP-HDX-SSCA-XX
1310nm Emitting (FP), 1550nm Receiving (Analog) ,
Bi-directional Diplexer Optical Module

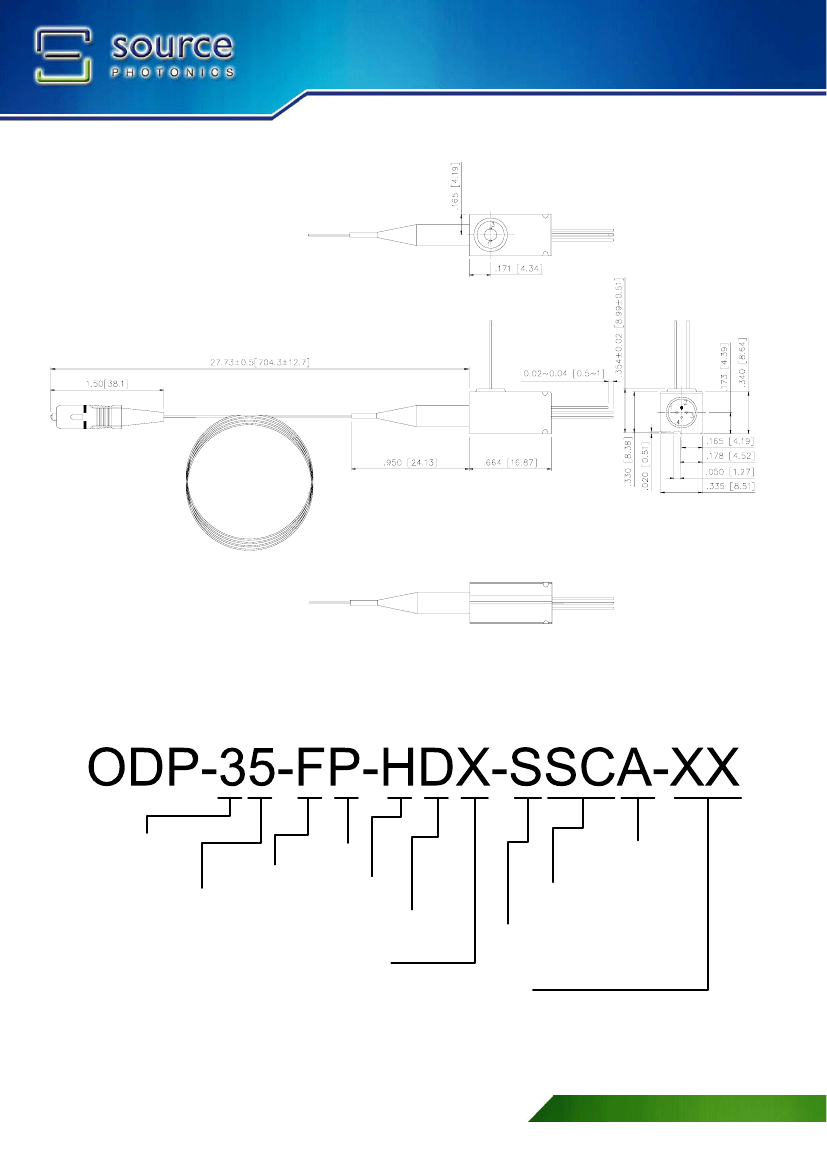

Mechanic Dimension
units: inch[mm]
Ordering Information
Transmit
3=1310nm
Tx Laser
Receive
5=1550nm
F=FP
P=PIN
Output Power
H
Pin Assignment
D=D type
Connector
SC
Fiber
S=SM 9/125um
End Surface
A=APC Fiber
Blank=No Isolator
I=Isolator
RoHS Compliant
Blank / G5 / GR
Blank = RoHS non-compliant product
G5 = RoHS 5/6-compliant product (lead exemption)
GR = Full RoHS Compliant product (no exemption)
3
DS-6175 Rev 0.0 2010-07-02
P/N: ODP-35-FP-HDX-SSCA-XX
1310nm Emitting (FP), 1550nm Receiving (Analog) ,
Bi-directional Diplexer Optical Module
Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic discharge (ESD). A static
free environment is highly recommended. Follow guidelines according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or
indirect radiation.
Legal Notice
IMPORTANT NOTICE!
All information contained in this document is subject to change without notice, at Source Photonics’s sole and
absolute discretion. Source Photonics warrants performance of its products to current specifications only in
accordance with the company’s standard one-year warranty; however, specifications designated as
“preliminary”
are given to describe components only, and Source Photonics expressly disclaims any and all warranties for said
products, including express, implied, and statutory warranties, warranties of merchantability, fi tness for a particular
purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of Sale for
further warranty information.
Source Photonics assumes no liability for applications assistance, customer product design, software performance,
or infringement of patents, services, or intellectual property described herein. No license, either express or implied,
is granted under any patent right, copyright, or intellectual property right, and Source Photonics makes no
representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual
property rights. Products described in this document are NOT intended for use in implantation or other life support
applications where malfunction may result in injury or death to persons. Source Photonics customers using or
selling products for use in such applications do so at their own risk and agree to fully defend and indemnify Source
Photonics for any damages resulting from such use or sale.
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN
“AS
IS” BASIS. Customer agrees
that Source Photonics is not liable for any actual, consequential, exemplary, or other damages arising directly or
indirectly from any use of the information contained in this document. Customer must contact Source Photonics to
obtain the latest version of this publication to verify, before placing any order, that the information contained herein is
current.
©
Copyright Source Photonics, Inc. 2010
All rights reserved
4
DS-6175 Rev 0.0 2010-07-02
