Z1SMA6.2: DescriptionZener Diode, 6.2V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size173KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

Z1SMA6.2 Overview

Zener Diode, 6.2V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN

Z1SMA6.2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
Objectid	1927417482
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
compound_id	5568767
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Nominal reference voltage	6.2 V
surface mount	YES
technology	ZENER
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	100 mA

Preview

Download Datasheet

View All

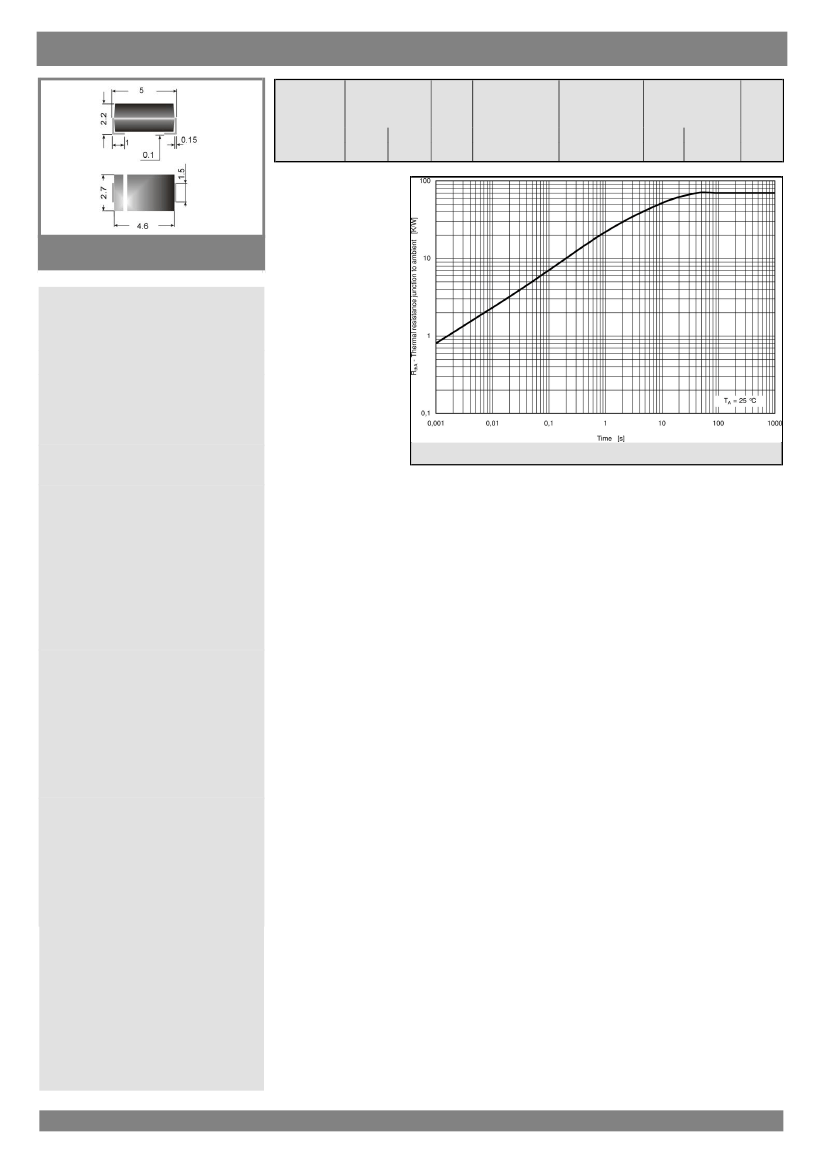

Z1 SMA 1 ... Z1 SMA 100 (1W)

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Surface mount diode

Zener silicon diodes

Z1 SMA 1 ... Z1 SMA 100 (1W)

Maximum Power

Dissipation: 1 W

Nominal Z-voltage: 1 to 100 V

Features

Mechanical Data

1)

1

23-06-2009 MAM

Z1SMA6.2 Related Products

	Z1SMA6.2	Z1SMA6.8	TFCR2010-4W-E-2183FT-1K	TFCR2512-2W-E-2803DT	Z1SMA7.5
Description	Zener Diode, 6.2V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN	Zener Diode, 6.8V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN	Fixed Resistor, Thin Film, 0.25W, 218000ohm, 150V, 1% +/-Tol, 25ppm/Cel, Surface Mount, 2010, CHIP	Fixed Resistor, Thin Film, 0.5W, 280000ohm, 150V, 0.5% +/-Tol, 25ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT	Zener Diode, 7.5V V(Z), 5%, 1W, Silicon, Unidirectional, DO-214AC, PLASTIC, SMA, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	R-PDSO-C2	R-PDSO-C2	CHIP	SMT, 2512	R-PDSO-C2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-609 code	e2	e2	e3	e3	e2
Number of terminals	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	155 °C	155 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-55 °C	-55 °C	-50 °C
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR
surface mount	YES	YES	YES	YES	YES
technology	ZENER	ZENER	THIN FILM	THIN FILM	ZENER
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	Tin/Silver (Sn/Ag)
Maker	SEMIKRON	SEMIKRON	-	-	SEMIKRON
Objectid	1927417482	-	7211006497	1241971381	-
Parts packaging code	DO-214AC	DO-214AC	-	-	DO-214AC
Contacts	2	2	-	-	2
Configuration	SINGLE	SINGLE	-	-	SINGLE
Diode component materials	SILICON	SILICON	-	-	SILICON
Diode type	ZENER DIODE	ZENER DIODE	-	-	ZENER DIODE
JEDEC-95 code	DO-214AC	DO-214AC	-	-	DO-214AC
JESD-30 code	R-PDSO-C2	R-PDSO-C2	-	-	R-PDSO-C2
Number of components	1	1	-	-	1
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY
Package form	SMALL OUTLINE	SMALL OUTLINE	-	SMT	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	-	-	UNIDIRECTIONAL
Maximum power dissipation	1 W	1 W	-	-	1 W
Certification status	Not Qualified	Not Qualified	-	-	Not Qualified
Nominal reference voltage	6.2 V	6.8 V	-	-	7.5 V
Terminal form	C BEND	C BEND	-	-	C BEND
Terminal location	DUAL	DUAL	-	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
Maximum voltage tolerance	5%	5%	-	-	5%
Working test current	100 mA	100 mA	-	-	100 mA
