MIC5842AJ datasheet, PDF - EEWORLD Datasheet

MIC5842AJ: DescriptionSIPO Based Peripheral Driver, 8 Driver, 0.5A, BICMOS, CDIP18, CERAMIC, DIP-18; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size219KB，7 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

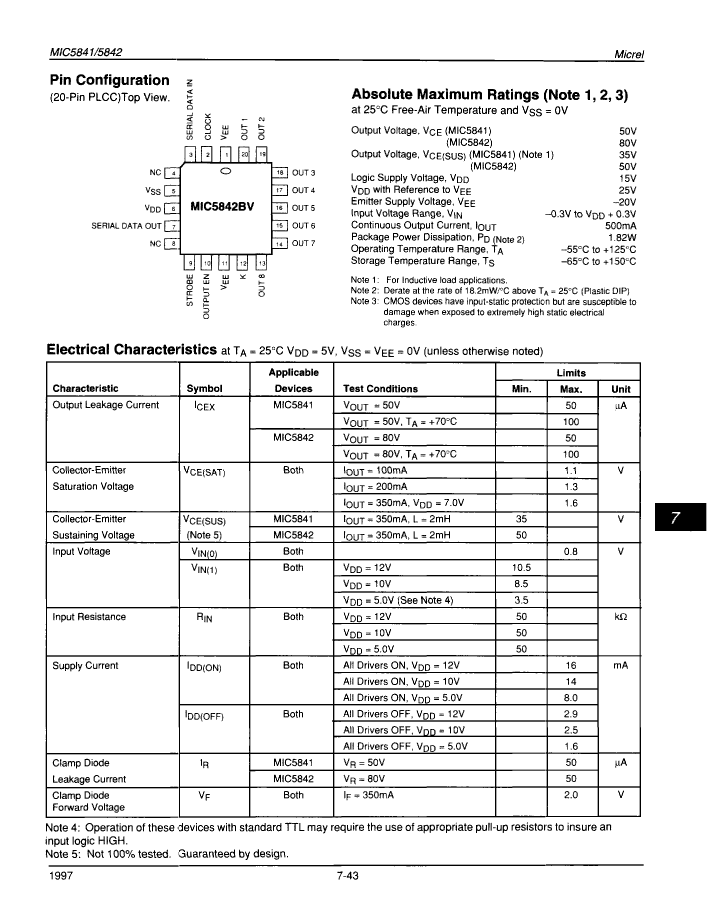

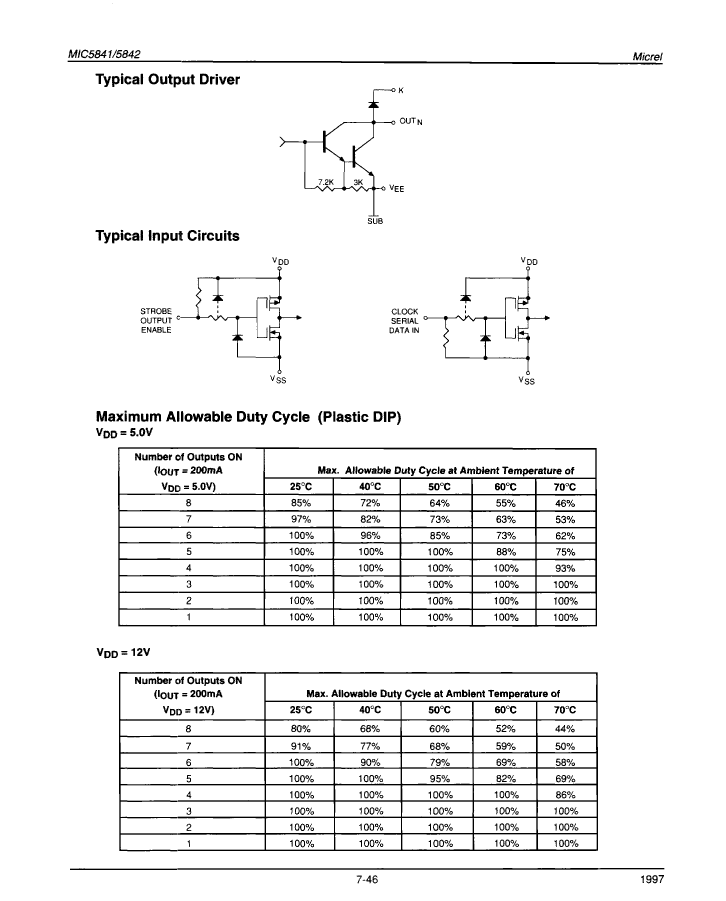

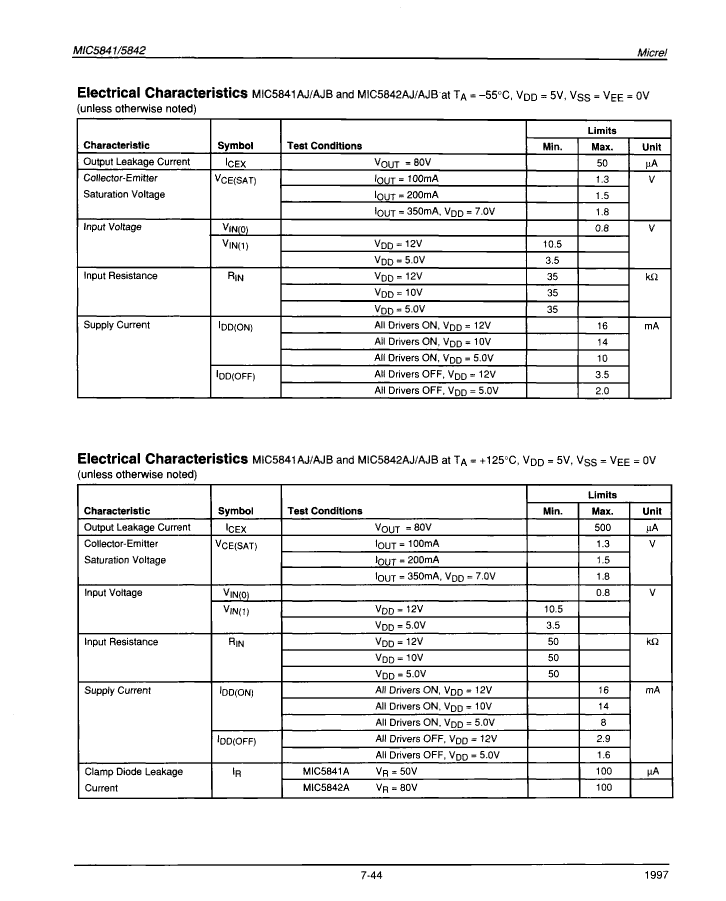

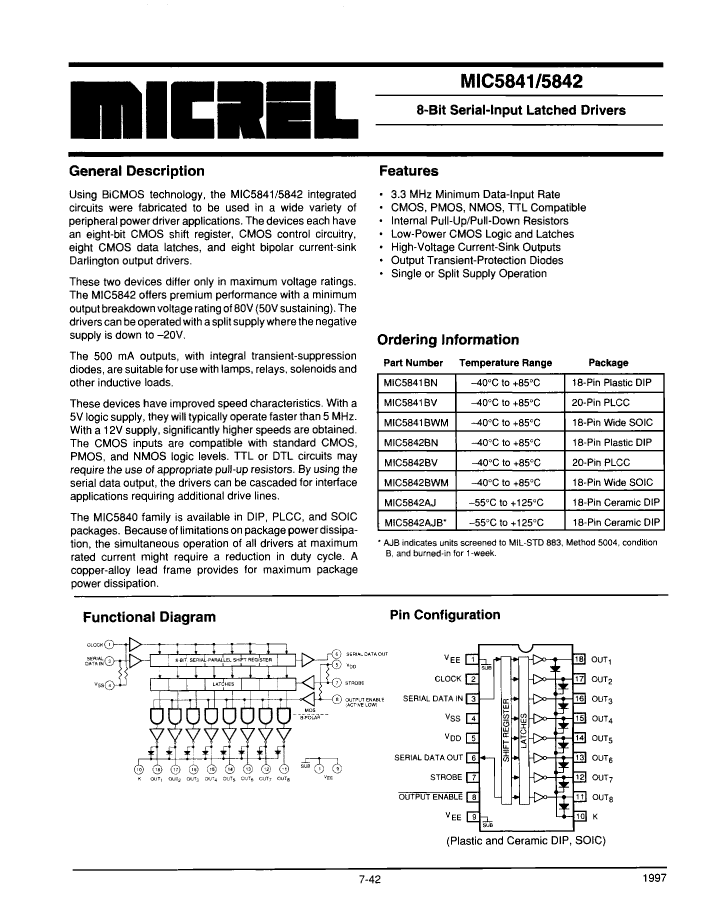

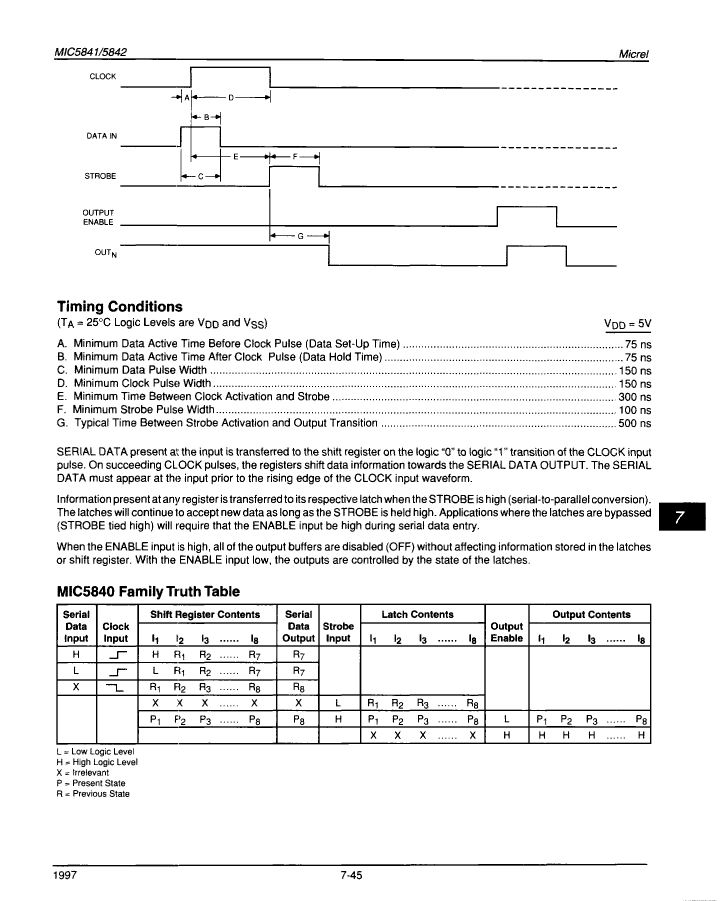

MIC5842AJ Overview

SIPO Based Peripheral Driver, 8 Driver, 0.5A, BICMOS, CDIP18, CERAMIC, DIP-18

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microchip
Parts packaging code	DIP
package instruction	DIP, DIP18,.4
Contacts	18
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SPLIT SUPPLY OPERATION POSSIBLE
Built-in protection	TRANSIENT
Number of drives	8
Input properties	STANDARD
Interface integrated circuit type	SIPO BASED PERIPHERAL DRIVER
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
length	22.606 mm
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Maximum output current	0.35 A
Nominal output peak current	0.5 A
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.4
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/12 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
surface mount	NO
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

	MIC5842AJ	MIC5842AJBQ
Description	SIPO Based Peripheral Driver, 8 Driver, 0.5A, BICMOS, CDIP18, CERAMIC, DIP-18	SIPO Based Peripheral Driver, 0.5A, CDIP18, CERAMIC, DIP-18
Maker	Microchip	Microchip
Parts packaging code	DIP	DIP
package instruction	DIP, DIP18,.4	DIP,
Contacts	18	18
Reach Compliance Code	compliant	unknown
ECCN code	EAR99	EAR99
Built-in protection	TRANSIENT	TRANSIENT
Interface integrated circuit type	SIPO BASED PERIPHERAL DRIVER	SIPO BASED PERIPHERAL DRIVER
JESD-30 code	R-GDIP-T18	R-GDIP-T18
length	22.606 mm	22.606 mm
Number of functions	1	1
Number of terminals	18	18
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output current flow direction	SINK	SINK
Nominal output peak current	0.5 A	0.5 A
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
surface mount	NO	NO
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.62 mm
