MIC59P50BVT&R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MIC59P50BVT&R

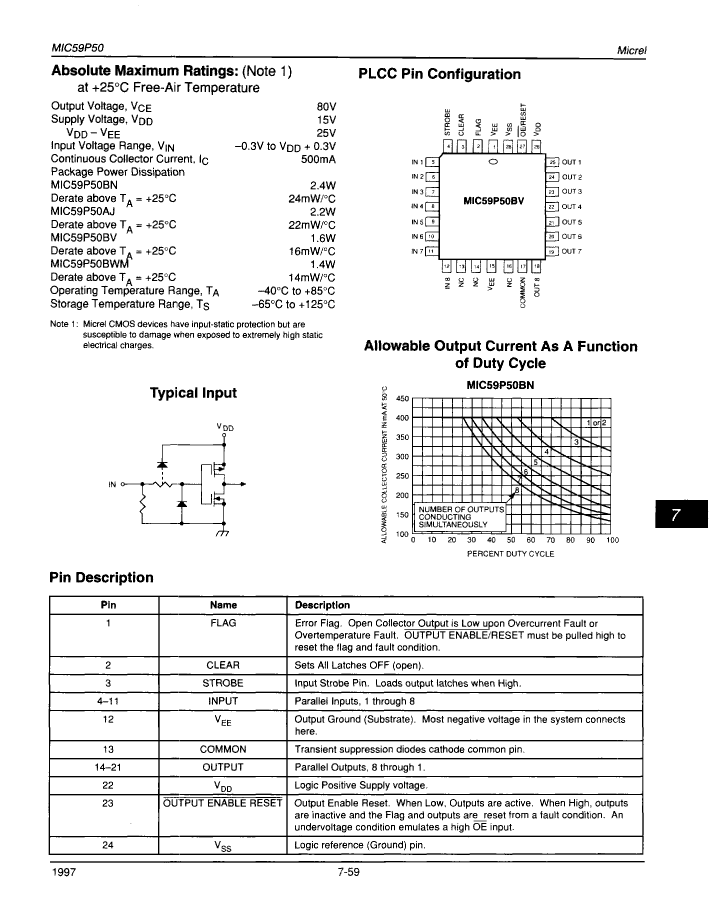

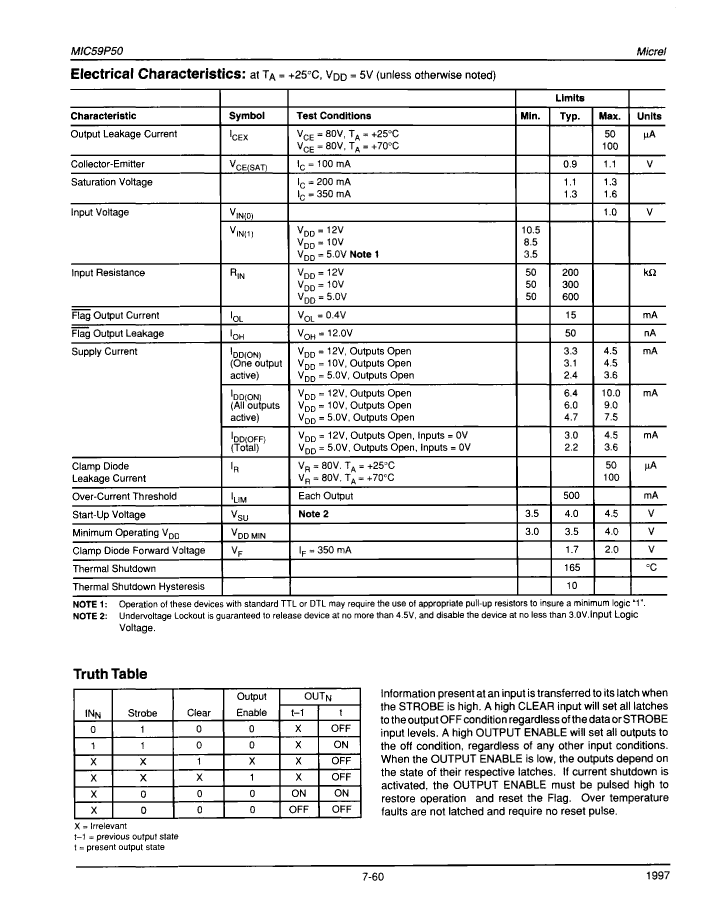

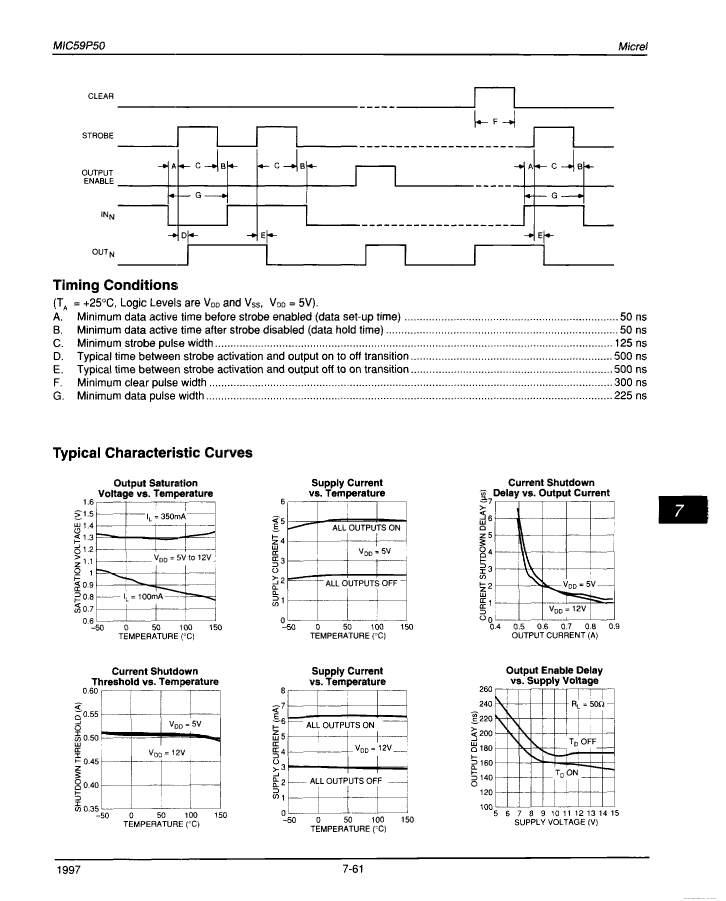

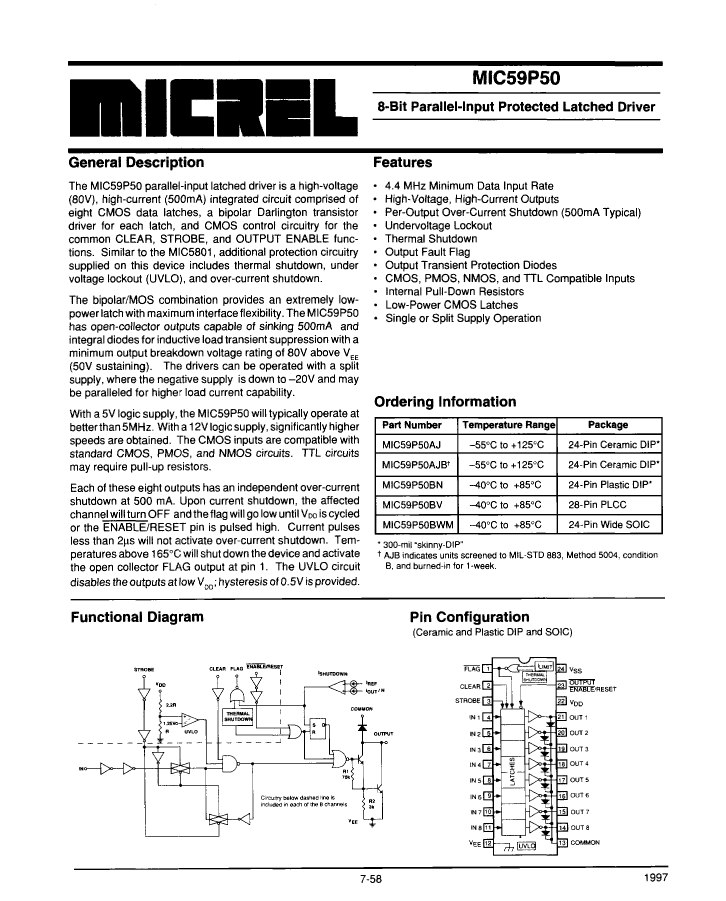

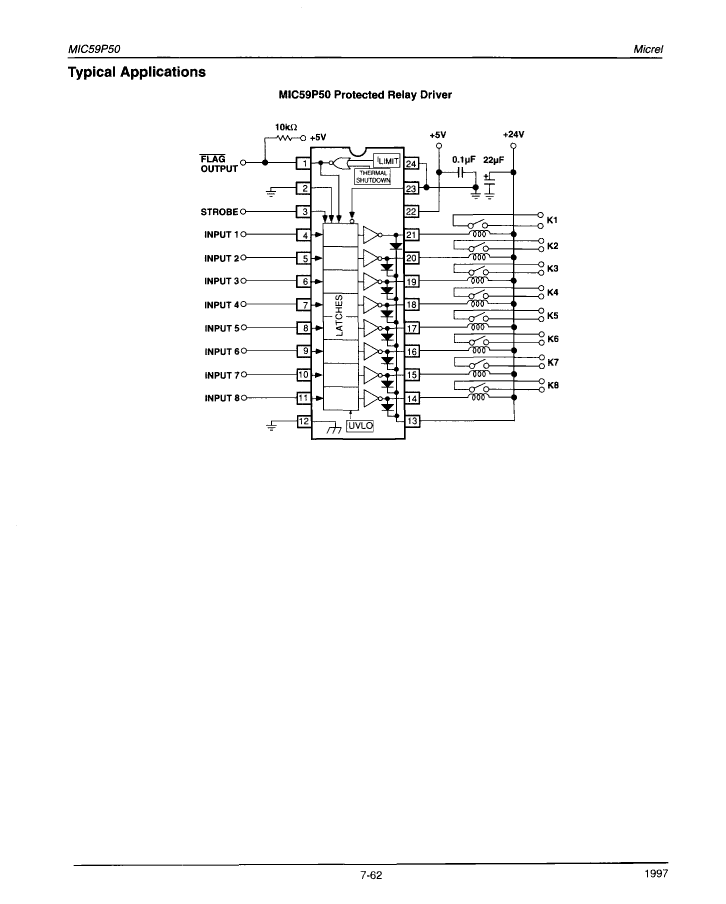

MIC59P50BVT&R: DescriptionLatch Based Peripheral Driver, BIMOS, PQCC28, PLASTIC, LCC-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size184KB，5 Pages; ManufacturerMicrel ( Microchip ); Websitehttps://www.microchip.com

Download Datasheet Parametric Compare View All

MIC59P50BVT&R Overview

Latch Based Peripheral Driver, BIMOS, PQCC28, PLASTIC, LCC-28

MIC59P50BVT&R Parametric

Parameter Name	Attribute value
Maker	Micrel ( Microchip )
Parts packaging code	QLCC
package instruction	QCCJ,
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SPLIT SUPPLY OPERATION POSSIBLE
Built-in protection	TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE
Input properties	STANDARD
Interface integrated circuit type	LATCH BASED PERIPHERAL DRIVER
JESD-30 code	S-PQCC-J28
length	11.4554 mm
Number of functions	8
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.318 mm
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.4554 mm

Preview

Download Datasheet

View All

MIC59P50BVT&R Related Products

	MIC59P50BVT&R	MIC59P50AJBQ	MIC59P50BWMT&R
Description	Latch Based Peripheral Driver, BIMOS, PQCC28, PLASTIC, LCC-28	Latch Based Peripheral Driver, 0.5A, CDIP24, 0.300 INCH, SKINNY, CERAMIC, DIP-24	Latch Based Peripheral Driver, BIMOS, PDSO24, SOIC-24
Maker	Micrel ( Microchip )	Micrel ( Microchip )	Micrel ( Microchip )
Parts packaging code	QLCC	DIP	SOIC
package instruction	QCCJ,	DIP,	SOP,
Contacts	28	24	24
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Built-in protection	TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE	TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE	TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE
Interface integrated circuit type	LATCH BASED PERIPHERAL DRIVER	LATCH BASED PERIPHERAL DRIVER	LATCH BASED PERIPHERAL DRIVER
JESD-30 code	S-PQCC-J28	R-GDIP-T24	R-PDSO-G24
length	11.4554 mm	30.816 mm	15.4 mm
Number of functions	8	1	8
Number of terminals	28	24	24
Maximum operating temperature	85 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C
Output current flow direction	SINK	SINK	SINK
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	SOP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.318 mm	5.08 mm	2.65 mm
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	NO	YES
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL
Terminal form	J BEND	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL
width	11.4554 mm	7.62 mm	7.5 mm
Other features	SPLIT SUPPLY OPERATION POSSIBLE	-	SPLIT SUPPLY OPERATION POSSIBLE
Input properties	STANDARD	-	STANDARD
Output characteristics	OPEN-COLLECTOR	-	OPEN-COLLECTOR
Output polarity	INVERTED	-	INVERTED
Minimum supply voltage	3 V	-	3 V
technology	BIMOS	-	BIMOS
