BR9040FV-WE2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> BR9040FV-WE2

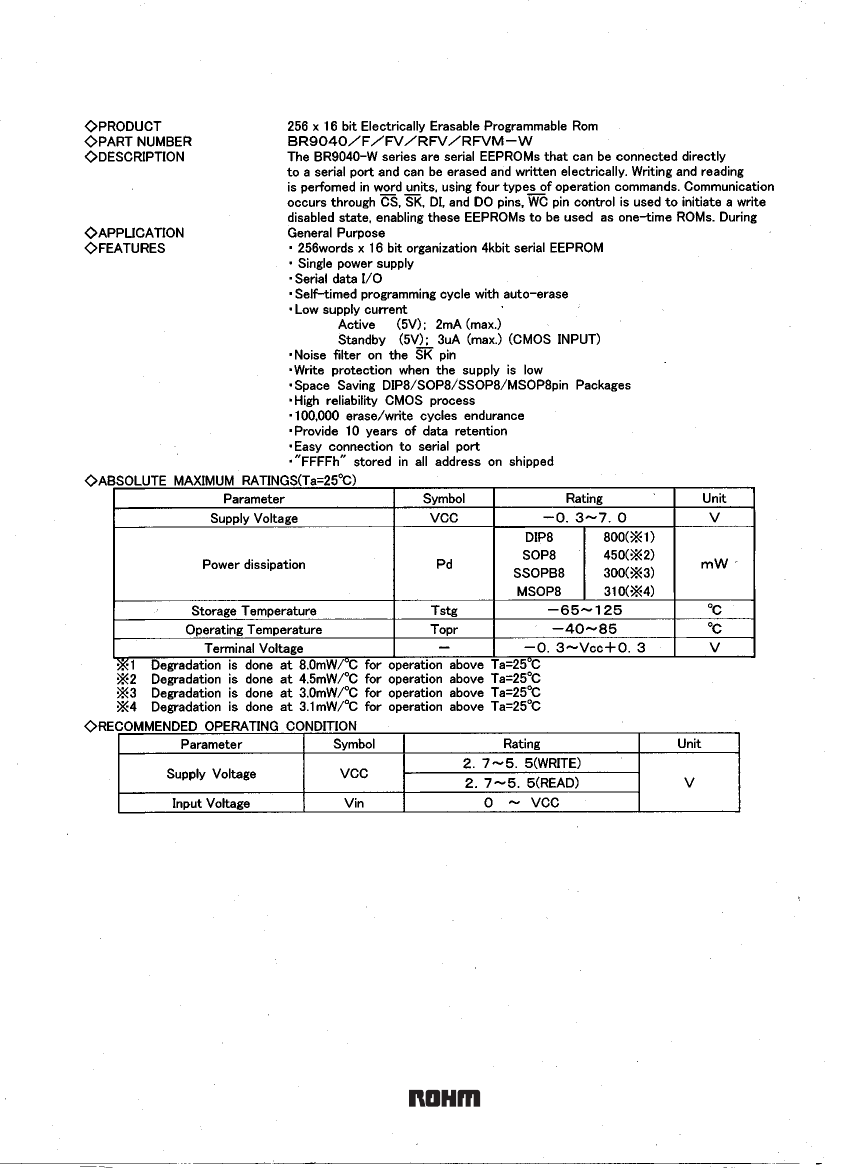

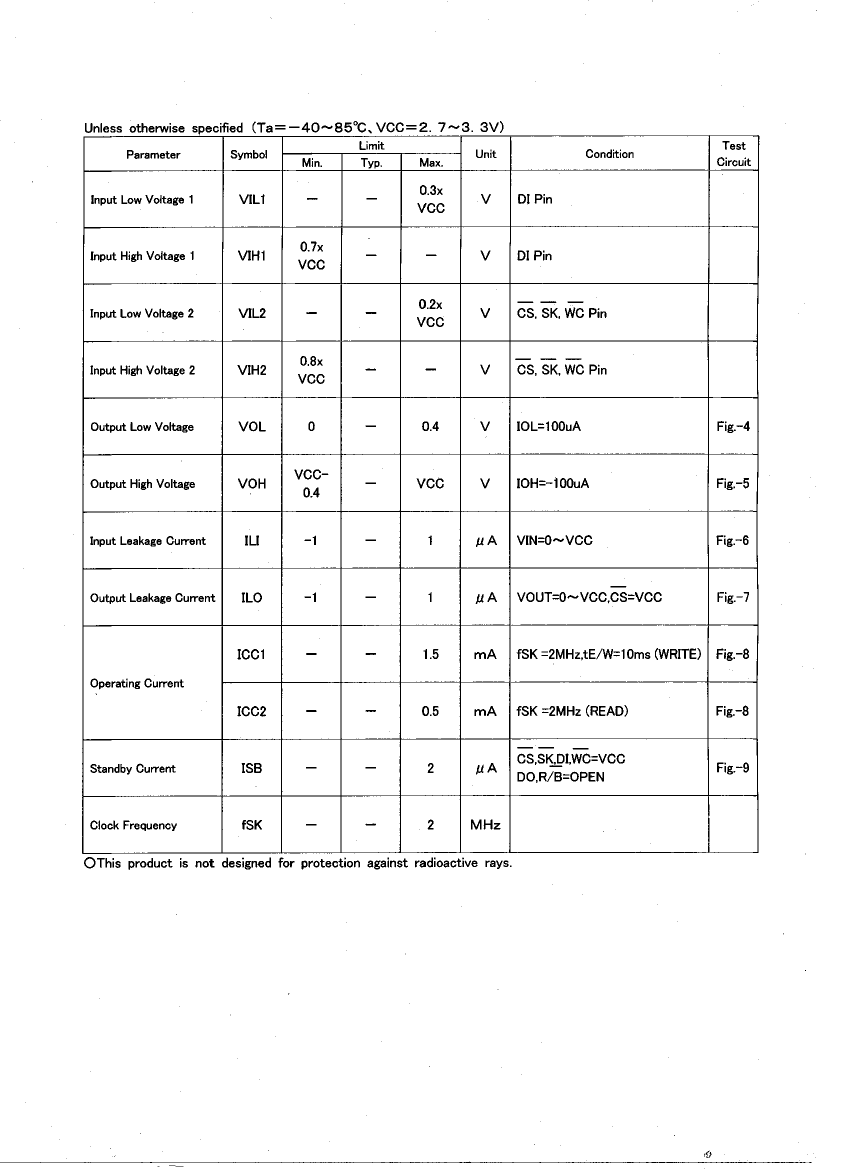

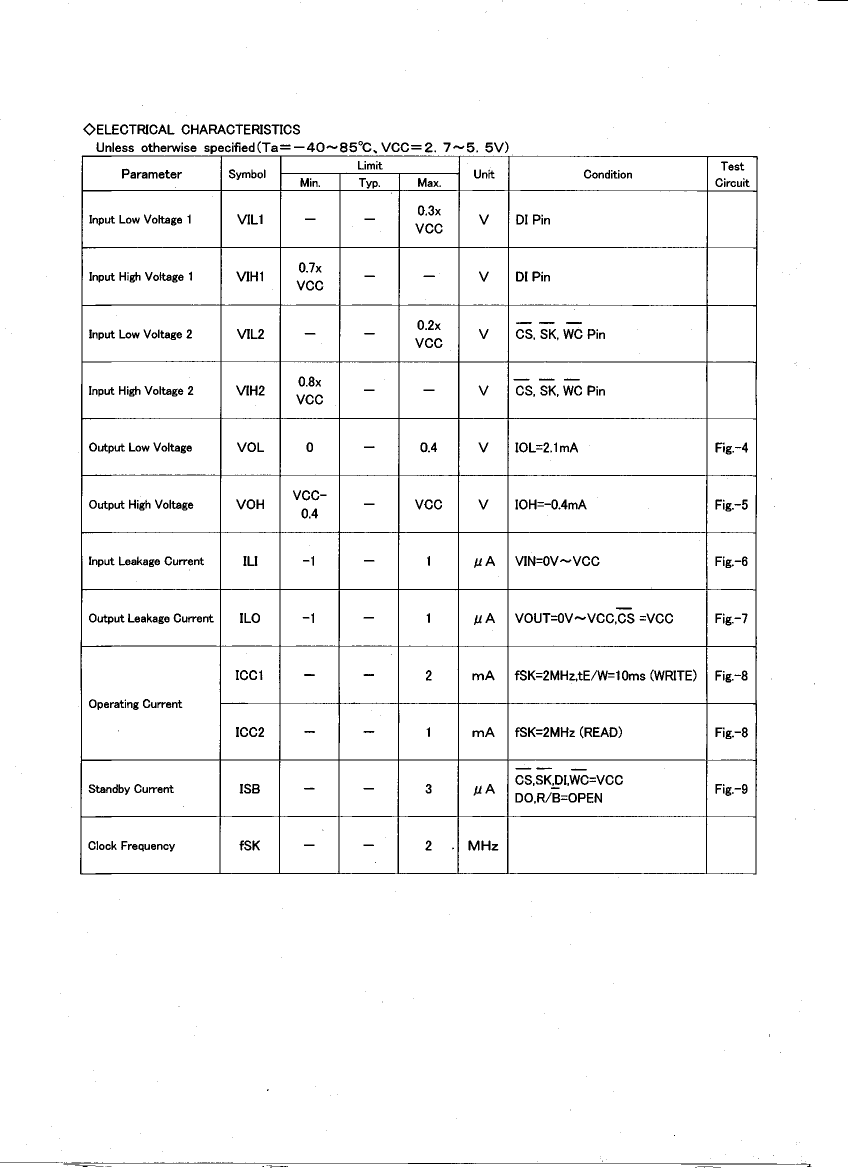

Preview

BR9040FV-WE2: DescriptionEEPROM, 256X16, Serial, CMOS, PDSO8; Categorystorage storage; File Size427KB，20 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BR9040FV-WE2 Overview

EEPROM, 256X16, Serial, CMOS, PDSO8

BR9040FV-WE2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	LSSOP, TSSOP8,.25
Reach Compliance Code	compliant
Maximum clock frequency (fCLK)	2 MHz
Data retention time - minimum	10
Durability	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8
JESD-609 code	e2
length	4.4 mm
memory density	4096 bit
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	256 words
character code	256
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256X16
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL
power supply	3/5 V
Certification status	Not Qualified
Maximum seat height	1.35 mm
Maximum standby current	0.000002 A
Maximum slew rate	0.002 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	3 mm
write protect	HARDWARE/SOFTWARE

Preview

Download Datasheet

View All

BR9040FV-WE2 Related Products

	BR9040FV-WE2	BR9040RFVM-WTR	BR9040RFVM-WTL	BR9040F-WE1	BR9040FV-WE1
Description	EEPROM, 256X16, Serial, CMOS, PDSO8	EEPROM, 256X16, Serial, CMOS, PDSO8	EEPROM, 256X16, Serial, CMOS, PDSO8	EEPROM, 256X16, Serial, CMOS, PDSO8	EEPROM, 256X16, Serial, CMOS, PDSO8
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	LSSOP, TSSOP8,.25	VSSOP, TSSOP8,.16	VSSOP, TSSOP8,.16	SOP, SOP8,.25	LSSOP, TSSOP8,.25
Reach Compliance Code	compliant	unknown	unknown	unknown	compliant
Maximum clock frequency (fCLK)	2 MHz	2 MHz	2 MHz	2 MHz	2 MHz
Data retention time - minimum	10	10	10	10	10
Durability	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles	100000 Write/Erase Cycles
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	4.4 mm	2.9 mm	2.9 mm	5 mm	4.4 mm
memory density	4096 bit	4096 bit	4096 bit	4096 bit	4096 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	16	16	16	16	16
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
word count	256 words	256 words	256 words	256 words	256 words
character code	256	256	256	256	256
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	256X16	256X16	256X16	256X16	256X16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	VSSOP	VSSOP	SOP	LSSOP
Encapsulate equivalent code	TSSOP8,.25	TSSOP8,.16	TSSOP8,.16	SOP8,.25	TSSOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
power supply	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.35 mm	0.9 mm	0.9 mm	1.71 mm	1.35 mm
Maximum standby current	0.000002 A	0.000002 A	0.000002 A	0.000002 A	0.000002 A
Maximum slew rate	0.002 mA	0.002 mA	0.002 mA	0.002 mA	0.002 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	3 mm	2.8 mm	2.8 mm	4.4 mm	3 mm
write protect	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE	HARDWARE/SOFTWARE
Maker	ROHM Semiconductor	-	-	ROHM Semiconductor	ROHM Semiconductor
Base Number Matches	-	1	1	1	-
