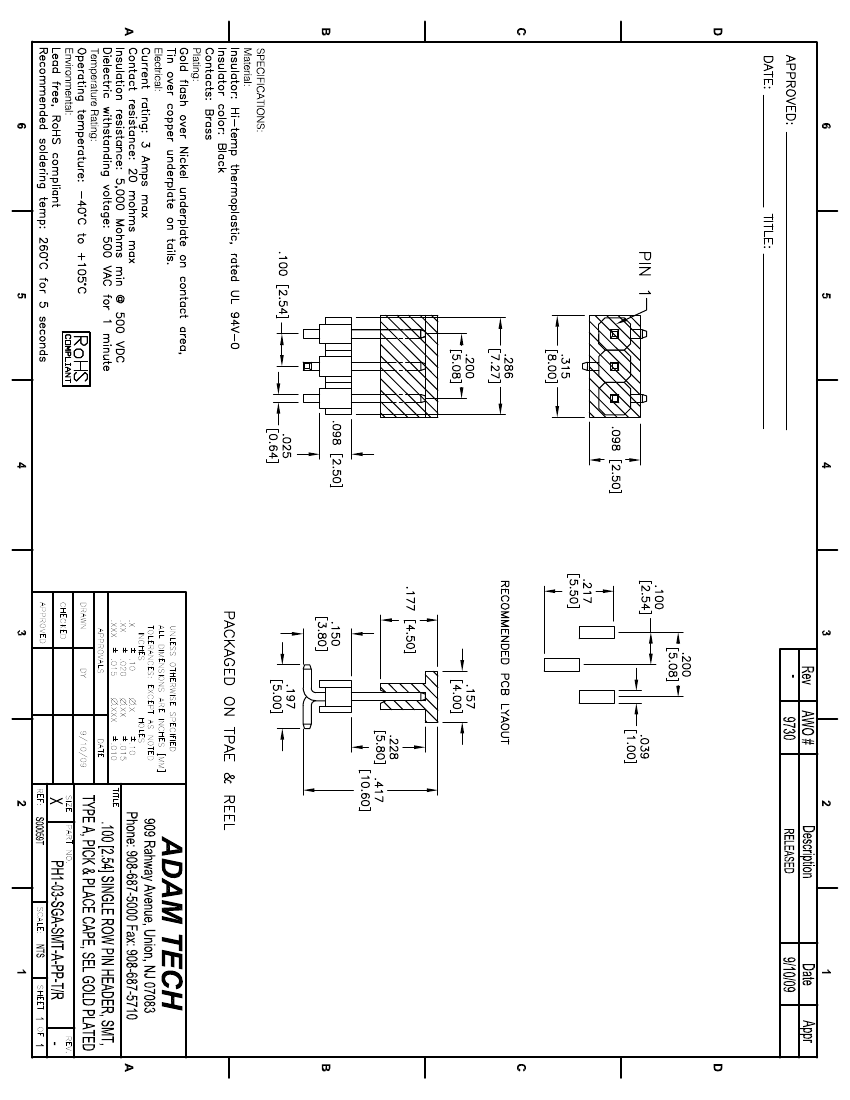

PH1-03-SGA-SMT-A-PP-T/R

Description
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size78KB,1 Pages
ManufacturerAdam Tech
Download Datasheet Parametric View All

PH1-03-SGA-SMT-A-PP-T/R Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

PH1-03-SGA-SMT-A-PP-T/R Parametric

Parameter NameAttribute value
MakerAdam Tech
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.098 inch
subject depth0.15 inch
body length0.315 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER COPPER
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability1000 Cycles
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
Manufacturer's serial numberPH1
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.7432 mm
Plating thicknessFLASH inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch5.08 mm
Termination typeSURFACE MOUNT
Total number of contacts3
