D02-M15PG-N-F0

Description
D Subminiature Connector, 15 Contact(s), Male, Crimp Terminal, Locking,
CategoryThe connector    The connector
File Size118KB,1 Pages
ManufacturerJapan Aviation Electronics Industry Limited
Environmental Compliance
Download Datasheet Parametric View All

D02-M15PG-N-F0 Online Shopping

Suppliers Part Number Price MOQ In stock
D02-M15PG-N-F0 - - View Buy Now

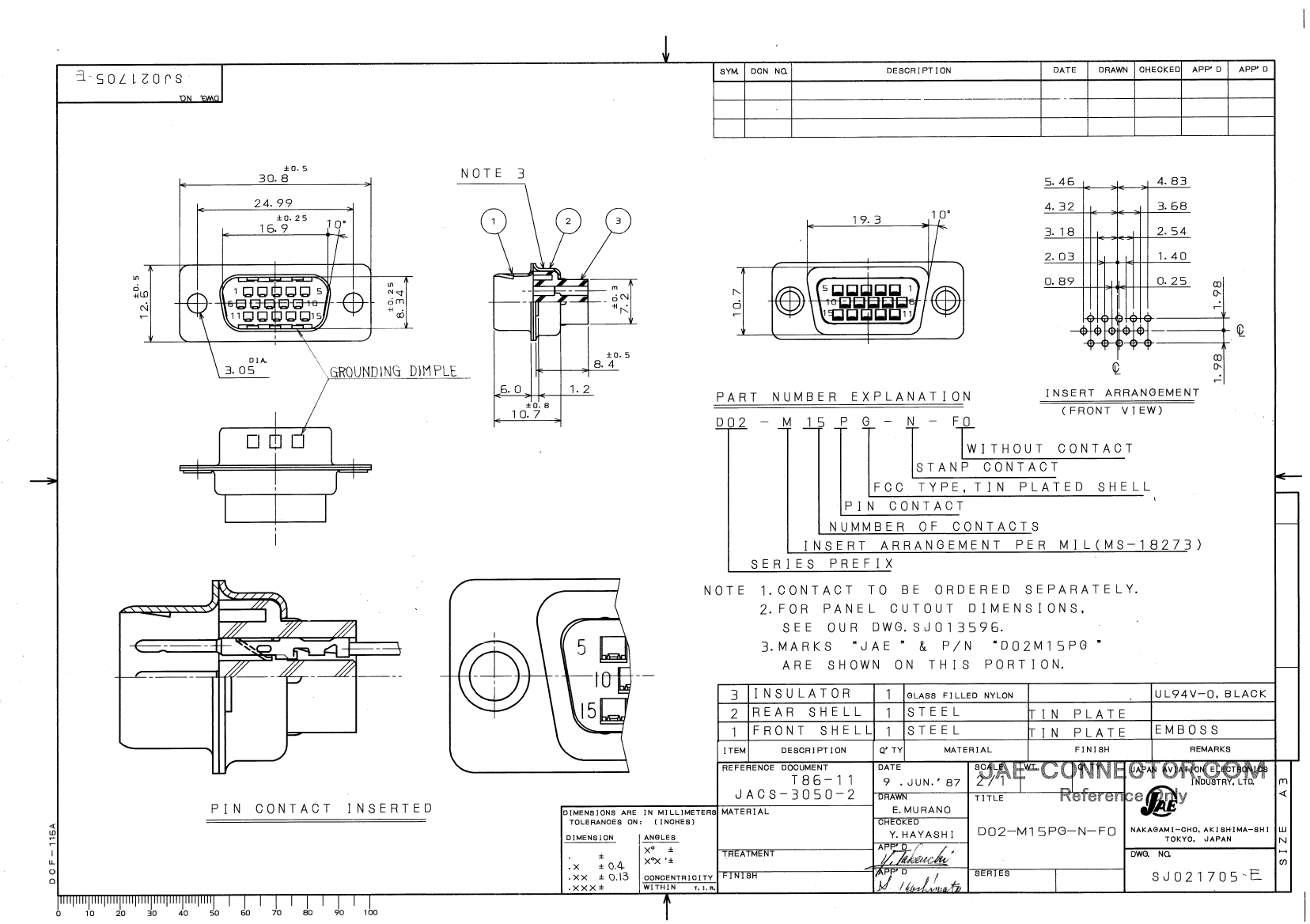

D02-M15PG-N-F0 Overview

D Subminiature Connector, 15 Contact(s), Male, Crimp Terminal, Locking,

D02-M15PG-N-F0 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerJapan Aviation Electronics Industry Limited
Reach Compliance Codeunknown
body width0.496 inch
body length1.213 inch
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1250VAC V
empty shellYES
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYAMIDE
MIL complianceNO
Match contact row spacing0.078 inch
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE AND PANEL
Number of rows loaded3
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Housing size2/A
Termination typeCRIMP
Total number of contacts15
Maximum wire diameter22 AWG
Minimum wire diameter28 AWG
