A full Design Manual is available to qualified customers.
To register, please send an email to
TimingandSync@Zarlink.com.
June 2009
Features
•
•
Recovers and transmits network synchronization
over Ethernet, IP and MPLS Networks
Simultaneously supports both the Synchronous
Ethernet and the IEEE1588 industry standard timing
protocols
Capable of server, client and repeater operation
Integrates two separate digital phase locked loops,
with hitless switching between packet and electrical
clock references
Primary DPLL meets Stratum 3E quality
Targeted for synchronization distribution to better
than ITU-T G.8261, G.823, G.824 and ANSI T1.101
synchronization interface standards
Average frequency accuracy better than ±10 ppb
Aligns to a low frequency input signal at server
(e.g., 1 Hz) with targeted accuracy better than ±1
μs
Recovers clocks from two independent servers, with
hitless switching between packet streams for
redundancy
Supports holdover if the server stream is lost
Accepts eight input references, and up to three
associated low frequency alignment or framing pulses
Generates up to four separate output clocks at
frequencies between 8 kHz and 100 MHz
•
Ordering Information
ZL30310GKG
256 TEPBGA, 17 x 17 mm
ZL30310GKG2
256 TEPBGA, 17 x 17 mm
-40°C to +85°C
Generates two separate Synchronous Ethernet
clocks to drive industry standard Ethernet PHY
devices at either 25 MHz or 125 MHz
Fully configurable solution, enabling performance
to be tailored to application/network requirements
Two independently configurable MAC interfaces,
supporting MII, RMII, GMII and TBI standards
Wire-speed Ethernet Bridge pass through function
between the MAC interfaces
Synchronous serial control interface
Full demonstration & evaluation platform available
•
•
•
•
•
•
•
•
•
•
•
•
Applications
•
•
•
•
•
•
IEEE 1588 and Synchronous Ethernet timing
GSM and UMTS air interface synchronization
over a packet network
Circuit Emulation Services over Packets
IP-PBX and VoIP Gateways
Video Conferencing
Broadband Video Distribution
ToP
•
•
•
P o rt M 2
N e tw o rk I/F
(G M II/T B I/M II/R M II)
osci
MAC
E th e rn e t B rid g e
MAC
P o rt M 1
P ro c e s s o r I/F
(G M II/T B I/M II/R M II)
M a s te r
O sc
osco
T im e s ta m p E n g in e
SSI
R e g is te r
A cc e s s I/F
PLL
re f0
re f1
re f2
re f3
re f4
re f5
re f6
re f7
sy n c 0
sy n c 1
sy n c 2
re f
n
In p u t P o rts
&
Ref
M o n ito rs
sync
n
APLL
DPLL 1
S tra tu m 3 E
P0
S y n th e s iz e r
ETH _C LK0
ETH _C LK1
p 0 _ c lk 0
p 0 _ c lk 1
p 0 _ fp 0
p 0 _ fp 1
p 1 _ c lk 0
p 1 _ c lk 1
re f
m
DPLL2
P1
S y n th e s iz e r
Figure 1 - ZL30310 Functional Block Diagram
1
Zarlink Semiconductor Inc.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright 2009, Zarlink Semiconductor Inc. All Rights Reserved.
ZL30310
Description
Data Sheet
Network infrastructures are gradually converging onto a packet-based architecture. With this convergence, there
are a significant number of synchronous applications that require accurate timing to be distributed over the packet
networks. Examples of precision timing sensitive applications that need the transport of synchronization over
packet networks include transport of TDM over packet networks, connections to 2 G and 3 G cellular base stations,
Voice over IP, IP PBXs, video-conferencing and broadband video.
There are two main ways to enable synchronization over a packet network, synchronizing the packet network itself,
as in the Synchronous Ethernet approach, or distributing the timing using the packets as in Zarlink’s Timing over
Packet (ToP) technology. The two techniques can also be combined to provide a very powerful hybrid solution.
Synchronous Ethernet delivers a very accurate frequency reference, but doesn’t address phase and time
synchronization. ToP can be used to supplement the excellent frequency distribution of Synchronous Ethernet with
accurate phase and time information. Alternatively, ToP can be used to extend the reach of the Synchronous
Ethernet reference across an asynchronous network, such as a LAN connected to a synchronous WAN.
Zarlink has combined both methods into a single device. The ZL30310 incorporates an extremely low-jitter
frequency synthesizer, capable of generating all the frequencies required for Synchronous Ethernet operation,
together with Zarlink’s patent-pending Timing over Packet (ToP) technology based on the industry-standard
IEEE1588
TM
“PTP” (Precision Time Protocol). Not only can it function as a fully-featured Digital PLL, it also
supports the distribution of time, phase and frequency across both layer 2 and layer 3 networks, using both
Synchronous Ethernet and IEEE1588 protocols, either alone or in combination.
The ZL30310 is a member of a family of footprint-compatible devices offering the full range of features required for
timing and synchronization across the packet network. These devices facilitate design of a flexible card that can be
upgraded as required by simply placing another member of the same family.
The family members include:
ZL30310
Combined IEEE1588
TM
ToP and Synchronous Ethernet, coupled with a GR-1244 Stratum 3E/3/4/4E
and GR-253 SONET and G.813 quality phase locked loop for timing card applications, plus a second
independent PLL for rate conversion or generation of additional derived clocks.
Combined IEEE1588
TM
ToP and Synchronous Ethernet, coupled with a GR-1244 Stratum 3/4/4E and
GR-253 SEONET and G.813 quality phase locked loop for timing card applications, plus a second
independent PLL for rate conversion or generation of additional derived clocks.
Combined IEEE1588
TM
ToP and Synchronous Ethernet, coupled with a GR1244 Stratum 3/4/4E and
G.813 Option 1 quality phase locked loop for timing card applications, plus a second independent PLL
for rate conversion or generation of additional derived clocks.
Combined IEEE1588
TM
ToP and Synchronous Ethernet, coupled with two independent, flexible phase
locked loops for line card applications
Combined IEEE1588
TM
ToP and Synchronous Ethernet for line card applications
Synchronous Ethernet line card device in a ToP compatible footprint, containing two independent DPLLs
ZL30312
ZL30314
ZL30316
ZL30320
ZL30321
2
Zarlink Semiconductor Inc.
ZL30310
The Zarlink device offers the following clock routing options:
Data Sheet
Input
clock reference
clock reference
clock reference
packet reference
clock and/or packet
reference
packet reference
clock
Output
Description
conventional PLL behaviour,
e.g., Synchronous Ethernet node
server behaviour,
e.g., IEEE1588 server
conventional PLL behaviour coupled with packet time server,
e.g., combined Synchronous Ethernet and IEEE1588 server
client behaviour,
e.g., IEEE1588 client
conventional PLL behaviour, coupled with packet time client,
either as fail-over from one to the other, or in combination
e.g., combined Synchronous Ethernet and IEEE1588 client
combination of client and repeater behaviour,
e.g., IEEE1588 repeater
packet stream
clock and/or packet
stream
clock
clock
clock and/or packet
stream
When operating as a server, the Zarlink device locks onto the incoming clock reference as a conventional PLL,
filtering any jitter that may be present. It also synchronizes to any low-frequency alignment signal, e.g., an 8 kHz
TDM frame pulse, or a 1 Hz alignment input. The device delivers streams of packets, each containing a timestamp
indicating the precise time that the packet was launched into the network, relative to the acquired reference. It also
receives packets from clients, and returns a message indicating the exact time that the client message was
received at the server. Using this information, clients are able to align their own timebase with that of the server.
As a client, the Zarlink device can track two independent servers, and determine which one is providing the best
time reference. If either the primary reference or the network between the server and client fails, the device can
switch to the alternative reference without introducing a phase discontinuity. Alternatively, the client can switch to a
conventional clock reference.
The solution timing recovery algorithm continuously tracks the frequency offset and phase drift between the clocks
located at the server and the client nodes connected via the packet switched network. The algorithm is tolerant of
lost packets, and of packet delay variation caused by packet queuing, route changes and other effects. In the event
of a failure in the packet network, or the advent of severe congestion preventing or seriously delaying the delivery of
timing packets, the device will put the recovered clocks into holdover until the flow of timing packets is restored.
When the device is in holdover mode the drift of the local oscillator directly affects the accuracy of the output clocks.
When using ToP technology, the device is designed to meet ANSI standard T1.101 and ITU-T standards G.823 and
G.824 for synchronization distribution. It maintains a mean frequency accuracy of better than ±10 ppb and time
alignment of better than ±1
μs
when operated over a suitable network.
3
Zarlink Semiconductor Inc.
c Zarlink Semiconductor 2006 All rights reserved.

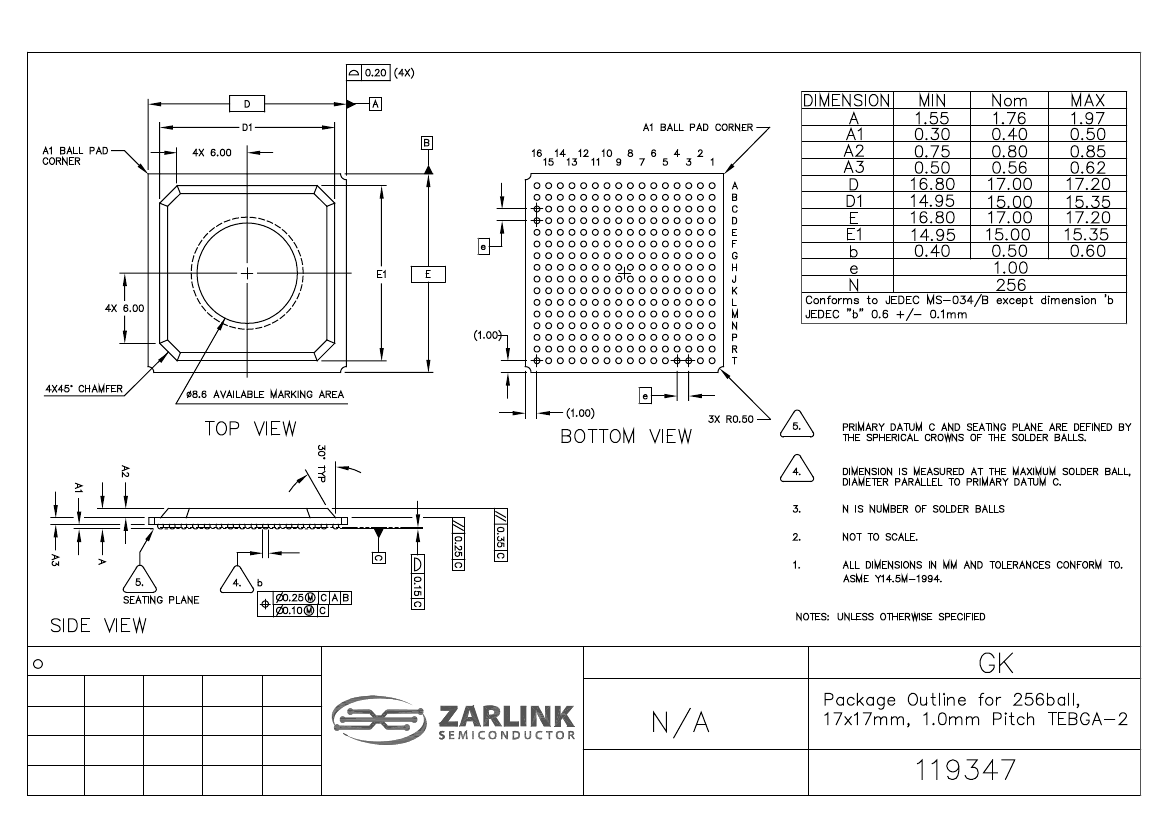

Package Code
Previous package codes
ISSUE
ACN
DATE
APPRD.
1
CDCA
24Aug06
2
For more information about all Zarlink products
visit our Web Site at
www.zarlink.com
Information relating to products and services furnished herein by Zarlink Semiconductor Inc. or its subsidiaries (collectively “Zarlink”) is believed to be reliable.
However, Zarlink assumes no liability for errors that may appear in this publication, or for liability otherwise arising from the application or use of any such
information, product or service or for any infringement of patents or other intellectual property rights owned by third parties which may result from such application or
use. Neither the supply of such information or purchase of product or service conveys any license, either express or implied, under patents or other intellectual
property rights owned by Zarlink or licensed from third parties by Zarlink, whatsoever. Purchasers of products are also hereby notified that the use of product in
certain ways or in combination with Zarlink, or non-Zarlink furnished goods or services may infringe patents or other intellectual property rights owned by Zarlink.
This publication is issued to provide information only and (unless agreed by Zarlink in writing) may not be used, applied or reproduced for any purpose nor form part
of any order or contract nor to be regarded as a representation relating to the products or services concerned. The products, their specifications, services and other
information appearing in this publication are subject to change by Zarlink without notice. No warranty or guarantee express or implied is made regarding the
capability, performance or suitability of any product or service. Information concerning possible methods of use is provided as a guide only and does not constitute
any guarantee that such methods of use will be satisfactory in a specific piece of equipment. It is the user’s responsibility to fully determine the performance and
suitability of any equipment using such information and to ensure that any publication or data used is up to date and has not been superseded. Manufacturing does
not necessarily include testing of all functions or parameters. These products are not suitable for use in any medical products whose failure to perform may result in
significant injury or death to the user. All products and materials are sold and services provided subject to Zarlink’s conditions of sale which are available on request.
Purchase of Zarlink’s I
2
C components conveys a license under the Philips I
2
C Patent rights to use these components in an I
2
C System, provided that the system
conforms to the I
2
C Standard Specification as defined by Philips.
