• 1N5819-1 AND 1N6761-1AVAILABLE IN
JAN,JANTX, JANTXV,
AND JANS
PER MIL-PRF-19500/586
• 1 AMP SCHOTTKY BARRIER RECTIFIERS
• HERMETICALLY SEALED
• METALLURGICALLY BONDED
1N5819
and
DSB5817 and DSB5818
and
1N6759 thru 1N6761
and
DSB1A20 thru DSB1A100
MAXIMUM RATINGS
Operating Temperature: -55°C to +125°C
Storage Temperature: -55°C to +150°C
Average Rectified Forward Current: 1.0 AMP @TL +55°C, L = 3/8”
Derating: 14 mA / °C above TL = +55°C, L = 3/8”
ELECTRICAL CHARACTERISTICS
@
25°C, unless otherwise specified.
CDI
TYPE
NUMBER
WORKING PEAK
REVERSE
VOLTAGE
VRWM
VOLTS
MAXIMUM FORWARD VOLTAGE
MAXIMUM REVERSE
LEAKAGE CURRENT
AT RATED VOLTAGE
I R@25°C
mA
0.10
0.10
0.10
0.05
I R@100°C
mA
5.0
5.0
5.0
5.0
VF@0.1A
VOLTS
0.36
0.36
0.36
0.34
VF@1.0A
VOLTS
0.60
0.60
0.60
0.49
VF@3.1A
VOLTS
0.9
0.9
0.9
0.8
DSB5817
DSB5818
1N5819
J,JX,JV & JS
5819-1
1N6759
1N6760
1N6761
J,JX,JV & JS
6761-1
DSB1A20
DSB1A30
DSB1A40
DSB1A50
DSB1A60
DSB1A80
DSB1A100
20
30
40
45
FIGURE 1
DESIGN DATA
CASE:
Hermetically sealed, DO – 41
LEAD MATERIAL:
Copper clad steel
60
80
100
100
0.38
0.38
0.38
0.38
0.69
0.69
0.69
0.69
NA
NA
NA
NA
0.10
0.10
0.10
0.10
6.0
6.0
6.0
12.0
LEAD FINISH:
Tin / Lead
THERMAL RESISTANCE: (R
OJEC): 70
˚C/W maximum at L = .375 inch
THERMAL IMPEDANCE: (Z
OJX): 12
˚C/W maximum
POLARITY:
Cathode end is banded.
20
30
40
50
60
80
100
0.36
0.36
0.36
0.36
0.38
0.38
0.38
0.60
0.60
0.60
0.60
0.69
0.69
0.69
0.9
0.9
0.9
0.9
NA
NA
NA
0.10
0.10
0.10
0.10
0.10
0.10
0.10
5.0
5.0
5.0
5.0
12.0
12.0
12.0
MOUNTING POSITION:
Any
22 COREY STREET, MELROSE, MASSACHUSETTS 02176
PHONE (781) 665-1071
FAX (781) 665-7379
WEBSITE: http://www.cdi-diodes.com
E-mail: mail@cdi-diodes.com
1N5819
and
DSB5817
and
DSB5818
and
1N6759
thru
1N6761
and
DSB1A20
thru
DSB1A100

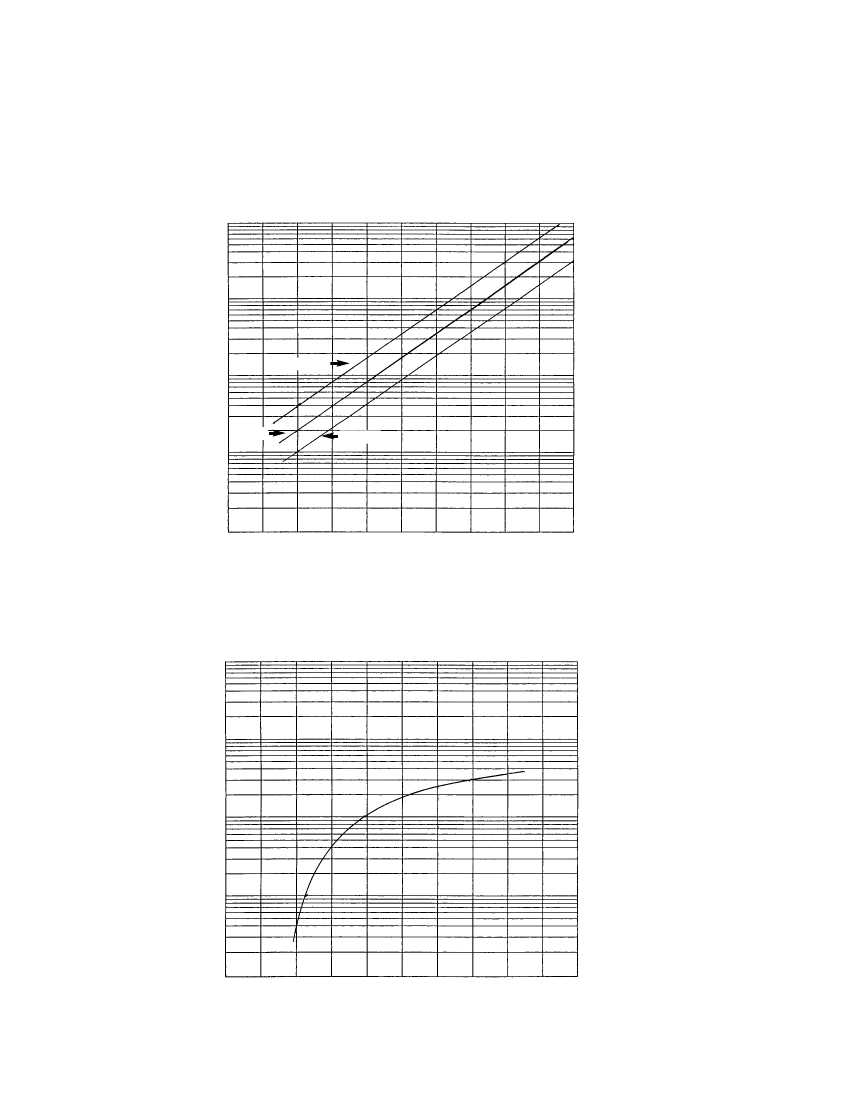

TYPICAL REVERSE LEAKAGE CURRENT AT RATED PIV (PULSED)
10.0
1.0
IR, REVERSE CURRENT (mA)
1N5819
0.1
DSB5818
DSB5817
0.01
0.001
+25
+50
+75
+100
+125
TJ , JUNCTION TEMPERATURE (°C)
FIGURE 1
TYPICAL FORWARD VOLTAGE
100.0
IF, FORWARD CURRENT, INSTANTANEOUS (AMPS)
10.0
1.0
0.1
0.01
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
VF, FORWARD VOLTAGE, INSTANTANEOUS (VOLTS)
FIGURE 2
