MOS2W151GTU: DescriptionFixed Resistor, Metal Oxide Film, 2W, 150ohm, 350V, 2% +/-Tol, 300ppm/Cel, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size36KB，1 Pages; ManufacturerHokuriku; Websitehttp://www.hdk.co.jp/english/index_e.htm; Environmental Compliance; Related ProductsFound13parts with similar functions to MOS2W151GTU

Download Datasheet Parametric View All

MOS2W151GTU Overview

Fixed Resistor, Metal Oxide Film, 2W, 150ohm, 350V, 2% +/-Tol, 300ppm/Cel, Through Hole Mount, AXIAL LEADED

MOS2W151GTU Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	AXIAL LEADED
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	FLAME PROOF
structure	Flameproof
Lead diameter	0.8 mm
Lead length	38 mm
Manufacturer's serial number	MOS
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	235 °C
Minimum operating temperature	-55 °C
Package diameter	4 mm
Package length	12 mm
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	TAPE
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	150 Ω
Resistor type	FIXED RESISTOR
series	MOS 1/2/3W
surface mount	NO
technology	METAL OXIDE FILM
Temperature Coefficient	300 ppm/°C
Terminal shape	WIRE
Tolerance	2%
Operating Voltage	350 V
Base Number Matches	1

Preview

Download Datasheet

View All

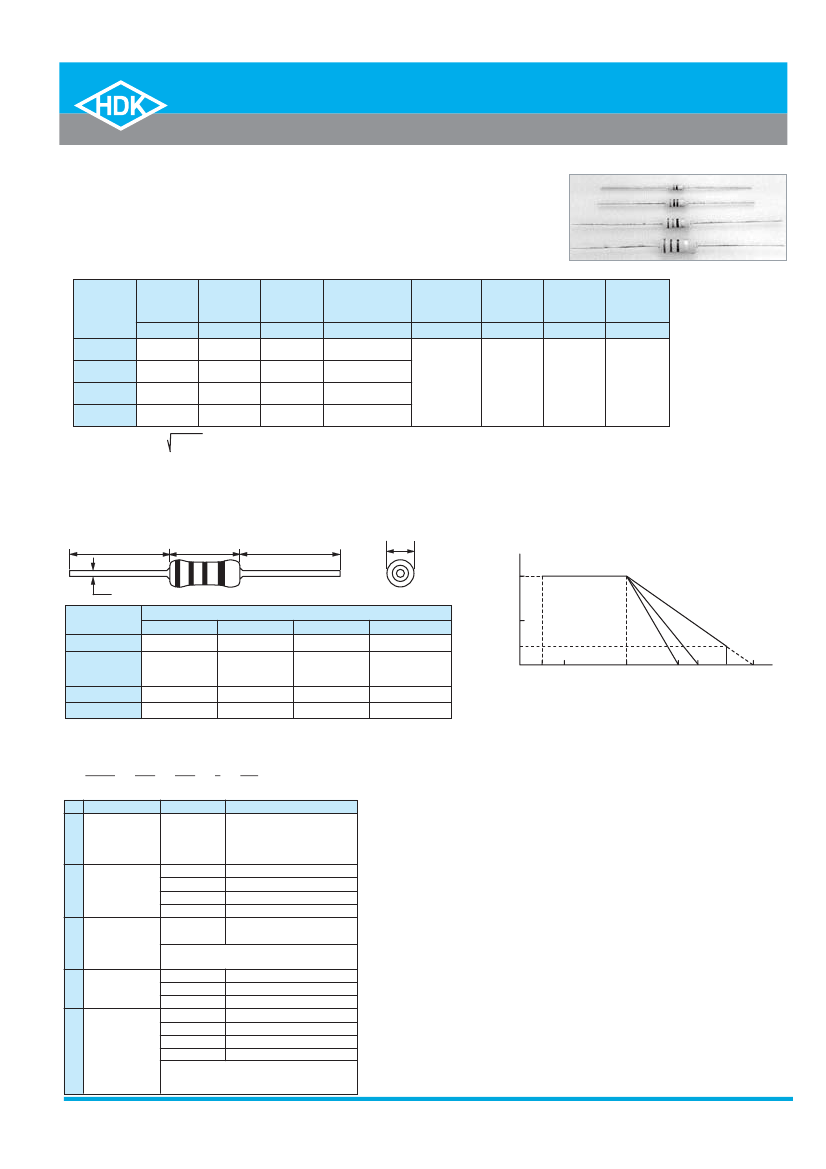

Miniature Paint Insulated Metal Oxide Film Fixed Resistors

Feature

Model No. "MOS" of metal oxide film resistor is the miniaturized high power dissipation.

The coating is flame proof (Silicon resin).

It is equivalent to UL94V-0.

Power Rating

Model No.

Power

Rating

W

MOS1/2W

MOS 1W

MOS 2W

MOS 3W

0.5

1.0

2.0

3.0

Max.

Working

Voltage

V

250

350

Max.

Overload Resistance Range

Voltage

V

400

600

0.1

10k

100k

T olerance

T .C.R.

ppm

2

5

10

(±5,±10,for less

than 0.2 )

Rating

Ambient

T emp.

Operating

T emp.

Range

300

70

-55

200

Rated Voltage: P R (P=Rated power (W), R=Nominal resistance( )) Rated Voltage shall be either the calculated rated voltage

or Max. Working Voltage whichever less.

Metal plated film is used for the low resistance value.

Dimensions

l

L

l

D

Derating Curve

Rated Power Ratio

100

d

Model No.

MOS1/2W

MOS 1W

MOS 2W

MOS 3W

6.5

9.0

L

1.0

1.5

Dimensions(mm)

D

l

2.2 0.5

30 3

3.5

4.0

5.5

1.0

30

38

3

d

0.6

0.1

0.05

0.65 0.1

(0.8 0.1)

0.8

0.1

50

20

0

-55

0

MOS1/2W

MOS2W

MOS3W

MOS1W

70

Ambient Temp

130 160

200 (235)

12.0

15.0

*Standard lead diameter of MOS1W is 0.65mm.

Model Designation

MOS 1W 102

Symbol

Model No.

MOS

1/2W

1W

2W

3W

102

Resistance

J

TU

Meaning

MINIAT URE PAINT

INSULAT ED FIXED MET AL

OXIDE FILM RESIST ORS,

FLAME PROOF

0.5W

1.0W

2.0W

3.0W

3 Digit

E-24 Series

Power Rating

For detail description about resistance marking,

please refer to "General Specifications."

T olerance

Forming

Packaging

G

J

K

NoMarking

T U,T P

RP,RY

L,LS

2.0

5.0

10.0

Bulk

Axial T aping

Radial T aping

Stand-off forming

For detail description about forming and taping

specification, please refer to Taping Specification

page in "General Specifications."

HOKURIKU

Specifications are subject to change without notice.

1
