FKC05-12D15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> FKC05-12D15

FKC05-12D15: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, DIP-23/10; CategoryPower/power management The power supply circuit; File Size339KB，3 Pages; ManufacturerAstrodyne TDI

Download Datasheet Parametric Compare View All

FKC05-12D15 Overview

DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, DIP-23/10

FKC05-12D15 Parametric

Parameter Name	Attribute value
Maker	Astrodyne TDI
Parts packaging code	DIP
package instruction	DIP-23/10
Contacts	23/10
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO -15V ADDITIONAL OUTPUT VOLTAGE AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	18 V
Minimum input voltage	9 V
Nominal input voltage	12 V
JESD-30 code	R-XDMA-P10
length	31.8 mm
Number of functions	1
Output times	2
Number of terminals	10
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	15.3 V
Minimum output voltage	14.7 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	5 W
Fine-tuning/adjustable output	NO
width	20.3 mm

Preview

Download Datasheet

View All

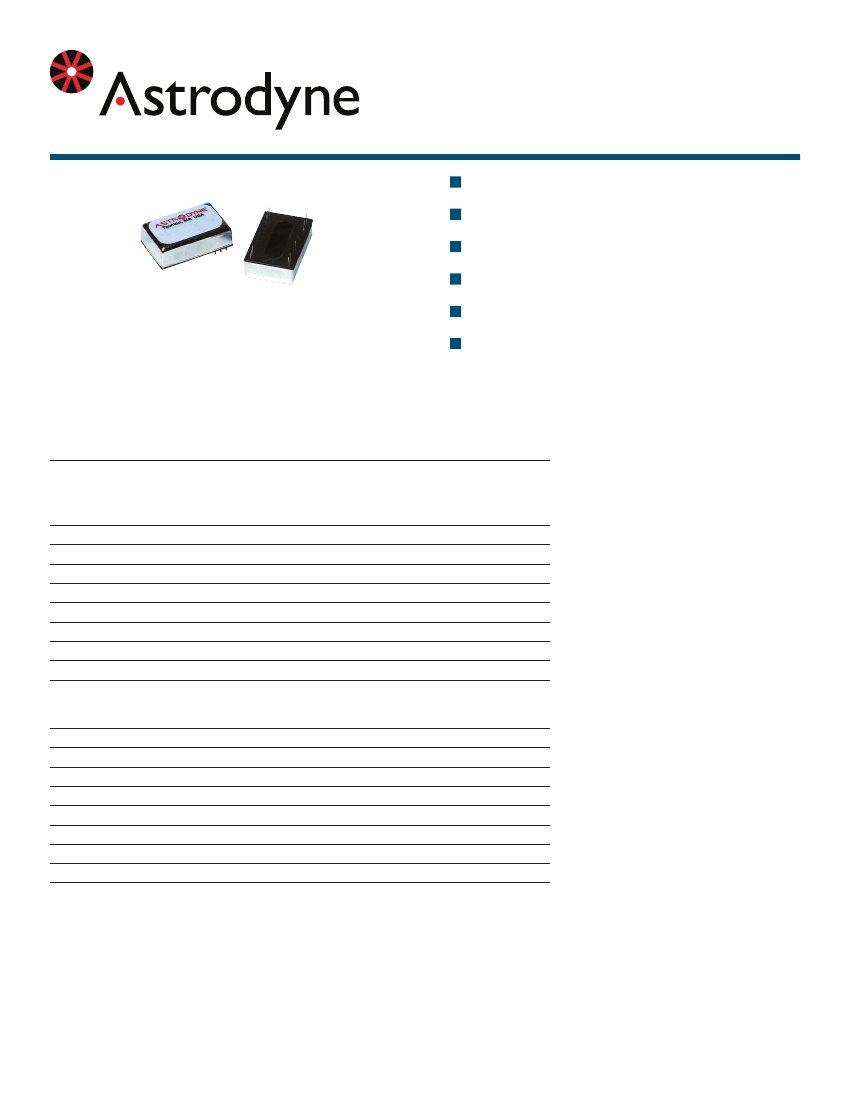

Is o la t ed a nd Re gu lated 5 WATT Modu lar DC/DC Conv er ter s

Wide 2 : 1 Input Range

High Efficiency

Regulated Outputs

500V Isolation

5 Sided EMI Shielding

Unit measures 0.8”W x 1.25”L x 0.4”H

fkc05

series

DIP Package

Model Number

SINGLE OUTPUT

FKC05-12S05

FKC05-24S05

FKC0-48S05

FKC05-12S12

FKC05-24S12

FKC05-48S12

FKC05-12S15

FKC05-24S15

FKC05-48S15

DUAL OUTPUT

FKC05-12D05

FKC05-24D05

FKC05-48D05

FKC05-12D12

FKC05-24D12

FKC05-48D12

FKC05-12D15

FKC05-24D15

FKC05-48D15

Output Voltage

Output mAmps

Input Range

5 VDC

12 VDC

15 VDC

470

400

+/-500

+/-230

+/-190

9-18 VDC

18-36 VDC

36-75 VDC

9-18 VDC

18-36 VDC

36-75 VDC

9-18 VDC

18-36 VDC

36-75 VDC

9-18 VDC

18-36 VDC

36-75 VDC

9-18 VDC

18-36 VDC

36-75 VDC

9-18 VDC

18-36 VDC

36-75 VDC

+/-5 VDC

+/-12 VDC

+/-15 VDC

WWW.ASTRODYNE.cOM

ASTRODYNE USA: 1-800-823-8082

ASTRODYNE PAcIfIc: 886-2-26983458

FKC05-12D15 Related Products

	FKC05-12D15	FKC05-12D12	FKC05-12S12	FKC05-24D05	FKC05-12S15	FKC05-24D12	FKC05-24D15	FKC05-24S15	FKC05-24S12	FKC05-12D05
Description	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, DIP-23/10	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, DIP-23/10	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, DIP-23/10	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, DIP-23/10	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, DIP-23/10	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, DIP-23/10	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, DIP-23/10	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, DIP-23/10	DC-DC Regulated Power Supply Module, 1 Output, 5W, Hybrid, DIP-23/10	DC-DC Regulated Power Supply Module, 2 Output, 5W, Hybrid, DIP-23/10
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP-23/10	DIP-23/10	DIP-23/10	DIP-23/10	DIP-23/10	DIP-23/10	DIP-23/10	DIP-23/10	DIP-23/10	DIP-23/10
Contacts	23/10	23/10	23/10	23/10	23/10	23/10	23/10	23/10	23/10	23/10
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	18 V	18 V	18 V	36 V	18 V	36 V	36 V	36 V	36 V	18 V
Minimum input voltage	9 V	9 V	9 V	18 V	9 V	18 V	18 V	18 V	18 V	9 V
Nominal input voltage	12 V	12 V	12 V	24 V	12 V	24 V	24 V	24 V	24 V	12 V
JESD-30 code	R-XDMA-P10	R-XDMA-P10	R-XDMA-P10	R-XDMA-P10	R-XDMA-P10	R-XDMA-P10	R-XDMA-P10	R-XDMA-P10	R-XDMA-P10	R-XDMA-P10
length	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm	31.8 mm
Number of functions	1	1	1	1	1	1	1	1	1	1
Output times	2	2	1	2	1	2	2	1	1	2
Number of terminals	10	10	10	10	10	10	10	10	10	10
Maximum operating temperature	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	15.3 V	12.24 V	12.24 V	5.1 V	15.3 V	12.24 V	15.3 V	15.3 V	12.24 V	5.1 V
Minimum output voltage	14.7 V	11.76 V	11.76 V	4.9 V	14.7 V	11.76 V	14.7 V	14.7 V	11.76 V	4.9 V
Nominal output voltage	15 V	12 V	12 V	5 V	15 V	12 V	15 V	15 V	12 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W	5 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
width	20.3 mm	20.3 mm	20.3 mm	20.3 mm	20.3 mm	20.3 mm	20.3 mm	20.3 mm	20.3 mm	20.3 mm
Maker	Astrodyne TDI	-	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI	Astrodyne TDI
Other features	ALSO -15V ADDITIONAL OUTPUT VOLTAGE AVAILABLE	ALSO -12V ADDITIONAL OUTPUT VOLTAGE AVAILABLE	-	ALSO -5V ADDITIONAL OUTPUT VOLTAGE AVAILABLE	-	ALSO -12V ADDITIONAL OUTPUT VOLTAGE AVAILABLE	ALSO -15V ADDITIONAL OUTPUT VOLTAGE AVAILABLE	-	-	ALSO -5V ADDITIONAL OUTPUT VOLTAGE AVAILABLE
