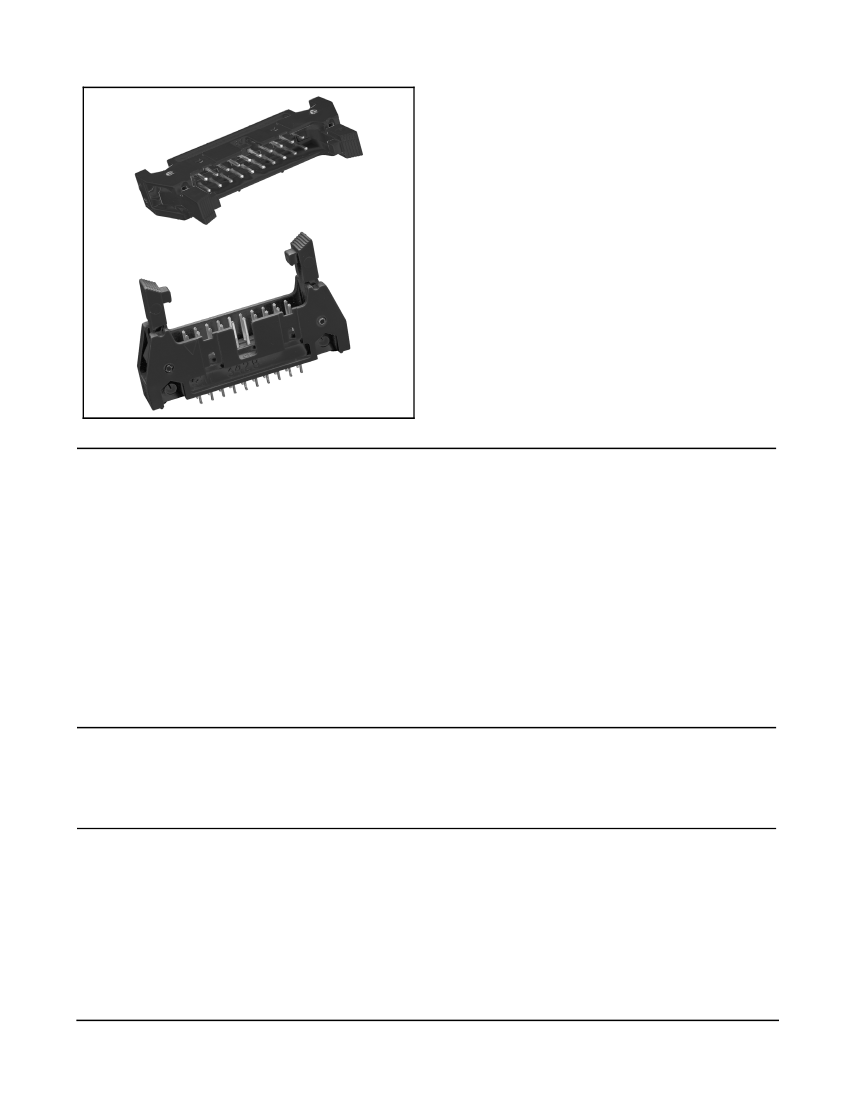

3M
™
Pak 100 4-Wall Header
.100″
×
.100″ Latch/Ejector, Straight and Right Angle
3000 Series
• Military (with 3M's 3518 polarizing key) and
centerbump polarization
• Standard ejector latches
• Mounting holes for securing header to board
• RoHS* compliant
• Optional polarizing posts
• High temperature insulator suitable for “no
lead” soldering operations
• Suitable for reflow soldering using “paste in
hole” techniques
Date Modified: January 7, 2005
TS-0772-04
Sheet 1 of 4
Physical
Insulator
Material: Glass Filled Polyester (PCT)
Flammability:
UL 94V-0
Color: Black
Contact
Material: Copper Alloy
Plating
Underplating:
Wiping Area:
Solder Tails:
Terminal Finish Indicator:
100
µ″
[ 2.54
µm
] Nickel - Overall
30
µ″
[ 0.76
µm
] Gold
200
µ″
[ 5.08
µm
] Matte Tin
e3 (per JESD97)
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating:
1 A
Insulation Resistance:
>1
×
10
9
Ω
at 500 Vdc
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
-55°C to +105°C
Process Rating:
Maximum 260°C, single pass, (profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
Temperature Rating:
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
*RoHS = Directive 2002/95/EC,
Restriction on the Use of Certain Hazardous Substances in Electrical and Electronic Equipment.
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 100 4-Wall Header
-X202
Header with
Short Ejector/Latch
for 3M Sockets without
Strain Relief
.100″
×
.100″ Latch/Ejector, Straight and Right Angle
-X302
Header with
Long Ejector/Latch
for 3M Sockets with
Strain Relief
3000 Series

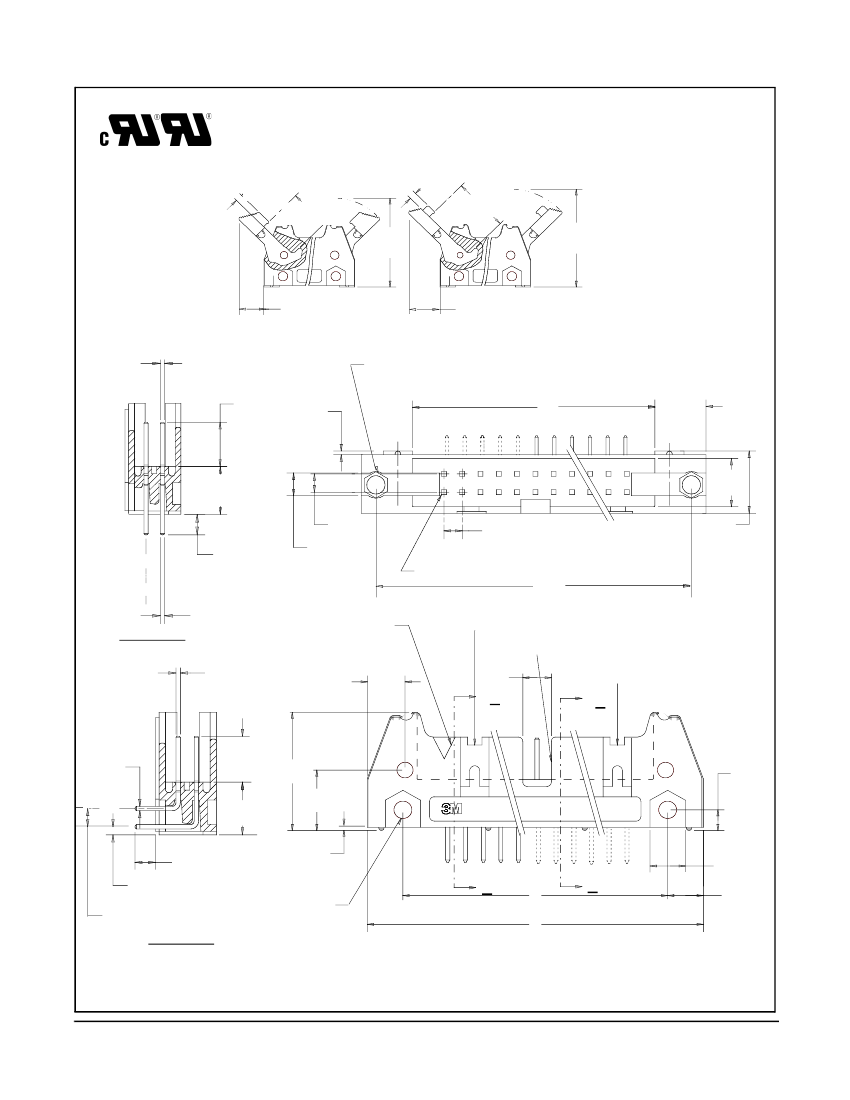

.08
[2.0]
.424
±
.010
[ 10.77 ]
.97 Ref
[24.6]
.08
[2.0]
.573
±
.010
[ 14.55 ]
1.07 Ref
[27.2]
.37 Ref
[9.4]
.46 Ref
[11.7]
.025
±
.002 Sq Typ
[ 0.64 ]
.24
[6.1]
2X ø.100
[2.54]
(See Note 2)
.020
[0.51]
D
.28
[7.1]
.30
[7.6]
.100 Ref
[2.54]
C
L
“Y”
.0245 Typ
Position 1
Orientation
Triangle
Notch A
(See Table 1 & Note1)
Notch B
(See Table 1)
.16
[4.1]
Notch C
(See Table 1 & Note 1)
.112
±
.010
[2.84]
.12
[3.0]
.25
[6.4]
.100 Ref
[2.54]
Position 1
B
.34
[8.3]
Section A-A
(Straight)
.025
±
.002 Sq Typ
[ 0.64 ]
.21
[5.3]
A
B
.0245 Typ
.24
[6.1]
.68
[17.3]
.35
[8.9]
C
L
“Y”
.30
[7.6]
.112
±
.010
[2.84]
.049 Ref
[1.24]
.100 Ref
[2.54]
.020
[0.51]
A
2X ø .100
[2.54]
(See Note 2)
C
A
B
.197
[5.00]
.20
[5.1]
Section B-B
(Right Angle)
TS-0772-04
Sheet 2 of 4
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 100 4-Wall Header
Table 1
Pin
Quantity
3M Part
Number
Dimensions
A
B
C
D
.100″
×
.100″ Latch/Ejector, Straight and Right Angle
Polarization
Notches Provided
3000 Series
10
14
16
20
24
26
30
34
40
50
60
64
3793
3314
3408
3428
3627
3429
3440
3431
3432
3433
3372
3764
1.26 [32.1]
1.46 [37.2]
1.56 [39.7]
1.76 [44.8]
1.96 [49.8]
2.06 [52.4]
2.26 [57.4]
2.46 [62.6]
2.76 [70.2]
3.26 [82.9]
3.76 [95.6]
3.96 [100.7]
1.105 [28.07]
1.305 [33.15]
1.405 [35.69]
1.605 [40.77]
1.805 [45.85]
1.905 [48.39]
2.105 [53.47]
2.305 [58.55]
2.605 [66.17]
3.105 [78.87]
3.605 [91.57]
3.805 [96.65]
ø.116
[2.95]
(See Note 2)
.035
[0.89]
Dia
or
.865 [21.97]
1.065 [27.05]
1.165 [29.59]
1.365 [34.67]
1.565 [39.75]
1.665 [42.29]
1.865 [47.37]
2.065 [52.45]
2.365 [60.07]
2.865 [72.77]
3.365 [85.47]
3.565 [90.55]
.71 [18.0]
.91 [23.1]
1.01 [25.6]
1.21 [30.7]
1.41 [35.8]
1.51 [38.3]
1.71 43.43]
1.91 [48.5]
2.21 [56.1]
2.71 [68.8]
3.21 [81.5]
3.41 [86.6]
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ø.106 or ø.116
[2.95]
[2.69]
.41
(See Note 2)
[10.4]
Max to Edge of PCB
.035
for Daisy Chain
[0.89]
Dia
Inch
[mm]
Tolerance Unless Noted
.0
±
.1
.00
.000
±
.01
±
.005
Inch
[ ] Dimensions for
Reference only
ø.106
[2.69]
.300
[7.62]
Side to Side Stackability
“Y”
C
L
"Y"
C
L
Position 1
.100
±
.003
[2.54]
.232
[5.89]
C
.060
[1.52]
Position 1
.100
±
.003
[2.54]
.352
[8.94]
.029
[0.74]
.100
±
.003
[2.54]
.100
±
.003
[2.54]
B
Recommended Mounting Hole Pattern
(Straight)
Recommended Mounting Hole Pattern
(Right Angle)
Notes:
1. Notches A & C will accomodate 3M Polarizing Keys (3M Part #N3518).
2. Mounting hardware: From solder side of pc board use #4-24 thread cutting screw (3M Part # 3341-5) and .116 [2.95]
dia mounting hole. For right angle version only, #2-56 bolt and nut (3M Part # 3341-6) with .106 [2.69] dia mounting hole
may be used.
3. .112 [2.84] tail length suitable for .062 [1.57] thick pc board.
4. Contact tails .0245 [0.622] crowned wire with .0075 [0.191] corner radii & .028 [.072] diagonal.
5. Contact your 3M sales representative for custom requirements.
Ordering Information
NXXXX-XX02RB
3M Part Number
(See Table 1)
Pin Configuration
5 = Right Angle
6 = Straight
Latch/Ejector System
2 = Short Roll Pin Latch/Ejectors
(3M Part # N3505-2)
3 = Long Roll Pin Latch/Ejectors
(3M Part # N3505-3)
TS-0772-04
Sheet 3 of 4
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pak 100 4-Wall Header
Mounting Hardware
3341-5
(Installed from bottom of board)
3341-6
(Right angle product only)
.100″
×
.100″ Latch/Ejector, Straight and Right Angle, Accessories
Polarizing Post
.321
[8.15]
3000 Series
Part N um ber
3 2 0 1 -4
M a te ria l
LCP
C o lo r
B la c k
.31
[7.9]
.50
[12.7]
.100 Dia
[2.54]
Note: Insert Post into one mounting hardware hole on
bottom of header. Set post to protrude .115″.
Panhead Thread Cutting Screw:
#4-24 X 5/16″
Type: USA Std BT, Federal BG
Hex Head Bolt, Nut and Washer
Bolt - #2-56 X 1/2″
3341-5 & 6
Material - Stainless Steel
Polarizing Keys
Part N um ber M aterial
N 3518
N ylon
C olor
B lack
D im A
0.02
Breakaway Tab
.34 Ref
[8.6]
A
.15
[3.8]
.09
[2.3]
Note: #2216 B/A Scotchweld can be used to adhere keys.
TS-0772-04
Sheet 4 of 4
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
