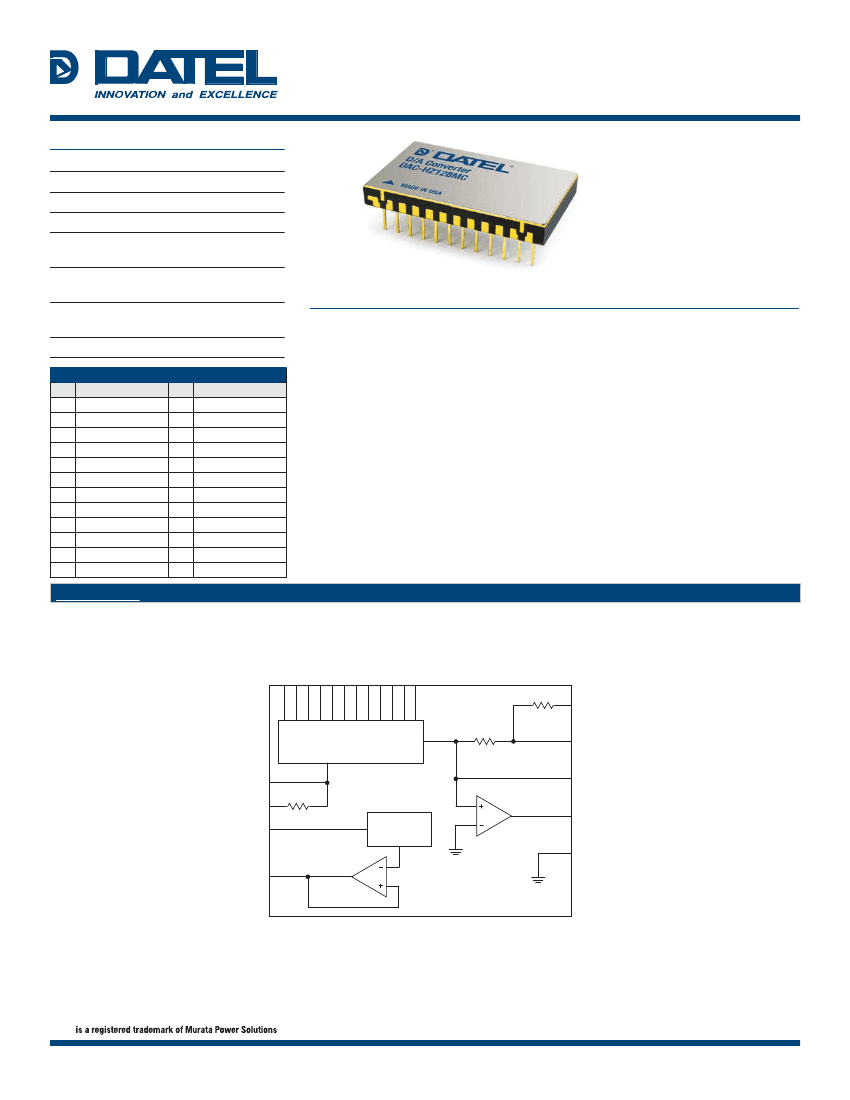

DAC-HZ Series
12-Bit, Industry-Standard Digital-to-Analog Converters
FEATURES
12-Bit binary and 3-digit BCD models
Output ranges
7
Vout settling time
3μs
300ns Iout settling time
Guaranteed monotonicity over full temperature
range
Integral nonlinearity ±1/2LSB (binary) and
±1/4LSB (BCD), maximum
Differential nonlinearity ±3/4LSB (binary) and
±1/4LSB (BCD), maximum
High-reliability QL versions available
INPUT/OUTPUT CONNECTIONS
PIN FUNCTION
PIN
1
2
3
4
5
6
7
8
9
10
11
12
BIT 1 (MSB)
BIT 2
BIT 3
BIT 4
BIT 5
BIT 6
BIT 7
BIT 8
BIT 9
BIT 10
BIT 11
BIT 12 (LSB)
24
23
22
21
20
19
18
17
16
15
14
13
PRODUCT OVERVIEW
The DAC-HZ Series are high-performance,
monolithic, 12-bit binary and 3-digit BCD, digital-
to-analog converters. The DAC-HZ Series are com-
plete and self-contained with a precision internal
reference and fast output operational amplifier. Pin
programmable output voltage and current ranges
are provided for a high degree of application flex-
ibility; the binary versions offer 5 output voltage
ranges and two current ranges while the BCD
models offer 3 and 1 output ranges, respectively.
The DAC-HZ Series contains a precision embedded
Zener reference circuit. This eliminates code-
dependent ground currents by routing current from
the positive supply to the internal ground node
as determined by the R-2R ladder network. The
internal feedback resistors for the on-board ampli-
fier track the ladder network resistors, enhancing
temperature performance. The excellent tracking
of the resistors results in temperature coefficients
for differential nonlinearity, zero and gain of ±2, ±3
and ±20ppm/°C maximum, respectively.
FUNCTION
REFERENCE OUT
GAIN ADJUST
+15V SUPPLY
GROUND
CURRENT OUTPUT
20V RANGE
10V RANGE
BIPOLAR OFFSET
REFERENCE IN
VOLTAGE OUTPUT
–15V SUPPLY
NO CONNECTION
BLOCK DIAGRAM
1
2
4
8
10
20
40
80
100
200
400
800
BITS BCD
BITS BINARY
MSB 1 2 3 4 5 6 7 8 9 10 11 12 LSB
1 2 3 4 5 6 7 8 9 10 11 12
5k
19 20V RANGE
(4k , BCD)
5k
D/A CONVERTER
(4k , BCD)
18 10V RANGE
REFERENCE IN 16
6.3k
*
BIPOLAR OFFSET 17
*
FOR BCD MODELS,
THIS RESISTOR IS
OPEN CIRCUIT.
20 CURRENT OUTPUT
15 VOLTAGE OUTPUT
GAIN ADJUST 23
+6.3V
REFERENCE
21 GROUND
REFERENCE OUT 24
22
+15V
SUPPLY
14
–15V
SUPPLY
13
NO INTERNAL
CONNECTION
Figure 1. DAC-HZ Functional Block Diagram
DATEL
•
11 Cabot Boulevard, Mansfield, MA 02048-1151 USA •
Tel: (508) 339-3000
•
www.datel.com
• e-mail: help@datel.com
MDA_DAC-HZ.B03
Page 1 of 5
®
®
DAC-HZ Series
12-Bit, Industry-Standard Digital-to-Analog Converters
ABSOLUTE MAXIMUM RATINGS
PARAMETERS
Positive Supply, Pin 22
Negative Supply, Pin 14
Digital Input Voltage, Pins 1–12
Output Current, Pin 15
Lead Temperature (soldering, 10s)
LIMITS
+18
–18
+5.5
±20
300
UNITS
Volts
Volts
Volts
mA
°C
FUNCTIONAL SPECIFICATIONS
(Typical at +25°C and ±15V supplies unless otherwise noted.)
DESCRIPTION
INPUTS
DAC-HZ12B (BINARY) DAC-HZ12D (BCD)
Resolution
12 binary bits
3 BCD digits
Coding, Unipolar Output
Comp. binary
Comp. BCD
Coding, Bipolar Output
Comp. off. binary
—
Input Logic Level, Bit ON ("0")
0V to +0.8V at –1mA
Input Logic Level, Bit OFF ("0")
+2.4V to +5.5V at +40μA
Logic Loading
1 TTL load
PERFORMANCE
➀
Voltage Output Nonlinearity
±1/2LSB max.
±1/4LSB max.
Differential Nonlinearity
±3/4LSB max
±1/4LSB max.
Gain Error, Before Trimming
*
±0.1%
➁
Zero Error, Before Trimming
*
±0.1% of FSR
➁
Gain Tempco, maximum
±20ppm/°C
*
Zero Tempco, Unipolar, max.
±3ppm/°C of FSR
*
Offset Tempco, Bipolar, max.
±10ppm/°C of FSR
*
Diff. Nonlinearity Tempco, max.
±2ppm/°C of FSR
*
Monotonicity
Over oper. temp. range
*
300ns
*
Settling Time, IOUT to ±1/2LSB
➂
Settling Time, VOUT to ±1/2LSB
*
3μs
➃
Slew Rate
±10V/μs
*
Power Supply Rejection
±0.006%FSR/%Sup.
*
OUTPUTS
Output Current, Unipolar
0 to –2mA, ±20%
0 to –1.25mA, ±10%
Output Current, Bipolar
±1mA, ±20%
—
Compliance Voltage, IOUT
±2.5V
*
Output Impedance, IOUT, Unipolar
2kΩ
*
Output Impedance, IOUT, Bipolar
2kΩ
—
Output Voltage Ranges, Unipolar
0 to +5V
0 to +2.5V
0 to +10V
0 to +5V
0 to +10V
Output Voltage Ranges, Bipolar
±2.5V
—
±5V
—
±10V
—
Output Current, VOUT
±5mA min.
*
Output Impedance, VOUT
0.05Ω
*
POWER REQUIREMENTS
Power Supply Voltages
+15V, ±0.5V at 16mA
–15V, ±0.5V at 20mA
±12V operation
➄
Power Dissipation, maximum
500mW
PHYSICAL/ENVIRONMENTAL
Operating Temperature Range,
0°C to +70°C (BMC, BGC, DMC, DGC, BMC-C,
Case
BGC-C, DMC-C, DGC-C)
–40°C to +100°C (BME, BME-C, DME, DME-C)
–55°C to +125°C (BMM, BMM-QL, DMM, DMM-
QL, BMM-C, BMM-QL-C, DMM-C, DMM-QL-C)
Storage Temperature Range
–65°C to +150°C
Package Type
24-pin DDIP
Weight
0.22 ounces (6.3 grams)
* Specifications same as first column.
— No equivalent specifications
Footnotes:
➀
FSR is full-scale range and is 10V for 0 to +10V or –5V to +5V outputs,
20V for ±10V output, etc.
➁
Initial gain and offset errors are trimmable to zero. See Connection
Diagrams.
➂
Current output mode.
➃
For 2.5kΩ or 5kΩ feedback. For 10kΩ feedback, the settling time is 4μs.
➄
For ±12V operation of binary models, contact factory.
DATEL
•
TECHNICAL NOTES
1. The DAC-HZ12 Series converters are designed and factory calibrated to
give ±1/2LSB linearity (binary version) and ±1/4LSB linearity (BCD version)
with respect to a straight line between end points. This means that if zero
and full scale are exactly adjusted externally, the relative accuracy will be
±1/2LSB (±1/4LSB, BCD version) everywhere over the full output range
without any additional adjustments.
2. These converters must be operated with local supply bypass capaci-
tors from +15V to ground and –15V to ground. Tantalum type capacitors of
1μF are recommended and should be mounted as close as possible to the
converter. If the converters are used in a high-frequency noise environment, a
0.01μF ceramic capacitor should be used across each tantalum capacitor.
3. When operating in the current output mode, the equivalent internal current
source of 2mA (1.25mA, BCD) must drive both the internal source resistances
and the external load resistor. A 300ns output settling time is achieved for
the voltage across a 100Ω load resistor; for higher value resistors the settling
time becomes longer due to the output capacitance of the converter. For
fastest possible voltage output for a large transition, an external fast-settling
amplifier such as DATEL’s AM-500 should be used in the inverting mode. Set-
tling time of less than 1μs can be achieved. See application diagram.
CALIBRATION PROCEDURE
Select the desired output voltage range and connect the converter as shown
in the Output Range Selection Table and the Connection Diagrams. Refer to
the Coding Tables.
1. Select the desired output range and connect the converter as shown in the
Output Range Selection tables and the connection diagrams.
2. To calibrate, refer to the coding tables. Note that complementary coding is
used.
3.
Zero and Offset Adjustments.
For unipolar operation set all digital inputs
to "1" (+2.0 to +5.5V) and adjust the ZERO ADJUST potentiometer for zero
output voltage or current. For bipolar operation set all digital inputs to "1"
and adjust the OFFSET ADJUST potentiometer for the negative full scale
(for voltage out) or positive full scale (for current out) output value shown
in the coding table.
4.
Gain Adjustment.
Set all digital inputs to "0" (0V to +0.8V) and adjust the
GAIN ADJUST potentiometer for the positive full scale (for voltage out) or
negative full scale (for current out) output value shown in the coding table.
11 Cabot Boulevard, Mansfield, MA 02048-1151 USA •
Tel: (508) 339-3000
•
www.datel.com
• e-mail: help@datel.com
MDA_DAC-HZ.B03
Page 2 of 5
®
®
DAC-HZ Series
12-Bit, Industry-Standard Digital-to-Analog Converters
CONNECTION DIAGRAMS
BIT
LSB 12
11
10
9
8
DIGITAL 7
INPUTS 6
5
4
3
2
MSB
1
12
11
10
9
8
7
6
5
4
3
2
1
13
14
15
16
17
18
19
20
21
22
23
24
+15V
1μF
C (0.001
TO 0.01μF)
1μF
BIT
LSB 12
12
11
10
9
8
7
6
5
4
3
2
1
13
14
15
16
17
18
19
20
21
22
23
24
–15V
V
OUT
= 0 TO +10V
+15V
2.2MΩ
11
10
9
8
DIGITAL 7
INPUTS 6
5
4
3
2
MSB
1
–15V
1μF
ZERO ADJUST
10kΩ TO 100kΩ
–15V
+15V
2.2MΩ
I
OUT
= 0 TO –2mA
C (0.001
TO 0.01μF)
1μF
ZERO ADJUST
10kΩ TO 100kΩ
–15V
GAIN ADJUST
10kΩ TO 100kΩ
+15V
V
OUT
= 0 TO –200mV
100Ω
2.8MΩ
DAC-HZ12B
or DAC-HZ12D
(BOTTOM VIEW)
DAC-HZ12B
or DAC-HZ12D
(BOTTOM VIEW)
2.8MΩ
+15V
–15V
GAIN ADJUST
10kΩ TO 100kΩ
+15V
Figure 2. Unipolar Voltage Output Connections
Figure 3. Unipolar Current Output Connections
6.3kΩ *
17 BIPOLAR OFFSET
R
R
CURRENT OUT
20
I
R
EQ
21
DAC-HZ12B or DAC-HZ12D
GND
V
OUT
BIT
LSB 12
11
10
L
12
11
10
9
8
7
6
5
4
3
2
1
13
14
15
16
17
18
19
20
21
22
23
24
+15V
1μF
C (0.001
TO 0.01μF)
1μF
–15V
V
OUT
= –5 TO +5V
+15V
2.2MΩ
+
6.3V
R
O
I
OUT
5kΩ
9
R
L
8
DIGITAL 7
INPUTS 6
5
4
3
2
MSB
1
–
ZERO ADJUST
10kΩ TO 100kΩ
–15V
GAIN ADJUST
10kΩ TO 100kΩ
+15V
*This resistor is open circuit for BCD models
V
OUT
= ±2.5V Maximum
(Output compliance voltage)
R
EQ
= R
O
= 5k for unipolar operation
R
EQ
= R
R
|| R
O
= 2.8k for bipolar operation
I
OUT
= 2mA binary
= 1.25mA BCD
2.8MΩ
DAC-HZ12B
(BOTTOM VIEW)
Figure 5. Bipolar Voltage Output Connections
Figure 4. Equivalent Current Mode Output Circuit
BIT
LSB 12
11
10
9
8
DIGITAL 7
INPUTS 6
5
4
3
2
MSB
1
17 BIPOLAR OFFSET
DAC-HZ12B
or
DAC-HZ12D
18 10V RANGE
19 20V RANGE
20 CURRENT OUT
Pin 20 or 21
12
11
10
9
8
7
6
5
4
3
2
1
13
14
15
16
17
18
19
20
21
22
23
24
–15V
1μF
ZERO ADJUST
10k
TO 100k
–15V
+15V
A
X
2.2M
I
OUT
= ±1mA
C (0.001
TO 0.01μF)
1μF
V
OUT
±100mV
100
A = External high-speed inverting op amp; use DATEL's AM-500
for less than 1μsec output settling.
Refer to the output range selection tables, Tables 1 and 2.
Wherever pin 15 appears, use pin X of the external amplifier and
scale as desired.
DAC-HZ12B
(BOTTOM VIEW)
2.8M
+15V
–15V
GAIN ADJUST
10k TO 100k
+15V
Figure 7. Using a High-Speed External Op Amp for Faster Settling

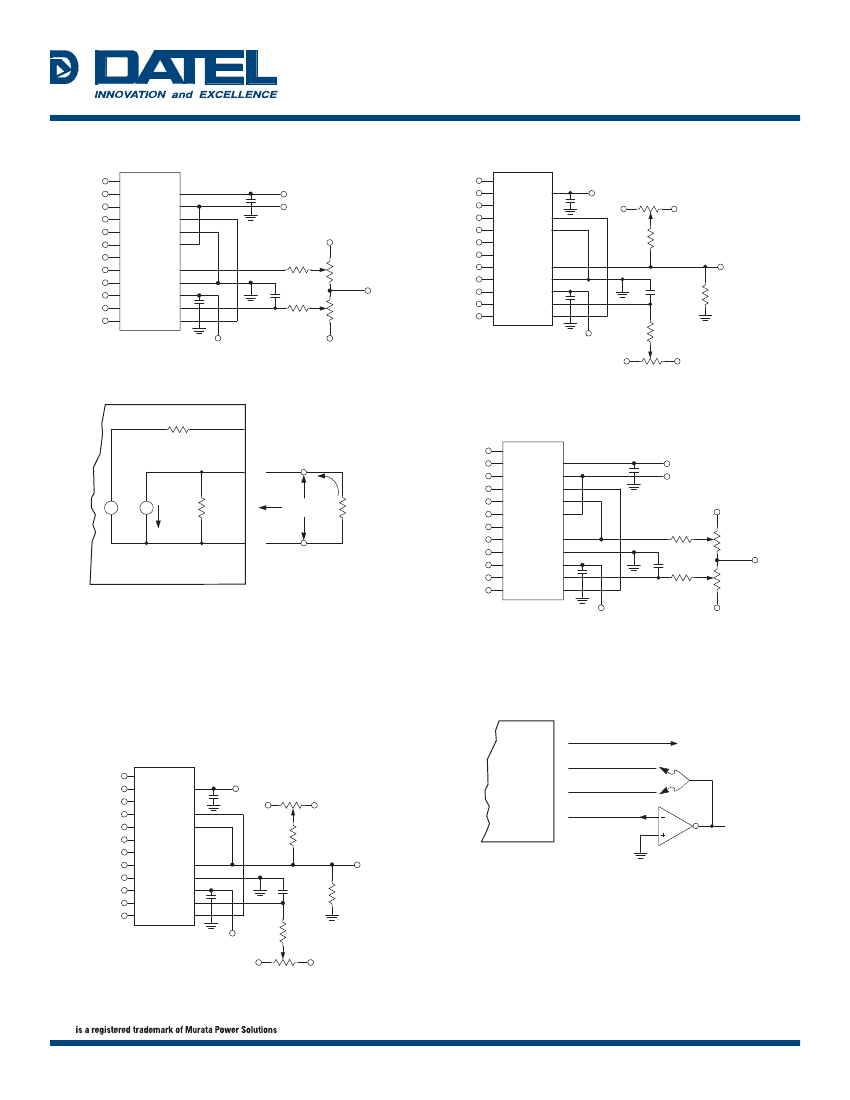

Figure 6. Bipolar Current Output Connections
DATEL
•
11 Cabot Boulevard, Mansfield, MA 02048-1151 USA •
Tel: (508) 339-3000
•
www.datel.com
• e-mail: help@datel.com
MDA_DAC-HZ.B03
Page 3 of 5
®
®
DAC-HZ Series
12-Bit, Industry-Standard Digital-to-Analog Converters
MECHANICAL DIMENSIONS (inches (mm))
1.31 MAX.
(33.27)
1.290 MAX.
(32.77 MAX.)
24
(unless otherwise indicated):
2 place decimal (.XX) ±0.010 (±0.254)
3 place decimal (.XXX) ±0.005 (±0.127)
0.80 MAX.
(20.32)
Kovar alloy
50 microinches (minimum)
gold plating over 100 microinches
(nominal) nickel plating
13
24
13
DATEL
0.500/0.610
(12.70/15.49)
1
12
1
0.100 TYP.
(2.540)
1.100
(27.940)
0.235 MAX.
(5.969)
0.200 MAX.
(5.080)
PIN 1
IDENTIFIER
12
0.225 MAX.
(5.72 MAX.)
0.015 / 0.075
(0.38 / 1.91)
0.010
–0.001
(0.254)
0.190 MAX.
(4.826)
0.018 ±0.002
(0.457)
0.100
(2.540)
0.040
(1.016)
+0.002
SEATING
PLANE
0.025
(0.635)
0.600 ±0.010
(15.240)
0.100
(2.540)
0.014 / 0.023
(0.36/0.58)
0.100 TYP.
(2.54)
0.030 / 0.070
(0.76 / 1.78)
0.120 / 0.200
(3.05 / 5.08)
0.590/0.620
(14.98/15.74)
ORDERING INFORMATION
MODEL
DAC-HZ12BGC
DAC-HZ12BGC-C
DAC-HZ12BMC
DAC-HZ12BMC-C
DAC-HZ12BME
DAC-HZ12BME-C
DAC-HZ12BMM
DAC-HZ12BMM-C
DAC-HZ12BMM-QL
DAC-HZ12BMM-QL-C
DAC-HZ12DGC
DAC-HZ12DGC-C
DAC-HZ12DMC
DAC-HZ12DMC-C
DAC-HZ12DME
DAC-HZ12DME-C
DAC-HZ12DMM
DAC-HZ12DMM-C
DAC-HZ12DMM-QL
DAC-HZ12DMM-QL-C
OPERATING
TEMPERATURE RANGE
0 to +70°C
0 to +70°C
0 to +70°C
0 to +70°C
–40 to +100°C
–40 to +100°C
–55 to +125°C
–55 to +125°C
–55 to +125°C
–55 to +125°C
0 to +70°C
0 to +70°C
0 to +70°C
0 to +70°C
–40 to +100°C
–40 to +100°C
–55 to +125°C
–55 to +125°C
–55 to +125°C
–55 to +125°C
OUTPUT CODING
Binary
Binary
Binary
Binary
Binary
Binary
Binary
Binary
Binary
Binary
BCD
BCD
BCD
BCD
BCD
BCD
BCD
BCD
BCD
BCD
SEAL
Epoxy
Epoxy
Hermetic
Hermetic
Hermetic
Hermetic
Hermetic
Hermetic
Hermetic
Hermetic
Epoxy
Epoxy
Hermetic
Hermetic
Hermetic
Hermetic
Hermetic
Hermetic
Hermetic
Hermetic
RoHS
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
Contact DATEL for information concerning our QL high-reliability
screening program.
DATEL
11 Cabot Boulevard, Mansfield, MA 02048-1151 USA
ITAR and ISO 9001/14001 REGISTERED
. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not
imply the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change
without notice.
© 2013
www.datel.com • e-mail: help@datel.com
MDA_DAC-HZ.B03
Page 5 of 5
京公网安备 11010802033920号
EEWORLD
