DL6359 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DL6359

DL6359: DescriptionDelay Line, 1-Func, 2-Tap, PDIP5; Categorylogic logic; File Size81KB，1 Pages; ManufacturerDatatronic

Download Datasheet Parametric Compare View All

DL6359 Overview

Delay Line, 1-Func, 2-Tap, PDIP5

DL6359 Parametric

Parameter Name	Attribute value
Maker	Datatronic
package instruction	DIP, DIP5/14,.3
Reach Compliance Code	compliant
JESD-30 code	R-PDIP-T5
Number of functions	1
Number of taps/steps	2
Number of terminals	5
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP5/14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	210 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

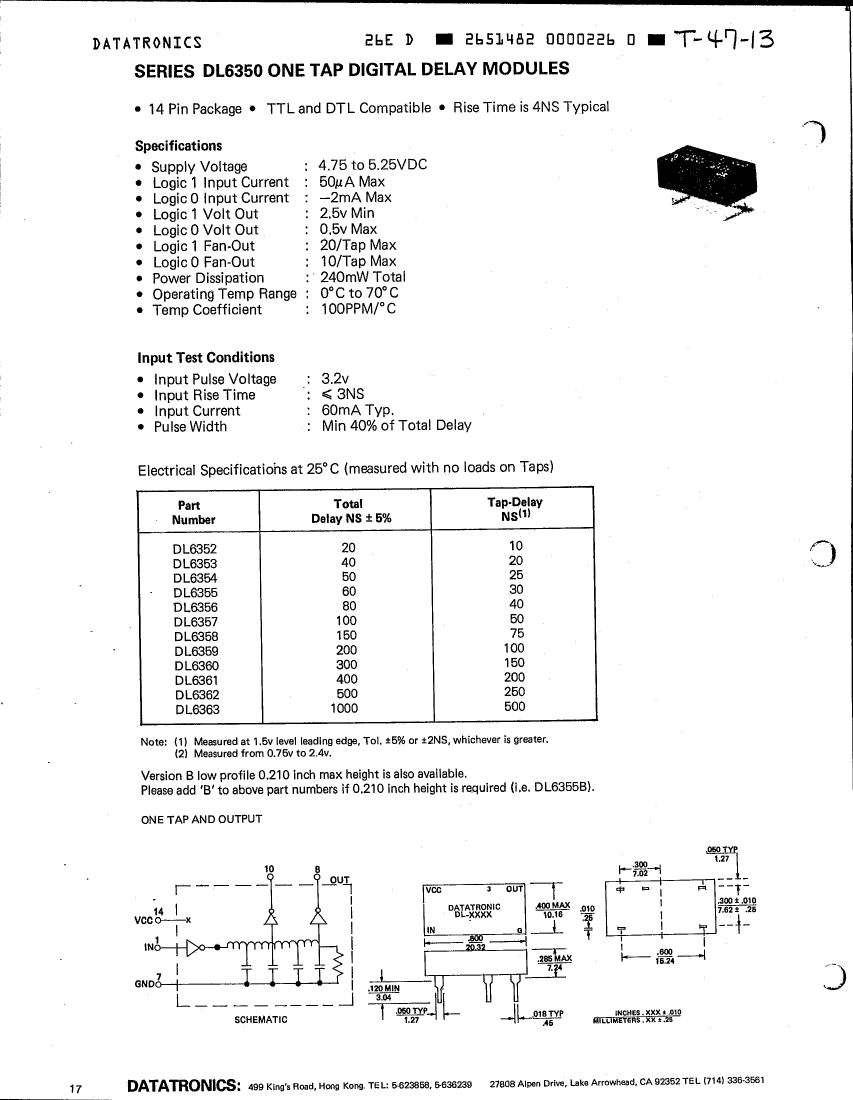

Preview

Download Datasheet

View All

DL6359 Related Products

	DL6359	DL6355	DL6360	DL6361	DL6362	DL6363
Description	Delay Line, 1-Func, 2-Tap, PDIP5	Delay Line, 1-Func, 2-Tap, PDIP5	Delay Line, 1-Func, 2-Tap, PDIP5	Delay Line, 1-Func, 2-Tap, PDIP5	Delay Line, 1-Func, 2-Tap, PDIP5	Delay Line, 1-Func, 2-Tap, PDIP5
Maker	Datatronic	Datatronic	Datatronic	Datatronic	Datatronic	Datatronic
package instruction	DIP, DIP5/14,.3	DIP, DIP5/14,.3	DIP, DIP5/14,.3	DIP, DIP5/14,.3	DIP, DIP5/14,.3	DIP, DIP5/14,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-PDIP-T5	R-PDIP-T5	R-PDIP-T5	R-PDIP-T5	R-PDIP-T5	R-PDIP-T5
Number of functions	1	1	1	1	1	1
Number of taps/steps	2	2	2	2	2	2
Number of terminals	5	5	5	5	5	5
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP5/14,.3	DIP5/14,.3	DIP5/14,.3	DIP5/14,.3	DIP5/14,.3	DIP5/14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
programmable delay line	NO	NO	NO	NO	NO	NO
Prop。Delay @ Nom-Sup	210 ns	63 ns	315 ns	420 ns	525 ns	1050 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
