DAJTE15S4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DAJTE15S4

DAJTE15S4: DescriptionD Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DAJTE15S4 Overview

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Receptacle,

DAJTE15S4 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

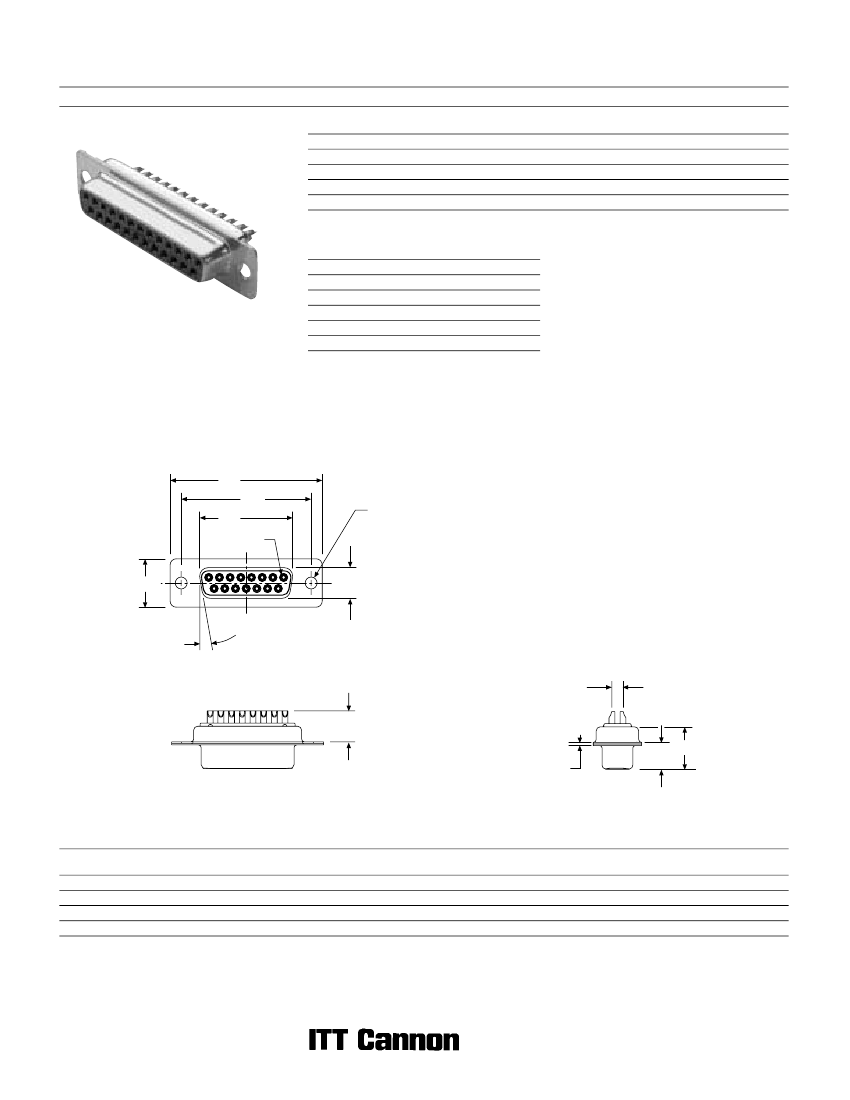

D Subminiature

D*JT — Solder Cup

Receptacle

Part Numbers

Shell Size

Layout

Through Hole

DEJT9S*

DAJT15S*

DBJT25S*

DCJT37S*

Clinch Nut #4-40 UNC

DEJTE9S*

DAJTE15S*

DBJTE25S*

DCJTE37S*

Filter D

Clinch Nut M3

DEJTX9S*

DAJTX15S*

DBJTX25S*

DCJTX37S*

* Insert filter designator. Example: DEJT9S4 (for 2000 pF filter capacitance)

Note: For performance class 1 add -A190. Example: DEJT9S1-A190

Reader’s Resource

For contact cavity arrangements,

see page 224.

For panel cutouts, see page 221.

For hardware views (European),

see page 227.

Filter Designator*

For electrical data, see page 107.

Filter Capacitance

1000 pF

500 pF

250 pF

2000 pF

5000 pF

Engaging Face

POSITION 1

Ø 3,05 (.120)

2,84 (.112)

9,80 (.386)

MAX

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,33 (.643)

24,66 (.971)

38,38 (1.511)

54,84 (2.159)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

7,90 (.311)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0,76 (.030)

Dimensions are shown in mm (inch)

Dimensions subject to change

123
