BR9566 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR9566

BR9566: Description10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size202KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BR9566 Overview

10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B

BR9566 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	24.5 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

BR9566 / SBR9566*

* Part number for additional environmental screening.

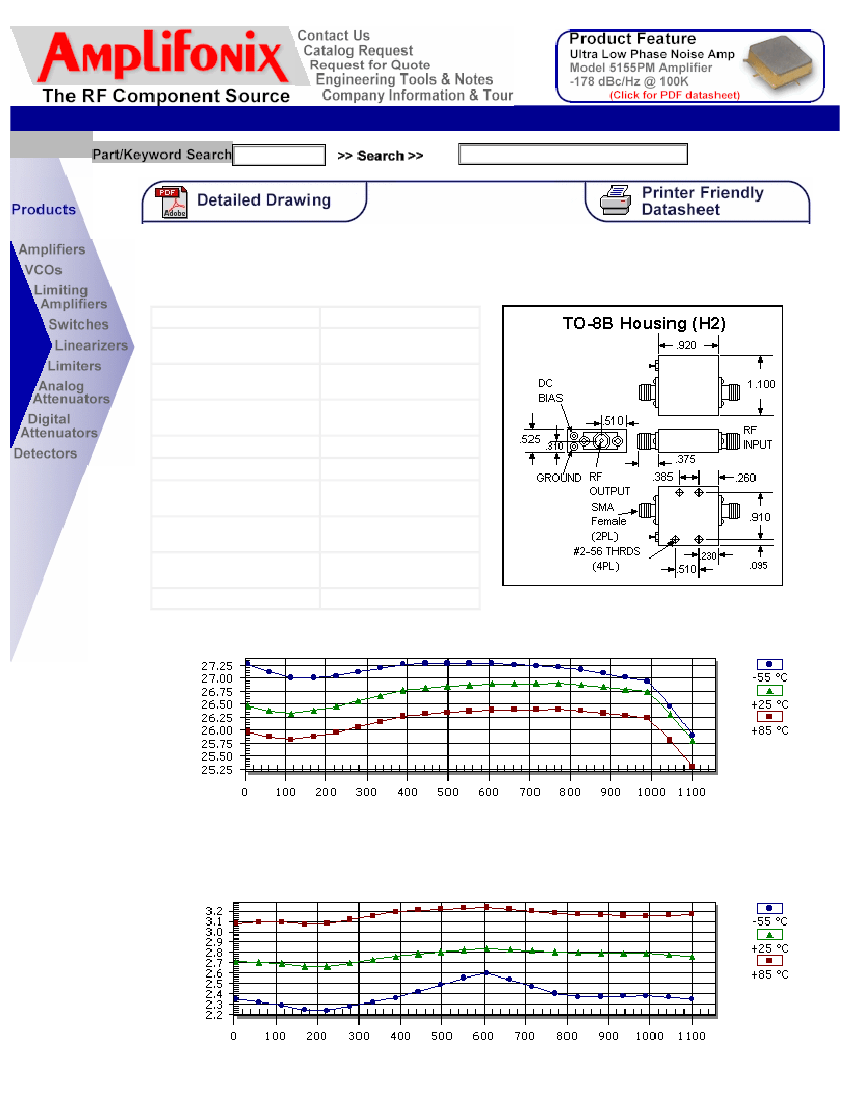

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 1000.0 MHz

26.0 dB Typical

24.5 dB Min

3.0 dB Typical

4.0 dB Max

0.5 dBm Typical

-0.5 dBm Min

12.0 dBm Typical

21.0 dBm Typical

1.5/2.0 Input Typ/Max

1.8/2.0 Output Typ/Max

-35.0 dB Typical

-34.0 dB Min

15.0 Volts

18.0 mA

-55.0 - 85.0 °C

Package Drawing

Gain

Frequency (MHz)

Noise Figure

BR9566 Related Products

	BR9566	SBR9566
Description	10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B	10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknow
Other features	SMA-F, I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COAXIAL
Gain	24.5 dB	24.5 dB
Maximum input power (CW)	6 dBm	6 dBm
Maximum operating frequency	1000 MHz	1000 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
