ZTX603Q

Description
Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3
CategoryDiscrete semiconductor    The transistor
File Size143KB,6 Pages
ManufacturerDiodes Incorporated
Download Datasheet Parametric View All

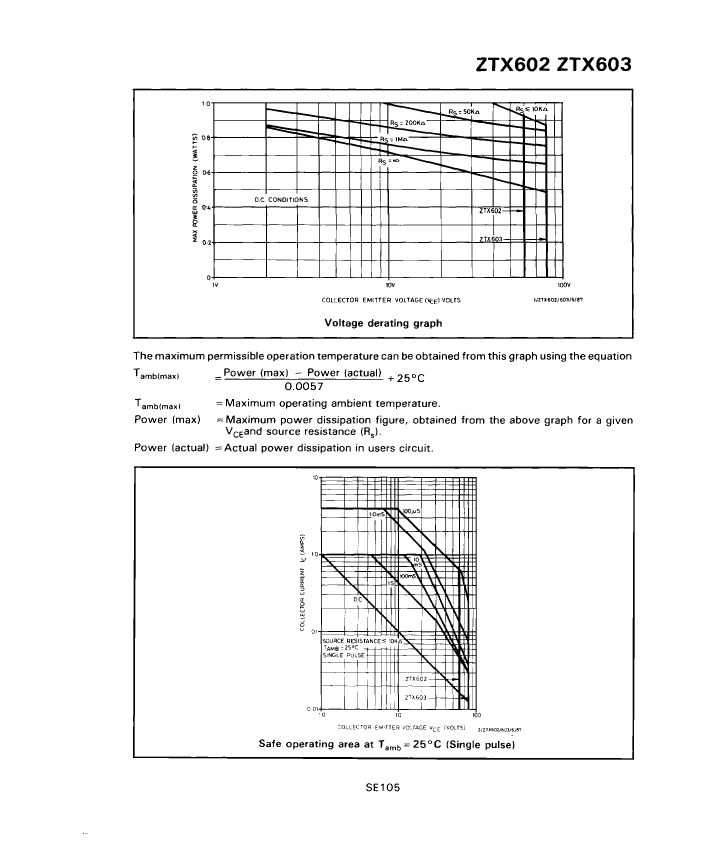

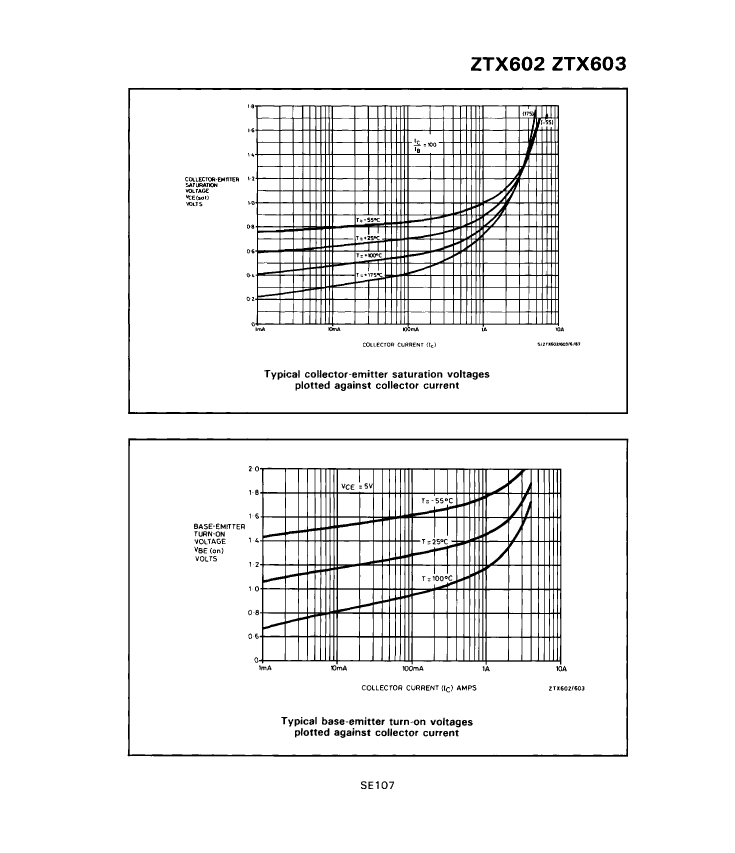

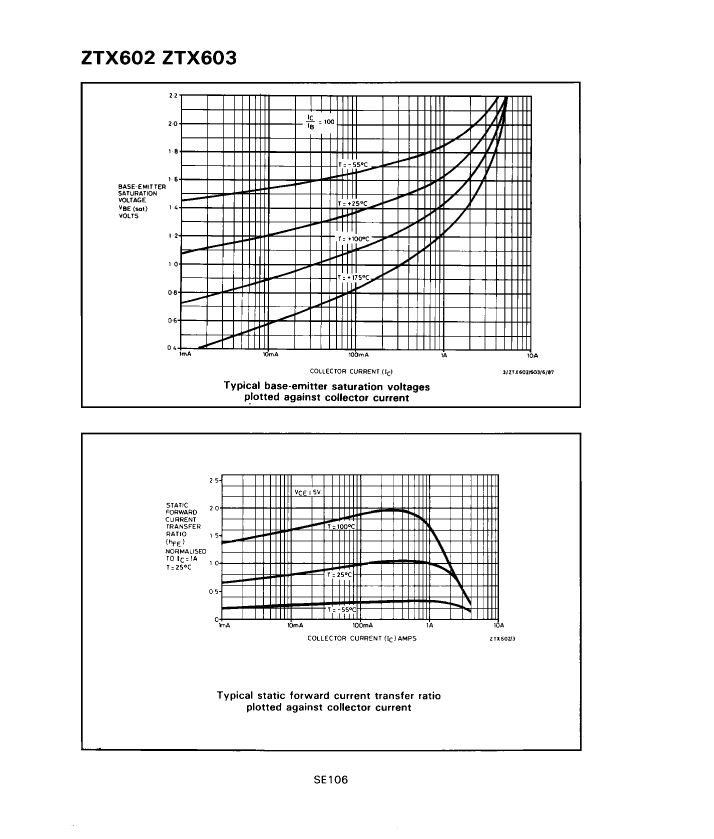

ZTX603Q Overview

Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, PLASTIC, TO-92 COMPATIBLE, E-LINE PACKAGE-3

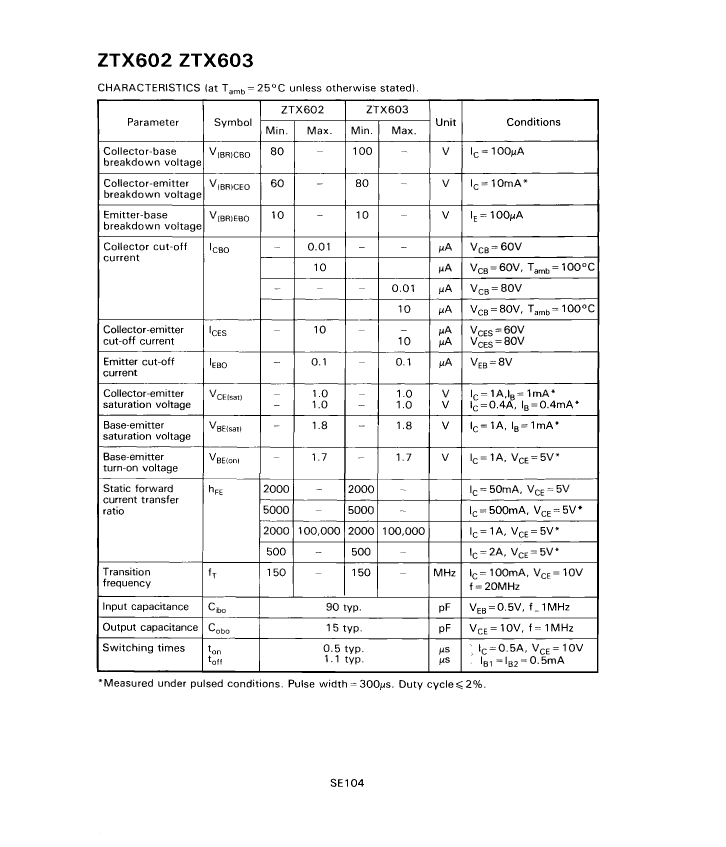

ZTX603Q Parametric

Parameter NameAttribute value
MakerDiodes Incorporated
Parts packaging codeTO-92
package instructionIN-LINE, R-PSIP-W3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum collector current (IC)1 A
Collector-emitter maximum voltage80 V
ConfigurationDARLINGTON
Minimum DC current gain (hFE)500
JESD-30 codeR-PSIP-W3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeNPN
Certification statusNot Qualified
GuidelineCECC
surface mountNO
Terminal surfaceMATTE TIN
Terminal formWIRE
Terminal locationSINGLE
Maximum time at peak reflow temperature40
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)150 MHz
